Zhiyun-Tech Crane 2 Monitor

Zhiyun-Tech Crane 2 Monitor

Code: C000031E    Brand: Zhiyun-Tech

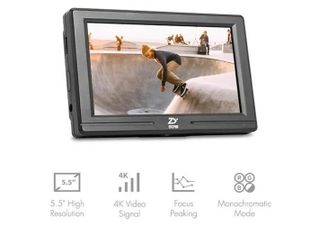

  • 5.5" High Resolution
  • 4K Video Signal
  • Focus Peaking
  • Monochromatic Mode
 NO STOCK
$369.00
APN: 6970194085142
Supplier Code: C000031E

HD Resolution

Zhiyun TransMount 5.5" Display Monitor IPS LCD panel features a resolution of 1920x1080 with high performance and supports HDMI 4K signal input.

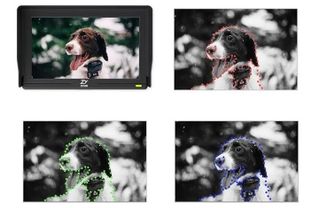

3 Colour Focus Peaking

Zhiyun TransMount 5.5" Display Monitor comes with red, green and blue Peaking Focus Assist, detecting focus fast to shoot ideal scenes.

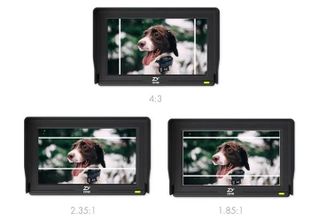

Safe Area & Auxiliary Line

Select from 3 classic auxiliary line ratios and 5 auxiliary line colours, as well as 80%, 85%, 90%, 93%, and 96% in the monitor system.

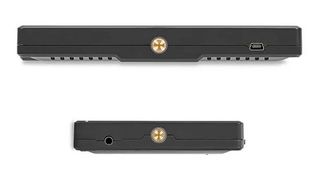

Flexible Installation

Designed with two 1/4" threaded holes, Zhiyun Trans Mount Display Monitor can be mounted on any appropriate location, catering to different shooting angles.

Multiple Functions

Numerous functions from monochrome display, false colour, zebra pattern, brightness histogram, and many are available.

HD Resolution

Zhiyun TransMount 5.5" Display Monitor IPS LCD panel features a resolution of 1920x1080 with high performance and supports HDMI 4K signal input. Its sunscreen panel features a see-through material that blocks outdoor stong light while maintaining a great view.

3 Colour Focus Peaking

Zhiyun TransMount 5.5" Display Monitor comes with red, green and blue Peaking Focus Assist, detecting focus fast to shoot ideal scenes.

Safe Area & Auxiliary Line

You can select scale safe are from 80%, 85%, 90%, 93%, and 96% in the monitor system to make the perfect layout. 3 classic auxiliary line ratios and 5 auxiliary line colours are also provided for you to choose freely.

3.5mm Headphone Jack

The monitor can connect headphones through the 3.5mm headphone jack to check sound reception, grasping real time audio.

Flexible Installation

Designed with two 1/4" threaded holes, Zhiyun Trans Mount Display Monitor can be mounted on any appropriate location, catering to different shooting angles.

Multiple Functions

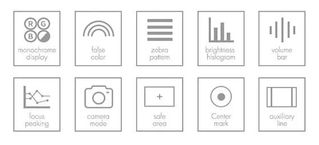

Numerous functions from monochrome display, false colour, zebra pattern, brightness histogram, volume bar, focus peaking, peaking colour, camera mode, safe area, center mark to auxiliary line can be found in the monitor.

Screen Size 5.5"
Resolution 1920x1080
On Screen Display 120.96x68.04 mm
Screen Ration 16:9
Brightness 330cd/m2
Contrast Ratio 1000:1
View Angle 160°/160°(H/V)
Signal Interface HDMI
Input Voltage DC 7-24V
Power Consumption ≤9W Typ
Operating Temperature 0°~60°
External Dimension 148x99x22mm
Weight 150g
HDMI Signal Format

720x480i & 720x480p @ 59.94, 60Hz
720x576i & 750x576 @ 50Hz
1280x720 @ 50, 59.94, 60HZ
1920x1080i @ 50, 59.94, 60HZ
1920x1080psf @ 24, 25, 29.97, 30, 50, 59.94, 60Hz
3840x2160p @ 24, 25, 30Hz
4096x2160p @ 24Hz

This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

OVERVIEW

HD Resolution

Zhiyun TransMount 5.5" Display Monitor IPS LCD panel features a resolution of 1920x1080 with high performance and supports HDMI 4K signal input. Its sunscreen panel features a see-through material that blocks outdoor stong light while maintaining a great view.

3 Colour Focus Peaking

Zhiyun TransMount 5.5" Display Monitor comes with red, green and blue Peaking Focus Assist, detecting focus fast to shoot ideal scenes.

Safe Area & Auxiliary Line

You can select scale safe are from 80%, 85%, 90%, 93%, and 96% in the monitor system to make the perfect layout. 3 classic auxiliary line ratios and 5 auxiliary line colours are also provided for you to choose freely.

3.5mm Headphone Jack

The monitor can connect headphones through the 3.5mm headphone jack to check sound reception, grasping real time audio.

Flexible Installation

Designed with two 1/4" threaded holes, Zhiyun Trans Mount Display Monitor can be mounted on any appropriate location, catering to different shooting angles.

Multiple Functions

Numerous functions from monochrome display, false colour, zebra pattern, brightness histogram, volume bar, focus peaking, peaking colour, camera mode, safe area, center mark to auxiliary line can be found in the monitor.

FEATURES

HD Resolution

Zhiyun TransMount 5.5" Display Monitor IPS LCD panel features a resolution of 1920x1080 with high performance and supports HDMI 4K signal input.

3 Colour Focus Peaking

Zhiyun TransMount 5.5" Display Monitor comes with red, green and blue Peaking Focus Assist, detecting focus fast to shoot ideal scenes.

Safe Area & Auxiliary Line

Select from 3 classic auxiliary line ratios and 5 auxiliary line colours, as well as 80%, 85%, 90%, 93%, and 96% in the monitor system.

Flexible Installation

Designed with two 1/4" threaded holes, Zhiyun Trans Mount Display Monitor can be mounted on any appropriate location, catering to different shooting angles.

Multiple Functions

Numerous functions from monochrome display, false colour, zebra pattern, brightness histogram, and many are available.

SPECIFICATIONS

Screen Size 5.5"
Resolution 1920x1080
On Screen Display 120.96x68.04 mm
Screen Ration 16:9
Brightness 330cd/m2
Contrast Ratio 1000:1
View Angle 160°/160°(H/V)
Signal Interface HDMI
Input Voltage DC 7-24V
Power Consumption ≤9W Typ
Operating Temperature 0°~60°
External Dimension 148x99x22mm
Weight 150g
HDMI Signal Format

720x480i & 720x480p @ 59.94, 60Hz
720x576i & 750x576 @ 50Hz
1280x720 @ 50, 59.94, 60HZ
1920x1080i @ 50, 59.94, 60HZ
1920x1080psf @ 24, 25, 29.97, 30, 50, 59.94, 60Hz
3840x2160p @ 24, 25, 30Hz
4096x2160p @ 24Hz
