Sigma 105mm f/2.8 Macro EX DG OS HSM Lens

Sigma 105mm f/2.8 Macro EX DG OS HSM Lens

CHOOSE OPTIONS
stock due: 18/04/2024 ETA: 18/04/2024
(from time of order)
stock due: 18/04/2024 ETA: 18/04/2024
(from time of order)
PRODUCT ENQUIRY
ETA from time of order
  • Lens construction: 16 elements in 11 groups
  • Angle of view: 23.3°
  • Number of diaphragm blades: F22
  • Minimum focusing distance: 1:1
Brand: Sigma   |    Code: ZSW105F28EXDG

High rendering performance

The Super Multi-Layer Coating reduces flare and ghosting, maintaining quality images with high contrast.

Quiet and speedy AF

HSM (Hyper Sonic Motor) provides quiet and high speed AF.



EX | OS | HSM | IF | CONV

This large aperture medium telephoto macro lens offers advanced performance of close-up photography. Sigma’s own proprietary OS (Optical Stabilizer) system enables handheld close-up photography. A Special Low Dispersion (SLD) lens and one high refractive index SLD lens provide excellent correction for all types of aberration and distortion. A floating focusing system moves two different lens groups in the optical path to different positions. This system compensates for astigmatic aberration and spherical aberration and provides extremely high optical performance from infinity to 1:1 Macro.The Super Multi-Layer Coating reduces flare and ghosting, providing high contrast images. It is also possible to use this lens with Sigma's APO Teleconverters. The HSM (Hyper Sonic Motor) ensures quiet and high speed autofocus as well as full-time manual focus capability. This lens features a rounded 9 blade diaphragm creating an attractive blur to the out of focus areas of the image.

High performance, large aperture medium telephoto macro lens with OS (Optical Stabilizer).

High performance, large aperture medium telephoto macro lens with OS (Optical Stabilizer).
SLD glass provides good control of aberration and the floating inner focus system ensures high rendering throughout the focusing range. By using Sigma's APO Tele Converter, it is possible to take photos at greater than 1:1 magnification. HSM ensures a quiet and high speed AF as well as full-time manual focus override. This lens has a rounded 9 blades diaphragm which creates an attractive blur to the out of focus areas.

High rendering performance

The lens power layout produces excellent optical performance. High refractive index SLD (Special Low Dispersion) glass corrects chromatic aberration, spherical aberration and field curvature. It ensures high rendering performance at all shooting distances. The Super Multi-Layer Coating reduces flare and ghosting, maintaining quality images with high contrast.

Large aperture medium telephoto macro lens

This medium telephoto macro lens allows you to maintain an appropriate distance from subjects while still getting close up photos. Since the working distance at its closest focusing position is 142mm, shadows of the lens and camera will not affect photography making it suitable for taking photos of subjects, such as flowers, under natural lighting conditions. In comparison to the Sigma 50mm and 70mm macro lenses, the main subjects can be defined with perfectly smooth and blurred backgrounds.

Floating inner focusing

This lens incorporates floating inner focusing which moves two lens groups separately. This minimizes aberrations which occur as shooting distance changes, and enables stable rendering of the image from infinity to 1:1 magnification. This also corrects image distortion, especially when taking close-up pictures. Since focusing does not change its overall length, this lens is easy to hold and use.

Handheld photography with ease

Incorporation of the OS function offers superior stabilizaion As the stabilisation effect is visible through the viewfinder, it aids composition and accurate focusing.

* The OS effectiveness will gradually decrease as the shooting distance becomes shorter.

Rounded 9 blades diaphragm

This lens has a rounded 9 blade diaphragm which creates an attractive blur to the out of focus areas. This also creates smooth, rounded out of focus highlights when taking photos which have a strong light source in the background such as lights shining on the surface of water.

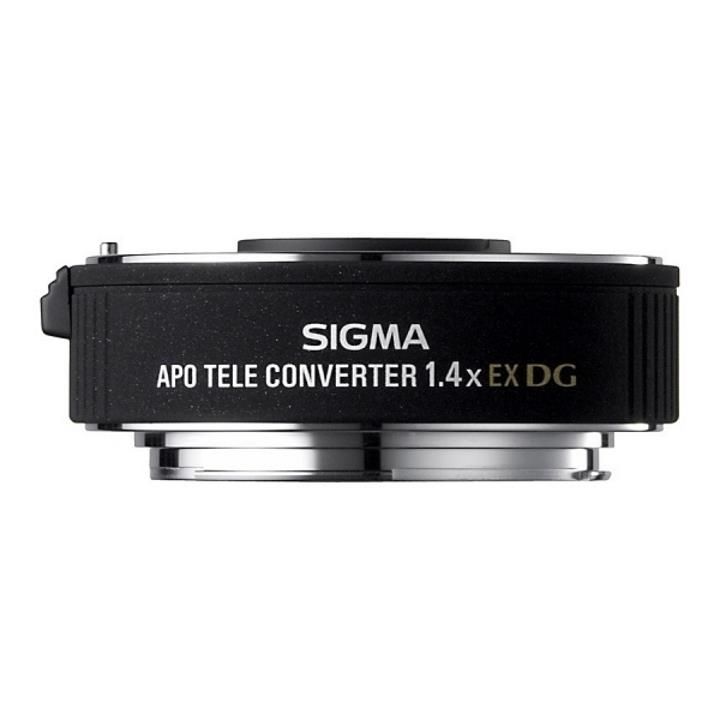

APO Tele converters

This lens is compatible with Sigma's APO TELE CONVERTERS. With APO TELE CONVERTER 1.4x EX DG, it can be used as 147mm F4 AF* telephoto macro lens, and APO TELE CONVERTER 2x EX DG as 210mm F5.6 MF telephoto macro lens. This allows a greater working distance while still achieving 1:1 macro magnification.

* AF does not work from 0.45m close up photography.

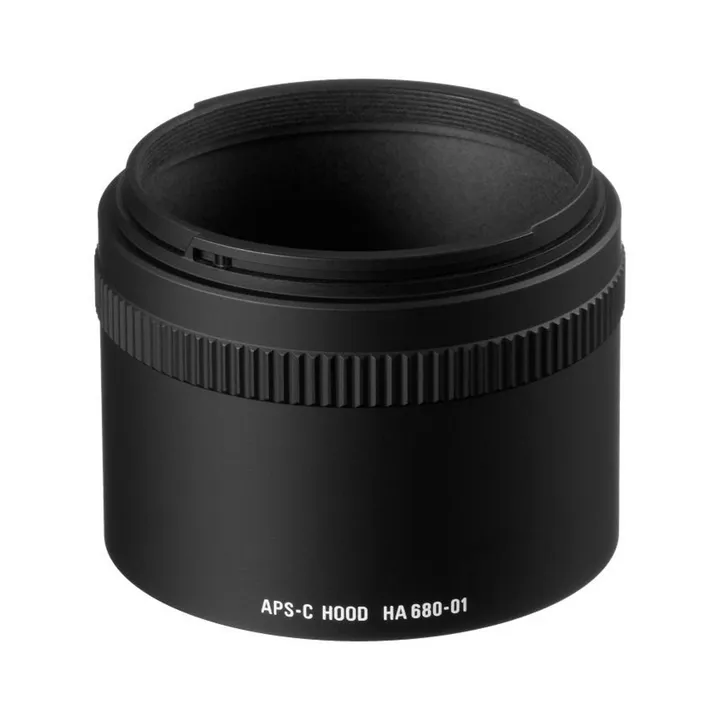

Dedicated hood adapter

When taking photos with APS-C sized digital SLR, the (supplied) dedicated hood adapter, which extends the length of the hood can be attached. This gives more protection from harmful lights that could negatively affect image quality.

* When taking photos with full-size digital SLR, please remove HA680-01 in order to avoid the edges of image being blocked.


Sample Photos













Performance Data

MTF

Distortion

Vignetting Chart

Lens construction
Lens construction 16 elements in 11 groups
Angle of view 23.3°
Number of diaphragm blades F22
Minimum focusing distance 1:1
Filter size ⌀62mm
Dimensions (diameter × length) ⌀78.3mm×126.4mm / 3.1in. x 5.0in.
Weight  725g / 25.6oz.

Corresponding AF Mounts

SIGMA / NIKON / CANON

Sony mounts have been discontinued in production.
Nikon mount of this lens is not equipped with an aperture ring, therefore, depending on the camera model some functions may not work.
This lens cannot be used with film SLR cameras with the exception of the Nikon F6 and Canon EOS-1v.
When using the OS function of a lens with a camera which incorporates a stabilizer unit, please turn the camera's stabilizer unit off.
When using the APS-C Hood Adapter HA680-01 with digital cameras with larger than APS-C size image sensor, vignetting will occur. Please remove he hood adapter id you are using these cameras.
The appearance and specification are subject to change without notice.



What's in the box:

  • Sigma 105mm f/2.8 EX DG OS HSM Macro Lens

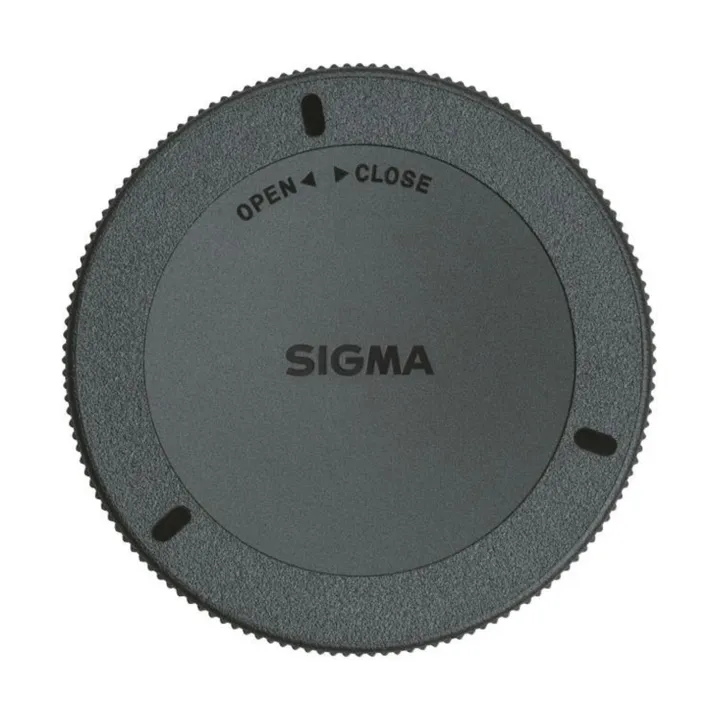

  • Front & Rear Lens Caps

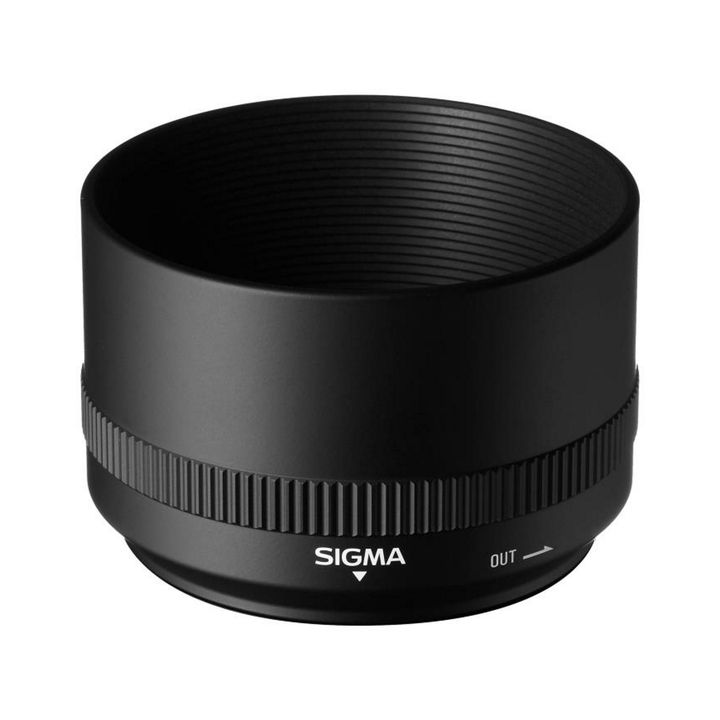

  • Lens Hood
  • Hood Adapter
  • Lens Case



OVERVIEW

EX | OS | HSM | IF | CONV

This large aperture medium telephoto macro lens offers advanced performance of close-up photography. Sigma’s own proprietary OS (Optical Stabilizer) system enables handheld close-up photography. A Special Low Dispersion (SLD) lens and one high refractive index SLD lens provide excellent correction for all types of aberration and distortion. A floating focusing system moves two different lens groups in the optical path to different positions. This system compensates for astigmatic aberration and spherical aberration and provides extremely high optical performance from infinity to 1:1 Macro.The Super Multi-Layer Coating reduces flare and ghosting, providing high contrast images. It is also possible to use this lens with Sigma's APO Teleconverters. The HSM (Hyper Sonic Motor) ensures quiet and high speed autofocus as well as full-time manual focus capability. This lens features a rounded 9 blade diaphragm creating an attractive blur to the out of focus areas of the image.

High performance, large aperture medium telephoto macro lens with OS (Optical Stabilizer).

High performance, large aperture medium telephoto macro lens with OS (Optical Stabilizer).
SLD glass provides good control of aberration and the floating inner focus system ensures high rendering throughout the focusing range. By using Sigma's APO Tele Converter, it is possible to take photos at greater than 1:1 magnification. HSM ensures a quiet and high speed AF as well as full-time manual focus override. This lens has a rounded 9 blades diaphragm which creates an attractive blur to the out of focus areas.

High rendering performance

The lens power layout produces excellent optical performance. High refractive index SLD (Special Low Dispersion) glass corrects chromatic aberration, spherical aberration and field curvature. It ensures high rendering performance at all shooting distances. The Super Multi-Layer Coating reduces flare and ghosting, maintaining quality images with high contrast.

Large aperture medium telephoto macro lens

This medium telephoto macro lens allows you to maintain an appropriate distance from subjects while still getting close up photos. Since the working distance at its closest focusing position is 142mm, shadows of the lens and camera will not affect photography making it suitable for taking photos of subjects, such as flowers, under natural lighting conditions. In comparison to the Sigma 50mm and 70mm macro lenses, the main subjects can be defined with perfectly smooth and blurred backgrounds.

Floating inner focusing

This lens incorporates floating inner focusing which moves two lens groups separately. This minimizes aberrations which occur as shooting distance changes, and enables stable rendering of the image from infinity to 1:1 magnification. This also corrects image distortion, especially when taking close-up pictures. Since focusing does not change its overall length, this lens is easy to hold and use.

Handheld photography with ease

Incorporation of the OS function offers superior stabilizaion As the stabilisation effect is visible through the viewfinder, it aids composition and accurate focusing.

* The OS effectiveness will gradually decrease as the shooting distance becomes shorter.

Rounded 9 blades diaphragm

This lens has a rounded 9 blade diaphragm which creates an attractive blur to the out of focus areas. This also creates smooth, rounded out of focus highlights when taking photos which have a strong light source in the background such as lights shining on the surface of water.

APO Tele converters

This lens is compatible with Sigma's APO TELE CONVERTERS. With APO TELE CONVERTER 1.4x EX DG, it can be used as 147mm F4 AF* telephoto macro lens, and APO TELE CONVERTER 2x EX DG as 210mm F5.6 MF telephoto macro lens. This allows a greater working distance while still achieving 1:1 macro magnification.

* AF does not work from 0.45m close up photography.

Dedicated hood adapter

When taking photos with APS-C sized digital SLR, the (supplied) dedicated hood adapter, which extends the length of the hood can be attached. This gives more protection from harmful lights that could negatively affect image quality.

* When taking photos with full-size digital SLR, please remove HA680-01 in order to avoid the edges of image being blocked.


Sample Photos













Performance Data

MTF

Distortion

Vignetting Chart

FEATURES

High rendering performance

The Super Multi-Layer Coating reduces flare and ghosting, maintaining quality images with high contrast.

Quiet and speedy AF

HSM (Hyper Sonic Motor) provides quiet and high speed AF.



SPECIFICATIONS

Lens construction
Lens construction 16 elements in 11 groups
Angle of view 23.3°
Number of diaphragm blades F22
Minimum focusing distance 1:1
Filter size ⌀62mm
Dimensions (diameter × length) ⌀78.3mm×126.4mm / 3.1in. x 5.0in.
Weight  725g / 25.6oz.

Corresponding AF Mounts

SIGMA / NIKON / CANON

Sony mounts have been discontinued in production.
Nikon mount of this lens is not equipped with an aperture ring, therefore, depending on the camera model some functions may not work.
This lens cannot be used with film SLR cameras with the exception of the Nikon F6 and Canon EOS-1v.
When using the OS function of a lens with a camera which incorporates a stabilizer unit, please turn the camera's stabilizer unit off.
When using the APS-C Hood Adapter HA680-01 with digital cameras with larger than APS-C size image sensor, vignetting will occur. Please remove he hood adapter id you are using these cameras.
The appearance and specification are subject to change without notice.



IN THE BOX

What's in the box:

  • Sigma 105mm f/2.8 EX DG OS HSM Macro Lens
  • Front & Rear Lens Caps
  • Lens Hood
  • Hood Adapter
  • Lens Case
