Zeiss C-Biogon 35mm f/2.8 ZM Lens for Leica M-Mount

Loading
  • Zeiss C-Biogon 35mm f/2.8 ZM Lens for Leica M-Mount

Product options:

  • Leica M-Mount Lens
  • Aperture Range: f/2.8 to f/22
  • One Low Dispersion Element
  • ZEISS T* Anti-Reflective Coating
  • Manual Focus Design
  • Minimum Focus Distance: 2.3'
  • Filter Thread: 43mm
  • 10-Blade Diaphragm

Minimized Focus Shift

ZEISS T*® ZM-mount lenses are specifically designed to minimize focus shift with aperture changes – an important innovation with big benefits for rangefinder photography. As a result, you can expect improved accuracy of the rangefinder-defined focus. While the precise 10-blade aperture with 1/3 stop interval click stops ensures exact exposure.

Excellent image quality

The range of ZEISS T*® lenses offers the highest possible standards in terms of performance, reliability and, of course, image quality. Quite simply, they are superior in every way. You can count on highly advanced flare control for crisp and brilliant images, for example. And virtually zero geometric distortion, ensuring precise accuracy when reproducing shapes – especially useful when photographing products and architecture.

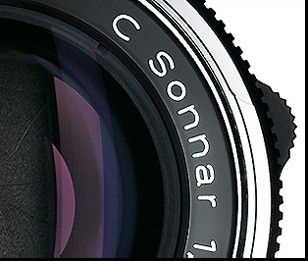

ZEISS T* anti-reflective coating

The optical elements of ZEISS lenses feature T*® anti-reflective coating on all surfaces and an optical design that guarantees images of superior brilliance at all times, even in unfavourable lighting conditions. We apply the anti-reflective coating to the lens surfaces by the vapour deposition of extremely thin, transparent layers on the glass. In this process, special substances are vaporized with extremely high energy in a high-vacuum environment and are subsequently deposited on the glass surfaces, one after another, as layers with precisely controlled thicknesses to achieve the desired reduction of reflective properties. The first coating techniques were employed by ZEISS as long ago as in the 1930s.

Smooth, precise focusing

Manually focusing a lens means controlling the image result from your fingertips. A good ergonomic design makes all the difference. The user-friendly focusing ring on ZEISS lenses with an ergonomic finger rest is perfect for fast, precise focusing. Changes are immediately visible in the viewfinder. The high-quality focusing mechanism moves smoothly without play, thus also supporting the intuitive interaction with the focal plane.

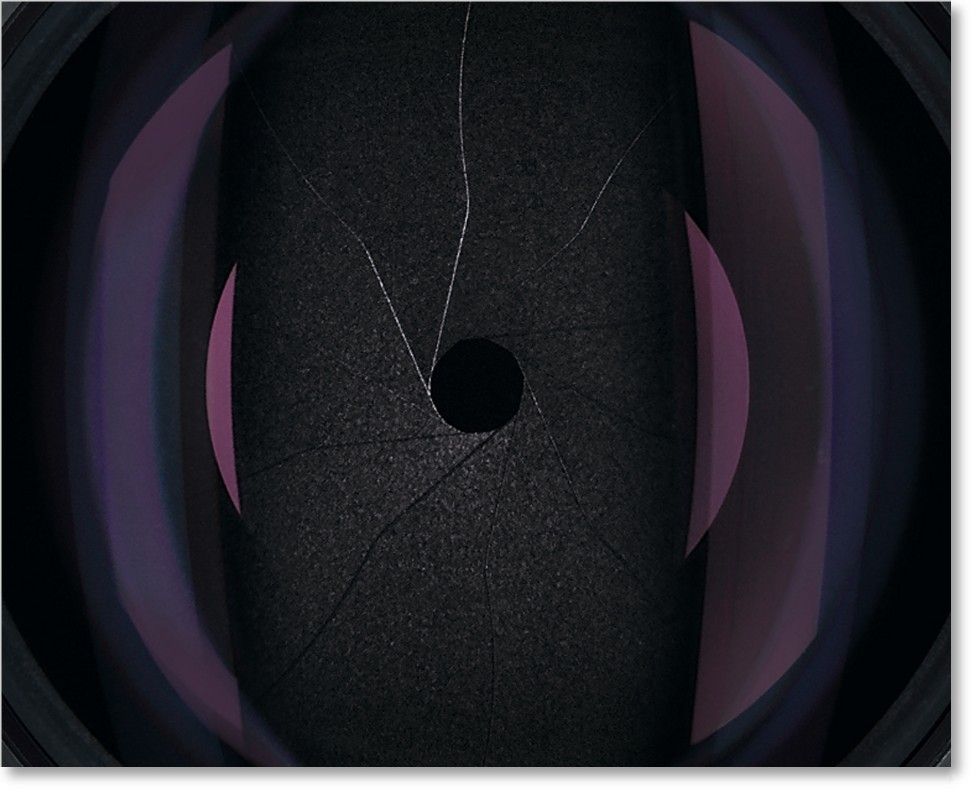

Ideal aperture properties

Photographers want to guide the observer through the image. Minimal depth of focus is often used as a design element. This keeps the background intentionally blurred to keep the attention of the observer on the main subject. The ZM lenses feature ten aperture blades. The almost circular aperture helps to create a particularly harmonious effect in the out-of-focus areas of the picture (bokeh).

Focal Length 35mm
Maximum Aperture f/22
Minimum Aperture f/2.8
Camera Mount Type Leica M
Angle of View 62°
Minimum Focus Distance 2.3' / 70 cm
Maximum Reproduction Ratio 1:17
Optical Design 7 Elements in 5 Groups
Diaphragm Blades 10
Filter Thread 43mm
Dimensions ø: 2.0 x L: 2.2" / ø: 52.0 x L: 55.0 mm
Weight 7.1 oz / 200 g

Brochures
00ZEISCBN35M2.8Z - Brochure
Datasheets
Zeiss C-Biogon 35mm f/2.8 ZM Lens for Leica M-Mount - Datasheet

Brand: Zeiss | Code: 1486393

Product options:

Brand: Zeiss | Code: 1486393

At a glance

  • Leica M-Mount Lens
  • Aperture Range: f/2.8 to f/22
  • One Low Dispersion Element
  • ZEISS T* Anti-Reflective Coating
  • Manual Focus Design
  • Minimum Focus Distance: 2.3'
  • Filter Thread: 43mm
  • 10-Blade Diaphragm
