Zeiss Touit 12mm f/2.8 Lens

Loading
  • Zeiss Touit 12mm f/2.8 Lens

Product options:

  • Aperture Range: f/2.8-22
  • Designed for APS-C-Sized Sensors
  • 35mm Equivalent Focal Length: 18mm
  • Floating Element Design
  • Two Aspherical Lens Elements
  • Distagon Optical Design
  • Carl ZEISS T* Anti-Reflective Coating
  • Rigid Metal Construction
  • Rubberized Control Rings

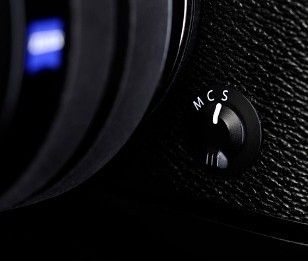

Smooth and reliable autofocus

The design of the autofocus system demands an extremely precise movement of certain lens elements. As the mass of the elements or groups to be moved within the optical system differs, various motor types may be installed. The focusing system of the Touit lenses is designed to guarantee robust and smooth autofocusing without any need for compromises or limitations in their optical design.

Innovative product design

Innovative product design to ensure superior handling and fulfil the most stringent aesthetic expectations. ZEISS lenses are among the winners of the several thousand products entered for prominent design awards. The unmistakeable new product design is based on an integrative concept and focuses on essential functional elements. Even the lens hood, typically an accessory, is seamlessly integrated into the overall design. The metal bayonet mount guarantees extreme rigidity and rubberised setting rings enable precise manual control when needed. Flush-fitting, satinised surfaces visualise the optical and mechanical precision of each lens.

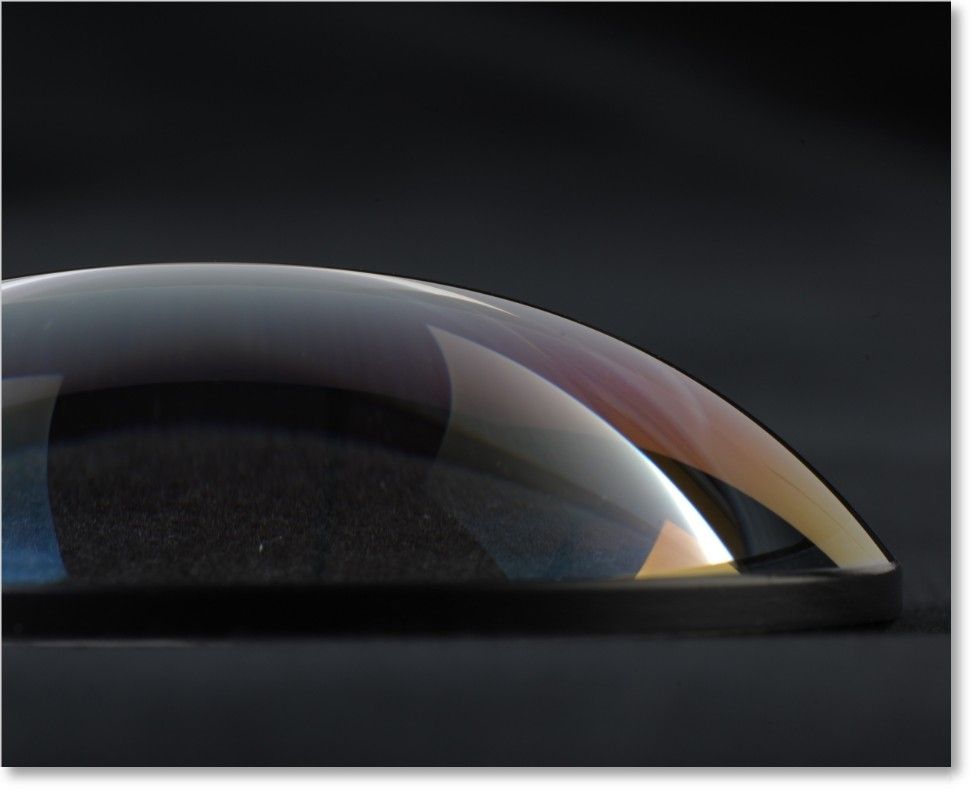

Aspherical design

The aspherical lens design ensures consistent imaging performance throughout the entire focusing range as well as sharpness to the periphery of the image. The asphere's more complex surface profile can reduce or eliminate spherical aberration and also reduce other optical aberrations compared to a simple lens.

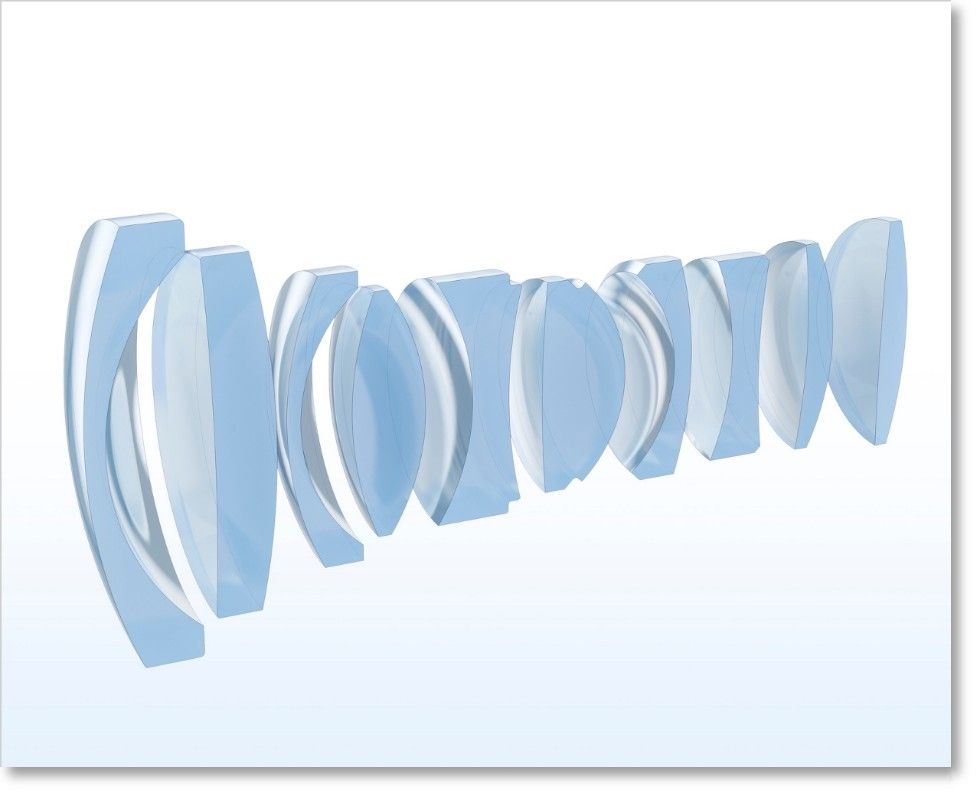

Floating Elements Design

Today’s camera technologies and high-resolution sensors demand continuous improvement of lens performance. Thanks to the use of the latest floating element design principles, optical aberration effects in ZEISS lenses are reduced to a minimum throughout their entire focusing range. This is achieved by variation of the axial distance between individual lens elements or groups. This adjustment of the lens-to-lens distance is coupled to the distance setting to ensure correct compensation at all times. The mechanical construction of these lenses is extremely complex and they must be assembled with utmost precision – both of which are key competencies of ZEISS.

ZEISS T* anti-reflective coating

The optical elements of ZEISS lenses feature T*® anti-reflective coating on all surfaces and an optical design that guarantees images of superior brilliance at all times, even in unfavourable lighting conditions. We apply the anti-reflective coating to the lens surfaces by the vapour deposition of extremely thin, transparent layers on the glass. In this process, special substances are vaporized with extremely high energy in a high-vacuum environment and are subsequently deposited on the glass surfaces, one after another, as layers with precisely controlled thicknesses to achieve the desired reduction of reflective properties. The first coating techniques were employed by ZEISS as long ago as in the 1930s.

Performance

Focal Length 12mm
Comparable 35mm Focal Length: 18 mm
Aperture Maximum: f/2.8
Minimum: f/22
Angle of View 99°
Minimum Focus Distance 7.09" / 18 cm
Maximum Reproduction Ratio 1:9
Optical Design 11 Elements in 8 Groups
Diaphragm Blades 9

Features

Image Stabilization No
Autofocus Yes

Physical

Filter Thread Front: 67 mm
Dimensions (DxL) 65 x 86 mm (Fujifilm X-Mount) / 65 x 81 mm (Sony E-Mount)
Weight 270 g (X) / 260 g (E)

Brochures
00ZEISTIT12M2.8 - Brochure
Datasheets
Zeiss Touit 12mm f/2.8 Lens - Datasheet

  • ZEISS Touit 12mm f/2.8 Lens
  • Front and Rear Lens Caps
  • Lens Hood

Brand: Zeiss | Code: 2030526

Product options:

Brand: Zeiss | Code: 2030526

At a glance

  • Aperture Range: f/2.8-22
  • Designed for APS-C-Sized Sensors
  • 35mm Equivalent Focal Length: 18mm
  • Floating Element Design
  • Two Aspherical Lens Elements
  • Distagon Optical Design
  • Carl ZEISS T* Anti-Reflective Coating
  • Rigid Metal Construction
  • Rubberized Control Rings
