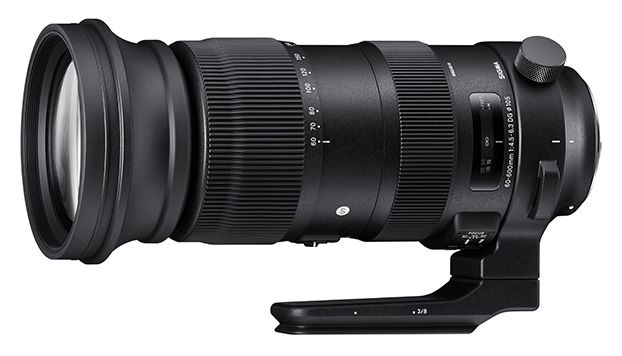

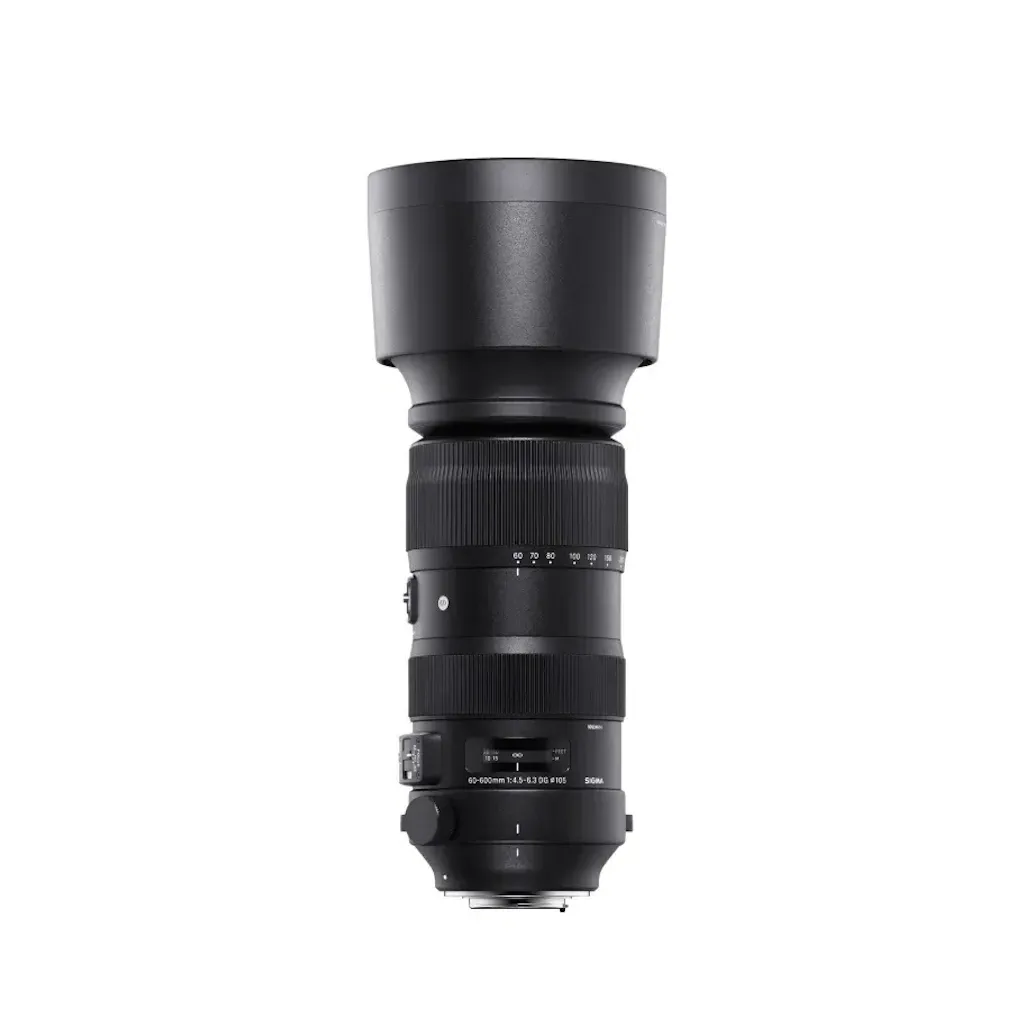

Sigma 60-600mm f/4.5-6.3 DG OS Sports Lens

Loading
  • Sigma 60-600mm f/4.5-6.3 DG OS Sports Lens

Product options:

  • Aperture Range: f/4.5 to f/32
  • Three FLD Elements, One SLD Element
  • Super Multi-Layer Coating
  • Hyper Sonic AF Motor
  • Intelligent OS Image Stabilization
  • Removable Arca-Type Tripod Foot
  • TSC Material, Dust- and Moisture-Sealed
  • Rounded 9-Blade Diaphragm
  • Compatible with Sigma Teleconverters
  • The Absolute All-Rounder.
    Effortlessly Covering From Standard to Hyper-Telephoto.

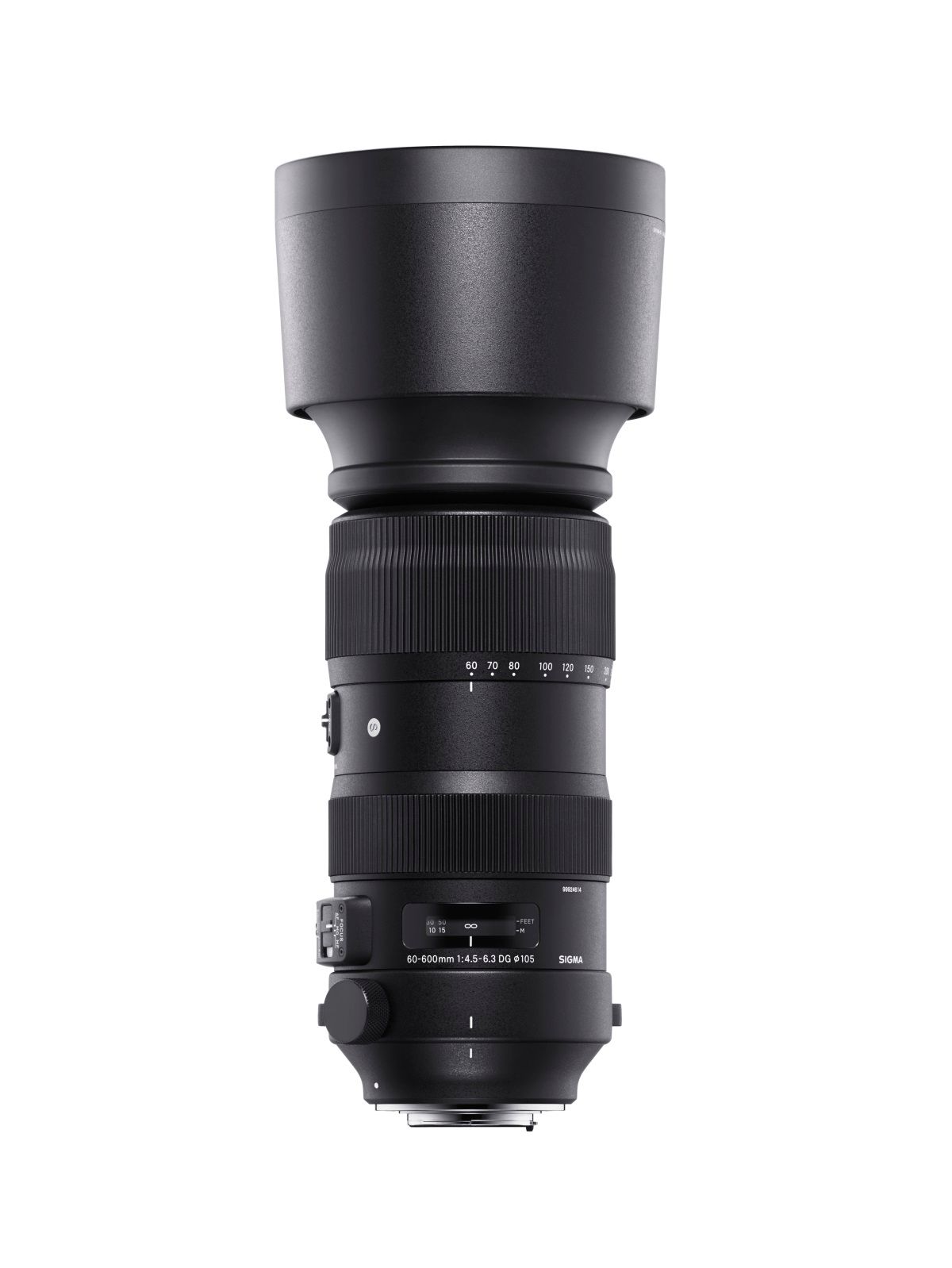

    The world’s first 10× optical zoom telephoto lens with a tele end of 600mm

    The world’s first 10× optical zoom telephoto lens with a tele end of 600mm
    Covering from 60mm to 600mm, the 10× hyper-telephoto zoom lens achieves the same level of high image quality as the SIGMA 150–600mm F5-6.3 DG OS HSM | Sports. With the lens construction of 25 elements in 19 groups, consistent image quality can be created throughout the entire zoom range. This lens also incorporates Intelligent OS* adopting the latest algorithm to deliver an image stabilization effect of 4 stops. The high-speed AF, thanks to the HSM (Hyper Sonic Motor) with an updated algorithm, captures instantaneous photography movement. High ratio, high image quality, and high mobility ―The SIGMA 60–600mm F4.5-6.3 DG OS HSM | Sports marks the birth of a lens that is on another level from existing high ratio zoom lenses.

    *In Mode 2, the movements of subjects can be captured without losing panning effects thanks to the image stabilization function even when the camera is moved horizontally, vertically, or diagonally—regardless of the position of the lens.


    Embodying the concept of our Sports line of lenses, this lens responds directly to photographers' needs with outstanding action-capture performance.

    In addition to the highest levels of optical performance and photographic expression, SIGMA's new Sports line of lenses offers the kind of action-capture performance that precisely executes the intentions of the photographer. Uncompromising optical performance and photographic expression allow the photographer to shoot fast-moving and distant subjects, while exceptional functionality makes possible excellent shots even in the most challenging of situations. Fully customizable, it allows the photographer to create his or own specification. It is an ideal choice for photographing many different subjects; birds, wild animals, airplanes, motorsports, and even portraits. And SIGMA's exclusive software makes the lens extremely easy to customize.


    High optical quality meeting the most stringent needs of professional photographers

    This lens incorporates three FLD (“F” Low Dispersion) glass elements and one SLD (Special Low Dispersion) glass element to provide excellent correction of magnification chromatic aberration encountered in hyper-telephoto shooting. This offers both high resolution and consistent edge to edge performance through the entire zoom range. In addition, when shooting at the focal length of 200mm, the SIGMA 60–600mm F4.5-6.3 DG OS HSM | Sports can also be used for telephoto macro photography, with a maximum magnification ratio of 1:3.3, thanks to its high rendering performance.

    Incorporating multi-material to achieve both portability and durability

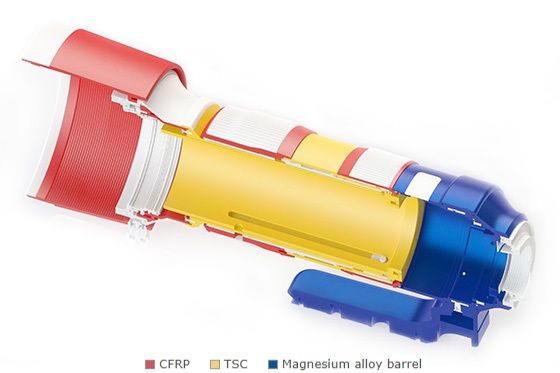

    To achieve comfortable handling required for a 10x zoom lens while maintaining high optical quality, the SIGMA 60-600mm F4.5-6.3 DG OS HSM | Sports incorporates multi-material, such as magnesium, CFRP*¹, and TSC*² . The use of these superior materials in the right place reduces the weight of the overall lens to enhance portability and ensure durability.
    *¹ Carbon fiber reinforced plastic, a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.
    *² Thermally Stable Composite (TSC) offers thermal expansion characteristics similar to those of aluminum. Since parts made with TSC expand and contract less due to changes in temperature, they tend to perform better under extreme conditions and help maintain the performance of the lens. TSC also offers outstanding elasticity. Compared to polycarbonate containing 20% glass, TSC offers approximately 70% higher elasticity. Compared to polycarbonate containing 30% glass, it offers 25% higher elasticity. (Comparison is between SIGMA-produced components.)


    SIGMA 600mm hyper-telephoto zoom lens lineup Accommodates diverse shooting styles

    The arrival of the 60-600mm F4.5-6.3 DG OS HSM | Sports expands the lineup of SIGMA’s 600mm zooms to three lenses. The SIGMA 60-600mm F4.5-6.3 DG OS HSM | Sports is “versatile”, focusing on high image quality and mobility, demonstrating superior coverage from a standard focal length to a hyper-telephoto range without switching to another lens. The 150-600mm F5-6.3 DG OS HSM | Sports is composed of many metal parts aiming at a “robust” structure. The lineup of these two Sports line lenses that can meet the most stringent needs of professionals, together with the Contemporary line’s “lightweight” 150-600mm F5-6.3 DG OS HSM | Contemporary, which reduces weight and makes the shooting experience even more comfortable and convenient, SIGMA undoubtedly satisfies the diverse shooting styles of photographers.

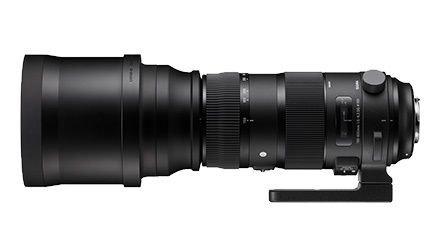

    150-600mm F5-6.3 DG OS HSM | Sports

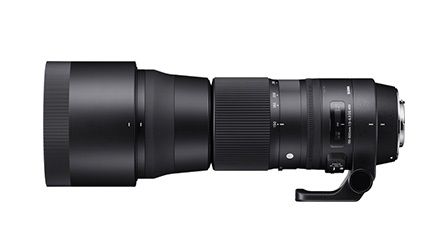

    150-600mm F5-6.3 DG OS HSM | Contemporary


    ESSENTIALS

    You'll find our philosophy and craftsmanship in every product

    Our new lineup fully expresses our approach to lenses and photography itself. All of our lenses belong to one of three lines—Contemporary, Art, or Sports—all of which share our development philosophy and advanced manufacturing system. High performance, high quality, and high end in every respect, these lenses give people who love photography lasting value and consistent, exciting results. The secret is our passion for craftsmanship that we put into every production process and every product.

    Foveon-based A1 MTF Inspecting each and every lens with our proprietary Foveon-based A1 MTF measuring system, we deliver premium quality Made in Japan “Made in Japan” craftsmanship is what makes our lenses high-performance, high-quality, and high-end
    Proprietary Sigma Service This proprietary SIGMA service lets you use your cherished SIGMA lenses for many years to come Sigma USB Dock Our new SIGMA USB DOCK accessory and exclusive software let you personalize the specification of your new SIGMA lenses
    CSR In our manufacturing activities, we aim for sustainable growth and the highest standard of corporate social responsibility (CSR) Sigma MC-11 Power of Equipment Choice to the Customer Mount Converter MC-11

    Lens Construction Diagram
    Lens Construction 25 Elements in 19 Groups
    Angle of View 39.6º- 4.1º
    Number of Diaphragm Blades 9
    Mininum Aperture F22-F32
    Minimum Focusing Distance 60-260cm / 23.6-102.4in.|
    Filter Size (mm) 105mm
    Maximum Magnifications 1:3.3 (200mm)
    Dimensions
    (Diameter x Length)
    ø120.4mm x 268.9mm/ ø4.7in. x 10.6in.
    Weight 2,700g / 95.2oz.
    Corresponding Mounts
    • Nikon
    • Canon

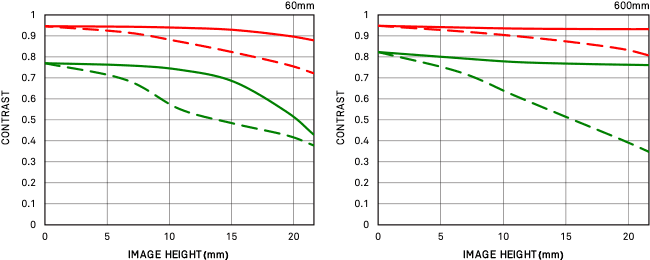

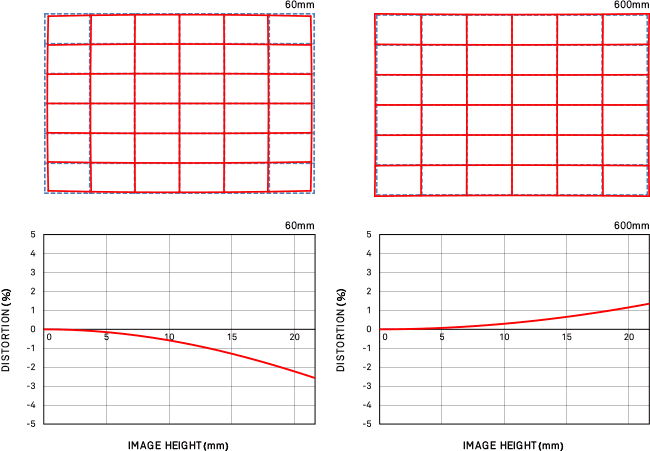

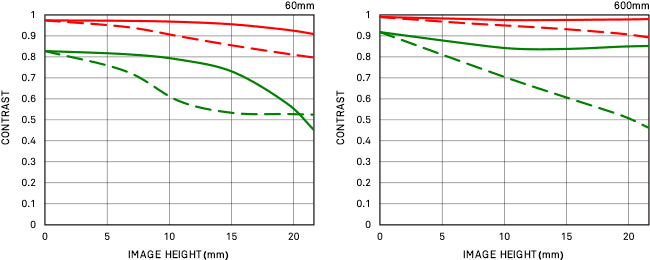

    Performance Data

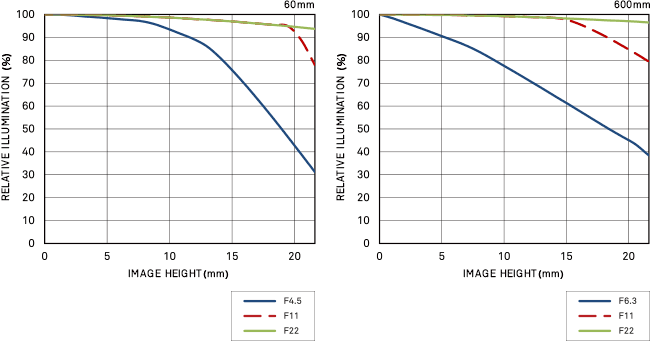

    geometrical_mtf.gif mtf.gif distortion.gif vignetting.gif

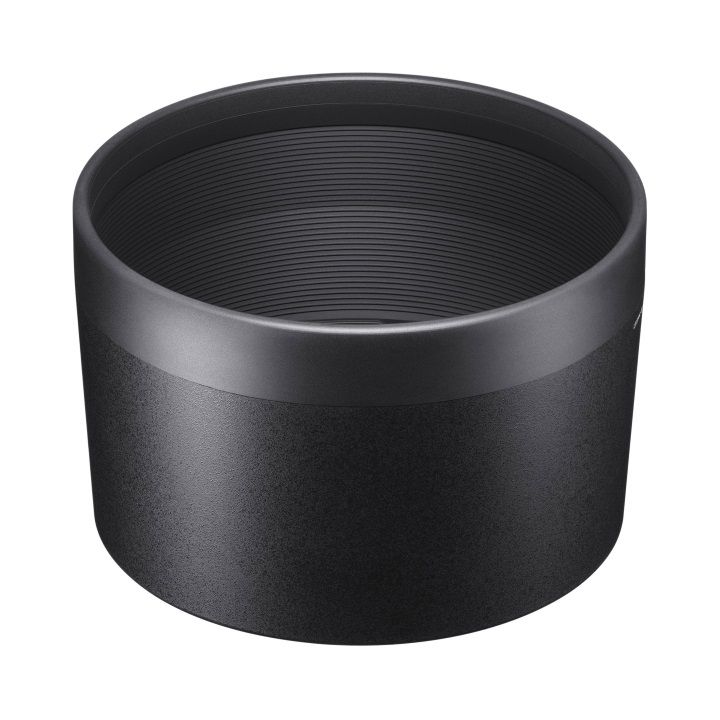

  • Lens Hood
  • Tripod Socket
  • Cover Lens Cap
  • Front Cap
  • Rear Cap
