Tokina atx-i 11-20mm f/2.8 CF Lens
Product options:
About ATX-i SeriesLeaving the honorable AT-X abbreviation, the letter "i" was newly added. "i" stands for "interactive", implying mutual communication between photographer and the lens. This is our believe that this series will provide a tight bond between photographer and the lens in order to capture in the image that the photographer sees around.
Exterior, specifications and performance of Tokina's popular and well acknowledged so far AT-X PRO lenses are reconsidered with the contemporary cameras in mind and launched under atx-i brand. Product OverviewThe Tokina atx-i 11-20mm F2.8 CF is designed as an ultra wide angle zoom lens for APS-C sensor DLSR cameras. It is the only f/2.8 fast ultra wide angle zoom lens for APS-C sized DSLR cameras on the current market*. Focal length 11-20mm that covers equivalent angle of wide prime 18mm, 21mm, 24mm, 28mm lenses makes this lens attractive to be chosen after standard zoom lens or initially possessed wide angle zoom kit lens. A constant maximum aperture of f/2.8 throughout the entire zoom range is realized to achieve great results in low light conditions, for depth of field control and easy manual shooting, while maintaining a reasonable size and weight. * At present time April, 2020 |
||
|
Optical PerformanceTo achieve an exceptional optical performance required for ultra wide angle zoom lens 3 aspherical glass elements and 3 Super-Low Dispersion glass elements were used in order to minimize distortion, manage spherical aberration and astigmatism while achieving excellent edge-to edge resolution and high contrast through the entire image. Anti-reflective multi-layer coating improves light transmission and minimizes reflections while newly applied water-repellent coating makes wiping and cleaning the surface of the front glass element easier. |
||
 |
||
|
Anti-reflective multi-layer coating improves light transmission and minimizes reflections while water-repellent coating makes wiping and cleaning the surface of the front glass element easier.
|
||
Built Quality & Exterior DesignDevoted to its traditions, Tokina incorporated a lot of metal parts inside the lens for a reassuring built quality and long time utilization in different shooting conditions. The sophisticated exterior design is specifically developed to match the design of contemporary DSLR cameras.
|
||
|
|
Focal Length |
Nikon : 11 to 20mm (35mm Equivalent Focal Length: 16.5 to 30mm) |
|
Maximum Aperture |
f/2.8 |
|
Minimum Aperture |
f/22 |
|
Lens Mount |
Nikon F |
|
Format Compatibility |
APS-C |
|
Angle of View |
104° to 72° |
|
Minimum Focus Distance |
28 cm |
|
Maximum Magnification |
0.12x |
|
Optical Design |
14 Elements in 12 Groups |
|
Diaphragm Blades |
9 |
|
Focus Type |
Autofocus |
|
Image Stabilization |
No |
|
Filter Size |
82 mm (Front) |
|
Dimensions (ø x L) |
89 x 94.3 mm |
|
Weight |
570 g |
| Product Manuals | |
|---|---|
| Tokina atx-i 11-20mm f/2.8 CF Lens - Product Manual |
Brand: Tokina |
Code:
12X1562U01
Product options:
Brand: Tokina |
Code:
12X1562U01
At a glance
About ATX-i SeriesLeaving the honorable AT-X abbreviation, the letter "i" was newly added. "i" stands for "interactive", implying mutual communication between photographer and the lens. This is our believe that this series will provide a tight bond between photographer and the lens in order to capture in the image that the photographer sees around.
Exterior, specifications and performance of Tokina's popular and well acknowledged so far AT-X PRO lenses are reconsidered with the contemporary cameras in mind and launched under atx-i brand. Product OverviewThe Tokina atx-i 11-20mm F2.8 CF is designed as an ultra wide angle zoom lens for APS-C sensor DLSR cameras. It is the only f/2.8 fast ultra wide angle zoom lens for APS-C sized DSLR cameras on the current market*. Focal length 11-20mm that covers equivalent angle of wide prime 18mm, 21mm, 24mm, 28mm lenses makes this lens attractive to be chosen after standard zoom lens or initially possessed wide angle zoom kit lens. A constant maximum aperture of f/2.8 throughout the entire zoom range is realized to achieve great results in low light conditions, for depth of field control and easy manual shooting, while maintaining a reasonable size and weight. * At present time April, 2020 |
||
|
Optical PerformanceTo achieve an exceptional optical performance required for ultra wide angle zoom lens 3 aspherical glass elements and 3 Super-Low Dispersion glass elements were used in order to minimize distortion, manage spherical aberration and astigmatism while achieving excellent edge-to edge resolution and high contrast through the entire image. Anti-reflective multi-layer coating improves light transmission and minimizes reflections while newly applied water-repellent coating makes wiping and cleaning the surface of the front glass element easier. |
||
|
||
|
Anti-reflective multi-layer coating improves light transmission and minimizes reflections while water-repellent coating makes wiping and cleaning the surface of the front glass element easier.
|
||
Built Quality & Exterior DesignDevoted to its traditions, Tokina incorporated a lot of metal parts inside the lens for a reassuring built quality and long time utilization in different shooting conditions. The sophisticated exterior design is specifically developed to match the design of contemporary DSLR cameras.
|
||
|
High-Light Features
- Ultra-wide 11-20mm focal length
Ideal for shooting landscapes, interiors, nightscape, group shots, weddings.
- Constant maximum aperture of f/2.8
Great performance in low light conditions, exceptional depth of field control and easy manual management. Valuable feature for still and video shooters.
- Excellent optical performance
Edge-to-edge sharpness, reduced flares and ghosting, excellent contrast. Improved optical resolution.
- Improved AF accuracy by updating the firmware
- Internal Focus
No problems with lens balancing and using graduated or polarizing filters.
- Water-repellent coating
Easy to wipe and maintain the front element clean.
- One-touch Focus Clutch mechanism
Easy AF/MF switching without interruption of the shooting process.
- Greatly balanced cost performance
Reasonable pricing compared to high level of performance.
For Video Content Production
The Tokina atx-i 11-20mm F2.8 CF is suggested for videographers and film makers in mind who shoot both stills and video professionally, featuring the following advantages for such a kind of users.
- Wide cinematic angle enough to feel confident in small places.
- Minimized focus breathing – the subject framing does not show big change when focus is adjusted from near to far.
- Natural footage - the image is not distorted when panning due to very low distortion performance.
- Constant aperture to use full zoom range while you are filming.
- Excellent optical performance.

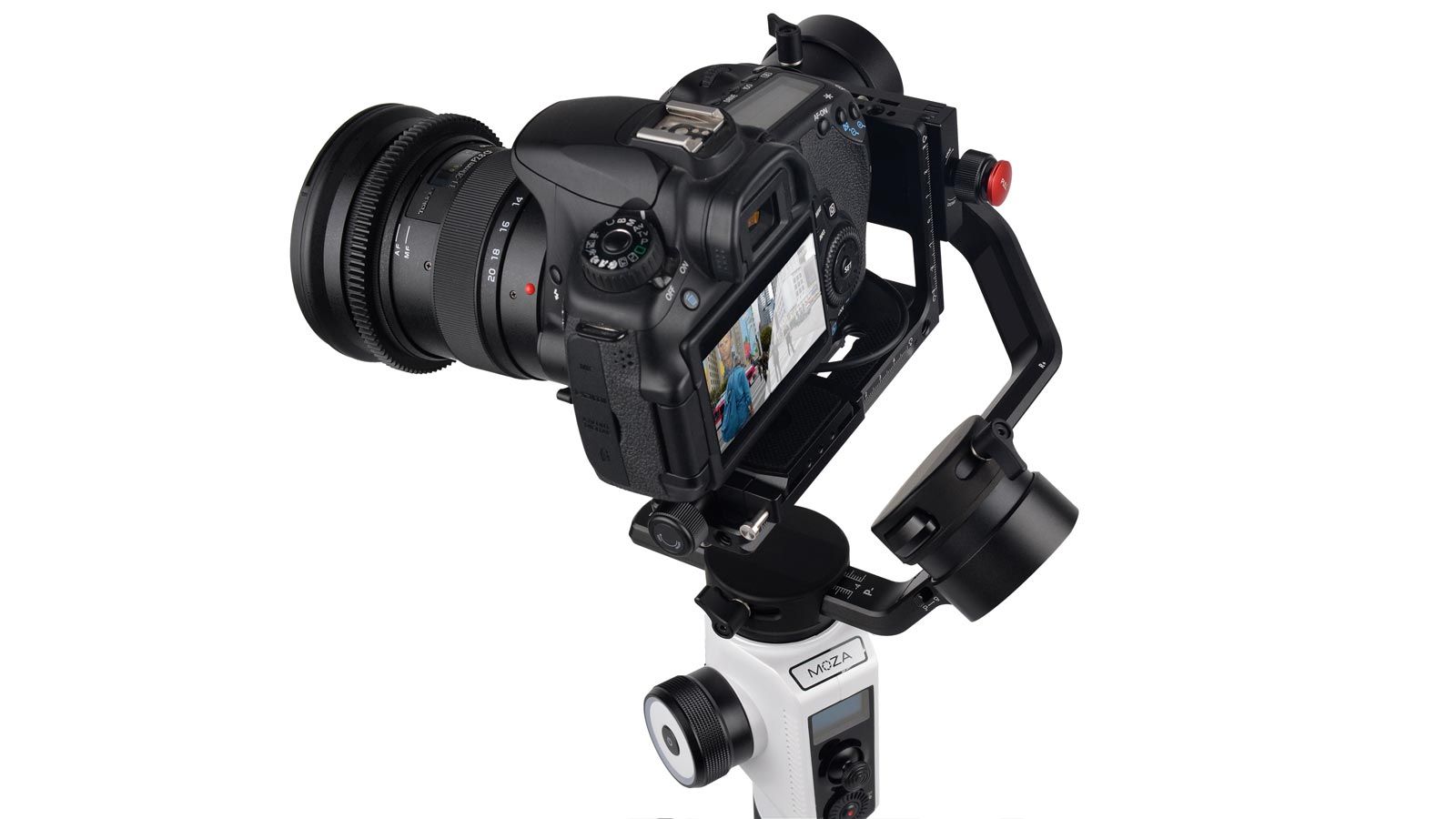

The Tokina atx-i 11-20mm F2.8 CF is a perfect match to use with gimbal.
- Ideal wide angle fitting cinematic standards.
- Light weight.
- Zooming abilities that allow user to shoot in different angles using the same lens.
- Since the overall length does not change thanks to internal type of focusing, there is no need to do gimbal calibration every time the angle of view was changed.
- Great color rendering and resolution abilities.
- Affordable price and high quality compared to really expensive cinema lenses.
