Kenko KFM-2200 Flash Meter
The Kenko KFM-2200 Flash Meter is a digital handheld exposure meter capable of both incident and reflected light measurement, including flash and strobes. The KFM-2200 utilizes a spherical diffuser with a 270° rotation angle for most readings, including the ability to take a 1° spot measurement using the viewfinder. It can then use one of three measurement modes depending on your specific needs.
For working with both cinema and still photography use, there are a variety of additional settings, especially a large selection of shutter speeds from 30 minutes to 1/16000 second. It even features a flash sync terminal for metering your strobes for still photography. Also, it can display an aperture range from f/1.0 to f/128 and 9/10.

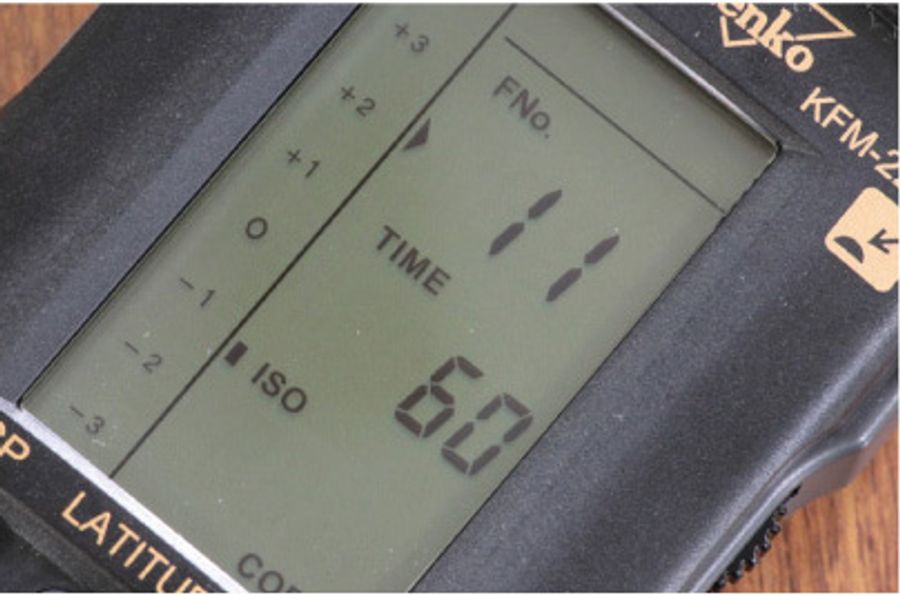

The digital LCD display is backlit to increase readability and shows a variety of parameters, each of which can be set to determine proper exposure values for your camera settings. The KFM-220 also features a viewfinder with diopter adjustment for taking spot measurements of reflected light. It includes a soft case and strap for storage and travel.
- Incident and Reflected Light Measurement
- Flash Metering and Sync Terminal
- Spherical 270° Diffuser
- Spot Angle of 1°
- Three Measuring Modes
- Digital LCD Display
- Viewfinder with Diopter Adjustment
- Frame Rates from 2 to 360
- Shutter Speeds of 30 min to 1/16000 sec
- Aperture Range of f/1.0 to f/128
Possible to mesure ISO value
Using Display function. required values can be measured for 3 parameters selected: FNo, shutter speed or ISO. To measure the required value for one parameter just input data for two of other parameters using the up/down dial to input the data.

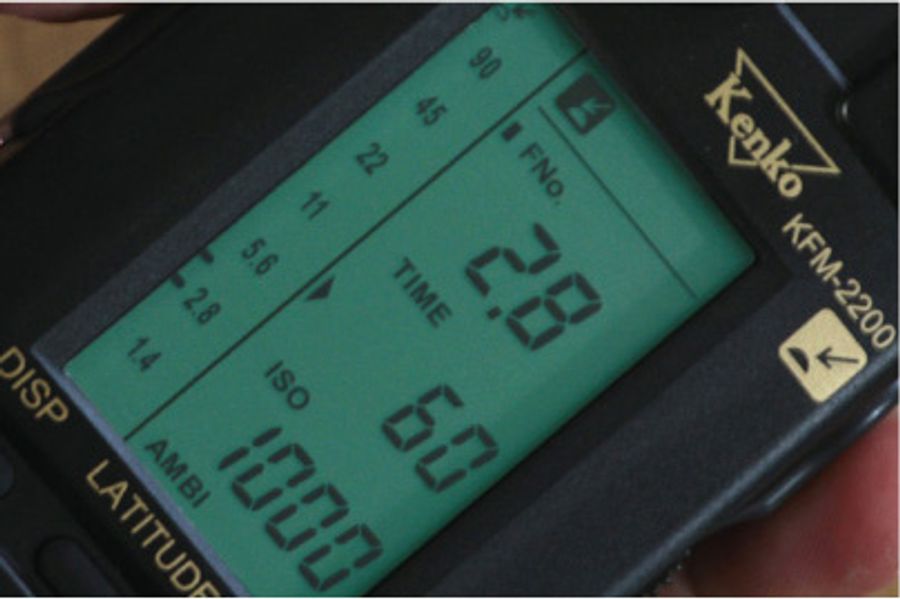

Include back light function
New measurement display window has a back light to read the measurement results easily evevn if it is used in a darkened environment.

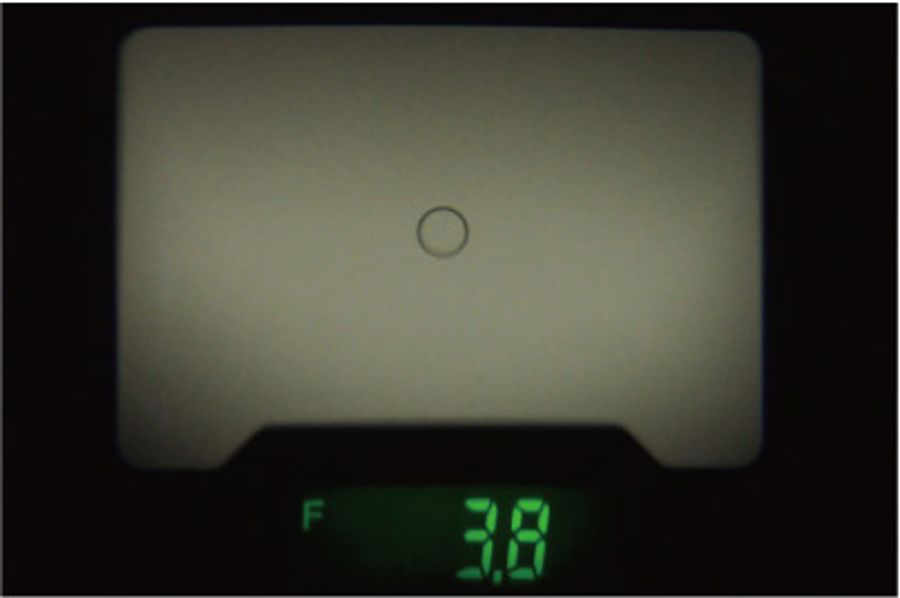

Finder have clear green display light
The results of spot measurements are shown on the digital display in the viewfinder and on the external data panel. The viewfinder features a dioptric adjustment mechanism.
| Type | Handheld ambient and flash light meter |
| Reception Mode | Incident and spot |
| Receptor Head | Spherical diffuser |
| Receptor Element | Silicon photocell |
| Measuring Modes | AMBI Mode: Ambient light CORD Mode: Flash using a sync cord N CORD Mode: Flash without using a sync cord, incident light only |
| Measuring Range | ISO 100 Ambient Light, Incident: -2.0 to 19.9 EV Ambient Light, Spot: 2.0 to 24.5 EV Flash, Incident: f/1.0 to f/128 + 0.9 stop Flash, Spot: f/2.8 to f/128 + 0.9 stop |
| Measuring Distance | 1.3 m to infinity for spot measurement |
| Viewfinder | Single-lens reflect type with fixed focal point |
| Viewfinder Magnification | 1.2x |
| Viewing Angle | 12° (vertical) x 17° (horizontal) |
| Diopter Adjustment | -3.0 to +1.0 |
| Repeat Accuracy | ±0.1 EV |
| Calibration | Incident: C = 330 (spherical diffuser), C = 250 (flat diffuser) Spot: K = 14 |
| Display Range | Exposure: f/1.0 to f/128 + 0.9 stop in 0.1 stop increments EV: -17 to 40.9 in 0.1 stop increments Shutter Speed, Ambient: 30 min to 1/16000 sec Shutter Speed, Flash: 30 min to 1/1000 sec Frame Rate, 180°: 2, 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 24, 25, 30, 32, 36, 40, 48, 60, 64, 75, 90, 96, 100, 125, 128, 150, 180, 200, 240, 256, 300, 360 ISO: 3 to 8000 in 1/3 stop increments Exposure Difference: -10 to +10 in 0.1 stop increments Analog Scale: f/1.0 to f/90 in 1/2 stop increments Analyze Scale: Flash light proportion 0-100% in 25% increments |
| Battery Power | 1 x alkaline AA battery (LR-6/1.5 V) |
| Battery Life | Approximately 30 hours of continuous operation |
| Terminal | Flash sync terminal |
| Memory | 10 measured values |
| Exposure Calibration | -10 to +10 in 0.1 stop increments |
| Other Functions | Latitude display function, Light Ratio Analyze function, S/A/H calculation, Brightness difference function |
| Operating Conditions | Temperature: 14 to 122°F (-10 to 50°C) Humidity: 85% maximum, non-condensing at 95°F (35°C) |
| Storage Conditions | Temperature: -4 to 131°F (-20 to 55°C) Humidity: 85% maximum, non-condensing at 95°F (35°C) |
| Dimensions | 2.6 x 6.9 x 1.2" (6.6 x 17.5 x 3.1 cm) |
| Weight | 6.5 oz (185 g) |
-
Kenko KFM-2200 Cine & Flash Meter
- Case
- Strap
