Ilford Pop Up Darkroom Tent V2

Before assembling ensure that you have sufficient floor space and height:- The external metal frame is approximately 2.2m tall and the internal space is 1.3 x 1.3m. If you are choosing to attach a fan / air blower to the lower vent on your pop up darkroom then this will cause it to expand slightly.

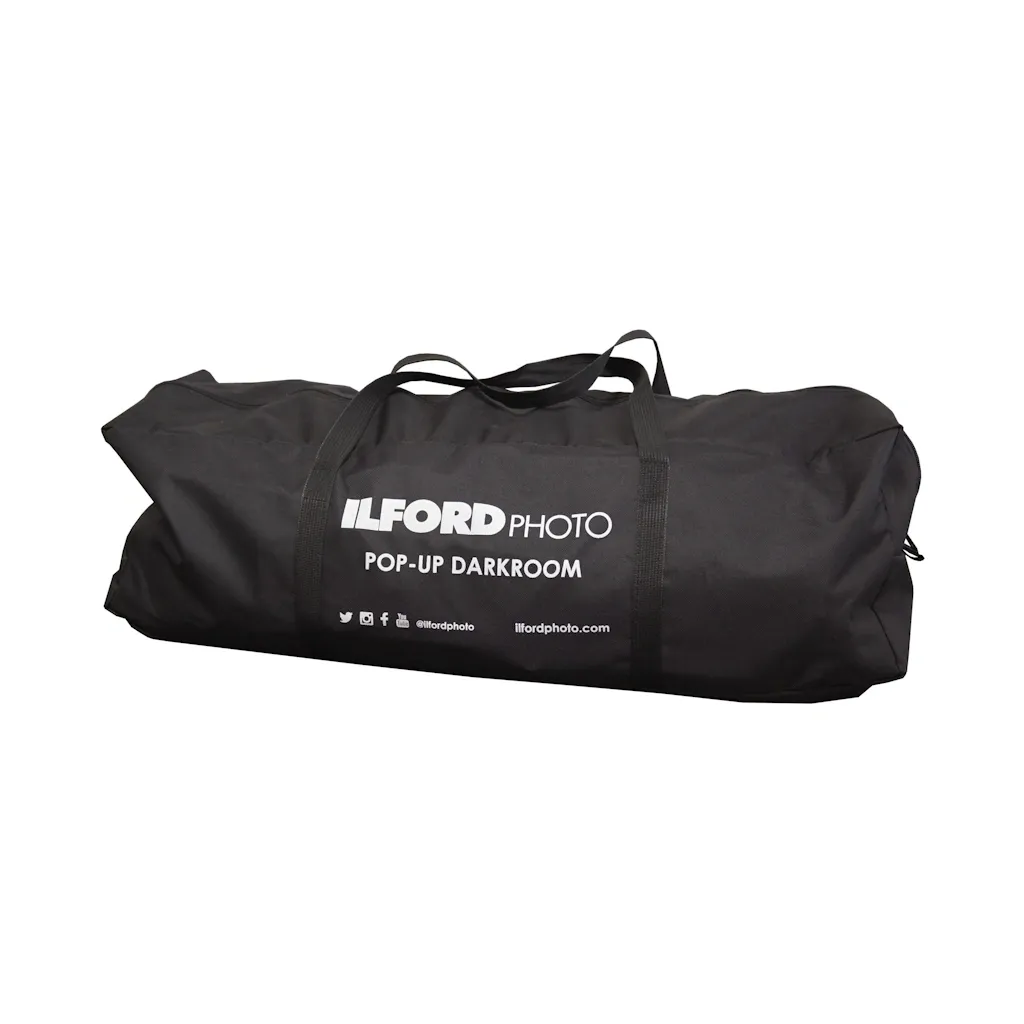

• Open the storage case and remove the poles, groundsheet and pop up darkroom
• Move the groundsheet out of the way for now and unfold the pop up darkroom so that the black plastic cross is roughly in the centre
• Unfold the poles and clip the first three sections of each pole together
• Push the top of each pole into one of the sections on the plastic cross, then repeat for all four poles
• Attach the first two clips onto each pole
• Erect each pole fully and attach the remaining clips
• Fold out the skirts so they lie flat on the floor
• Insert the pegs into the bottom of each pole
• Roll up the front of the pop up darkroom and use the toggles to hold it in place
• Attach the groundsheet inside the pop up darkroom using the Velcro fastenings
