Super-Slim, High-Performance Lens
• Newly designed 18.3mm F2.8 GR lens (28mm equivalent) with 7-element, 5-group construction.
• Glass-molded aspherical & high-refraction elements for edge-to-edge sharpness and minimal distortion.
Exceptional Image Quality
• 25.74MP APS-C back-illuminated CMOS sensor with upgraded GR ENGINE 7.
• RICOH accelerator unit enables ISO 204,800 with low noise and rich gradation.
Advanced Shake Reduction (SR)
• 5-axis SR mechanism with up to 6 stops compensation
• Minimizes pitch, yaw, roll, and macro shift shake.
Faster Autofocus & Start-Up
• 0.6 sec start-up – fastest in GR history.
• High-speed AF with improved low-light performance and precision

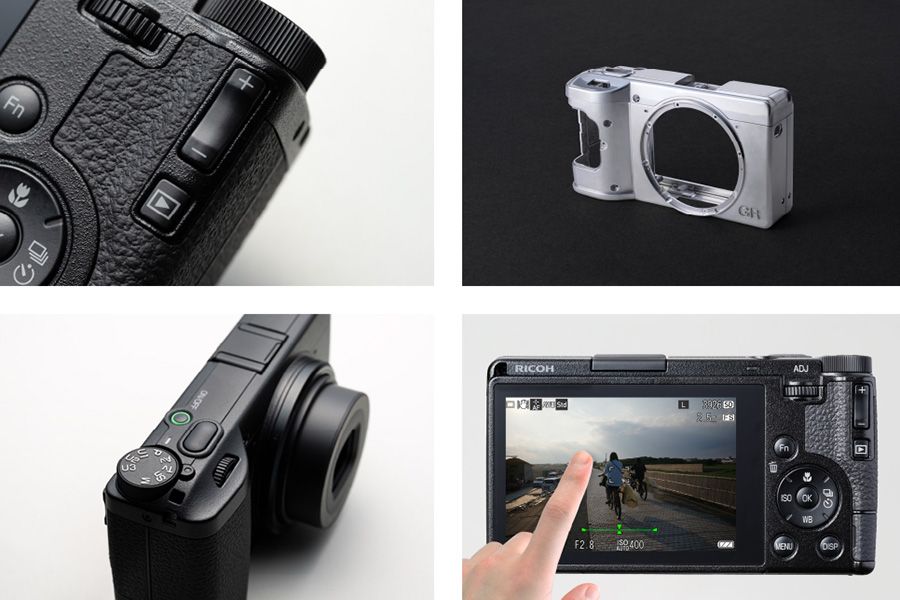

Compact, Functional Design
• Slim magnesium-alloy body with improved grip and intuitive controls.
• Redesigned mode adjustment dial for faster operation.
Flexible Exposure Modes
• Program Auto Ex for instant switching to Aperture or Shutter Priority.
• New Snap Distance Priority AE for deep focus
High Image Quality
Lenses that capture light are the most important elements in ensuring high image quality. It was this idea that resulted in the new 18.3mm (28mm in 35mm equivalent focal length) F2.8 GR lens. Driven by our conventional design concepts and incorporating innovations in optical technologies, we added a large, aspherical high-precision molded glass lens as the final lens in a 5-group 7-element construction. Effective aberration correction improves sharpness from the center area of the frame to the edges. Also, optimal placement of high-refractive index low-dispersion glass lenses and aspherical molded glass lenses which are made possible by ultra high-precision manufacturing technologies result in a slim lens unit. We also developed a new lens barrel that contributes to a shorter start-up time and faster AF.
- High-sensitivity and Low-noise Back-illuminated Sensor. 25.7M CMOS Image Sensor
- Advanced Imaging Power and Mobility. GR ENGINE 7
- Expand the Realm of Possibilities. ISO 204800
- Powerful Snapshot Capabilities. 5-axis, 6-step Image Stabilization
Excellent Mobility

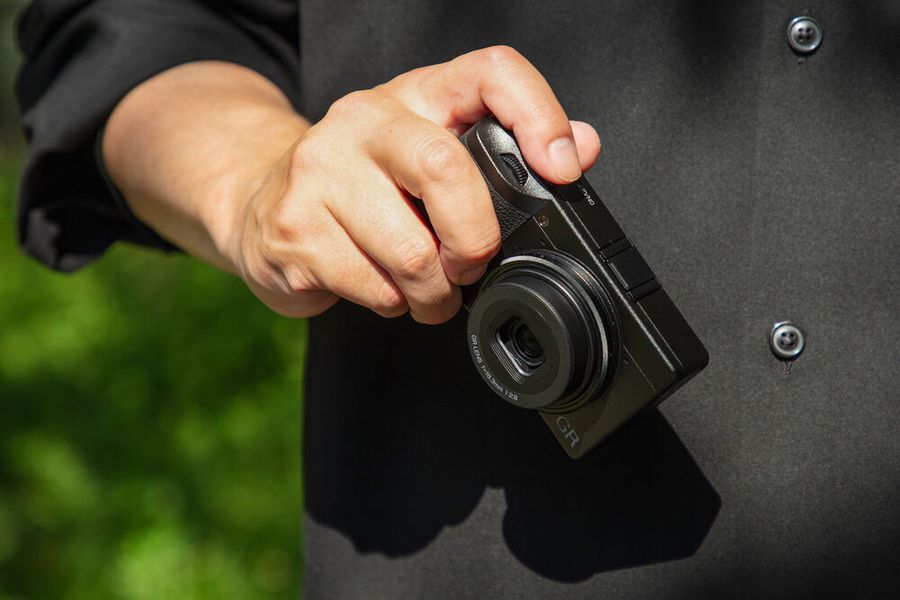

A camera hidden away in a pocket becomes a part of you when you take it out. The GR IV offers enhanced performance in a compact, slim body. The body (excluding the grip and lens unit) is particularly slim and the grip is deeper for a more secure hold. The shape of this grip and the rear thumb rest have been optimized for a form that naturally molds itself to your hand. The button and dial layout has also been improved and ADJ mode is now available on the dial, delivering enhanced mobility appropriate for a snapshot camera.
The GR IV offers superb imaging that is similar to how the human eye sees. Its AF performance has also advanced significantly. AF speed has been improved thanks to faster lens drive with the new lens barrel and faster readout with the new image sensor. The AF algorithm has also been tuned for more precise focusing. Furthermore, we have also incorporated various other AF innovations, such as improved AF performance in low-light scenes and better subject detection across a wide area thanks to image plane phase difference.
Expressive Power
Capture scenes that catch your eye as images. The GR IV is equipped with two new “Image Control” options for a total of 14 image finishes. These new options are based on the idea of a certain cinematic “look.” [Cinema (Yellow)] gives images a dignified impression, and [Cinema (Green)] lends a cool finish to images. We have also tuned the conventional “Image Control” options. The grain effects that were previously only available in monochrome options can now be set with two “Cinema” options and two “Film” options. Furthermore, it is now possible to set the size of the grain.
“Warmth Priority” and “White Priority” have been added to “Auto White Balance.” You can configure settings to your liking and make photos your very own—choose whether to show a warm atmosphere or faithfully reproduce colors when shooting under tungsten lighting, allowing you to enjoy impressive photographic expressions even with “Auto White Balance.”
Usability
“GR WORLD” is an app developed specifically for use with smart devices. Connecting it to the camera makes importing images, performing remote shooting, and sending location information to the camera easy. The app can also be used to extract and play back images shot with the GR series from those saved in smart devices. It is also a great tool for connecting to a large community through photos.
The GR IV features 53 GB of internal memory. Even without a memory card, there is plenty of space. You can record approx. 3,498 JPEG images (Aspect Ratio: 3:2, Crop: Off, JPEG Recorded Pixels: L), and approx. 995 RAW images (Aspect Ratio: 3:2, Crop: Off). In addition to specifying whether to prioritize saving to the internal memory or the memory card, you can also switch between the two while shooting and copy images between them. These two memory options offer greater flexibility over managing and backing up images.
A robust battery is also important when capturing lots of snapshots. The GR IV is equipped with the high-capacity, 1,800 mAh battery DB-120. Despite the compact body, the battery life has been expanded to accommodate approx. 250 shots* (GR III: approx. 200 shots). It also supports fast charging and power supply from a portable power source. With this new design, you will not have to worry about missing shots due to a dead battery.
MODEL DESCRIPTION
| Camera Type |
Single lens - compact digital-still camera |
LENS
| Construction |
7 elements in 5 groups (3 aspherical lens elements) |
| Focal Length |
18.3 mm (approx. 28 mm in 35 mm equivalent focal length) |
| Aperture |
F2.8 to F16 |
| Crop |
Off, 35mm, 50mm |
IMAGE CAPTURE UNIT
| Image Sensor |
Primary color filter, CMOS. Size: 23.3 mm × 15.5 mm |
| Effective Pixels |
Approx. 25.74 megapixels |
| Sensitivity (Stand. output) |
ISO 100 to ISO 204800. Auto (ISO Auto Lower/ Upper Limit and Minimum Shutter Speed can be set), Manual |
| Noise Reduction |
Slow Shutter Speed Noise Reduction, High-ISO Noise Reduction |
| Image Stabilization |
IBIS - Sensor-shift shake reduction “SR” (5-axis) |
| AA Filter Simulator |
Moiré reduction using the SR unit (Off, Low, High) |
| Dust Removal |
Image sensor cleaning using ultrasonic vibrations “DR II” |
| Horizon Correction |
SR On: Correction up to 1 degree. SR Off: Correction up to 1.5 degrees |
WHITE BALANCE
| Pre-sets |
Auto White Balance, Auto WB (Warmth Pri.), Auto WB (White Pri.), Daylight, Shade, Cloudy, Fl. - Daylight Color, Fl. - Daylight White, Fl. - Cool White, Fl. - Warm White, Tungsten, CTE, Manual White Balance, Color Temperature, Custom 1, Custom 2, Custom 3 |
| Fine Adjustment |
Adjustable ±14 steps on A-B axis or G-M axis |
FILE FORMATS
| Still Image |
RAW (DNG) 14bit, JPEG (Exif 2.3 compliant), DCF 2.0 compliant. Color Space: sRGB, AdobeRGB. Recorded Pixels: [3:2] L (26M: 6192 × 4128), M (16M: 4944 × 3296), S (8.2M: 3504 × 2336), XS (2.5M: 1920 × 1280). [4:3] L (23M: 5504 × 4128), M (15M: 4400 × 3296), S (7.3M: 3120 × 2336), XS (2.8M: 1920 × 1440). [1:1] L (17M: 4128 × 4128), M (11M: 3296 × 3296), S (5.5M: 2336 × 2336), XS (1.6M: 1280 × 1280). [16:9] L (22M: 6192 × 3480), M (14M: 4944 × 2784), S (6.9M: 3504 × 1968), XS (2.1M: 1920 × 1080) |
| Movie |
MPEG4 AVC/H.264 (MOV). Recorded Pixels: Full HD (1920 × 1080, 60p/30p/24p). Sound Recording: Built-in stereo microphone. Recording Time: Up to 4 GB or 25 minutes; automatically stops recording if the internal temperature of the camera becomes high |
| Storage Media |
Internal memory (approx. 53 GB), microSD/microSDHC/ microSDXC memory card (microSDHC memory card and microSDXC memory card conform to UHS-I standards) |
FOCUS
| Type |
Hybrid AF (image plane phase-matching detection and contrast detection) |
| Focus Mode |
Auto-area AF, Select AF, Pinpoint AF, Tracking AF, Continuous AF, MF, Snap (0.3 m, 1 m, 1.5 m, 2 m, 2.5 m, 3.5 m, 5 m, ∞), ∞ |
| Focus Range (from lens face) |
Normal mode: Approx. 0.1 m to ∞∞. Macro mode: Approx. 0.06 to 0.15 m |
| Focus Limiter |
Near Side, Far Side |
| Full Press Snap |
Shooting by focusing at the Snap distance with a single press of the shutter release button or a touch on the monitor |
| Face/Eye Detection |
On, Use only in Auto-area AF, Off |
EXPOSURE CONTROL
| Exposure Mode |
Program AE, Aperture Priority AE, Shutter Priority, AE, Snap Distance Priority AE, Manual Exposure |
| Metering Mode |
Multi-segment metering, Center-weighted metering, Spot metering, Highlight-weighted metering |
| Shutter Speed |
1/4000 to 30 sec. (limit by aperture — F2.8: up to 1/2500 sec., F5.6 or higher: up to 1/4000 sec.), Timed exposure (10 sec. to 20 min.), Bulb, Time |
| Exposure Compensation |
Still image: ±5 EV, 1/3 EV steps. Movie: ±2 EV, 1/3 EV steps |
| ND Filter (2 EV) |
Auto, On, Off |
FLASH
| Flash |
no internal flash |
| Hot shoe |
Compatible with dedicated flashes Flash Mode: Flash On, Flash On+Red-eye, Slow-speed Sync, Slow Sync+Red-eye. Flash Output: Auto, 1/1, 1/4 |
| Flash Sync |
All shutter speed values |
DRIVE MODE
| Drive |
Single Frame Shooting, Continuous Shooting, Bracketing, Multi-exposure, Interval Shooting, Interval Composite |
| Self-timer |
10 sec., 2 sec., Off |
SHOOTING FUNCTIONS
| Image Control |
Standard, Vivid, Monotone, Soft Monotone, Hard Monotone, Hi-Contrast B&W, Negative Film, Positive Film, Cinema (Yellow), Cinema (Green), Cross Processing, Bleach Bypass, Retro, HDR Tone, Custom 1, Custom 2, Custom 3. Adjustment parameters: Saturation, Hue, High/Low Key Adjustment, Contrast, Contrast (Highlight), Contrast (Shadow), Sharpness, Shading, Clarity, Toning, Filter Effect, Grain Effect, HDR Tone Level, Color Tone. * Adjustable parameters vary depending on the selected image setting. |
| Dynamic Range Correction |
Highlight Correction, Shadow Correction |
PLAYBACK FUNCTIONS
| Playback View |
Single image display, Multi-image display (20 images, 48 images), Display magnification (up to 16×; 100% view and Quick Zoom view available), Histogram (Y histogram, RGB histogram), Grid Guide (3×3 Grid, 4×4 Grid), Highlight Alert, Auto Image Rotation, Calendar Filmstrip Display |
| Base Parameter Adjustment |
Normal editing, Monotone editing. Adjustment parameters: Brightness, Saturation, Filter Effect, Hue, Toning, Contrast, Sharpness. * Adjustable parameters vary depending on the selected edit setting. |
| RAW Development |
JPEG Recorded Pixels, Aspect Ratio, Color Space, White Balance, Image Control, Peripheral Illumination Correction, Sensitivity, High-ISO Noise Reduction, Shadow Correction |
| Edit |
Delete, Protect, Image Rotation, Image Copy, File Transfer, Resize, Cropping (aspect ratio and slant adjustments available), Levels Adjustment, White Balance Adjustment, Color Moiré Correction, Movie Edit (Cut, Divide) |
LCD MONITOR
| Type |
3.0-inch wide viewing angle TFT color LCD (aspect ratio: 3:2) with air-gapless tempered glass. Approx. 1037K dots |
| Touch Screen |
Capacitive sensing type |
| Adjustments |
Brightness, Saturation, Blue/Amber, Green/Magenta, Outdoor View Setting (Auto, Manual (±2 steps)) |
| Display |
Display magnification (4×, 16×), Grid Guide (3×3 Grid, 4×4 Grid), Histogram, Highlight Alert, Electronic Level |
| Language |
English, French, German, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Thai, Korean, Traditional Chinese, Simplified Chinese, Japanese |
WIRELESS LAN COMMUNICATION
| Function |
Camera control via smartphone ‘GR World’ app for image organisation and control of camera functions (including Live View, exposure time, etc.), image transfer via Wi-Fi |
| Standards |
2.4 GHz: IEEE802.11 b/g/n/ax. 5.2 GHz: IEEE802.11 a/n/ac/ax (not available in some regions). 5.8 GHz: IEEE802.11 a/n/ac/ax (not available in some regions) |
| Operating Frequency Band Range |
2.4 GHz: 2400 to 2483.5 MHz. 5.2 GHz: 5150 to 5250 MHz (not available in some regions). 5.8 GHz: 5725 to 5850 MHz (not available in some regions) |
| Bandwidth |
2.4 GHz: 20 MHz. 5.2 GHz: 20/40/80 MHz. 5.8 GHz: 20/40/80 MHz |
| Security |
Authentication: WPA2™, WPA3™. Encryption: AES |
BLUETOOTH® COMMUNICATION
| Standards |
Bluetooth® v5.3 (Bluetooth Low Energy) |
| Operating Frequency Band Range |
2400 to 2483.5 MHz |
INTERFACES
| USB Type-C |
Battery recharge/Power supply (when using an optional AC adapter compatible with USB Power Delivery), Data transfer (MTP), Video output (DisplayPort™ over USB-C (DisplayPort Alternative Mode)) |
| Lens Adapter Pin |
Available |
POWER SUPPLY
| Battery Type |
Rechargeable Battery DB-120 |
| Nominal Voltage |
3.85 V |
| Rated Capacity |
1800 mAh, 6.93 Wh |
| Dimensions |
40.9 mm (W) × 35.4 mm (H) × 10.75 mm (D). (1.6 in. (W) × 1.4 in. (H) × 0.4 in. (D)) |
| Weight |
Approx. 33 g (1.2 oz) |
| Battery Life |
Number of recordable images: Approx. 250 images • This is according to the result of testing in compliance with CIPA standard using a fully charged rechargeable battery at a temperature of 23°C (73°F). Actual results may vary depending on the shooting conditions/circumstances. Playback time: Approx. 240 min. • This is according to the result of RICOH inhouse testing. Actual results may vary depending on the shooting conditions/circumstances. |
| AC Adapter |
AC adapter (D-AC166 optional). AC adapter compatible with USB Power Delivery. *The camera is compatible with USB Power Delivery, but is not certified with the USB Implementers Forum logo. |
DIMENSIONS AND WEIGHT
| Dimensions |
Approx. 109.4 mm (W) × 61.1 mm (H) × 32.7 mm (D) (4.3 in. (W) × 2.4 in. (H) × 1.3 in. (D)). Lens part：31.3(D)mm, Body part：24.5(D)mm (excluding operating controls and protrusions) |
| Weight |
Approx. 262 g (9.2 oz) (including the dedicated battery and SD memory card). Approx. 228 g (8 oz) (body only) |
IMAGE STORAGE CAPACITY
| Internal Memory |
53 GB |
| JPEG - L |
3:2 - 26M: 6192 x 4128 px - 3,498 |
| JPEG - XS |
3:2 - 2.5M: 1920 x 1280 px - 33,371 |
| RAW |
3:2 - 26M: 6192 x 4128 px - 995 |
| RAW+ |
3:2 - 26M: 6192 x 4128 px - 774 |
| Full HD |
16:9 - 30fps - 1920 x 1080 - 1:26'56" |
OPERATING ENVIRONMENT
| Windows® |
Windows® 11, Windows® 10 |
| Mac |
macOS 14 Sonoma, macOS 13 Ventura, macOS 12 Monterey, macOS 11 Big Sur |
DEDICATED APP
| GR WORLD |
“GR WORLD” supports iOS and Android™, and can be downloaded from the App Store or Google Play™. To download GR WORLD and for more information, refer to the following website: https: |

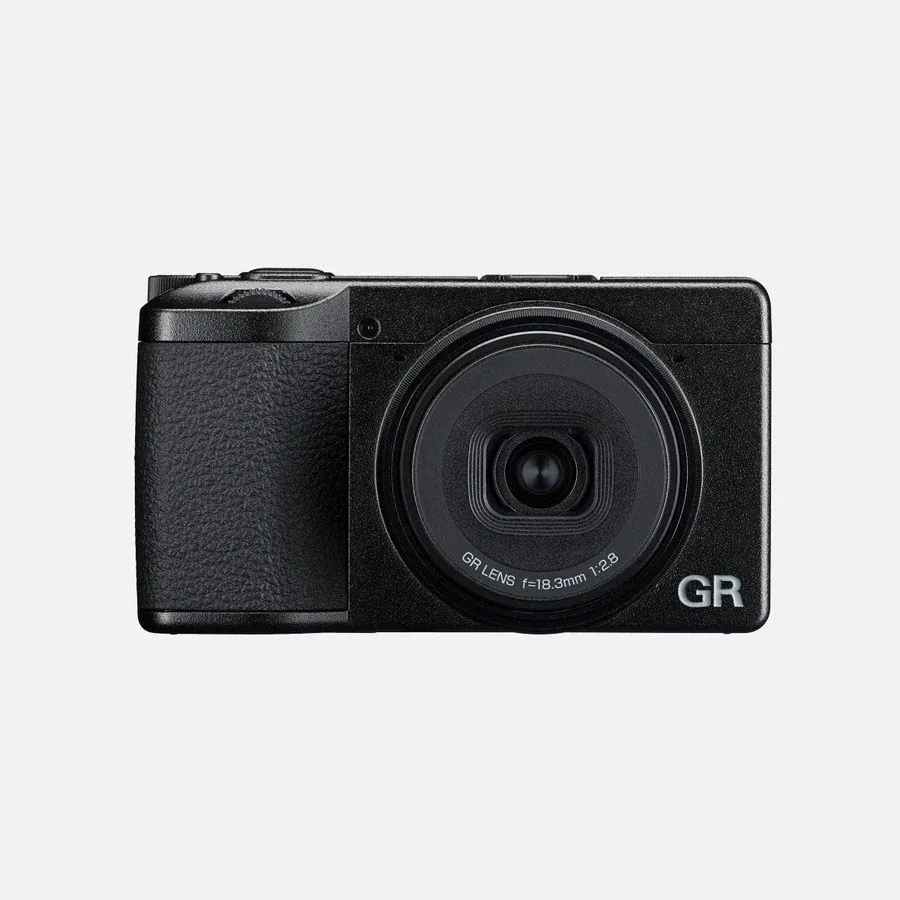

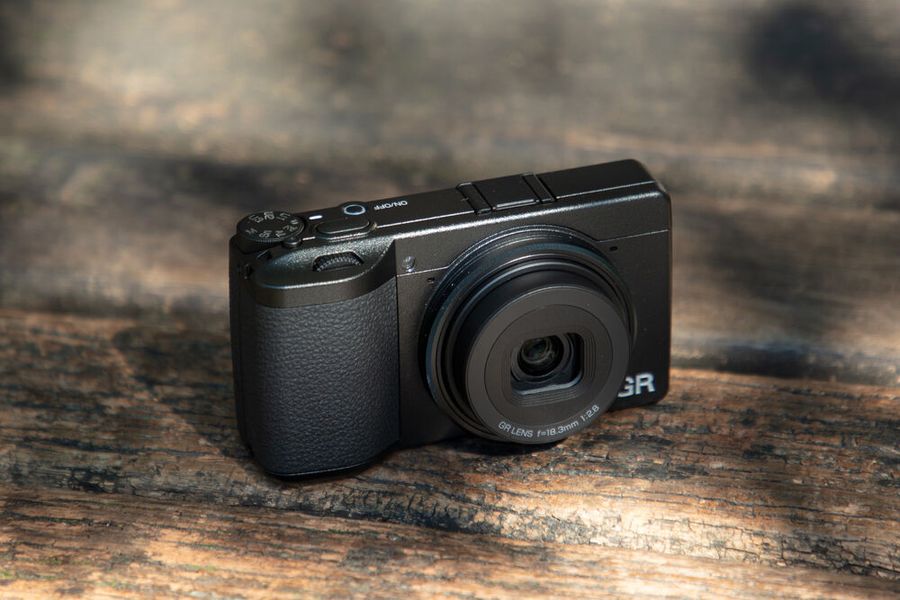

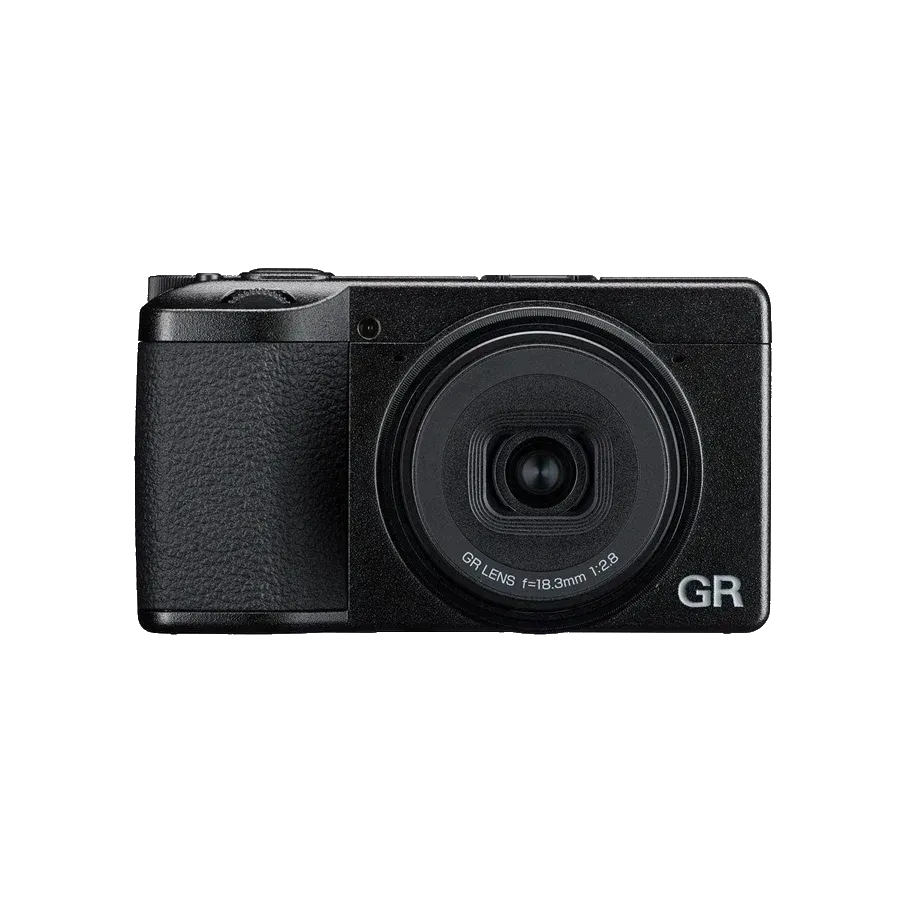

Ricoh GR IV Camera
Rechargeable Battery DB-120
USB Cable I-USB198
Hand strap O-ST198
