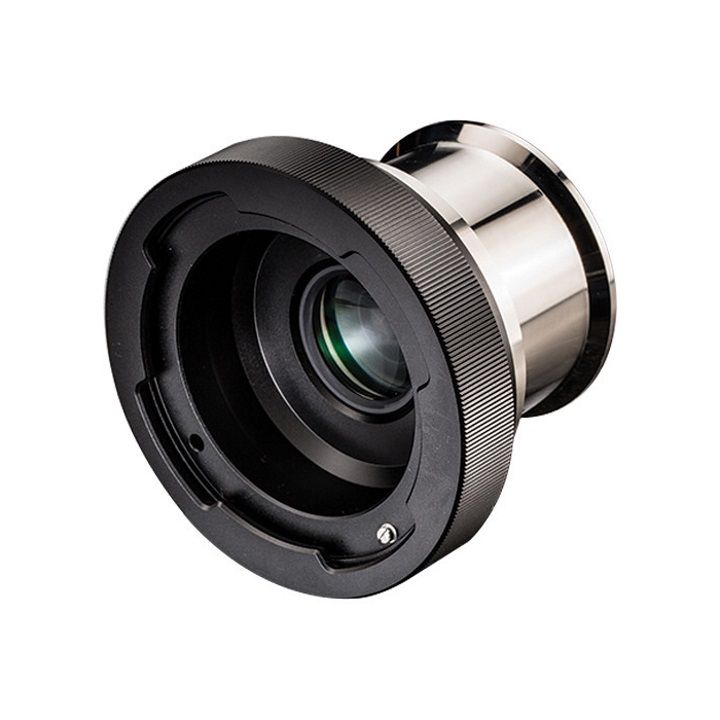

Tokina 1.6X Expander PL to PL
Tokina created the 1.6x Expander so that cinematographers can use their favorite Super35 PL lenses on the latest full-frame 6K/8K cameras.
Tokina created the 1.6x Expander so that cinematographers can use their favorite Super35 PL lenses on the latest full-frame 6K/8K cameras. The Expander increases the diameter of image circle by 1.6x on Super35 PL prime and zoom lenses. This allows for a greater variety of lens choices when filming with cameras like the RED Dragon that has a 46.31mm (8K) diagonal sensor. Tokina engineers gave special attention to the 7-element optical design to ensure the integrity of the original lens’ performance and to keep light fall off to a manageable 1.36 stops. The all mechanical design is robust, durable, and lightweight. The Tokina 1.6x Expander performs best when used with lenses that have a T2.0 or larger aperture and when the lens is stopped down to T2.8 or smaller.
Focal Length Extension |
1.6x |
Optical Structure |
4 Groups 7 Elements |
Maximum Diameter |
83mm |
Weight |
Approx. 0.3kg |
Max.Image Input |
29.3 |
Max.Sensor |
46.9 |
Max.Input T-Stop |
2.0 |
Lens Mount |
PL |
Camera Mount |
PL |
Length |
23.76mm |
Brand: Tokina |
Code: 16XEXPANDERPLPL
APN: 4968808220432 |
Supplier Code: 16XEXPANDERPLPL
Brand: Tokina |
Code: 16XEXPANDERPLPL
APN: 4968808220432 |
Supplier Code: 16XEXPANDERPLPL
At a glance
Tokina created the 1.6x Expander so that cinematographers can use their favorite Super35 PL lenses on the latest full-frame 6K/8K cameras.
