Zeiss IMS CP.2 21/25/28/35mm for EF Mount

Zeiss IMS CP.2 21/25/28/35mm for EF Mount

$800.00
stock due: 10/01/2024 ETA: 10/01/2024
(from time of order)
stock due: 10/01/2024 ETA: 10/01/2024
(from time of order)
stock due: 10/01/2024 ETA: 10/01/2024
(from time of order)
PRODUCT ENQUIRY

or interest free for up to 12 months with

  • Canon EF Lens Mount
  • Color Coded Shims
  • Rear Lens Cap
Brand: Zeiss   |    Code: 1846492
APN: 4047865900409   |    Supplier Code: 1846-492 Supplier Description: IMS EF FOR CP.2 21/25/28/35

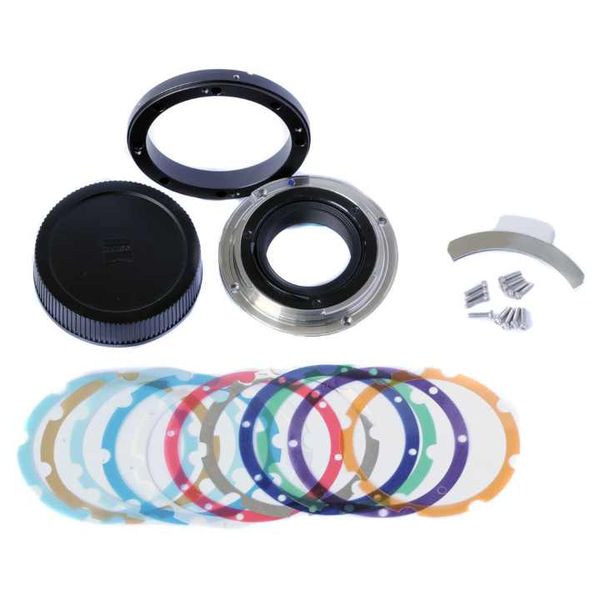

The Zeiss Interchangeable Mount Set EF allows users to convert their CP.2 lens to Canon EF mount. The set includes an EF mount ring, an adaption ring with support bracket, Torx screws, eleven color coded shims and a rear lens cap. As the flange focal distance varies from camera type to camera type, it is sometimes necessary to make adjustments when changing the lens mount or camera model. In order to perform this adjustment, shims in eleven different thicknesses are provided. Zeiss strongly recommends the use of a Torx T6 torque wrench with a torque of 0.4 Nm.

Mount Type

Canon EF

Compatibility

CP.2 21mm T2.9
CP.2 25mm T2.1
CP.2 28mm T2.1
CP.2 35mm T2.1

Shim Thickness

Silver: 0.013 mm
Gold: 0.019 mm
Purple: 0.025 mm
Light blue: 0.032 mm
Red: 0.038 mm
Blue: 0.051 mm
White: 0.064 mm
Green: 0.076 mm
Orange: 0.102 mm
Light purple: 0.127 mm
Clear: 0.152 mm

  • Zeiss Interchangeable Mount Set EF (for CP.2 21mm T2.9, 25mm T2.1, 28mm T2.1, 35mm T2.1)
  • EF Mount Ring
  • Adaption Ring with Support Bracket
  • Rear Lens Cap (EF)
  • Torx Screws
  • Shims

OVERVIEW

The Zeiss Interchangeable Mount Set EF allows users to convert their CP.2 lens to Canon EF mount. The set includes an EF mount ring, an adaption ring with support bracket, Torx screws, eleven color coded shims and a rear lens cap. As the flange focal distance varies from camera type to camera type, it is sometimes necessary to make adjustments when changing the lens mount or camera model. In order to perform this adjustment, shims in eleven different thicknesses are provided. Zeiss strongly recommends the use of a Torx T6 torque wrench with a torque of 0.4 Nm.

SPECIFICATIONS

Mount Type

Canon EF

Compatibility

CP.2 21mm T2.9
CP.2 25mm T2.1
CP.2 28mm T2.1
CP.2 35mm T2.1

Shim Thickness

Silver: 0.013 mm
Gold: 0.019 mm
Purple: 0.025 mm
Light blue: 0.032 mm
Red: 0.038 mm
Blue: 0.051 mm
White: 0.064 mm
Green: 0.076 mm
Orange: 0.102 mm
Light purple: 0.127 mm
Clear: 0.152 mm

IN THE BOX

  • Zeiss Interchangeable Mount Set EF (for CP.2 21mm T2.9, 25mm T2.1, 28mm T2.1, 35mm T2.1)
  • EF Mount Ring
  • Adaption Ring with Support Bracket
  • Rear Lens Cap (EF)
  • Torx Screws
  • Shims
