Zeiss IMS 15mm/T2.9 35/50/85mm/T1.5 for EF Mount

Loading
  • Zeiss IMS 15mm/T2.9 35/50/85mm/T1.5 for EF Mount
$880.00 ETA: 01/08/2025

  • Canon EF Lens Mount
  • Color Coded Shims
  • Rear Lens Cap

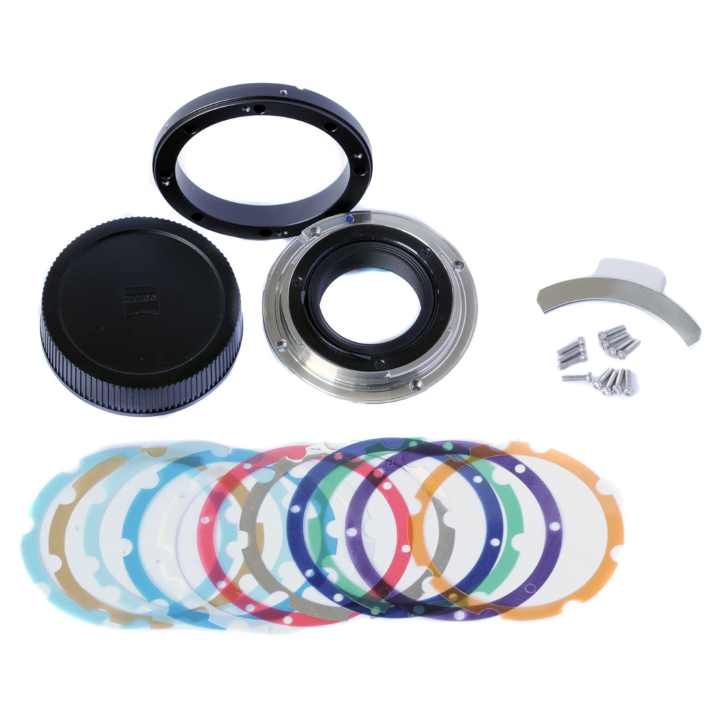

The Zeiss Interchangeable Mount Set EF allows users to convert their CP.2 lens to Canon EF mount. The set includes an EF mount ring, an adaption ring with support bracket, Torx screws, eleven color coded shims and a rear lens cap. As the flange focal distance varies from camera type to camera type, it is sometimes necessary to make adjustments when changing the lens mount or camera model. In order to perform this adjustment, shims in eleven different thicknesses are provided. Zeiss strongly recommends the use of a Torx T6 torque wrench with a torque of 0.4 Nm.

Mount Type

Canon EF

Compatibility

CP.2 15mm T2.9
CP.2 35mm T1.5
CP.2 50mm T1.5
CP.2 85mm T1.5

Shim Thickness

Silver: 0.013 mm
Gold: 0.019 mm
Purple: 0.025 mm
Light blue: 0.032 mm
Red: 0.038 mm
Blue: 0.051 mm
White: 0.064 mm
Green: 0.076 mm
Orange: 0.102 mm
Light purple: 0.127 mm
Clear: 0.152 mm

  • Zeiss Interchangeable Mount Set EF (for CP.2 15mm T2.9, 35mm T1.5 Super Speed, 50mm T1.5 Super Speed,85mm T1.5 Super Speed)
  • EF Mount Ring
  • Adaption Ring with Support Bracket
  • Rear Lens Cap (EF)
  • Torx Screws
  • Shims

Brand: Zeiss | Code: 1846494
APN: 4047865900423 | Supplier Code: 1846-494

Brand: Zeiss | Code: 1846494
APN: 4047865900423 | Supplier Code: 1846-494

At a glance

  • Canon EF Lens Mount
  • Color Coded Shims
  • Rear Lens Cap
