Zeiss IMS CP.2 135mm/T2.1 for Sony E-Mount

Loading
  • Zeiss IMS CP.2 135mm/T2.1 for Sony E-Mount
$782.00 HURRY! Only 3 units left

  • E Lens Mount
  • Color Coded Shims
  • Rear Lens Cap

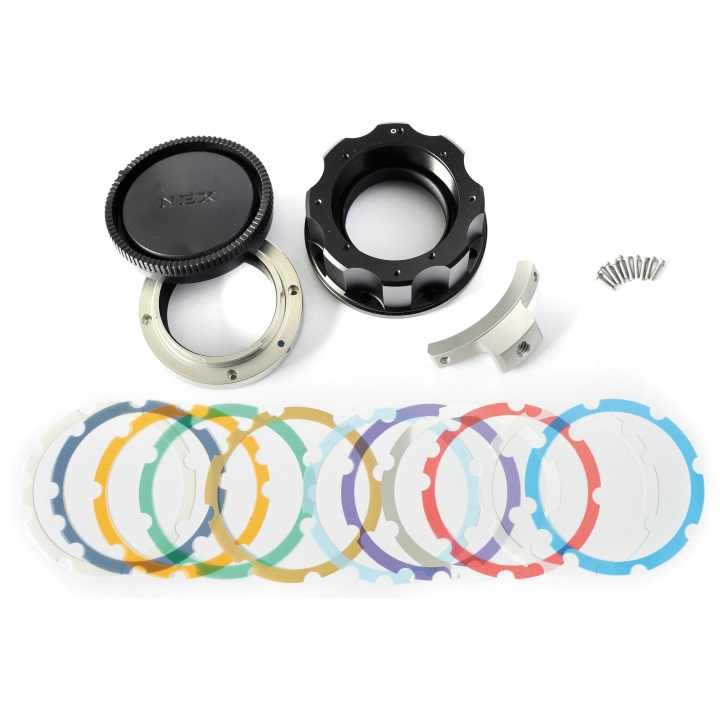

This Zeiss Interchangeable Mount Set E allows users to convert their CP.2 135/T2.1 lens to E mount. The set includes a Sony E mount ring, an adapter ring with support bracket, Torx screws, eleven color coded shims and a rear lens cap. As the flange focal distance varies from camera type to camera type, it is sometimes necessary to make adjustments when changing the lens mount or camera model, and in order to perform this adjustment, Zeiss provides shims in eleven different thicknesses.

Note: The use of a T6 torque wrench with a torque of 0.4 Nm is strongly recommended.



Mount Type

Sony E

Compatibility

Zeiss Compact Prime CP.2 135mm/T2.1 lenses

Shim Thickness

Silver: 0.013 mm
Gold: 0.019 mm
Purple: 0.025 mm
Light blue: 0.032 mm
Red: 0.038 mm
Blue: 0.051 mm
White: 0.064 mm
Green: 0.076 mm
Orange: 0.102 mm
Light purple: 0.127 mm
Clear: 0.152 mm

  • Zeiss Interchangeable Mount Set E (CP.2 135/T2.1)
  • E Mount Ring
  • Adapter Ring with Support Bracket
  • Rear Lens Cap (E)
  • Torx Screws
  • Shims

Brand: Zeiss | Code: 1998735
APN: 4047865902236 | Supplier Code: 1998-735

Brand: Zeiss | Code: 1998735
APN: 4047865902236 | Supplier Code: 1998-735

At a glance

  • E Lens Mount
  • Color Coded Shims
  • Rear Lens Cap
