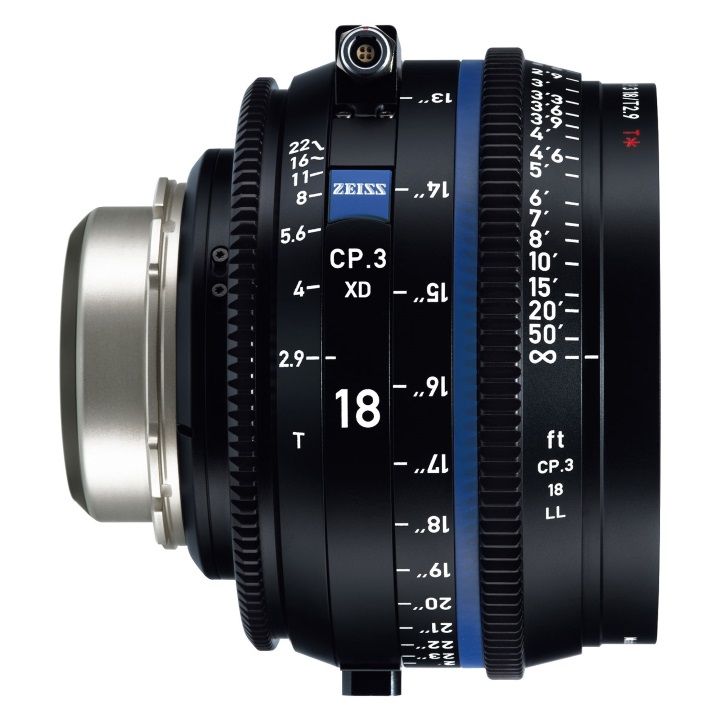

Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount

Loading
  • Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount
  • Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount
  • Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount
  • Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount
  • Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount
  • Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount
  • Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount
  • Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount
  • Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount
$13,268.00 HURRY! Only 1 unit left

  • PL Mount
  • T2.9 to T22 Aperture Range
  • Geared Focus and Iris Control Rings
  • Clickless Iris Ring
  • 14-Blade Iris
  • eXtended Data (XD) and /i Connections
  • Classic Zeiss Image Rendering

True cine look

Ranging from 15 mm to 135 mm, the ten focal lengths available in the ZEISS Compact Prime CP.3 or CP.3 XD series cover all applications from wide-angle to telephoto. The ZEISS CP.3 lenses feature advanced lens coatings, painted lens rims and special light traps within the barrel to eliminate unwelcome veiling glare and flares. The result is higher contrast, richer blacks and more saturated colors.

  • Clean and crisp ZEISS look which matches perfectly with other ZEISS cinema lenses.
  • Color matching and covering full frame across the full range of focal lengths from 15 to 135 mm.
  • Special lens coatings support high-dynamic range projects.
Zeiss CP.3 True Cine Look Zeiss CP.3 extended data technology

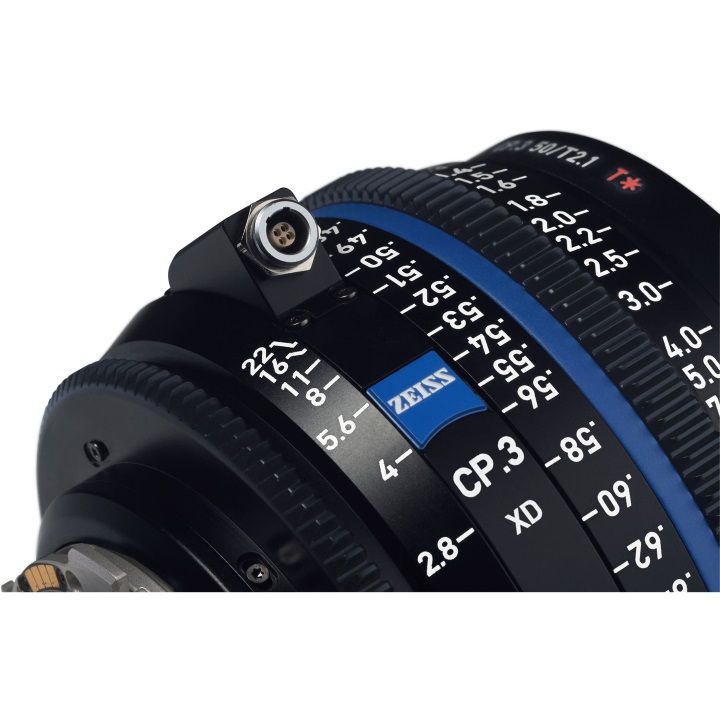

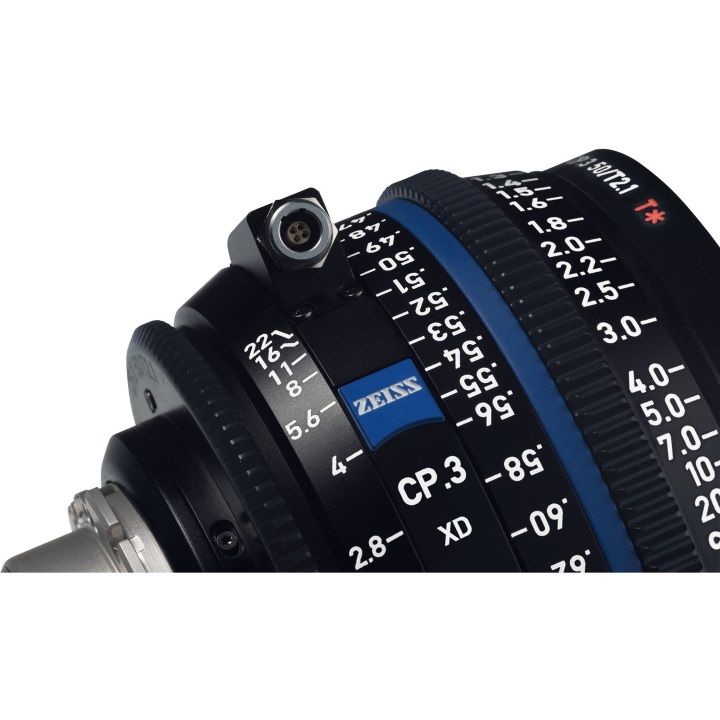

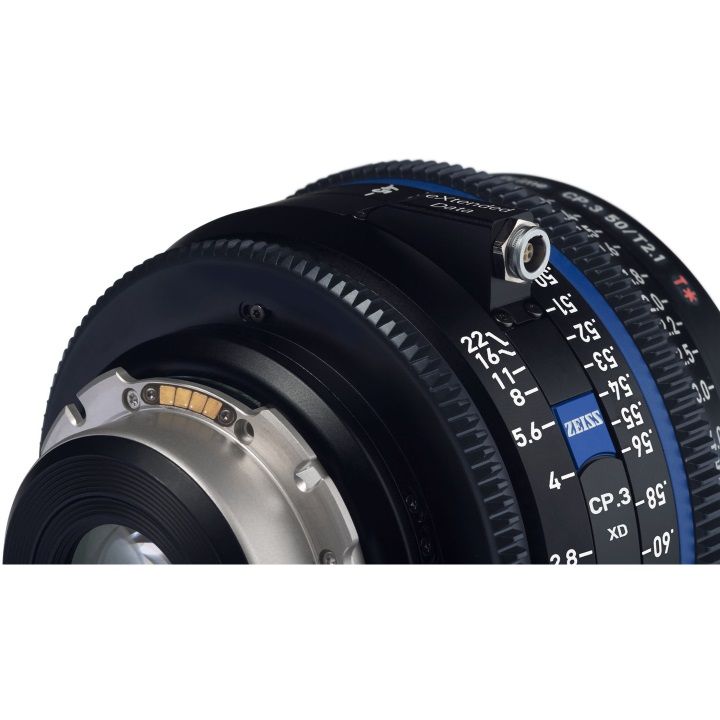

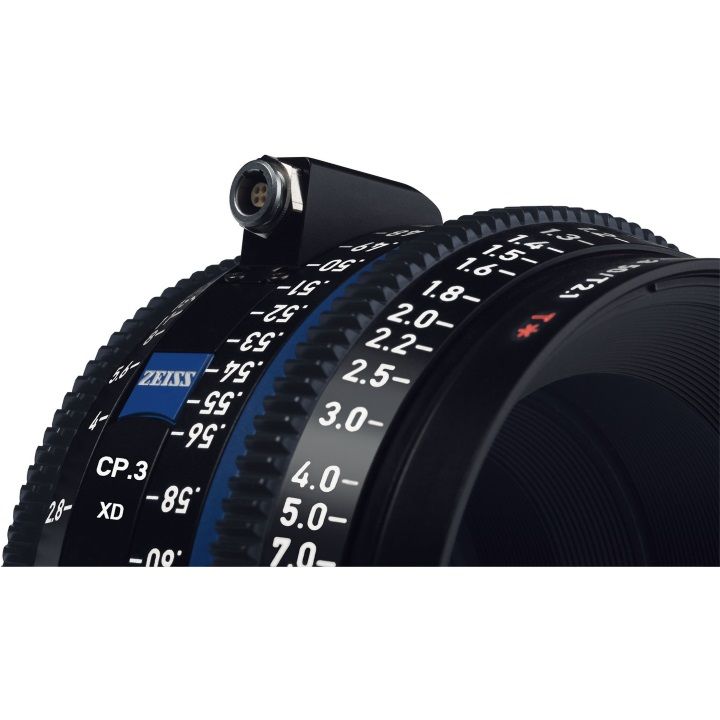

New ZEISS eXtended Data technology

The ZEISS eXtended Data technology adds new opportunities to simplify and increase the accuracy of the image capture and processing workflow. ZEISS eXtended Data unifies two data sets: key lens data based on the open /i* Technology standard and supported by a wide range of cameras and accessories, plus ZEISS specific lens data that contains precise lens characteristics.

  • A unique technology that provides information about the lens’ distortion and shading characteristics in real time to speed-up the workflow on set and in post-production.
  • Lens settings are digitally captured on every frame, avoiding the need to manually record the lens settings for every shot.
  • Documentation of the lens’ characteristics enhances creativity by allowing more complex shots to be handled in post-production.

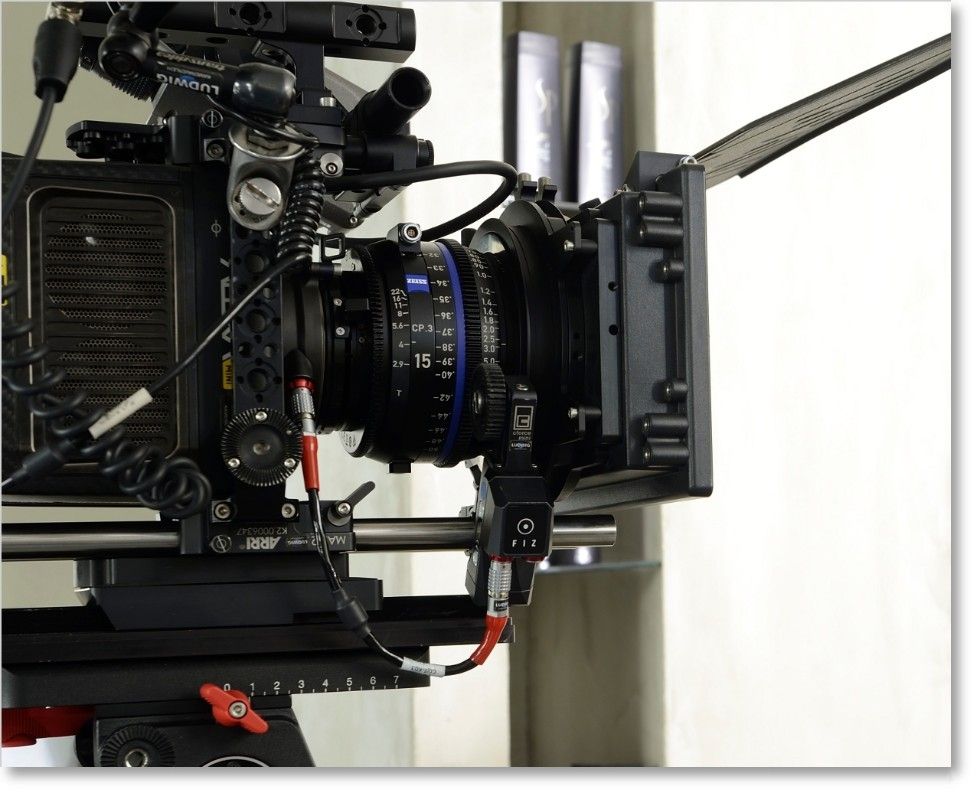

Ultimate cine ergonomics

The ZEISS CP.3 lenses are a professional toolset that simplifies your work on set. They are easy to handle, allow for fast changeover of equipment and give you great creative freedom to make your ideas come to life.

  • Standardized positioning of the focus rings and a consistent 95 mm front diameter allows for fast and easy changeover while on set.
  • Extraordinarily smooth focus rotation even in extreme temperature conditions thanks to a new, sophisticated construction design.
  • Consistent T-stops simplifies lighting on set and exposure compensations (T2.9 for 15 to 21 mm and T2.1 for 25 to 135 mm).
Zeiss CP.3 Ultimate cine ergonomics Zeiss CP.3 Compactness redefined

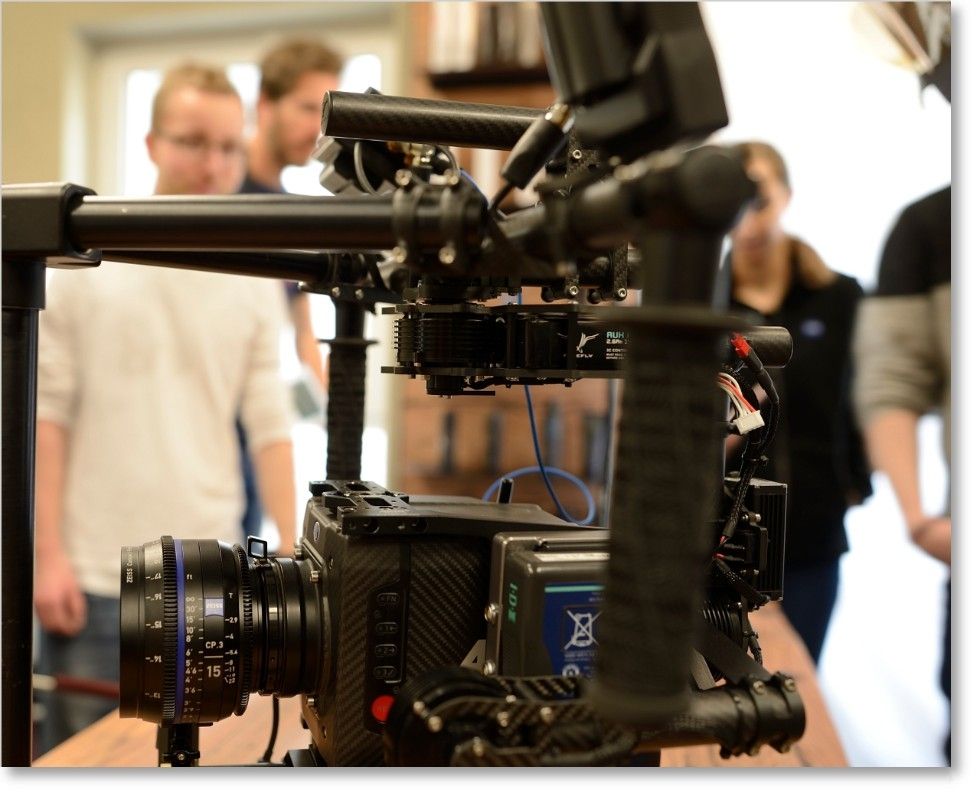

Compactness redefined

The compact and light-weight design enables you to use different stabilizing systems and to have a compact camera setup that is ideal for shooting in narrow spaces and for capturing dynamic shots.

  • The compact and light-weight design is ideal for handheld, gimbal, drone and Steadicam applications.
  • Consistent size and weight across most of the focal lengths enables quick change of lenses when used on drones and gimbals.
  • The ultra-smooth focus rotation allows use of small focus motors.

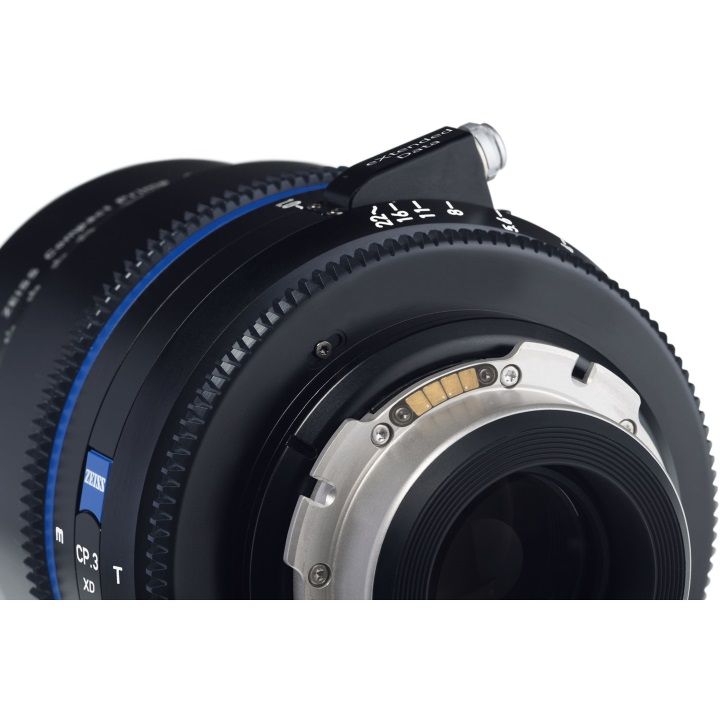

Mount

PL

Focal Length

18mm

Aperture

T2.9 to T22

Close Focus Distance

12 / 30 cm

Image Circle

43.2 mm

Focus Rotation

300°

Iris Blades

15

Front Lens Diameter

95 mm

Focus Scales

Feet

Length

3.3 / 83.7 mm

Weight

1.9 lb / 0.86 kg

Brochures
2186829 - Brochure
Product Manuals
Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount - Product Manual
Specifications
Zeiss CP.3 18mm T2.9 Feet XD eXtended Data Compact Prime Cine Lens for PL Mount - Specifications

  • Zeiss CP.3 XD 18mm T2.9 Compact Prime Lens (PL Mount, Feet)
Related Categories ARRI PL Cine Lenses

Brand: Zeiss | Code: 2186829
APN: 4047865903516 | Supplier Code: 2186-829

Brand: Zeiss | Code: 2186829
APN: 4047865903516 | Supplier Code: 2186-829

At a glance

  • PL Mount
  • T2.9 to T22 Aperture Range
  • Geared Focus and Iris Control Rings
  • Clickless Iris Ring
  • 14-Blade Iris
  • eXtended Data (XD) and /i Connections
  • Classic Zeiss Image Rendering
