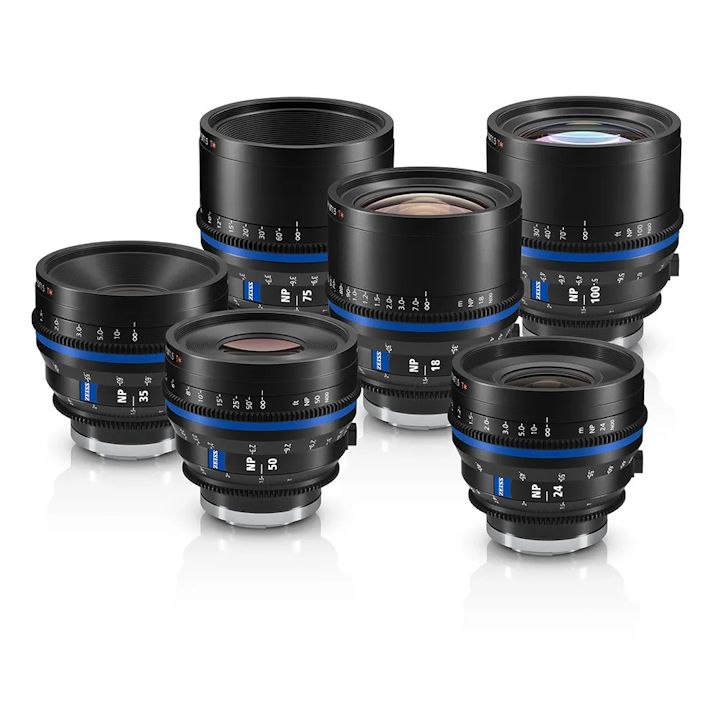

Zeiss Nano Prime 6 Lens Kit 18/24/35 /50/75/100mm Sony E Mount with Transport Case

Loading
  • Zeiss Nano Prime 6 Lens Kit 18/24/35 /50/75/100mm Sony E Mount with Transport Case
  • Zeiss Nano Prime 6 Lens Kit 18/24/35 /50/75/100mm Sony E Mount with Transport Case
  • Zeiss Nano Prime 6 Lens Kit 18/24/35 /50/75/100mm Sony E Mount with Transport Case

  • Comprehensive Focal Range
  • Covering Cinematic Full Frame
  • Cinematic Look in Every Shot
  • Full Cine Ergonomics in a Small Package
  • Certified for extreme conditions—cold, rain, and more

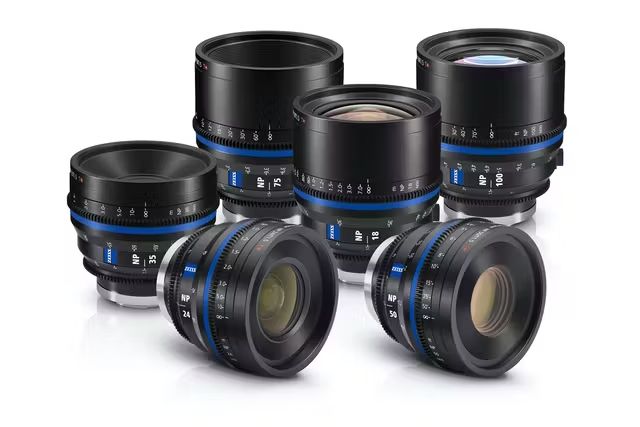

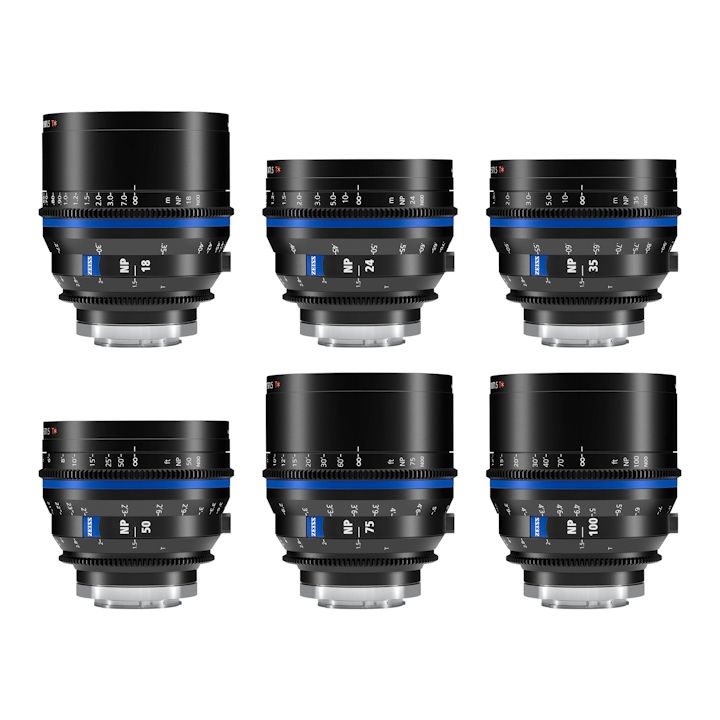

Comprehensive Focal Range

With a focal range containing 18mm, 24mm, 35mm, 50mm, 75mm, 100mm, Nano Primes ensure all-encompassing angle of views from wide-angle to tele, making them the go-to choice for diverse cinematic needs.

Covering Cinematic Full Frame

Full frame sensors amplify visual depth and character. Nano Primes cover these bigger sensors, empowering all cinematographers, no matter if up-and-coming or seasoned, to craft images rich in volume and personality.

Cinematic Look in Every Shot

The Nano Primes' high speed combined with their close focus capability delivers captivating shallow depth-of-field, even with wide-angle shots. The maximum aperture of T1.5 and the rounded 12-blade iris produce an elegant bokeh, enabling the creation of true cinematic images. Offering a versatile and gentle sharpness akin to Supreme Primes, they're ideal for B-Cam and C-Cam or as a budget-friendly alternative.

Full Cine Ergonomics in a Small Package

Nano Primes excel in precision and durability. Featuring a compact design with a 95mm front diameter and an 86mm screw-in filter thread, they seamlessly integrate with gimbals and drones. The consistent position of focus and iris rings streamlines lens changes while offering easy-to-read calibrated scales, a smooth 280° focus rotation, and a 90° iris ring rotation for precise control.

Tested for Harsh Conditions

Certified for extreme conditions—cold, rain, and more—Nano Primes undergo rigorous testing, ensuring unmatched durability in the toughest filming environments. Nano Primes are the go-to lenses for everyday.

Interchangeable mount

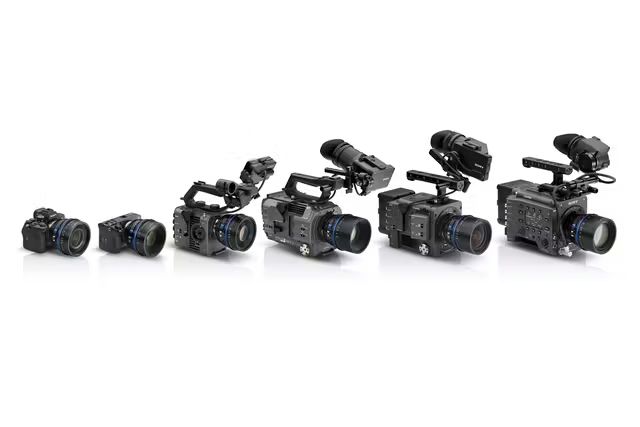

The Nano Primes are ready for the easy exchange of additional mounts thanks to the proven ZEISS IMS (Interchangeable Mount System). With a user-adjustable back focus via shims, the lenses ensure precise scales even with entry-level cameras for which mount mechanics normally have higher tolerances.

Electronic Interface for Real-Time Lens Data

Thanks to the integrated electronic interface on the mount, the Nano Primes transmit real-time metadata such as focal length, focus distance and aperture to the camera. Further lens data for distortion and vignetting ist available in the ZEISS CinCraft ecosystem and thus for post-production (CinCraft Mapper) as well as in the recently introduced CinCraft Scenario camera tracking system.

Precision Manufacturing & Worldwide Service

ZEISS Nano Prime lenses are assembled by hand and engraved with individually calibrated scales. Serviceability is a top priority starting in the initial stages of the development process. ZEISS has built up a global service network in the recent years with authorized service stations offering service according to factory standards in the US, Europe and Asia.

  Aperture Close Focus1 Length2 Front diameter Screw-in Filter Weight Angle of focus scale Horizontal Angle of View3
Nano Prime

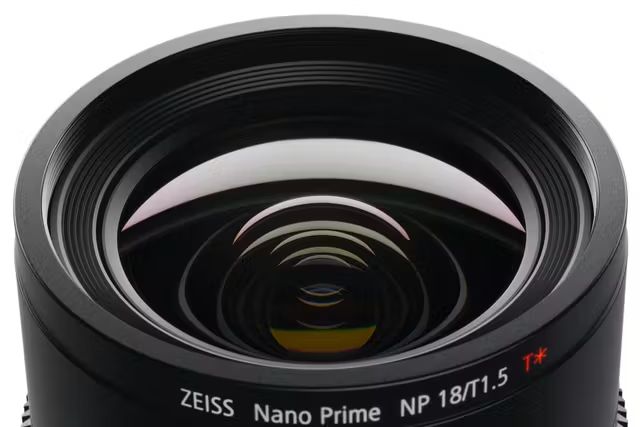

18 mm T1.5
T1.5 to T16 0.25 m | 9.8'' 112 mm | 4.4'' 95 mm | 3.7'' M86 x 1 1.19 kg | 2.62 lbs 280° 90.3°
Nano Prime

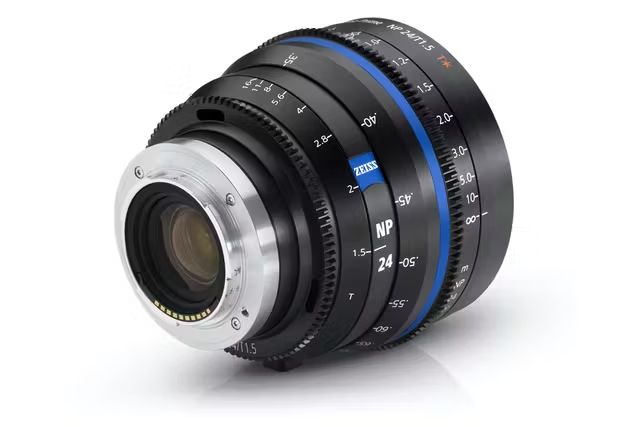

24 mm T1.5
T1.5 to T16 0.35 m | 13.8'' 89 mm | 3.5'' 95 mm | 3.7'' M86 x 1 0.87 kg | 1.93 lbs 280° 74.2°
Nano Prime
35 mm T1.5
T1.5 to T16 0.45 m | 17.7'' 89 mm | 3.5'' 95 mm | 3.7'' M86 x 1 0. 87 kg | 1.92 lbs 280° 53.8°
Nano Prime
50 mm T1.5
T1.5 to T16 0.50 m | 19.7'' 89 mm | 3.5'' 95 mm | 3.7'' M86 x 1 0. 92 kg | 2.04 lbs 280° 40.4°
Nano Prime
75 mm T1.5
T1.5 to T16 0.75 m | 29.5'' 112 mm | 4.4' 95 mm | 3.7'' M86 x 1 1.13 kg | 2.48 lbs 280° 27.7°
Nano Prime

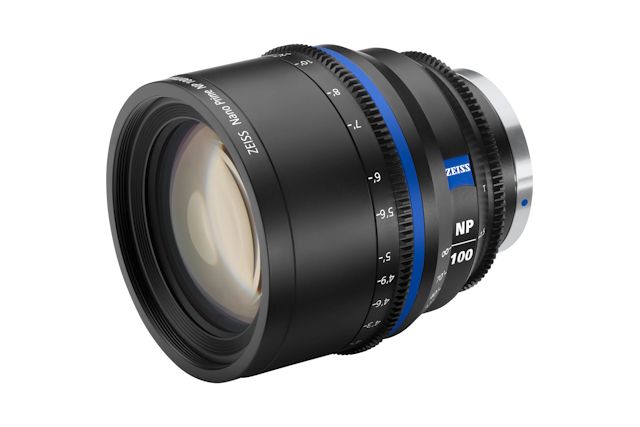

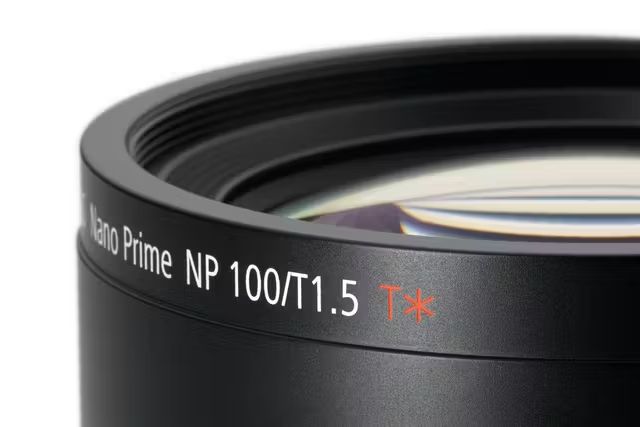

100 mm T1.5
T1.5 to T16 1.00 m | 39.4'' 112 mm | 4.4' 95 mm | 3.7'' M86 x 1 1.26 kg | 2.77 lbs 280° 20.7°

Remarks:

1) Minimum marked distance, measured from the image plane

2) Front to E-mount flange

3) Horizont angle of view for a full frame camera (aspect ratio 1:1.5, dimensions 36 mm x 24 mm / 1.42“ x 0.94“)

Brochures
2595-737 - Brochure

  • ZEISS Nano Prime 18mm T1.5 Cine Lens (Sony E, Feet)
  • ZEISS Nano Prime 24mm T1.5 Cine Lens (Sony E, Feet)
  • ZEISS Nano Prime 35mm T1.5 Cine Lens (Sony E, Feet)
  • ZEISS Nano Prime 50mm T1.5 Cine Lens (Sony E, Feet)
  • ZEISS Nano Prime 75mm T1.5 Cine Lens (Sony E, Feet)
  • ZEISS Nano Prime 100mm T1.5 Cine Lens (Sony E, Feet)

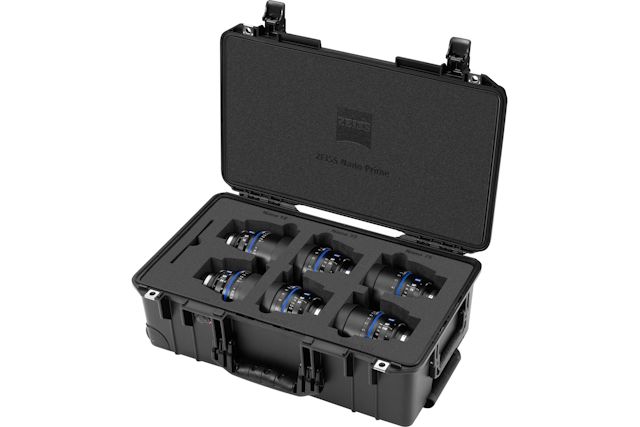

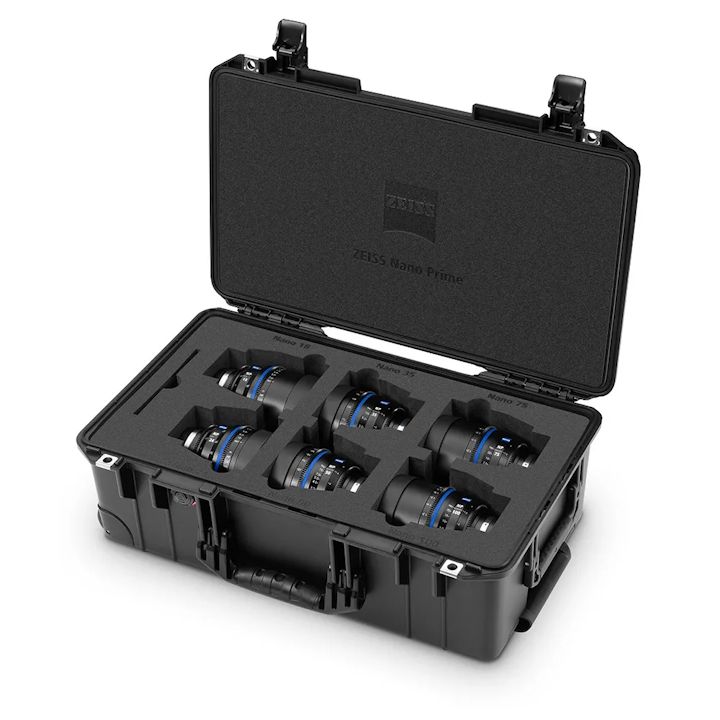

  • ZEISS Nano Prime Transport Case

Brand: Zeiss | Code: 2595-737
APN: 4047865909655 | Supplier Code: 2595-737

Brand: Zeiss | Code: 2595-737
APN: 4047865909655 | Supplier Code: 2595-737

At a glance

  • Comprehensive Focal Range
  • Covering Cinematic Full Frame
  • Cinematic Look in Every Shot
  • Full Cine Ergonomics in a Small Package
  • Certified for extreme conditions—cold, rain, and more
