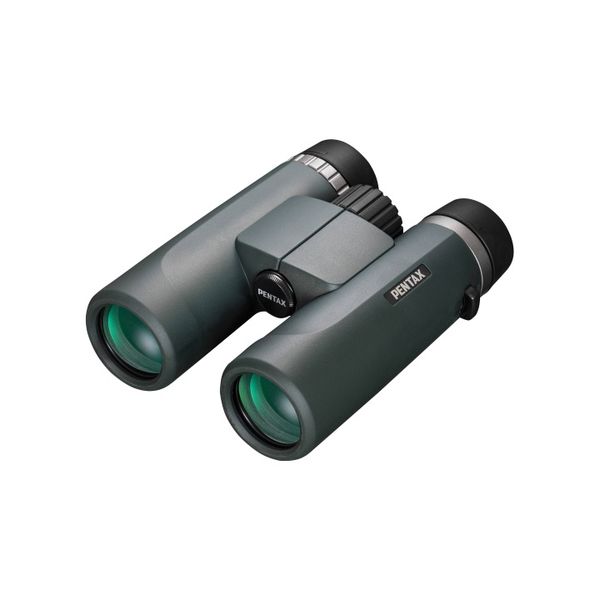

Pentax AD 10x36 WP Binoculars

Loading
  • Pentax AD 10x36 WP Binoculars
  • Pentax AD 10x36 WP Binoculars
  • Pentax AD 10x36 WP Binoculars
  • Pentax AD 10x36 WP Binoculars
  • Pentax AD 10x36 WP Binoculars
  • Pentax AD 10x36 WP Binoculars
$359.00 In Stock

  • Phase-Corrected BAK4 Roof Prisms
  • Fully Multicoated Optics
  • Angle of View: 55°
  • Nitrogen-Filled, Water and Fogproof
  • Closed Bridge Configuration
  • Reinforced Polycarbonate Housing
  • Center Focusing
  • Tripod Mountable
  • Twist-Up Eyecups

The Pentax 10x36 A-Series AD WP Compact Binocular delivers bright clear images while weighing in at just 22.5 ounces. The BAK4 roof prisms are phase-corrected to improve image contrast and enhance color rendition. All of the optics are anti-reflection fully multicoated to maximize light transmission to produce the brightest views possible.

In order to cut weight, the housing is made of corrosion and impact-resistant fiberglass reinforced polycarbonate polymer. The material is also temperature-resistant allowing for its use in extreme climates while reducing expansion and contraction wide temperature swings can cause which can make the optical components move out of collimation over time. Its optical tubes are nitrogen-filled and O-ring sealed so they can are submersible to 3.3', as well as fogproof in all weather conditions.

Optical Performance

  • 10x magnification
  • 36mm objective lenses
  • BAK4 roof prisms
  • Phase corrected prism coatings enhance contrast and improve color rendition
  • Anti-reflection fully multicoated optics
  • 8' field of view at 1000 yards
  • 55° angle of view

Use and Handling

  • Closed bridge configuration
  • Knurled center focusing wheel
  • Twist-up eyecups for use with or without eye wear
  • 5mm eye relief, 3.6mm exit pupil
  • Tripod mountable with optional adapter

Construction Details

  • Lightweight fiberglass reinforced polycarbonate housing
  • Housing is corrosion, temperature and impact-resistant
  • Nitrogen-filled for fogproof performance, submersible to 3.3 (1m)
  • Rubberized armoring protects against impacts and provides slip-resistant grip
  • Inner focusing mechanism provides smooth focus while preserving waterproof seals



Prism Type

Roof

Magnification

10x

Objective Lens Diameter

36mm

Angle of View

5.5° (actual)

Field of View

288.7 @ 1000 yd / 96.2 m @ 1000 m

Minimum Focus Distance

81.7 / 24.9 m

Exit Pupil Diameter

3.6 mm

Eye Relief

17.5 mm

Focus Type

Center

Tripod Mount

Yes (Adapter Optional)

Dimensions

6.1 x 5.1 x 2.1 / 15.5 x 12.9 x 5.3 cm

Weight

22.5 oz / 637.9 g

Brand: Pentax | Code: 62852
APN: 0027075288645 | Supplier Code: 62852

Brand: Pentax | Code: 62852
APN: 0027075288645 | Supplier Code: 62852

At a glance

  • Phase-Corrected BAK4 Roof Prisms
  • Fully Multicoated Optics
  • Angle of View: 55°
  • Nitrogen-Filled, Water and Fogproof
  • Closed Bridge Configuration
  • Reinforced Polycarbonate Housing
  • Center Focusing
  • Tripod Mountable
  • Twist-Up Eyecups
