Brinno ASP1000-P Solar Power Kit for BCC2000 & BCC2000 Plus
Extend your long-lasting camera to immortal

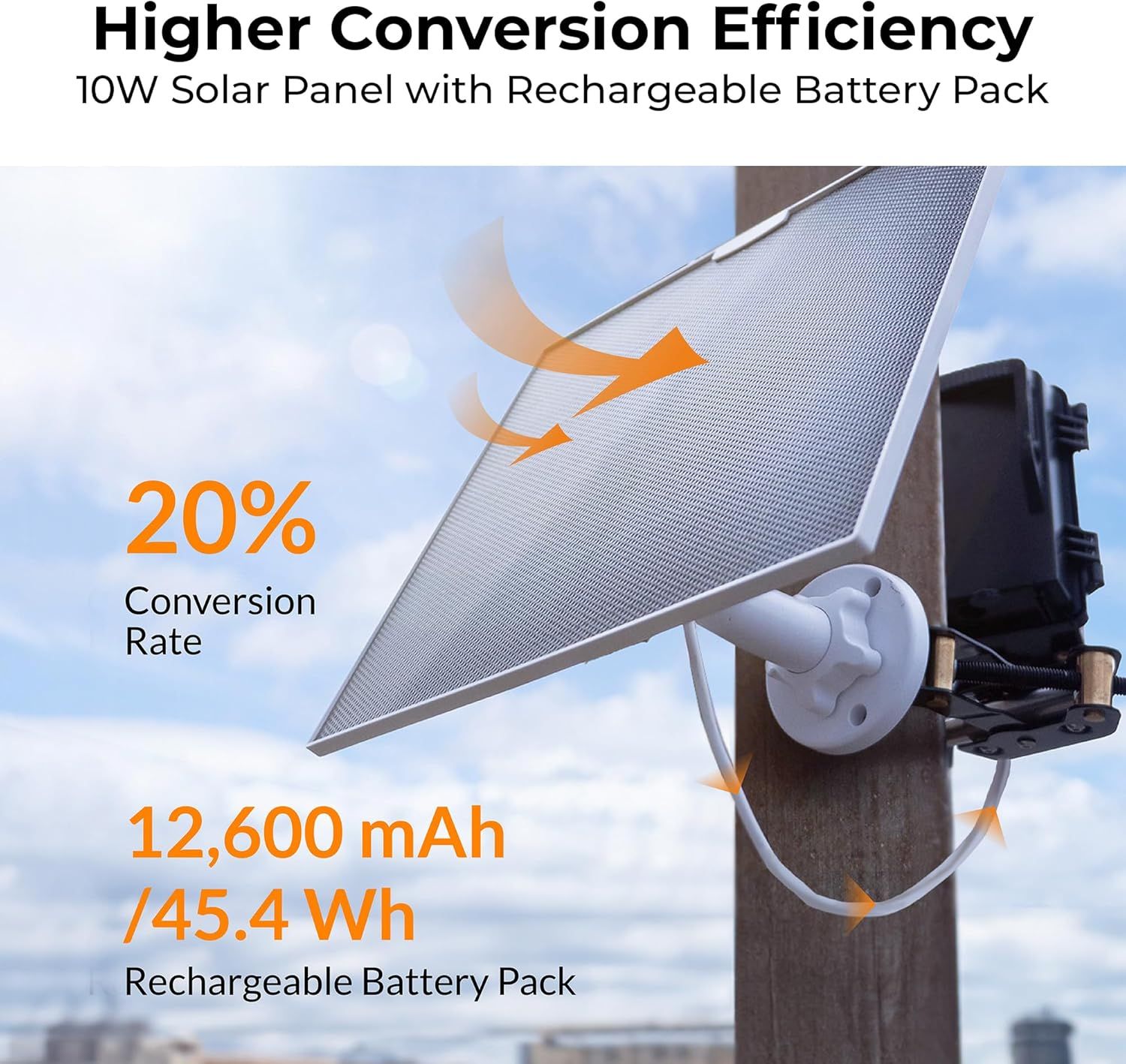

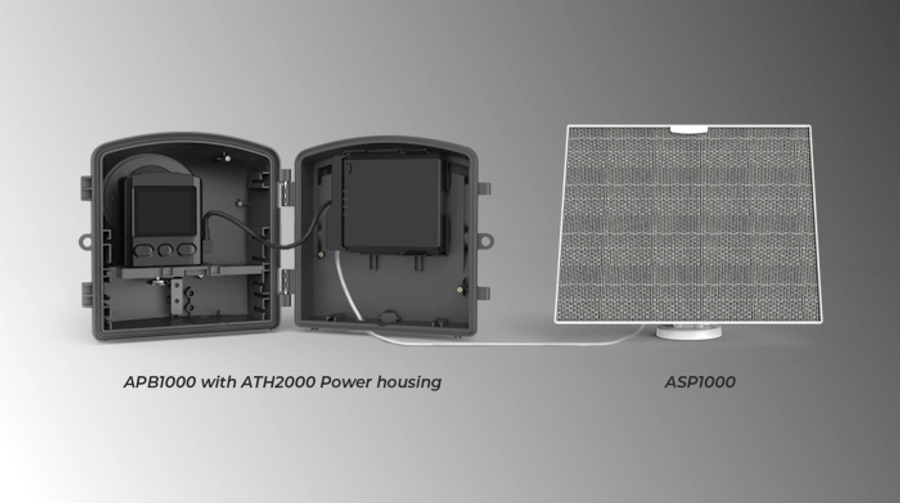

The Brinno Solar Power Kit is specifically designed for the Brinno BCC2000 & BCC2000 Plus construction camera bundles. It includes a 10W monocrystalline silicon solar panel with higher conversion efficiency and the Brinno Rechargeable Battery kit. It generates a continuous power supply for the time-lapse camera through direct sunlight.

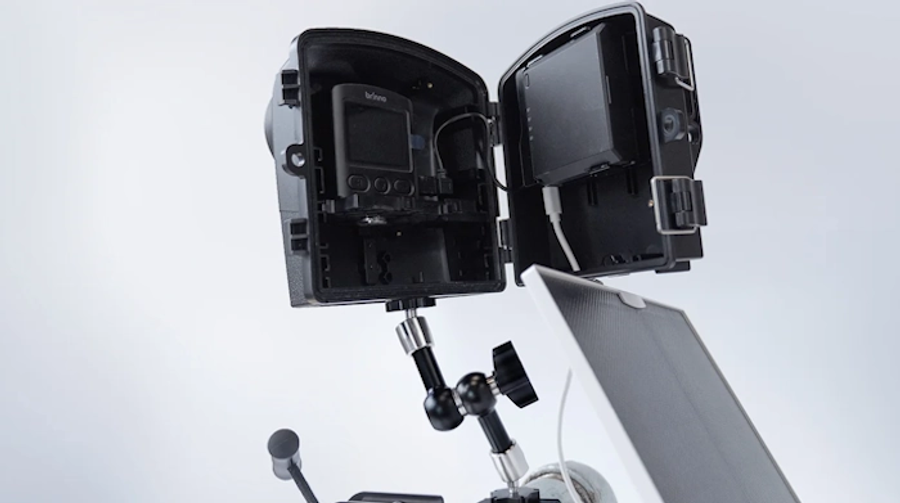

Rechargeable Battery Pack
The large 1/1.8" imaging sensor allows each pixel to reach 2.0 μm, providing you with visually true 4K high quality and capturing every detail with flexibility in video editing.

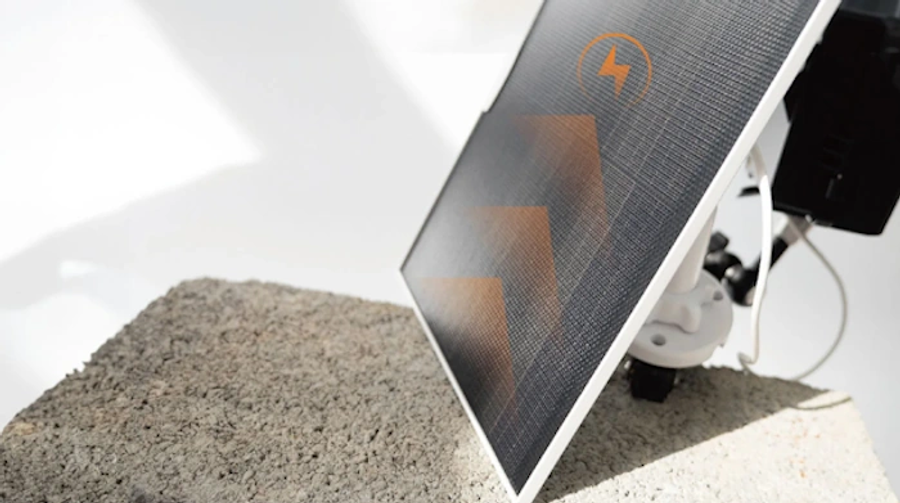

10W Solar Panel
High efficient conversion rate solar panel that convert the infinite sunlight into reusable energy, ensuring a sustainable and consistent power resource for time lapse cameras or any gadgets.

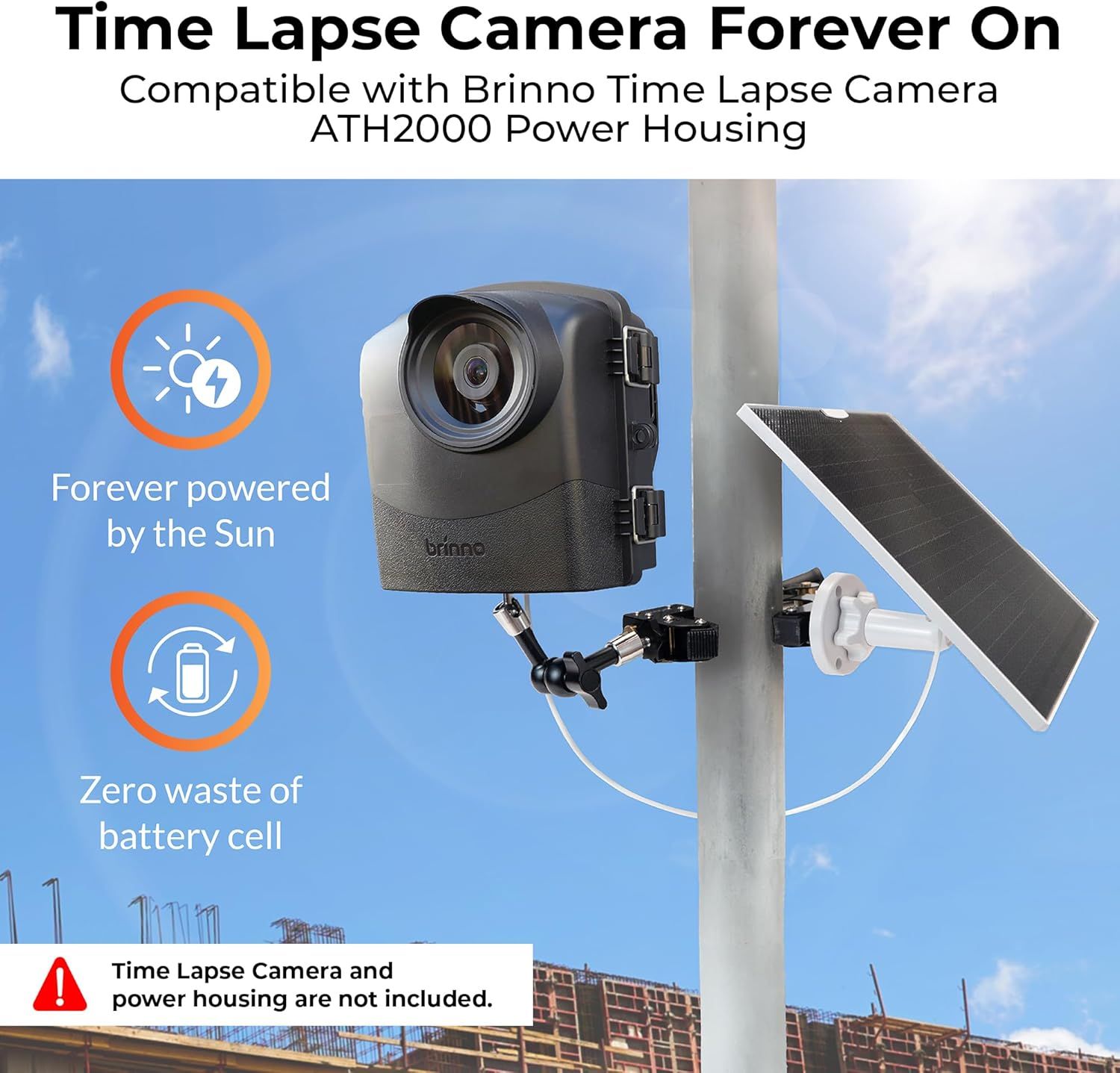

Always-on for Time Lapse Camera
Truly worry-free recording experiences with continuous power supply to make sure every moment was captured without missing a shot from the time lapse camera.

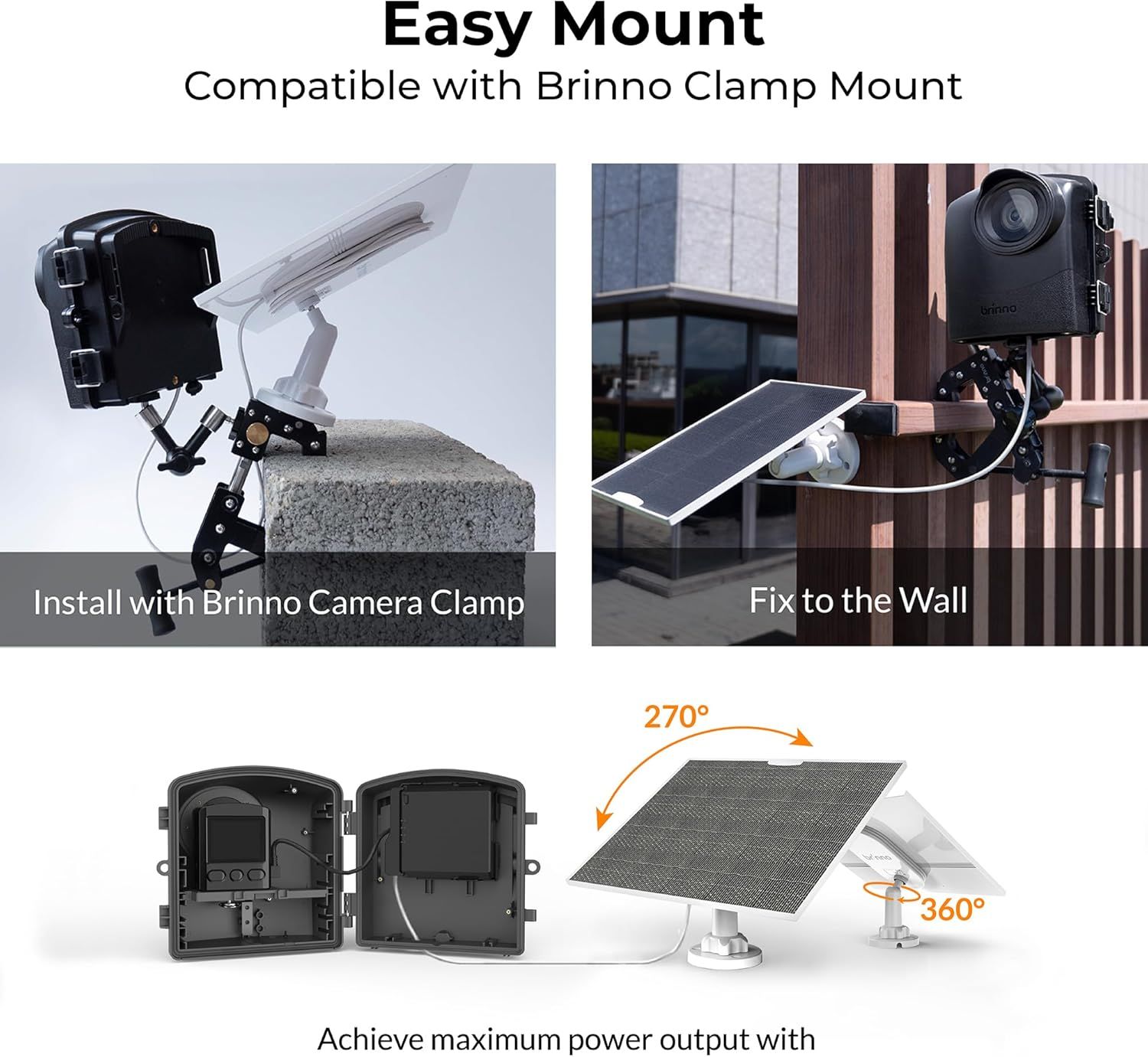

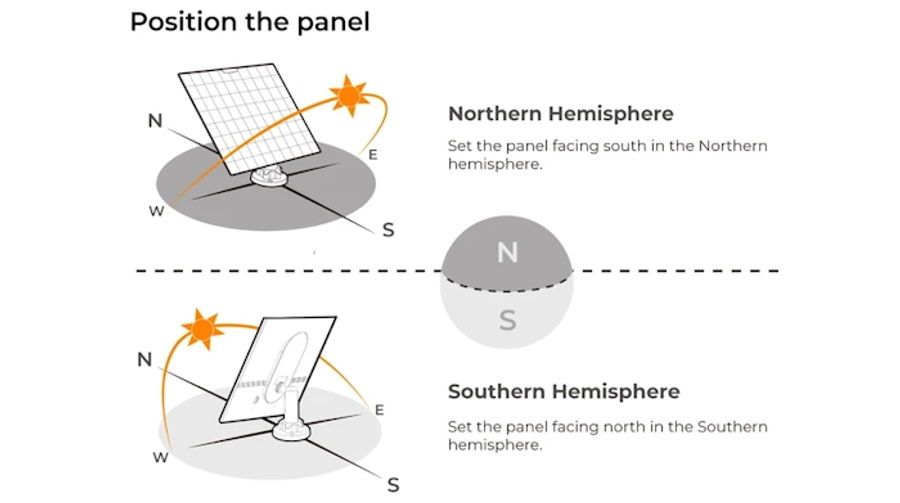

Installation Tips

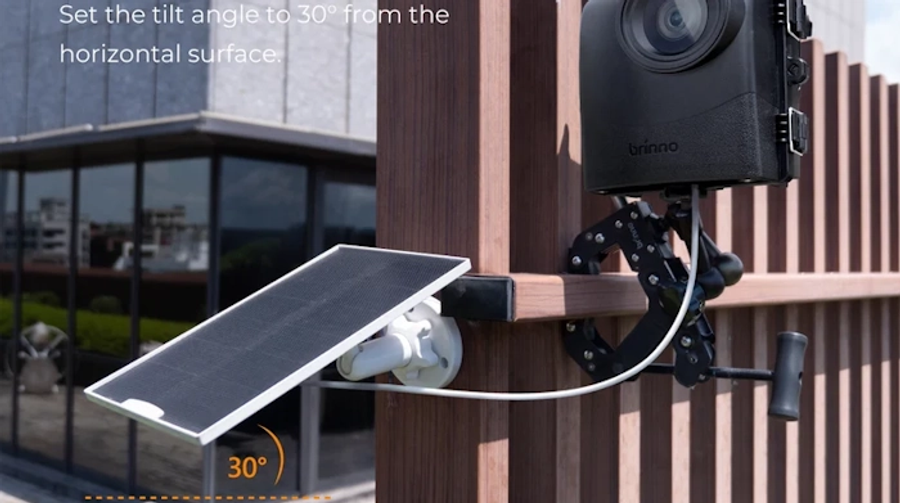

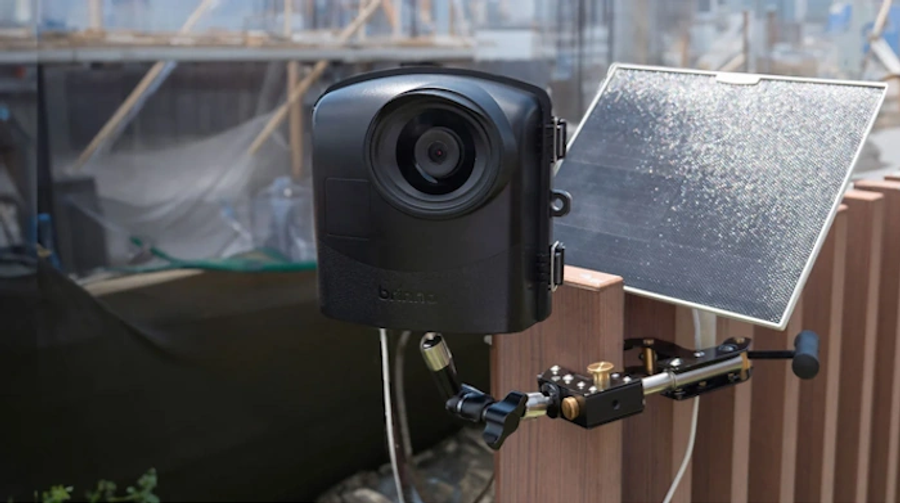

Install on the Wall
| Product / Model No. | Solar Panel / ASP1000 |
| Solar Power Rating | 10W |
| Operating Voltage | 5V DC |
| Power Connection | USB-C |
| Conversion Rate | >20% |
| Works With | Brinno Rechargeable Battery Kit (APB1000) |

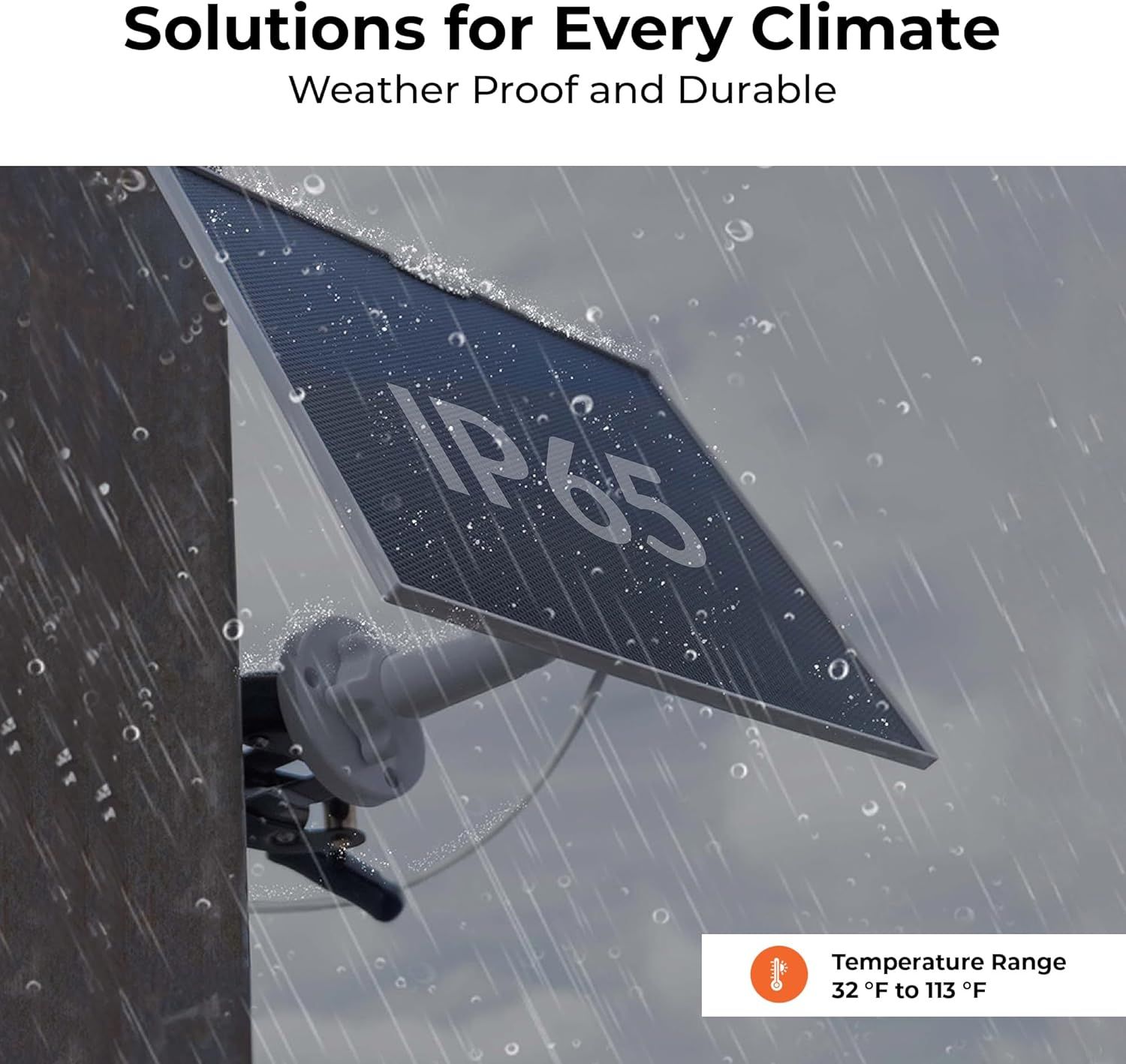

| Waterproof | IP65 |
| Size (WxHxD) | Solar Panel: 8.4 x 10.3 x 0.8 in (214 x 262 x 20 mm) USB-C Cable: 9.8 ft (3 m) |
| Weight | 23.2 oz (660 g) |
| Product / Model No. | Rechargeable Battery Kit / APB1000 |
| Power Source | Brinno Battery Pack (MRB1000) |
| Energy Capacity | 12,600 mAh / 45.4 Wh |
| Always-On Mode | Provides continuous power supply for low power time lapse camera or IoT application. |
| Input Port | USB-C (supports 5V 2A Quick Charge*) (on battery pack) Using chargers above 5V or incompatible fast chargers may damage the battery. |
| Output Port | Micro USB connector (for Brinno camera) USB-C port |
| Output Voltage & Output Current | 5V 2A (max. for total two outputs) Micro USB: continuous output 5V 500mA (max instantaneous output 5V 1A) USB-C: continuous output 5V 1A |

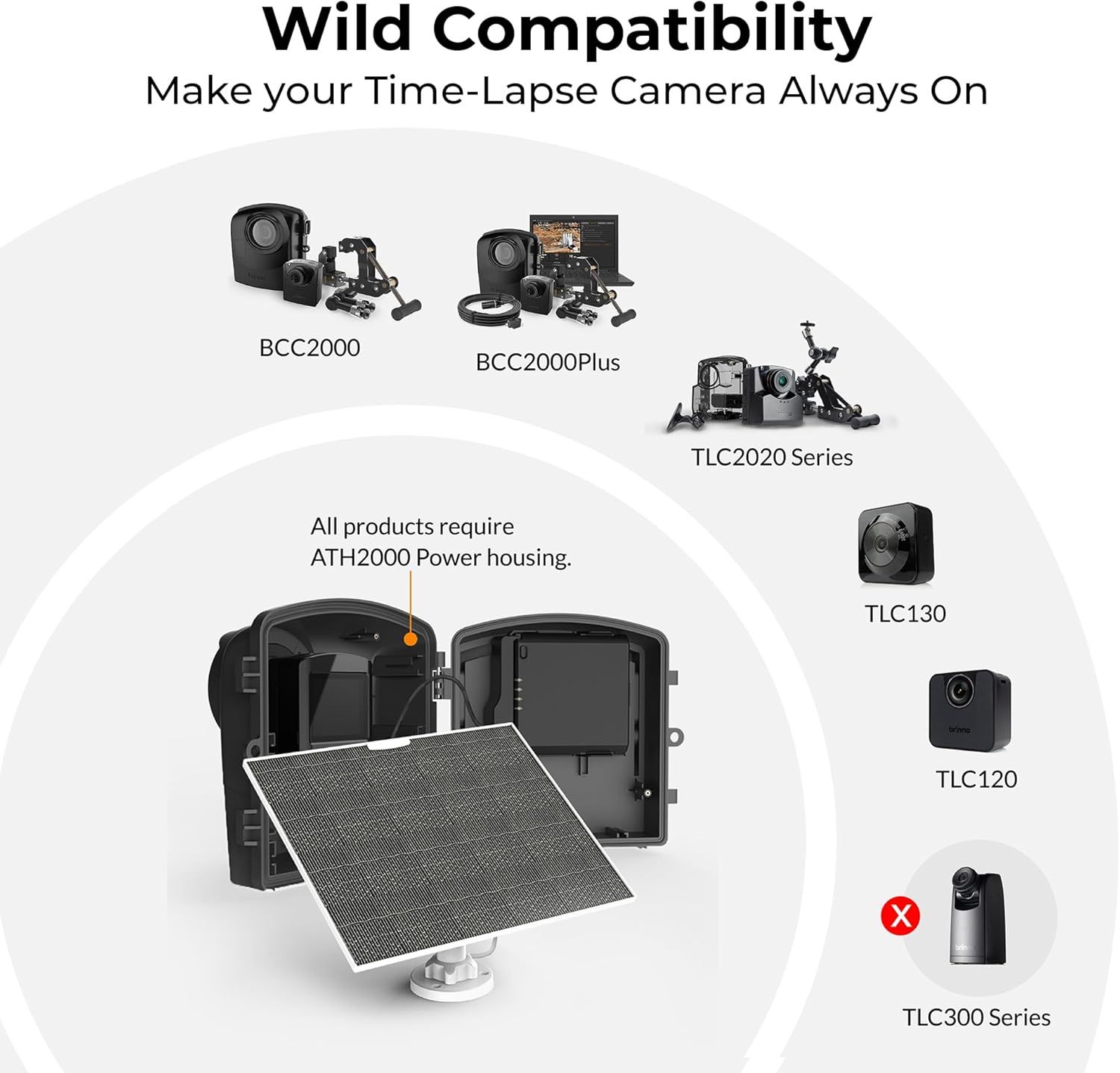

| Compatible Models | BCC2000 & BCC2000 Plus TLC2000/2020 with ATH2000 construction power housing |
| Ambient Temperature | -4 °F ∼ 140 °F (-20 °C ∼ 60 °C)** |
| Size (WxHxD) | 3.68 x 3.22 x 1.46 in (93.5 x 82 x 27.2 mm) |
| Weight | 9.9 oz (280 g) |
| Package Contents | Brinno Battery Pack (MRB1000) x1 External Power Adapter Hook and Loop Tape |

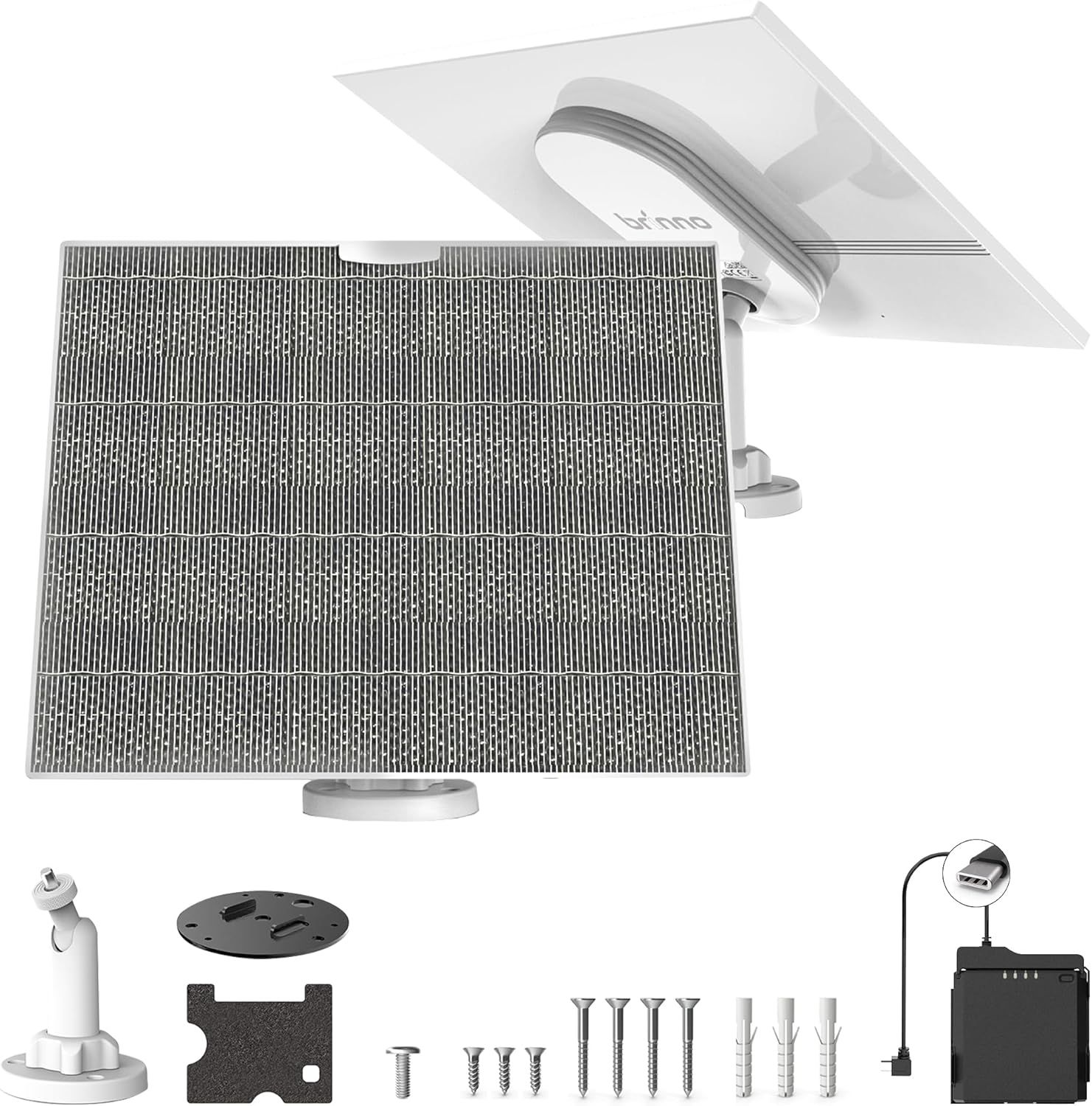

- 10W Solar Panel
- Holder & Wall Mount
- Mounting Adapter
- Brinno Battery Pack
- External Power Adapter
Brand: Brinno |
Code: ASP1000-P
APN: 4712417432027 |
Supplier Code: ASP1000-P
Brand: Brinno |
Code: ASP1000-P
APN: 4712417432027 |
Supplier Code: ASP1000-P
At a glance
The Brinno Solar Power Kit is a practical accessory for powering your time-lapse camera with renewable energy. Designed specifically for Brinno time-lapse cameras, this solar kit enables continuous operation without the need for frequent battery changes. Perfect for extended outdoor projects and remote locations, the kit harvests solar energy efficiently to keep your camera functioning reliably. Ideal for construction monitoring, nature observation, or any long-term time-lapse photography where consistent power is essential. This environmentally friendly solution from Brinno, a trusted name in time-lapse technology, ensures your camera remains operational for extended periods regardless of access to traditional power sources.
