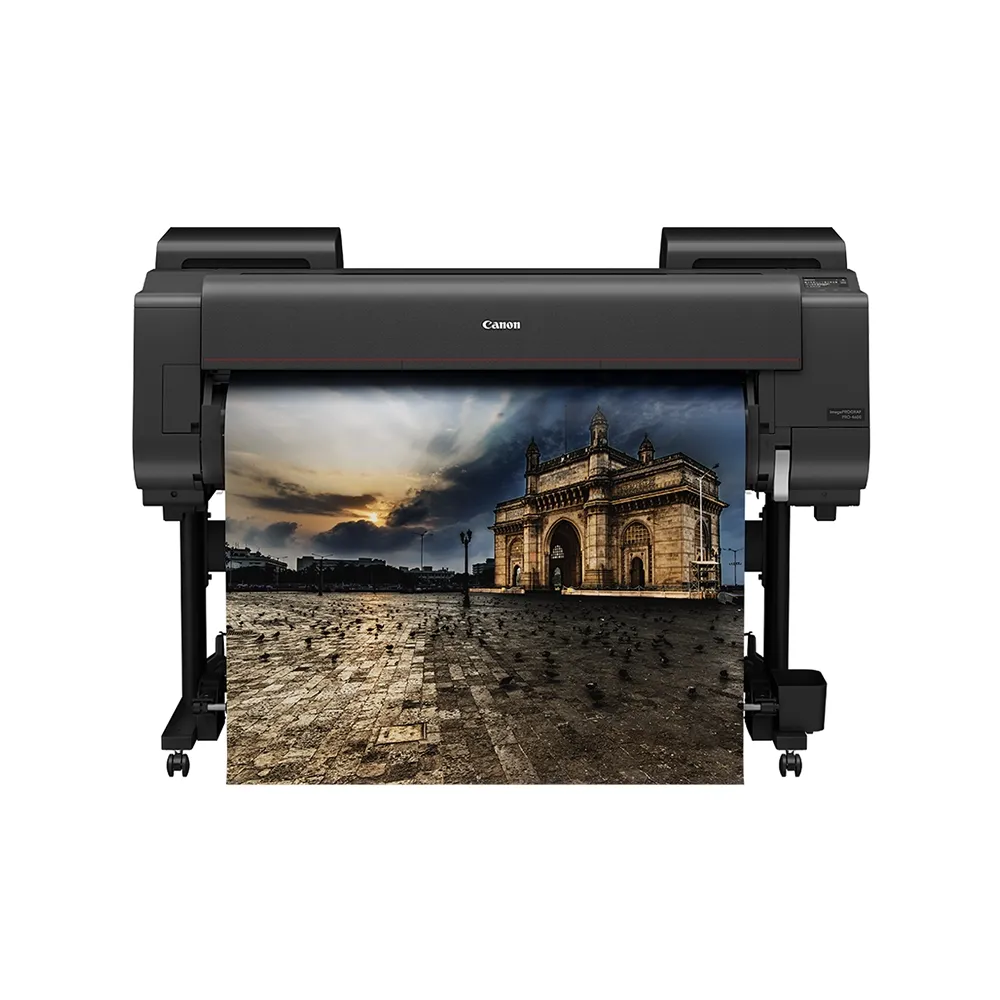

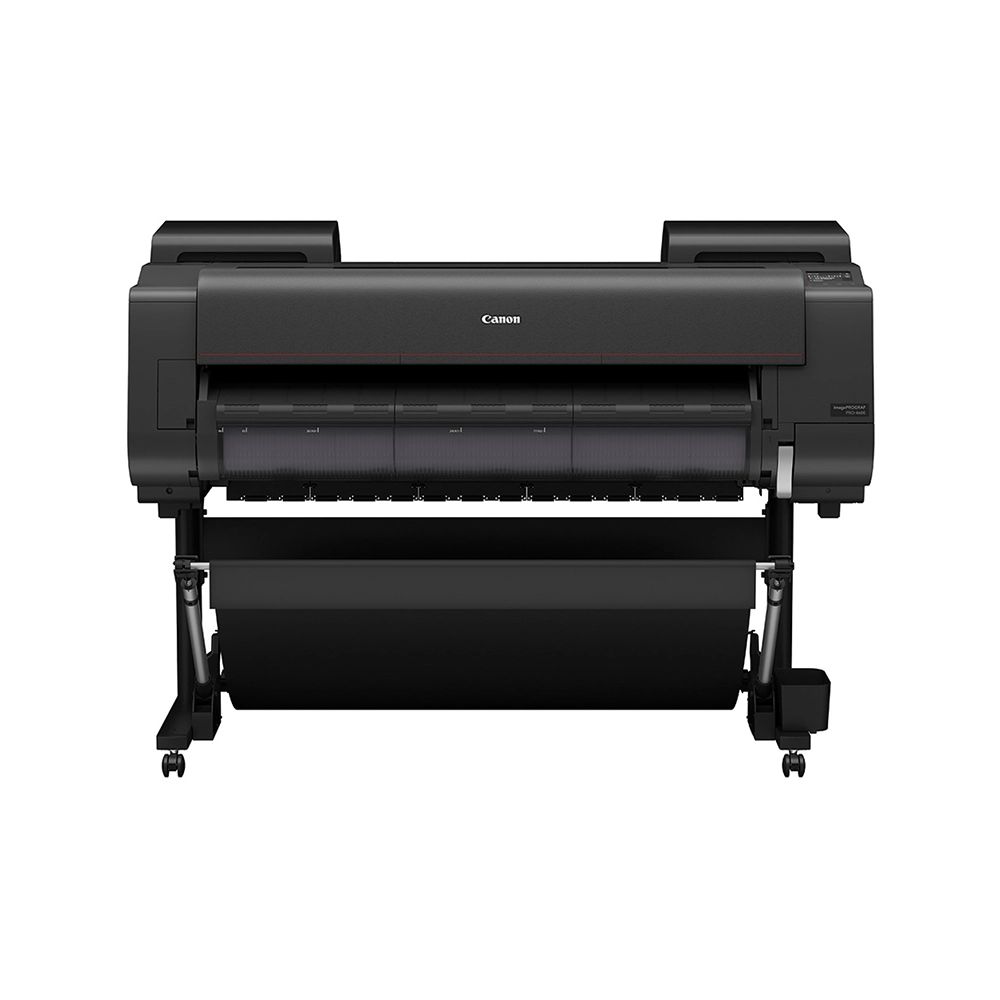

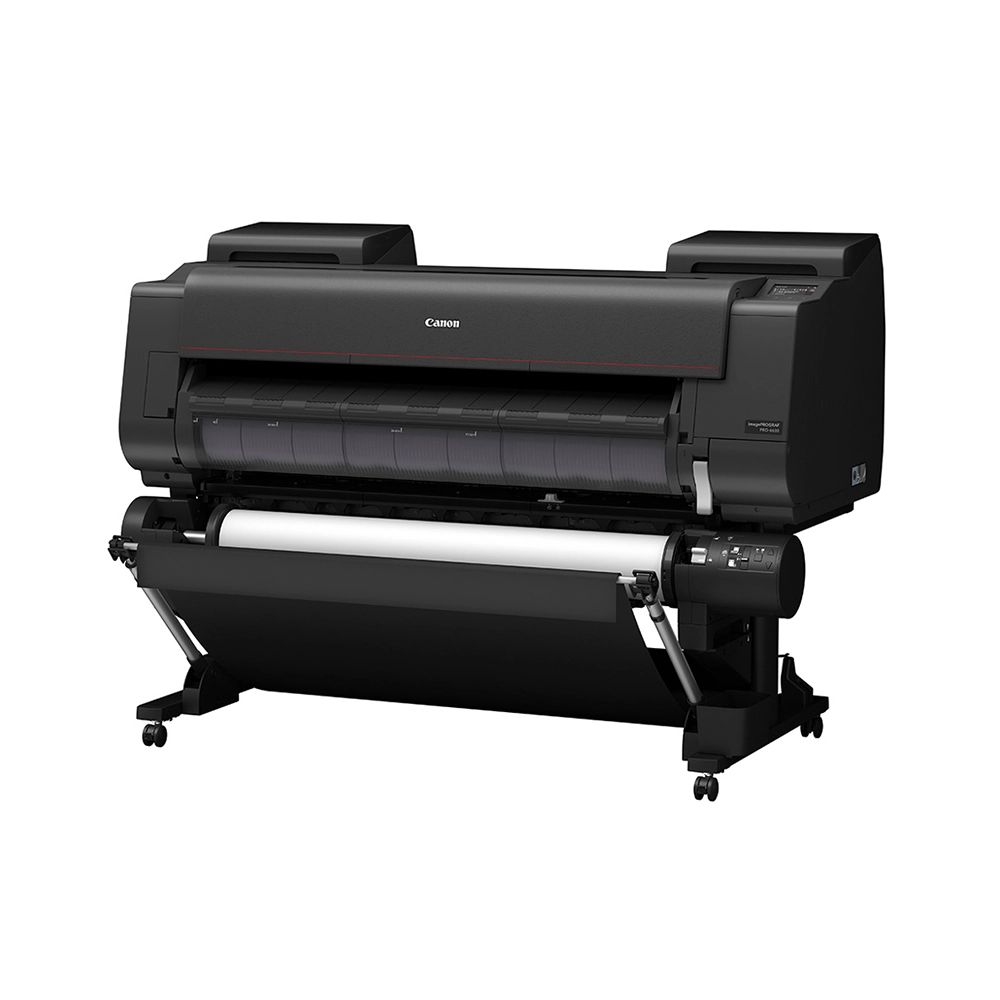

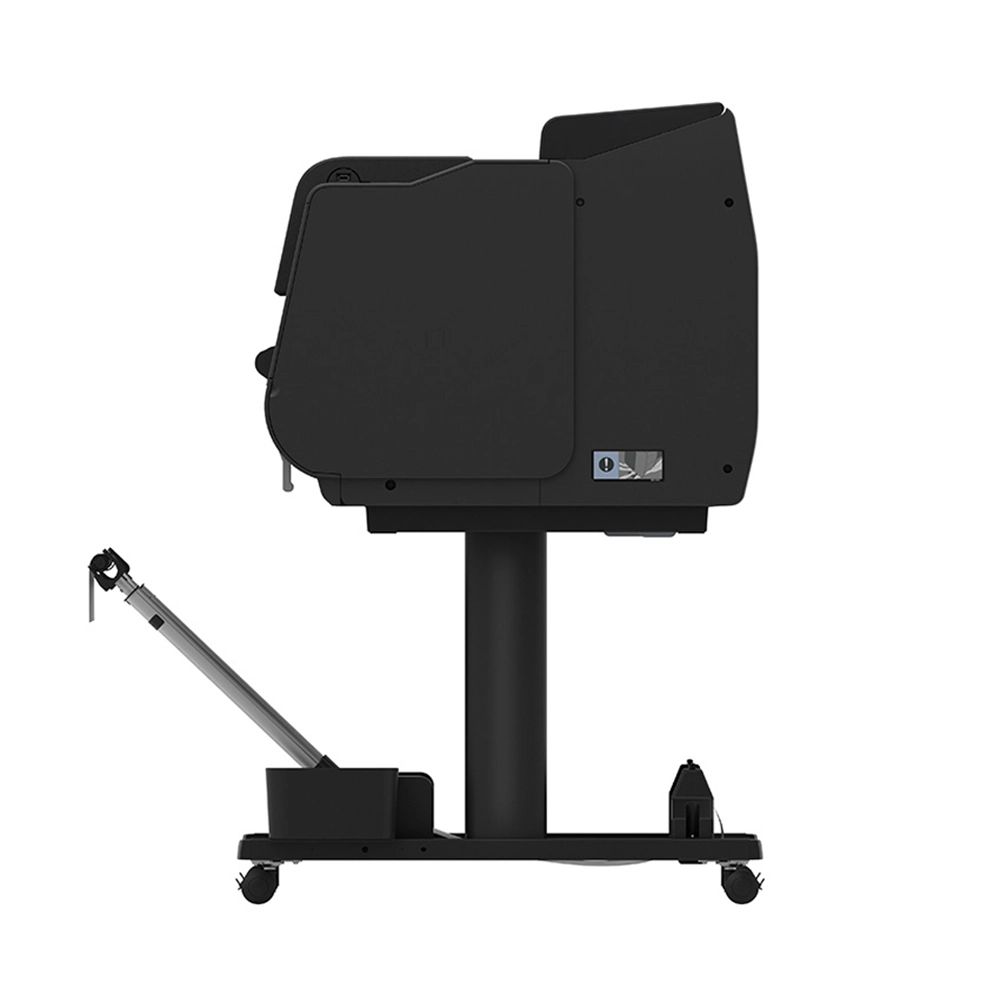

Canon iPF PRO-4600 44" 12 Colour Graphic Arts Large Format Printer
- Maximum Resolution: 2400 x 1200 dpi
- Maximum Print Width: 44"
- LUCIA PRO II Ink System
- Automatic media loading system
- 4.3" Color LCD touchscreen
- Built-In USB Port for Direct Printing
- 500GB Hard Drive
- Hot swap ink replacement system
- USB, Ethernet, Mobile & Wi-Fi Connectivity
imagePROGRAF PRO-4600
44" Professional Photography & Fine Art Large Format Printer
The Canon iPF PRO-4600 is a flagship 44" 12 Colour Graphic Arts Wide Format Printer. It provides the best image quality in the imagePROGRAF series, with the newly developed LUCIA PRO II ink.
COMPLETE YOUR OBSESSION
Taking a shot is only the first chapter. You pick the best picture from a selection and then edit your files to get the most out of them. However, the story is still incomplete. In a world where we see hundreds of digital images a day, the impact a tangible photo has is remarkable. Especially, if your photo is due to go on display for the world to see. Canon’s expertise in capturing and managing images has been the foundation of our photographic range of large format printers. Images have been faithfully reproduced for creative minds all over the world. The new imagePROGRAF PRO Series is designed to showcase your images the way they deserve. Hardware, software and ink technology is optimised to reproduce your work the way you intended it to. Experience full end-to-end control of your image.
Best photo quality printer in imagePROGRAF series
The Canon imagePROGRAF PRO-4600 is built to achieve the best quality for the graphic arts market. This includes photography and fine art – for photographers, photo studios and professional print services.
Long term image preservation with new formulated ink
The newly developed LUCIA PRO II ink includes an advanced colour development process that retains colour in an image for much longer. As a result, printed images have an excellent lightfastness which are preserved for 200 years.
Deeper black with new formulated ink
Use of low reflectance pigments provides high black density. This allows fine art paper to reproduce a deeper black colour whilst expanding the range of expression of the work.
| Print Head | PF-10 |
| Number of Nozzles | 18,432 Nozzles (1,536 Nozzles x 12 colors) |
| Droplet Size | Minimum 4pL per color |
| Ink Type | Pigment: 12 colours(Photo Black/Matte Black/Cyan/Magenta/Yellow/Photo Cyan/ Photo Magenta/Grey/Photo Grey/Red/Blue/Chroma Optimiser) |
| Ink Tank Shipped with Printer: | PRO-2600 : 160ml x 12 colours PRO-4600/PRO-6600 : 330ml x 12 colours |
| Ink Tank Replacement: | PFI-3100 (160ml)/ PFI-3300 (330ml)/ PFI-3700 (700ml) for PBK/C/M/Y/ PC/PM/GY/PGY/R/B/CO PFI-2100 (160ml)/ PFI-2300 (330ml)/ PFI-2700 (700ml) for MBK |
| Printer RAM | 3 GB |
| Hard Disk | 500GB (Encrypted) |
| Media Feed | Media Feed: 1 Roll, Front-loading, Front output*(*Option for 2nd roll) Cut Sheet: Front-loading, Front Output (manual) |
| Media Width | |
| Roll Paper | ISO A4, A3, A3+, A2, A2+, A1, A0 JIS B4, B3, B2, B1, B0 ARCH 12”, 18”, 24”, 30”, 36” Other 6”,8”, 10”, 12”, 14”, 15”, 16”, 17”, 18”, 20”, 22”, 24”, 30”, 34”, 36”, 42”, 44”, 300mm, 500mm, 600mm, 800mm, 1000mm |
| Cut Sheet | ISO A4, A3, A3+, A2, A2+, A1, A0, B4, B3, B2, B1, B0 DIN C4, C3, C2, C1, C0 JIS B5, B4, B3, B2, B1, B0 ANSI 9 x 12", 12 x 18", 18 x 24", 24 x 36" ARCH 9 x 12”, 12 x 18”, 18 x 24”, 24 x 36” Photo (20 x 24”), (18 x 22”), (14 x 17”), (12 x 16”), (10 x 12”), (10 x 15”), (8 x 10”), (16 x 20”) Poster 220 x 30”, 30 x 40”, 42 x 60”, 44 x 62”, 300×900mm Others 13×22” |
| Media Cutter | Automatic horizontal cutting (Rotary Cutter) |
| Media Thickness | 0.07 – 0.8 mm |
| Media Core Sizes | 2” or 3” Core |
| Maximum Roll Outer Diameter | 170mm or less |
| Printing Software Utilities | Accounting Manager, Canon Print Service, Device Management Console, Professional Print & Layout, Direct Print Plus, Free Layout Plus, Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT, PosterArtist Web, PIXMA Cloud Link |
| Operating System | Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit), Windows 11, Windows Server 2008 R2, (32/64-bit), Windows Server 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2016 (64-bit), Macintosh OS v10.10.5-v12x, Windows Server 2019 x64, Windows Server 2022 |
| Print Language | SGRaster, PDF, JPEG |
| Interface | Hi-Speed USB : Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer Ethernet(Built in) : IEEE802.3ab(1000BASE-T)/IEEE802.3u(100BASE-TX)/IEEE802.3(10BASE-T) Wireless LAN : IEEE 802.11 b/g /n |
| Power Supply | AC 100–240V (50 – 60 Hz) |
| Power Consumption | ISO Power Consumption (using wired LAN) Approx 85W Standby(using wired LAN) Approx 1.7W Power Off Approx 0.1W |
| Operational Environment | Temperature: 15° – 30° C Relative Humidity: 10-80% (Non Condensation) |
| Dimensions with stand basket opened (W x D x H) | 1593 x 984 x 1168mm |
| Weight (with Stand) | 124kg |
Brand: Canon |
Code: BDL-PRO4600
Supplier Code: BDL_PRO4600
Brand: Canon |
Code: BDL-PRO4600
Supplier Code: BDL_PRO4600
At a glance
- Maximum Resolution: 2400 x 1200 dpi
- Maximum Print Width: 44"
- LUCIA PRO II Ink System
- Automatic media loading system
- 4.3" Color LCD touchscreen
- Built-In USB Port for Direct Printing
- 500GB Hard Drive
- Hot swap ink replacement system
- USB, Ethernet, Mobile & Wi-Fi Connectivity
