Zhiyun Crane 2 Monitor
- 5.5" High Resolution
- 4K Video Signal
- Focus Peaking
- Monochromatic Mode

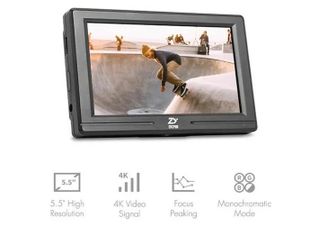

HD Resolution
Zhiyun TransMount 5.5" Display Monitor IPS LCD panel features a resolution of 1920x1080 with high performance and supports HDMI 4K signal input.

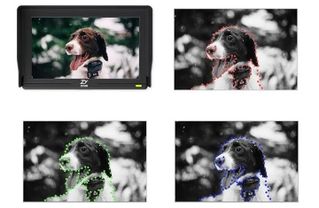

3 Colour Focus Peaking
Zhiyun TransMount 5.5" Display Monitor comes with red, green and blue Peaking Focus Assist, detecting focus fast to shoot ideal scenes.

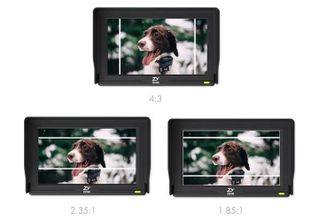

Safe Area & Auxiliary Line
Select from 3 classic auxiliary line ratios and 5 auxiliary line colours, as well as 80%, 85%, 90%, 93%, and 96% in the monitor system.

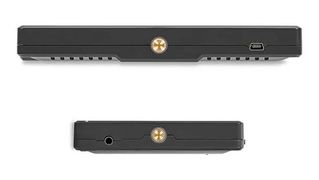

Flexible Installation
Designed with two 1/4" threaded holes, Zhiyun Trans Mount Display Monitor can be mounted on any appropriate location, catering to different shooting angles.

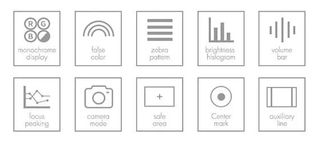

Multiple Functions
Numerous functions from monochrome display, false colour, zebra pattern, brightness histogram, and many are available.
| Screen Size | 5.5" |
| Resolution | 1920x1080 |
| On Screen Display | 120.96x68.04 mm |
| Screen Ration | 16:9 |
| Brightness | 330cd/m2 |
| Contrast Ratio | 1000:1 |
| View Angle | 160°/160°(H/V) |
| Signal Interface | HDMI |
| Input Voltage | DC 7-24V |
| Power Consumption | ≤9W Typ |
| Operating Temperature | 0°~60° |
| External Dimension | 148x99x22mm |
| Weight | 150g |
| HDMI Signal Format |
720x480i & 720x480p @ 59.94, 60Hz |
Brand: Zhiyun-Tech |
Code: C000031E
APN: 6970194085142 |
Supplier Code: C000031E
Brand: Zhiyun-Tech |
Code: C000031E
APN: 6970194085142 |
Supplier Code: C000031E
At a glance
- 5.5" High Resolution
- 4K Video Signal
- Focus Peaking
- Monochromatic Mode
HD ResolutionZhiyun TransMount 5.5" Display Monitor IPS LCD panel features a resolution of 1920x1080 with high performance and supports HDMI 4K signal input. |
|
|
|
3 Colour Focus PeakingZhiyun TransMount 5.5" Display Monitor comes with red, green and blue Peaking Focus Assist, detecting focus fast to shoot ideal scenes. |
Safe Area & Auxiliary LineSelect from 3 classic auxiliary line ratios and 5 auxiliary line colours, as well as 80%, 85%, 90%, 93%, and 96% in the monitor system. |
|
|
|
Flexible InstallationDesigned with two 1/4" threaded holes, Zhiyun Trans Mount Display Monitor can be mounted on any appropriate location, catering to different shooting angles. |
Multiple FunctionsNumerous functions from monochrome display, false colour, zebra pattern, brightness histogram, and many are available. |
|
