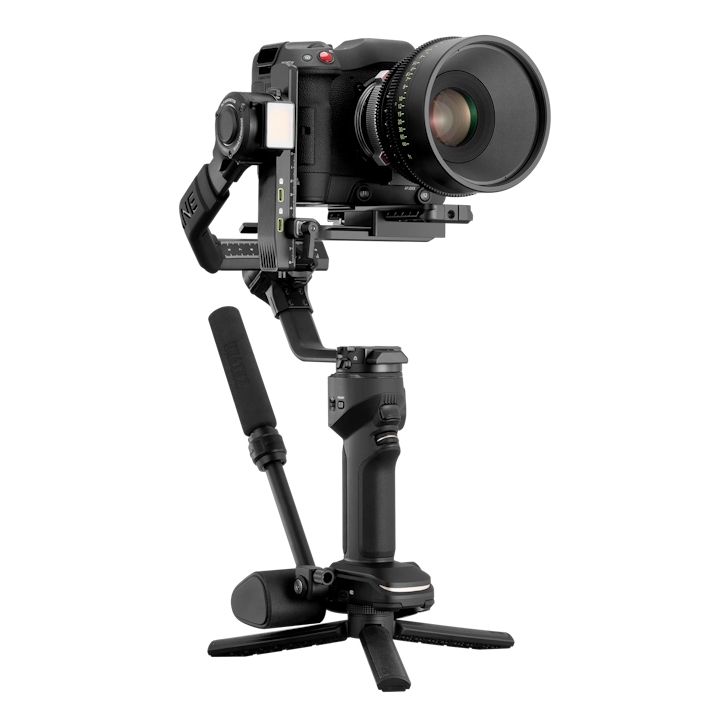

Zhiyun Crane 4 3-Axis Gimbal Stabiliser for DSLR / Compact / Video Cameras**

Grip Design

Single Handgrip

Load Capacity

13.2 lb / 6 kg

Number of Axes

3-Axis (Pitch (Tilt), Roll, Yaw (Pan))

Rotation Range

Mechanical Range
Pitch (Tilt): 214° (-72 to 142°)
Roll: 322° (-251 to 71°)
Yaw (Pan): 360°
Controllable Range
Pitch (Tilt): 207° (-71 to 136°)
Roll: 70° (-35 to 35°)
Yaw (Pan): 360° Unlimited

Camera Control

On Compatible Models

Camera Mounting Screw

3 x 1/4"-20 Male

Inputs/Outputs

1 x USB-C (Power / Firmware Updates)
1 x USB-C (Control / Video)
2 x USB-C (Control)

Wireless Frequency

2.4 GHz

Wireless Protocol

Bluetooth 5.0

Mobile App Compatible

Yes: Android & iOS
App Name: ZY Play
Functionality: Adjust Settings, Firmware Update, Remote Control, Setup
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility

Battery Type

4 x 18650

Battery Capacity

2600 mAh

Battery Runtime

12 Hours

Battery Charging Time

1.5 Hours

Operating Voltage

11.0 to 16.8 VDC

Operating Current

200 to 14500 mA

Operating Temperature

14 to 77°F / -10 to 25°C

Display Type

Fixed Touchscreen LCD

Mounting

4 x 1/4"-20 Female

Dimensions

13.4 x 11 x 2.8" / 340 x 280 x 70 mm

Weight

3.68 lb / 1.67 kg (without Tripod)
