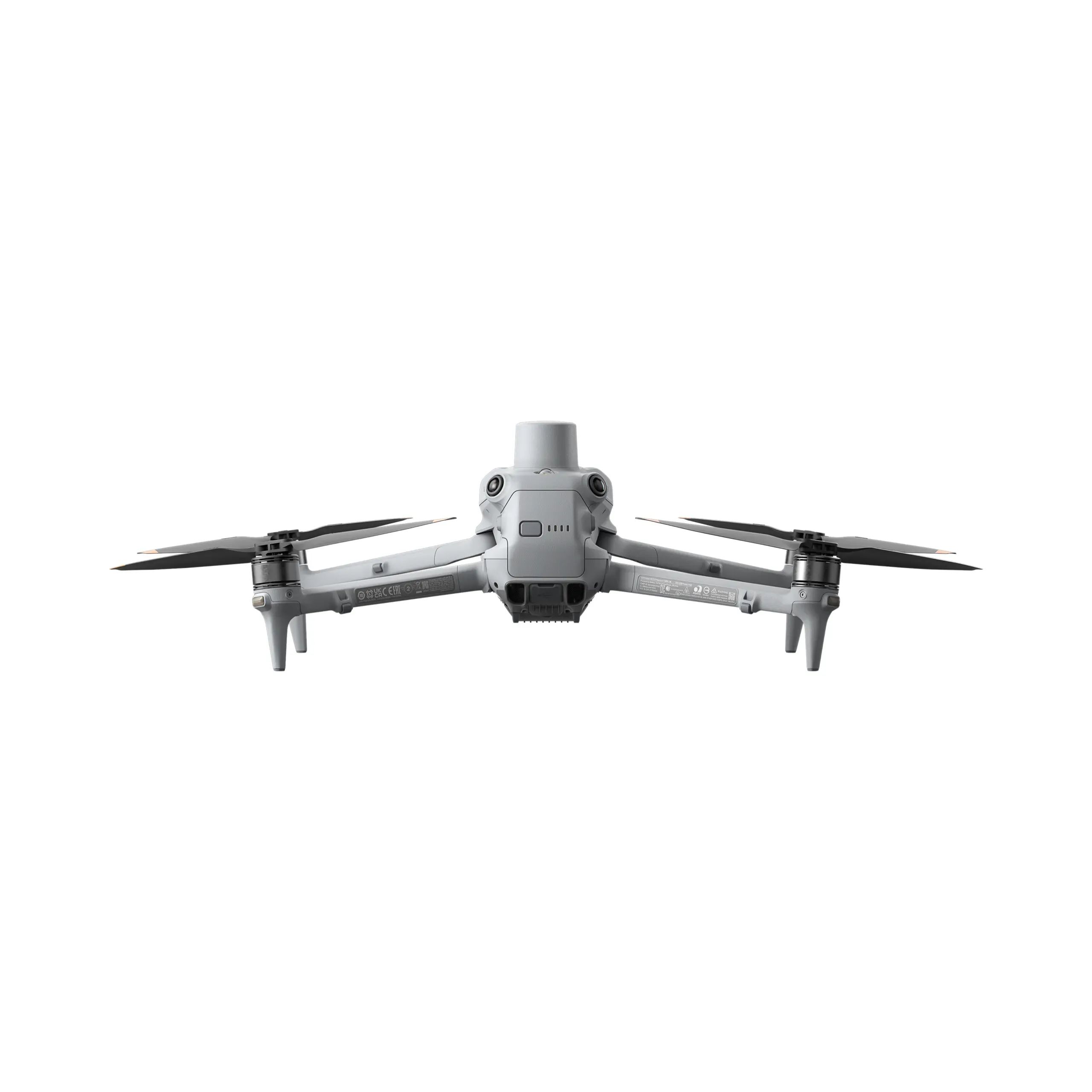

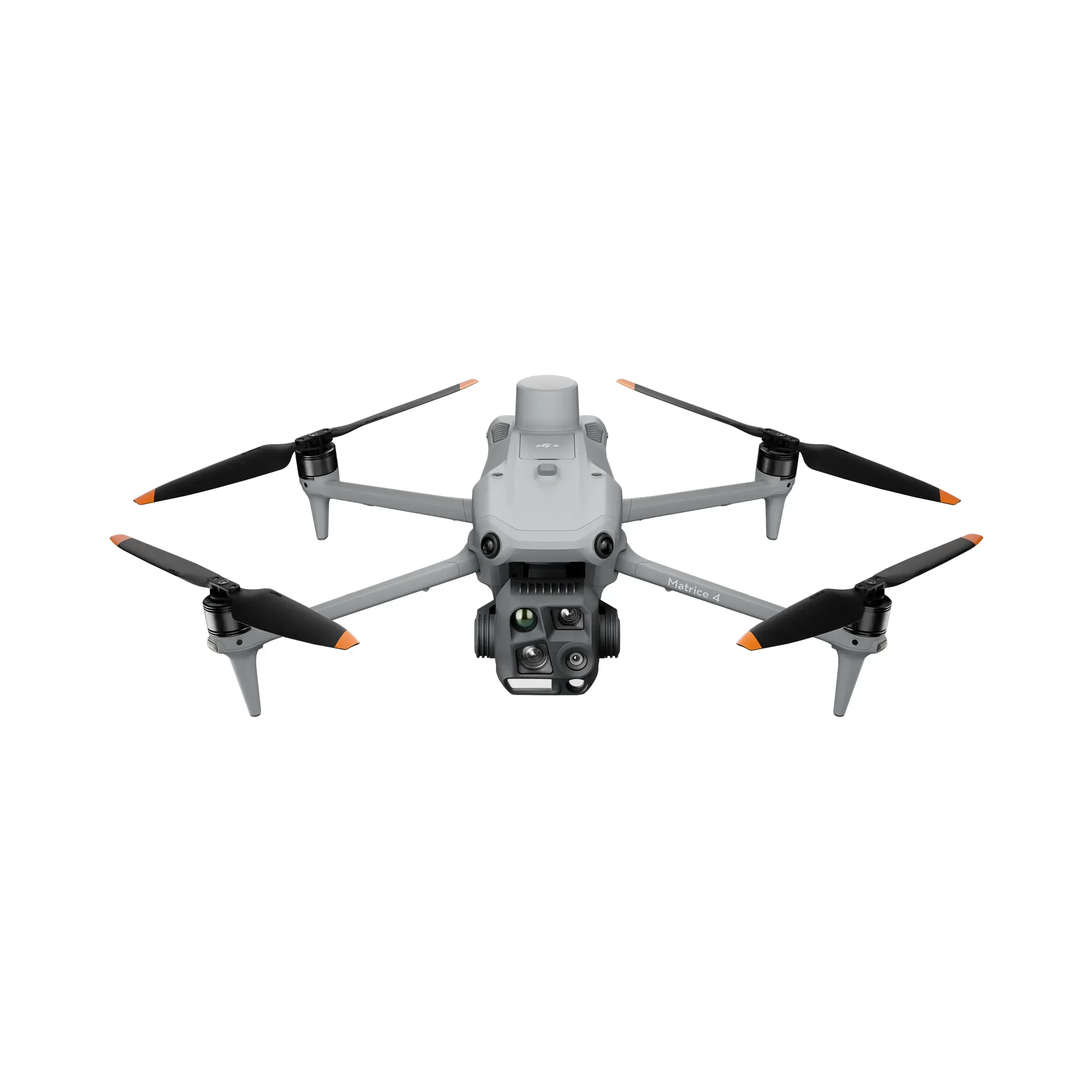

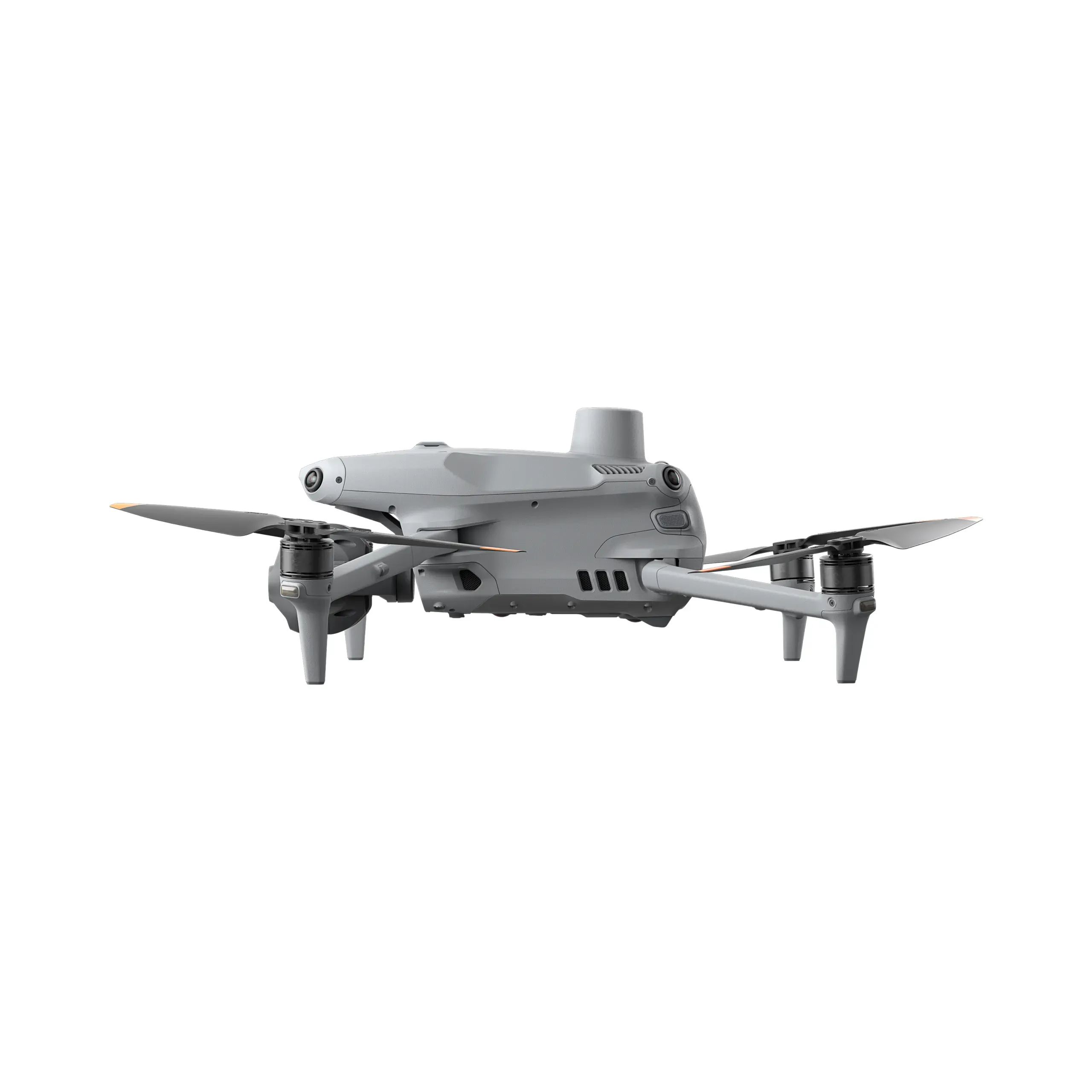

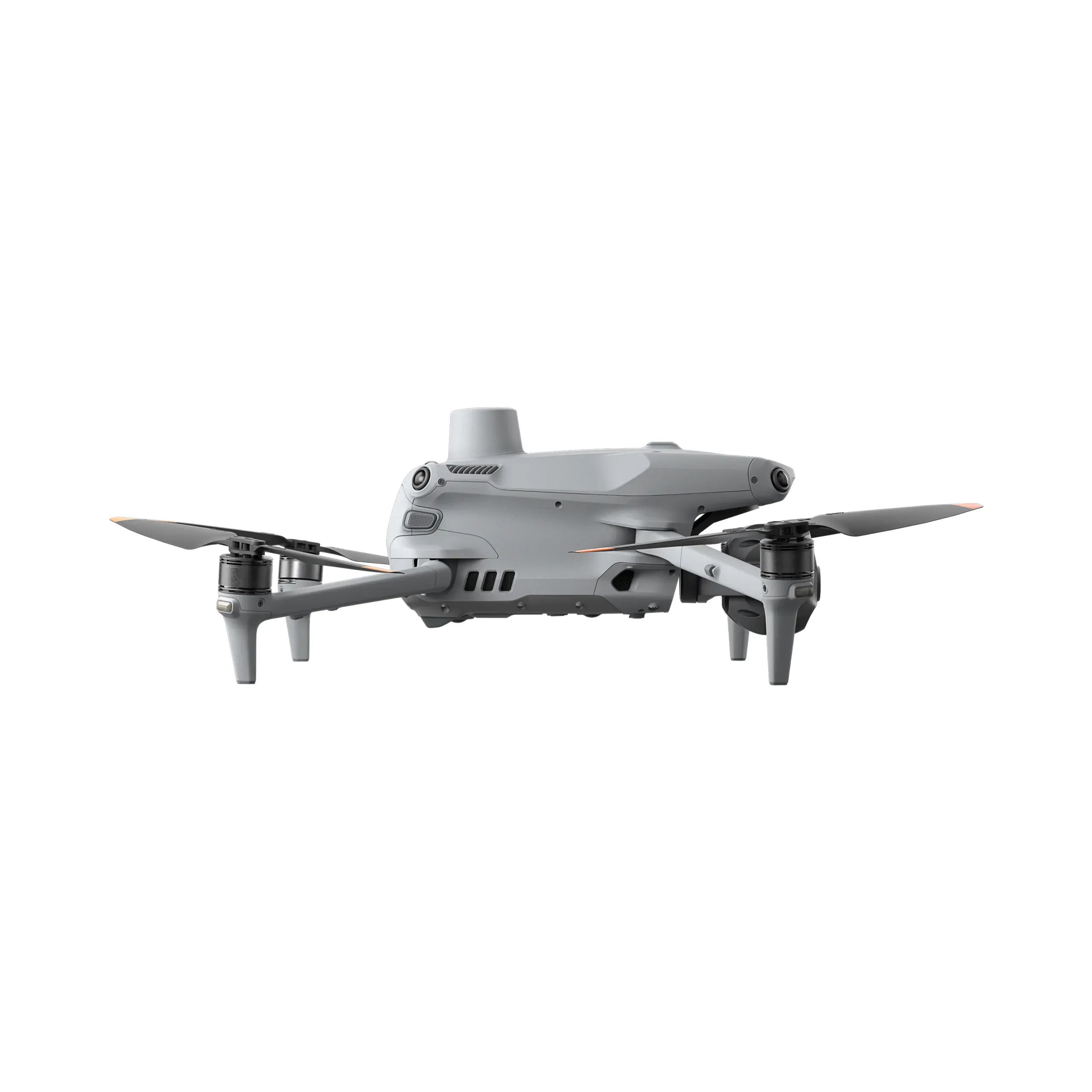

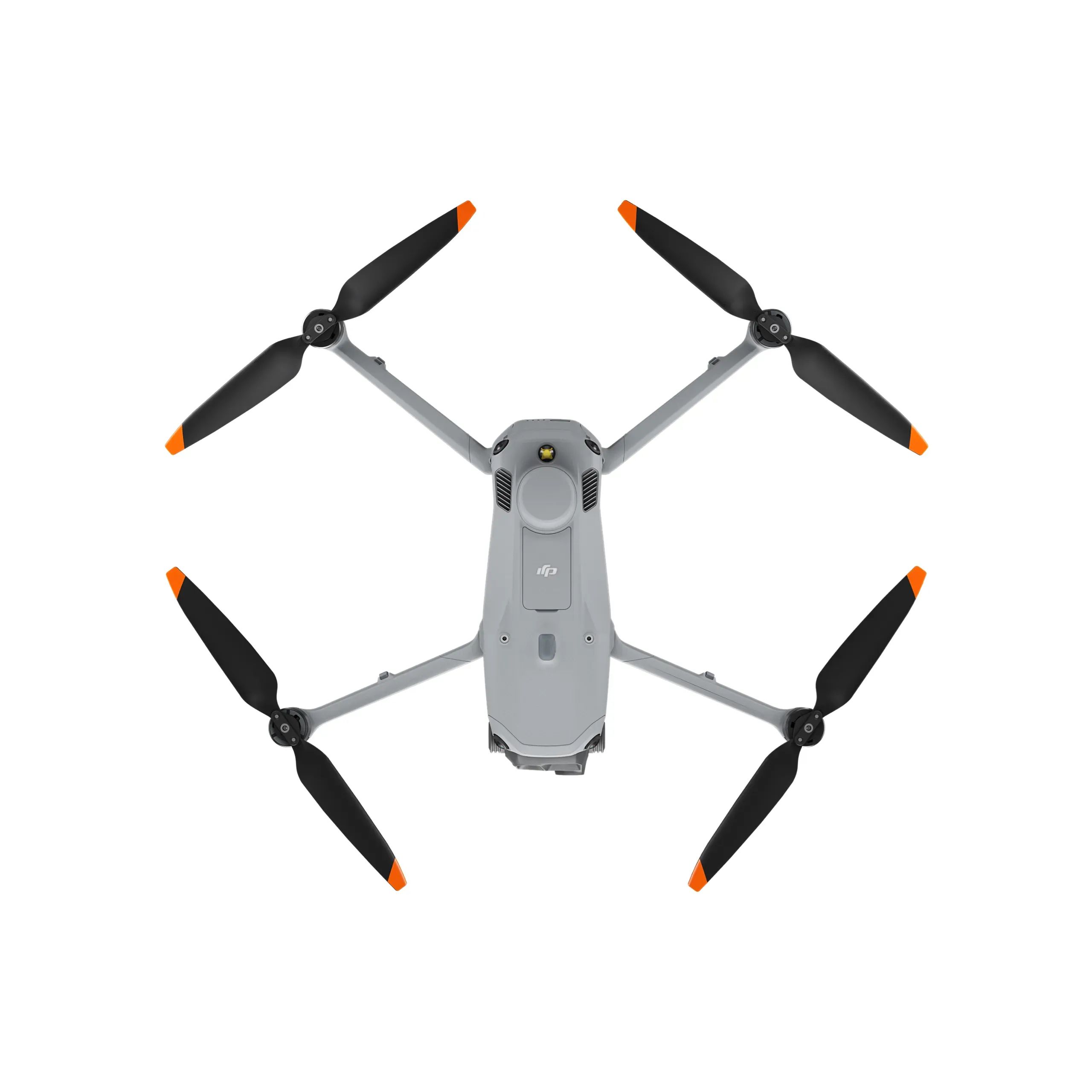

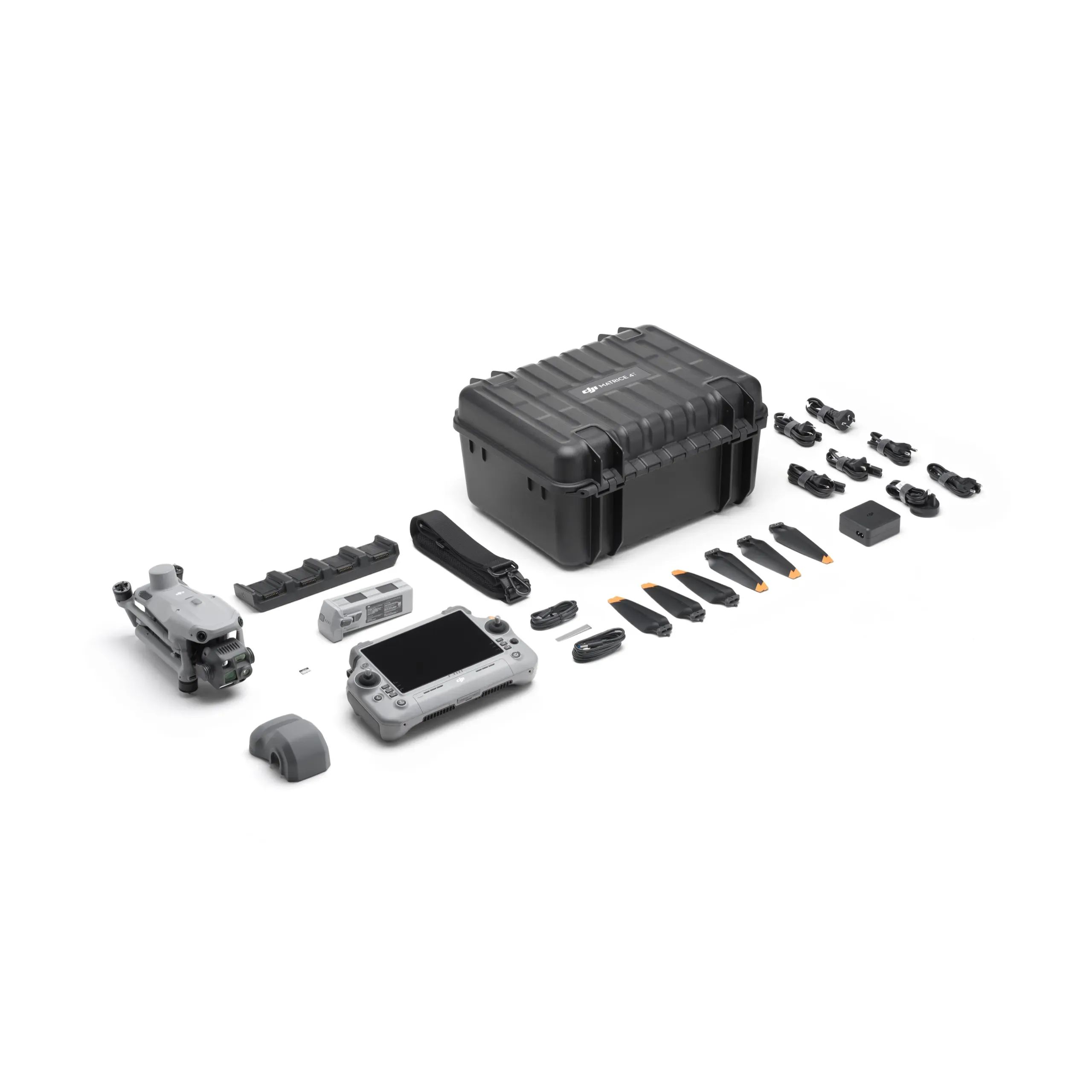

DJI Matrice 4T Thermal Basic Package
The DJI Matrice 4T Thermal Basic Package provides an exceptional commercial drone solution designed for high-performance aerial operations and thermal imaging. This comprehensive package includes the advanced DJI Matrice 4T Thermal RPAS along with DJI Care Enterprise Plus coverage for complete peace of mind.
Intelligent Operations With AI
DJI Matrice 4 Series offers real-time AI detection of people, vehicles, and boats, featuring intelligent capabilities like FlyTo, POI, Smart Track, and Cruise, along with advanced tools such as Observed View, Line & Area Drawing with LRF.

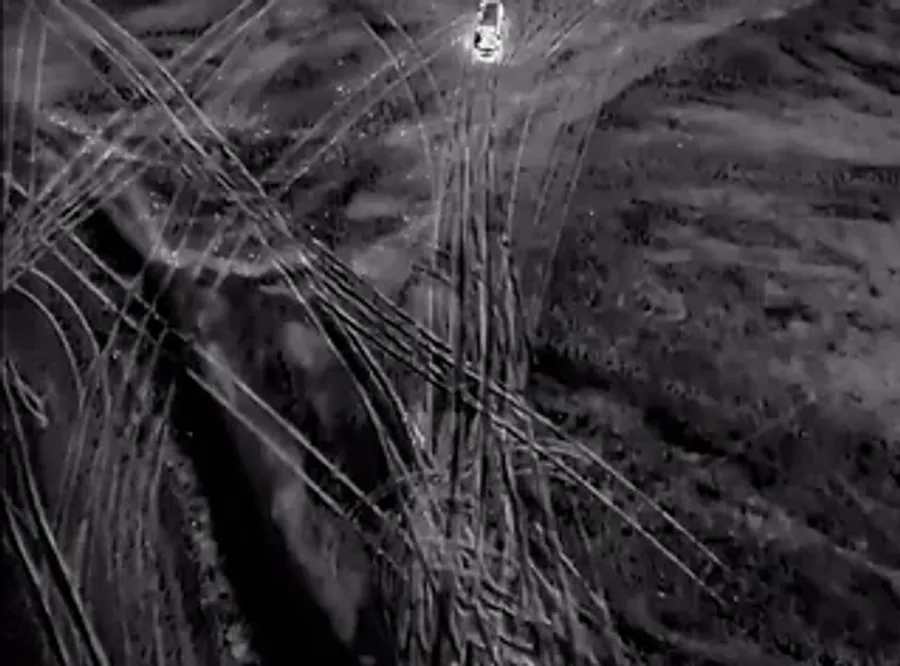

Thermal Imaging
The Matrice 4T supports infrared High-Res Mode, with image resolutions up to 1280 × 1024. It also offers Ultra-High Resolution, revealing small temperature details for various operations. Each device undergoes temperature accuracy calibration and utilizes an onboard temperature sensor to provide real-time temperature measurements.
Elevated Flight Safety
DJI M4 Series features a built-in RTK module with extended L5 frequency and low-light fisheye vision sensors. It also includes automatic RTH path planning, preloaded obstacle data, and detailed maps/models for enhanced operational efficiency.
| Takeoff Weight (with propellers) | 1219g |
| Max Payload | 200g |
| Propeller Size | 10.8" |
| Diagonal Wheelbase | 438.8 mm |
| Max Ascent Speed | 10 m/s |
| Max Descent Speed | 8 m/s |
| Max Horizontal Speed | 21 m/s |
| Max Altitude | 6000m |
| Max Flight Time | 49 min (standard propellers) |
| Max Hover Time (without wind) | 42 min (standard propellers) |
| Max Wind Speed Resistance | 12 m/s |
| Max Pitch Angle | 35° |
| Operating Temperature | -10℃ to 40℃ |
| GNSS | GPS + Galileo + BeiDou + GLONASS |
| Hovering Accuracy Range | ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) |
| RTK GNSS Accuracy | 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical) |
| Beacon | Built into the aircraft |
| Camera | |
| Image Sensor | Wide: 1/1.3-inch CMOS, Effective Pixels: 48 MP |
| Medium: 1/1.3-inch CMOS, Effective Pixels: 48 MP | |
| Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP | |
| Lens | Wide: |
| FOV: 82° | |
| Equivalent Focal Length: 24 mm | |
| Aperture: f/2.8-f/11 | |
| Focus: 1 m to ∞ | |
| Medium Tele Camera | |
| FOV: 35° | |
| Equivalent Focal Length: 70 mm | |
| Aperture: f/2.8 | |
| Focus: 3 m to ∞ | |
| Tele camera | |
| FOV: 15° | |
| Equivalent Focal Length: 168 mm | |
| Aperture: f/2.8 | |
| Focus: 3 m to ∞ | |
| Shutter Speed | 2-1/8000 s |
| Max Photo Size | Wide: 8064 × 6048 Medium Telephoto: 8064 × 6048 Telephoto: 8192 × 6144 |
| Minimum Photo Interval | 0.7s |
| Laser Rangefinder | |
| Measurement Range: | 1800 m (1 Hz) @20% reflectivity target |
| Distance Measurement Accuracy | 1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ |
| Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters) | |
| Infrared Thermal Camera (Matrice 4T only) | |
| Thermal Imager | uncooled vanadium oxide (VOx) |
| Resolution | 640 × 512 pixels |
| Pixel Pitch | 12 μm |
| Frame Rate | 30 Hz |
| Lens | DFOV: 45°±0.3° Equivalent focal length: 53 mm Aperture: f/1.0 Focus: 5 m to ∞ |
| Sensitivity | ≤[email protected] |
| Temperature Measurement Method | Spot Meter, Area Measurement |
| Measurement Range | High Gain Mode: -20℃ to 150℃ Low Gain Mode: 0℃ to 550℃ |
| Palette | White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 |
| Photo Format | JPEG (8bit)、 R-JPEG (16bit) |
| Video Resolution | 1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated) Other conditions: 640 × 512@30fps |
| Video Bitrate | 6.5Mbps (H.264 640 × 512@30fps) 5Mbps (H.265 640 × 512@30fps) 12Mbps (H.264 1280 × 1024@30fps) 8Mbps (H.265 1280 × 1024@30fps) |
| Video Format | MP4 |
| Still Photography Modes | Single: 1280 × 1024/640 × 512 Interval: 1280 × 1024/640 × 512 JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s |
| Photo Resolution | Infrared: 1280 × 1024 (Super Resolution on) 640 × 512 (Super Resolution off) |
| Digital Zoom | 28x |
| Infrared Wavelength | 8um to 14um |
| Infrared Temperature Measurement Accuracy | High Gain: ±2℃ or ±2%, whichever is greater Low Gain: ±5℃ or ±3%, whichever is greater |
"Best prices guaranteed! We’ll match or beat any legitimate prices."
Read the CASA Drone regulations @ knowyourdrone.gov.au
Brand: DJI |
Code: DJIM4TKIT1
Brand: DJI |
Code: DJIM4TKIT1
At a glance
The DJI Matrice 4T Thermal Basic Package provides an exceptional commercial drone solution designed for high-performance aerial operations and thermal imaging. This comprehensive package includes the advanced DJI Matrice 4T Thermal RPAS along with DJI Care Enterprise Plus coverage for complete peace of mind.
"Best prices guaranteed! We’ll match or beat any legitimate prices."
Read the CASA Drone regulations @ knowyourdrone.gov.au
Intelligent Operations With AIDJI Matrice 4 Series offers real-time AI detection of people, vehicles, and boats, featuring intelligent capabilities like FlyTo, POI, Smart Track, and Cruise, along with advanced tools such as Observed View, Line & Area Drawing with LRF. |
|
|
|
Thermal ImagingThe Matrice 4T supports infrared High-Res Mode, with image resolutions up to 1280 × 1024. It also offers Ultra-High Resolution, revealing small temperature details for various operations. Each device undergoes temperature accuracy calibration and utilizes an onboard temperature sensor to provide real-time temperature measurements. |
Elevated Flight SafetyDJI M4 Series features a built-in RTK module with extended L5 frequency and low-light fisheye vision sensors. It also includes automatic RTH path planning, preloaded obstacle data, and detailed maps/models for enhanced operational efficiency. |
|
