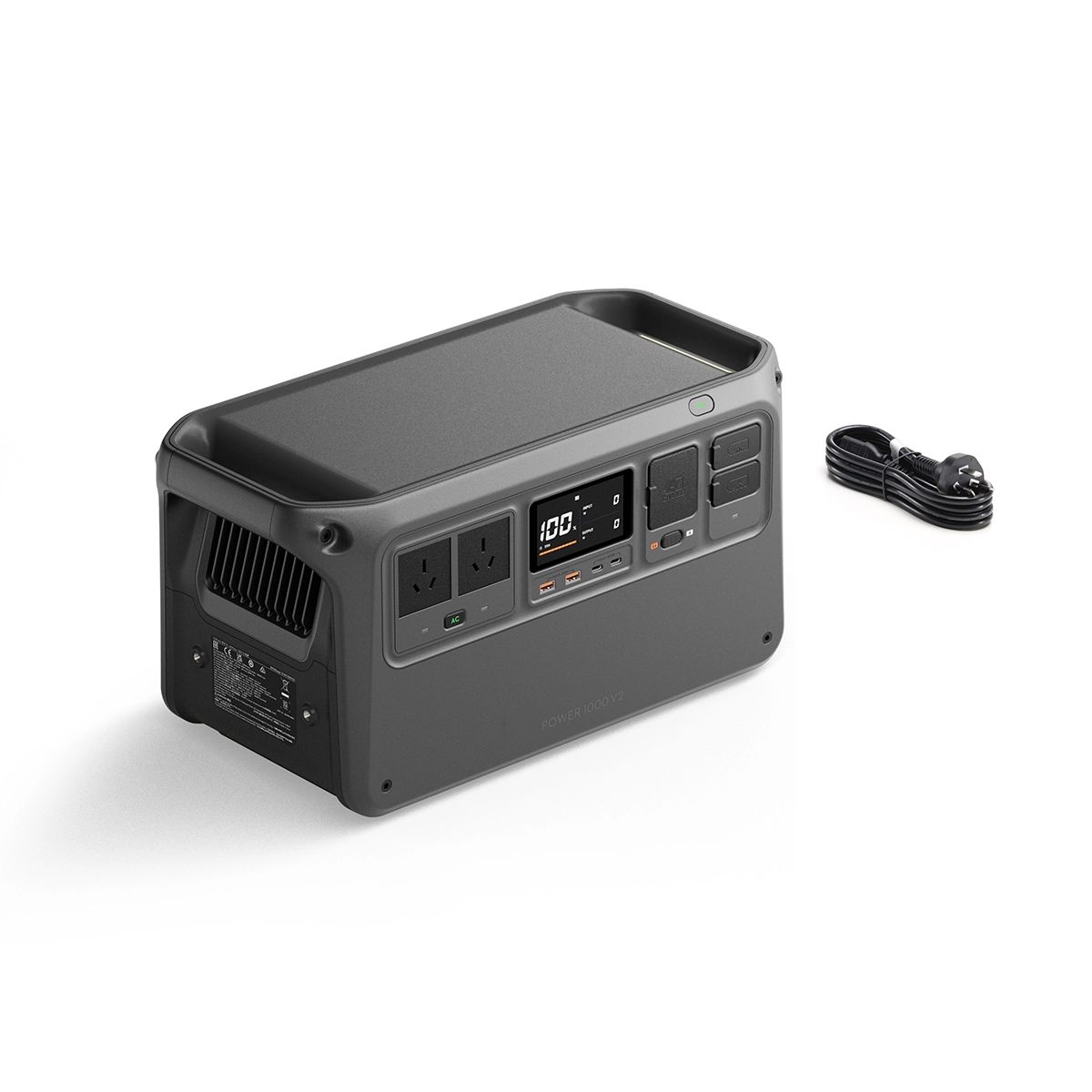

DJI Power 1000 V2 Power Station CB.202507163198
- Genuine Power, 2600W High Output
- Multiple Charging Methods: Grid/Solar/Car Power
- Fast Charging, Fully Charged in 56 Minutes
- Advanced Safety, Reliable and Durable
- Dual 140W USB-C Ports
for Next-Gen Fast Charging - Extensive Range Of Accessories
- 26 dB - Sleep Undisturbed Indoors or Camping
- DJI Drone Super Fast Charging
- Upgraded 1024Wh Capacity
Fast and Flexible Recharging
DJI Power 1000 V2 can be recharged via grid power, solar power, and car power. Whether indoors or on the go, you can choose the best charging method, ensuring a reliable power supply and greater convenience.
Grid Power
It's fast and easy to plug in, recharge, and go. When connected to grid power, it takes only 37 minutes to go from zero to 80% and 56 minutes to full. Even if you start charging it right before heading out, it gives you the confidence to set off whenever you need.
Solar Power
Economical and environmentally friendly, DJI Power 1000 V2 can be recharged via the DJI Power Solar Panel Adapter Module (MPPT), or the DJI Power 1.8kW Solar/Car Super Fast Charger with up to 1800W solar input, taking only 40 minutes to charge 1024 Wh.
Car Power
Easily supercharge any road trip with the DJI Power 1kW Super Fast Car Charger or the 1.8kW Solar/Car Super Fast Charger. These charges utilize the excess electricity from your car's alternator to quickly recharge the DJI Power 1000 V2, suitable for regular cars and RVs. With expansion batteries, it takes just 78 minutes to charge the power station from zero to full.
General
| Model | DYM1000V2L DYM1000V2H |
| Cell Chemistry | LFP (lithium ferrophosphate) |
| Capacity | 1024 Wh |
| Cycle Life | Maintains over 80% capacity after 4000 cycles. One cycle is defined as a complete charge and discharge. Tested in a 25°C (77°F) laboratory environment, with DJI Power 1000 V2 recharged in Standard Mode and discharged at 1000W output power to external devices. |
| Net Weight | Approx. 14.2 kg |
| Dimensions | 448×225×230 mm (L×W×H) |
| Number of Ports | AC Output × 2 USB-C × 2 USB-A × 2 SDC × 1 SDC Lite × 1 AC Input × 1 |
| Max Operating Altitude | 5000 m |
Output Specifications
| AC Output | DYM1000V2L: AC 100-120 V, 50/60 Hz, max current: 20 A DYM1000V2H: AC 220-240 V, 50/60 Hz, max current: 10.9 A AC output data varies by country and region. |
| AC Output (Bypass Mode) | DYM1000V2L: AC 100-120 V, max current: 12 A DYM1000V2H: AC 220-240 V, max current: 10 A |
| USB-A Output | 5 V, 3 A 9 V, 2 A 12 V, 2 A Max output power per channel: 24 W |
| USB-C Output | 5 V, 5 A 9 V, 5 A 12 V, 5 A 15 V, 5 A 20 V, 5 A 28 V, 5 A (EPR) Max output power per channel: 140 W* * The USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications. |
| SDC Output | SDC: 9-28 V or 32-58.4 V, max current: 42 A (for DJI drone fast charging and more) SDC Lite: 9-27 V, max current: 10 A Both SDC and SDC Lite ports support extensive accessory expansion. |
Input Specifications
| AC Input | DYM1000V2L: AC 100-120 V, 50/60 Hz, max current: 13 A AC 100-120 V, 50/60 Hz, max current: 13 A (Bypass mode) DYM1000V2H: AC 220-240 V, 50/60 Hz, max current: 6.5 A AC 220-240 V, 50/60 Hz, max current: 10 A (Bypass mode) |
| SDC Input | SDC: DC 32-58.4 V, max current: 60 A SDC Lite: DC 32-58.4 V, max current: 8 A Both SDC and SDC Lite ports support extensive accessory expansion. |
Operating Temperature
| Power Supply Temperature | -10° to 45° C (14° to 113° F) |
| Recharging Temperature | 0° to 45° C (32° to 113° F) |
| Storage Temperature | -10° to 45° C (14° to 113° F) |
Wi-Fi and Bluetooth
| Transmitter Power (EIRP) | Wi-Fi (802.11 b/g/n): 2.4000-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC) Bluetooth 5.0: 2.4000-2.4835 GHz: < 7 dBm The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations. |
1 x DJI Power 1000 V2
1 x DJI Power AC Power Cable
