X-Rite i1iO Automated Scanning Table GEN 3

X-Rite i1iO Automated Scanning Table GEN 3

$6,771.60
  NO STOCK
  NO STOCK
  NO STOCK
PRODUCT ENQUIRY

The i1iO is a robotic, automatic chart reading system designed for photographers, designers, and printers who want to eliminate manual strip reading.

Brand: X-Rite   |    Code: EO3AST
Supplier Code: EO3AST

Automation for Color Perfectionists.

Manually reading test charts for profiling and color validation is time-consuming and leaves room for human error. The new model of i1iO has been developed to accommodate the i1Pro 3 and the i1Pro 3 Plus, providing a simple way to enhance functionality, versatility, and speed up the measurement process.

Simple. Quick. Versatile.

  • Measures reflective test charts on a variety of substrates up to 10 mm thick, including thin polybag material, ceramics, and textiles.
  • Reads more than 500 patches per minute in scanning mode under the M0 measurement condition to quickly create custom profiles.
  • Offers ultimate flexibility through hands-free automation and ease-of-use.

Integration with i1Pro 3 Products

The i1iO enables hands-free chart reading for automated color profiling. Combined with the i1Pro 3 & i1Pro 3 Plus, the i1iO optimizes automated file creation allowing for a reduction of wasted time and materials during production.

Available Disk Space

2GB

Calibration

Automatic on Integrated Calibration Reference

Communication Interface

USB 1.1

Connectivity

Powered USB port

Dimensions (length, width, height)

510 x 460 x 170 mm, 20 x 18.1 x 6.7 (Width x Depth x Height)

Experience Level

Intermediate to Advanced

Languages Supported

Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish

Macintosh

MacOS X 10.11x, 10.12x or 10.13x (with latest upgrades installed)

Measurement Background

White

Media Thickness

Max. 10mm

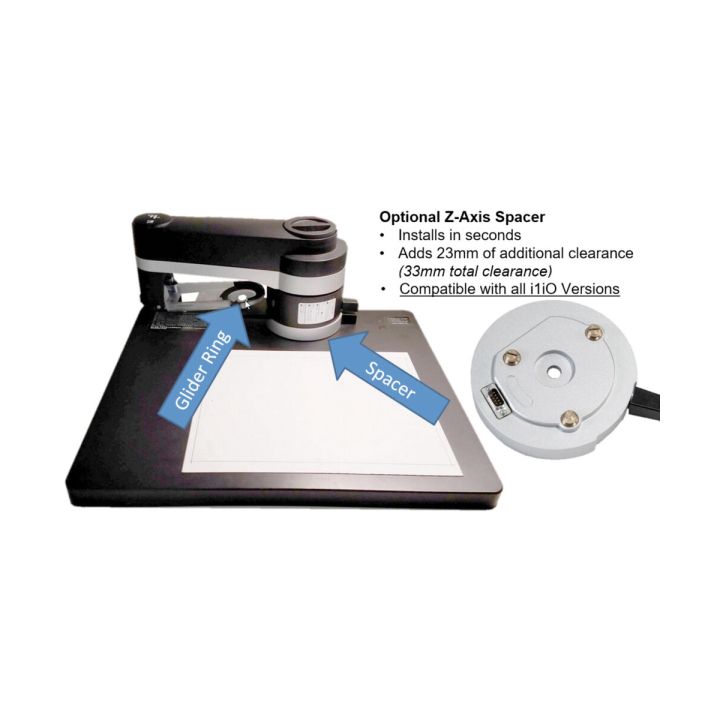

Max. 33mm with optional Z Axis Spacer

Patch Size

Minimal Patch Size in Scanning Mode: 16 x 16 mm (0.63” x 0.63”) with i1Pro3 Plus

Scanning Area

Positioning Area: 32 x 23 cm, 12.6” x 9” (Width x Height)

Scanning Capability

Yes

Single Pass Scan

Yes

Software Development Kit

Available for OEM customers

Software Modes

Basic & Advanced

Unit Color

Black/Silver

User Experience

Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results

Voltage

100 to 240 VAC, 50 / 60 Hz

Warranty

Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.

Weight

4.5 kg, 9.9 lb (without i1 Pro device)

Windows

Windows 7, 8, 8.1, 10 (with latest Service Pack installed)



  • i1iO table
  • Replacement Glider Ring
  • Auto rating power supply 100 – 240 VAC, 50/60Hz
  • Main power cable
  • USB cable
  • Quick Start Guide
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

FEATURES

Automation for Color Perfectionists.

Manually reading test charts for profiling and color validation is time-consuming and leaves room for human error. The new model of i1iO has been developed to accommodate the i1Pro 3 and the i1Pro 3 Plus, providing a simple way to enhance functionality, versatility, and speed up the measurement process.

Simple. Quick. Versatile.

  • Measures reflective test charts on a variety of substrates up to 10 mm thick, including thin polybag material, ceramics, and textiles.
  • Reads more than 500 patches per minute in scanning mode under the M0 measurement condition to quickly create custom profiles.
  • Offers ultimate flexibility through hands-free automation and ease-of-use.

Integration with i1Pro 3 Products

The i1iO enables hands-free chart reading for automated color profiling. Combined with the i1Pro 3 & i1Pro 3 Plus, the i1iO optimizes automated file creation allowing for a reduction of wasted time and materials during production.

SPECIFICATIONS

Available Disk Space

2GB

Calibration

Automatic on Integrated Calibration Reference

Communication Interface

USB 1.1

Connectivity

Powered USB port

Dimensions (length, width, height)

510 x 460 x 170 mm, 20 x 18.1 x 6.7 (Width x Depth x Height)

Experience Level

Intermediate to Advanced

Languages Supported

Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish

Macintosh

MacOS X 10.11x, 10.12x or 10.13x (with latest upgrades installed)

Measurement Background

White

Media Thickness

Max. 10mm
Max. 33mm with optional Z Axis Spacer

Patch Size

Minimal Patch Size in Scanning Mode: 16 x 16 mm (0.63” x 0.63”) with i1Pro3 Plus

Scanning Area

Positioning Area: 32 x 23 cm, 12.6” x 9” (Width x Height)

Scanning Capability

Yes

Single Pass Scan

Yes

Software Development Kit

Available for OEM customers

Software Modes

Basic & Advanced

Unit Color

Black/Silver

User Experience

Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results

Voltage

100 to 240 VAC, 50 / 60 Hz

Warranty

Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.

Weight

4.5 kg, 9.9 lb (without i1 Pro device)

Windows

Windows 7, 8, 8.1, 10 (with latest Service Pack installed)



IN THE BOX

  • i1iO table
  • Replacement Glider Ring
  • Auto rating power supply 100 – 240 VAC, 50/60Hz
  • Main power cable
  • USB cable
  • Quick Start Guide
