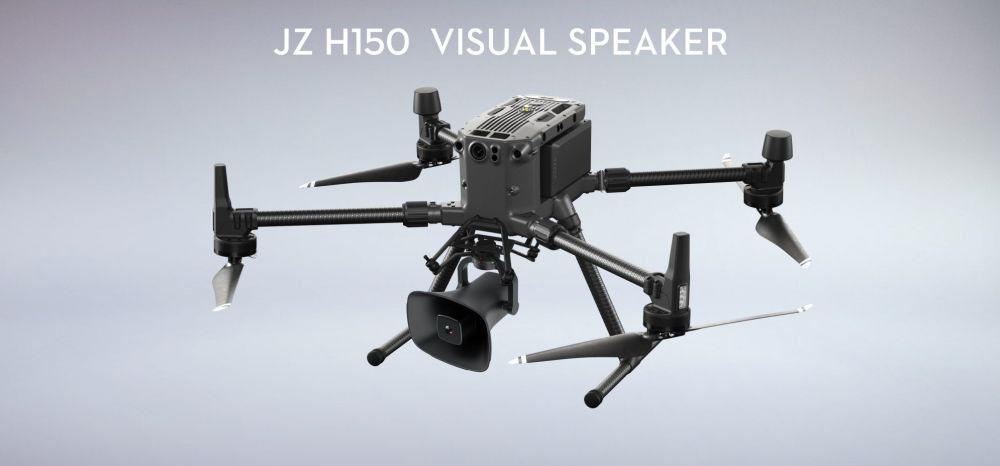

JZ H150 Visual Speaker for DJI Matrice 200 / 300 / 350 Series
- 130db - Maximum sound pressure level
- 150mm - Output caliber
- Brushless Gimbal
- Integrated FPV Camera
|
Electrical interface |
DJI SkyPort V2 |
|
Size |
150 x 125 x 134mm |
|
Weight |
650g |
|
Supported models |
Matrice 300RTK、Matrice 200 V2 |
|
Maximum sound |
130db |
|
Propagation distance |
>500m |
|
Most power |
15W |
|
Resolution |
500W |
|
Coding format |
h264 |
|
Camera |
Photography、video、playback、 download |
|
Video distance |
Consistent with UAV |
|
Gimbal system |
Brushless platform |
|
Angular jitter |
±0.1° |
|
Installation mode |
DJI SKYPORT |
|
Rotation range |
pitch:-90°~0° |
|
Working temperature |
-10 ℃ ~ 50 ℃ |
|
Storage temperature |
-20 ℃ ~ 60 ℃ |
Brand: Misc Consumer/Industrial |
Code: JZH150
Brand: Misc Consumer/Industrial |
Code: JZH150
At a glance
- 130db - Maximum sound pressure level
- 150mm - Output caliber
- Brushless Gimbal
- Integrated FPV Camera
