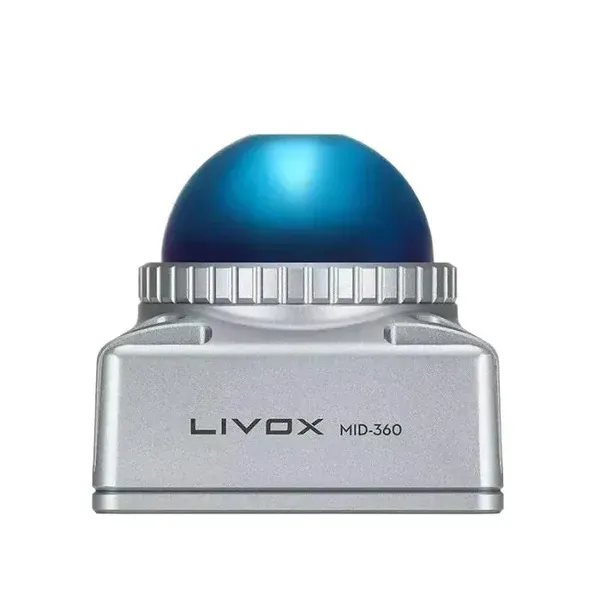

Livox Mid-360S LiDAR – 100m Range
The Livox Mid-360S LiDAR is a compact and lightweight hybrid solid-state technology sensor designed as the ideal 3D perception solution for mobile robots and other advanced applications. This versatile device ensures stable and efficient navigation and obstacle avoidance across a wide range of robotic platforms in both indoor and outdoor environments.
Key Features
- Comprehensive Coverage: Features an expansive 360-degree horizontal by 59-degree vertical field of view for superior spatial awareness.
- Impressive Range: Offers a detection range of up to 100 metres with a minimal close proximity blind zone of just 0.1 metres.
- High Precision: Delivers exceptional range precision of up to 2 centimetres at 10 metres with a rapid point rate of 200,000 points per second.
- Durable Construction: Built to withstand harsh environments with an IP67 rating and an operating temperature range of -20 to 55 degrees Celsius.
- Compact Design: Extremely lightweight at only 265 grams and measuring 65 by 65 by 60 millimetres, allowing for easy installation.
- Safe and Efficient: Utilises a Class 1 eye-safe 905 nanometre laser and operates on a highly efficient 6.5-watt power draw.
Equipped with a built-in inertial measurement unit and supporting multiple data synchronisation protocols, this LiDAR is engineered for easy system deployment. It represents a highly reliable, power-efficient solution for demanding robotic navigation and mapping tasks.
|
Model |
Mid-360S |
|
Laser Wavelength |
905 nm |
|
Laser Safety |
Class 1 (IEC60825-1:2014) (Eye Safety) |
|
Detection Range (@ 100 klx) |
40 m@10% reflectivity (typical value) |
|
Close Proximity Blind Zone |
0.1 m |
|
FOV |
Horizontal: 360°, Vertical: -7°~52° (typical value) |
|
Range Precision (1σ) |
≤2 cm ⁴ (@10 m) |
|
Angular Precision（1σ ） |
<0.15º |
|
Point Rate |
200,000 points/s (first return) |
|
Frame Rate |
10 Hz (typical value) |
|
Data Port |
100 BASE-TX Ethernet |
|
Data Synchronization |
IEEE 1588-2008 (PTPv2), GPS |
|
Anti-Interference Function |
Available |
|
False Alarm Rate (@ 100 klx) |
<0.01% |
|
IMU |
Built-in IMU Model: ICM40609 |
|
Operating Temperature |
-20°C to 55°C |
|
IP Rating |
IP67 |
|
Power |
6.5 W |
|
Power Supply Voltage Range |
9 ~ 27 V DC |
|
Dimensions |
65×65×60 mm |
|
Weight |
265 g |
| Datasheets | |
|---|---|
| Livox Mid-360S LiDAR – 100m Range - Datasheet | Product Manuals |
| Livox Mid-360S LiDAR – 100m Range - Product Manual |
