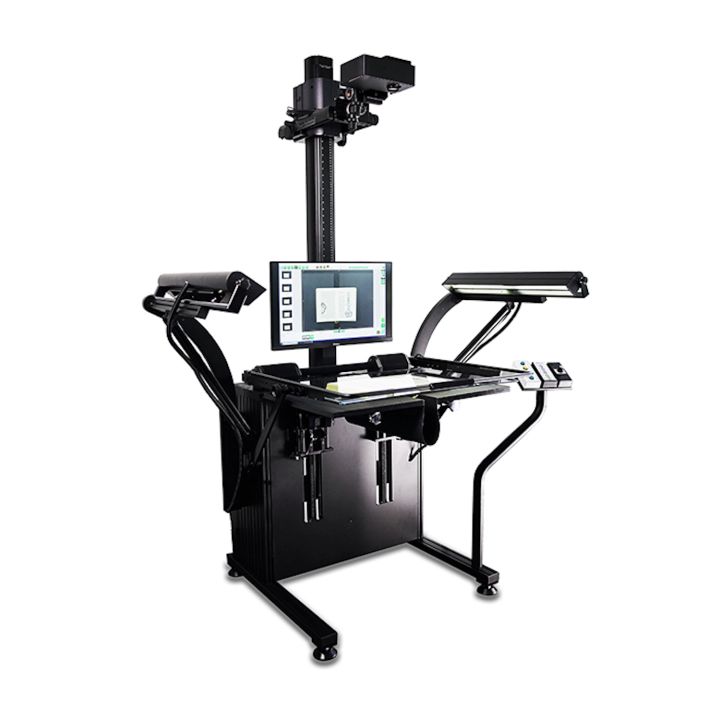

Microbox Archive Pro A2 Archive Scanner

Loading
  • Microbox Archive Pro A2 Archive Scanner

High-performance A1/A2 archive scanner with variable glass plate and ease of use for digitizing demanding projects

Scanning archive material places special demands on scanning systems and users in terms of accuracy, quality, productivity and workload.

he often high diversity and sensitivity of historical files and documents require the greatest possible system flexibility, which must also meet ergonomic requirements. Requirements that the book2net Archiv Pro fulfills perfectly thanks to the height adjustable camera carriage, the process-controlled automatic scanning system and the motorized pressure table that can be driven underneath.

The book2net Archiv Pro is available as an A1 or A2 system and combines the qualities of a high-end production scanner with the advantages of a variable repro system. Application-specific formats from A1/A2 to A5+ can be easily scanned at high resolution.

High-performance sensor

  • High-performance area sensor
  • Selectable options: M70 (300 ppi) / M150 (400 ppi)
  • 0.3 sec. scanning time (A1 color at 400 ppi)
  • 2.2 sec. processing time (scannen + imaging + storage)
  • USB 3.0 interface
  • Optimized for OCR applications due to reduced signal noise


Optics

  • Schneider-Kreuznach precision lens
  • Depth of field 8 cm at A1 / 12 cm at A2
  • Brilliant color rendering
  • Optical book fold optimization
  • Perfect linearity
  • Distortion-free
  • Long durability

LED ligthing unit

  • 3-sided light concept for individual lighting scenarios (e.g. grazing light, back light)
  • Two operating modes available (flash or continuous light)
  • Cold light LEDs
  • Uniform, wide-area illumination thanks to Fresnel lenses
  • Stepless adjustment of the light emission angle
  • Constant wavelength
  • Stable color temperature
  • Light intensity <= 2,500 lux
  • Exposure time <= 0.6 sec.
  • Glare-free, UV/IR free (in accordance with EN60825-1)
  • Long service life (>50,000 operating hours)
  • Low energy consumption < 100 VA

Camera slider

  • Motorized height adjustment
  • Individually approachable format positions in the DINA1/A2 to DIN A5 range
  • Color profiles and adjustment parameters can be saved according to the format markings and loaded directly via the software at the click of a mouse


Gentle 3in1 glass plate

  • Gentle on originals
  • 3 operating modes:
    • 180° operation with firmly locked glass plate
    • Self-opening
    • Motorized opening and closing (optional)
  • Pressure presetting and pressure control
  • Non-reflective glass (museum glass optional)


Motorized book cradle

  • Height adjustment of 20 cm (optional 35 cm)
  • Individually controllable support plates
  • Infinitely variable fine adjustment
  • 3-stage pressure presetting
  • Integrated pressure monitoring
  • Format-optimized automatic lowering mechanism


Software & Features

  • Live Video Preview
  • Easy Scan / bookScan professional scanning software
  • OCR (optional)
  • Live Control Professional (optional)


Color management

Integrated true color management:
METAMORFOZE, FADGI, ISO/TS 19264:1 2017 standard regarding color quality, resolution, noise & linearity



Eco-friendly

  • No UV / IR radiation
  • No ozone, no emissions
  • No heat load
  • Lowest noise emission
  • Low-Energy-Control (LEC)
  • Energy-saving

Related Categories Cultural Heritage

Brand: Microbox | Code: MB-ARCHIVEPROA2
Supplier Code: ARCHIVEPROA2

Brand: Microbox | Code: MB-ARCHIVEPROA2
Supplier Code: ARCHIVEPROA2

At a glance

High-performance A1/A2 archive scanner with variable glass plate and ease of use for digitizing demanding projects
