PDMOVIE Remote Air Pro 3 Dual Channel Wireless Follow Focus System
- Single Controller, two Motors
- Wireless Handwheel Range 328'

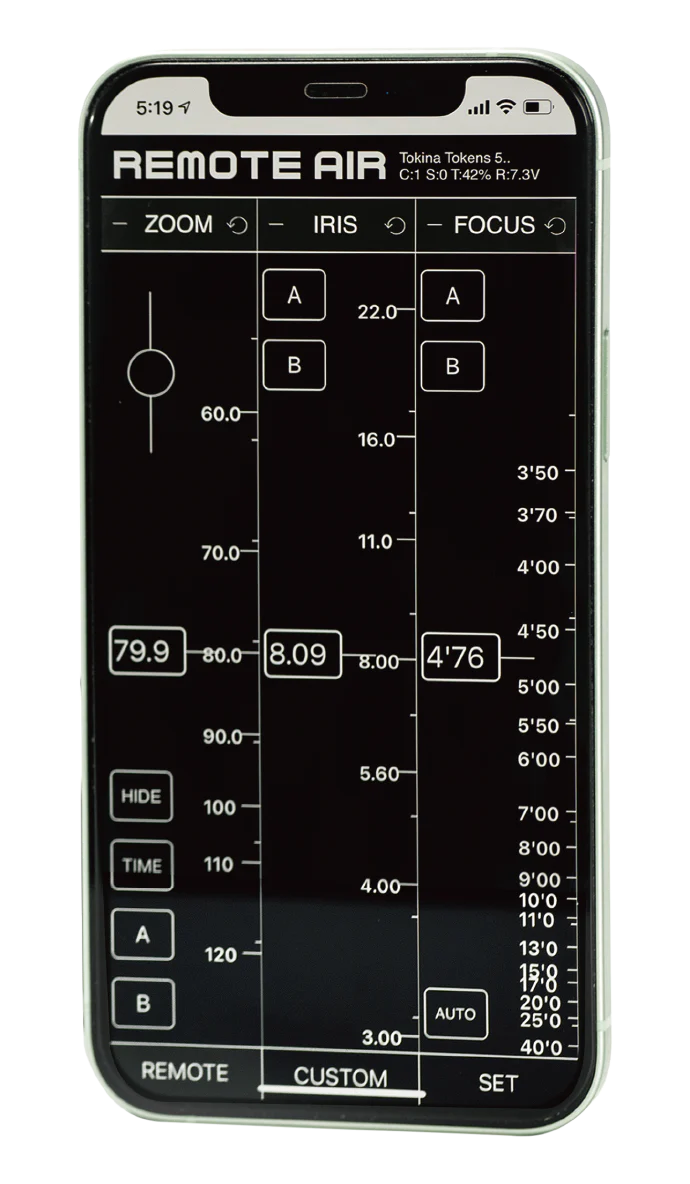

- Bluetooth App Range 33'

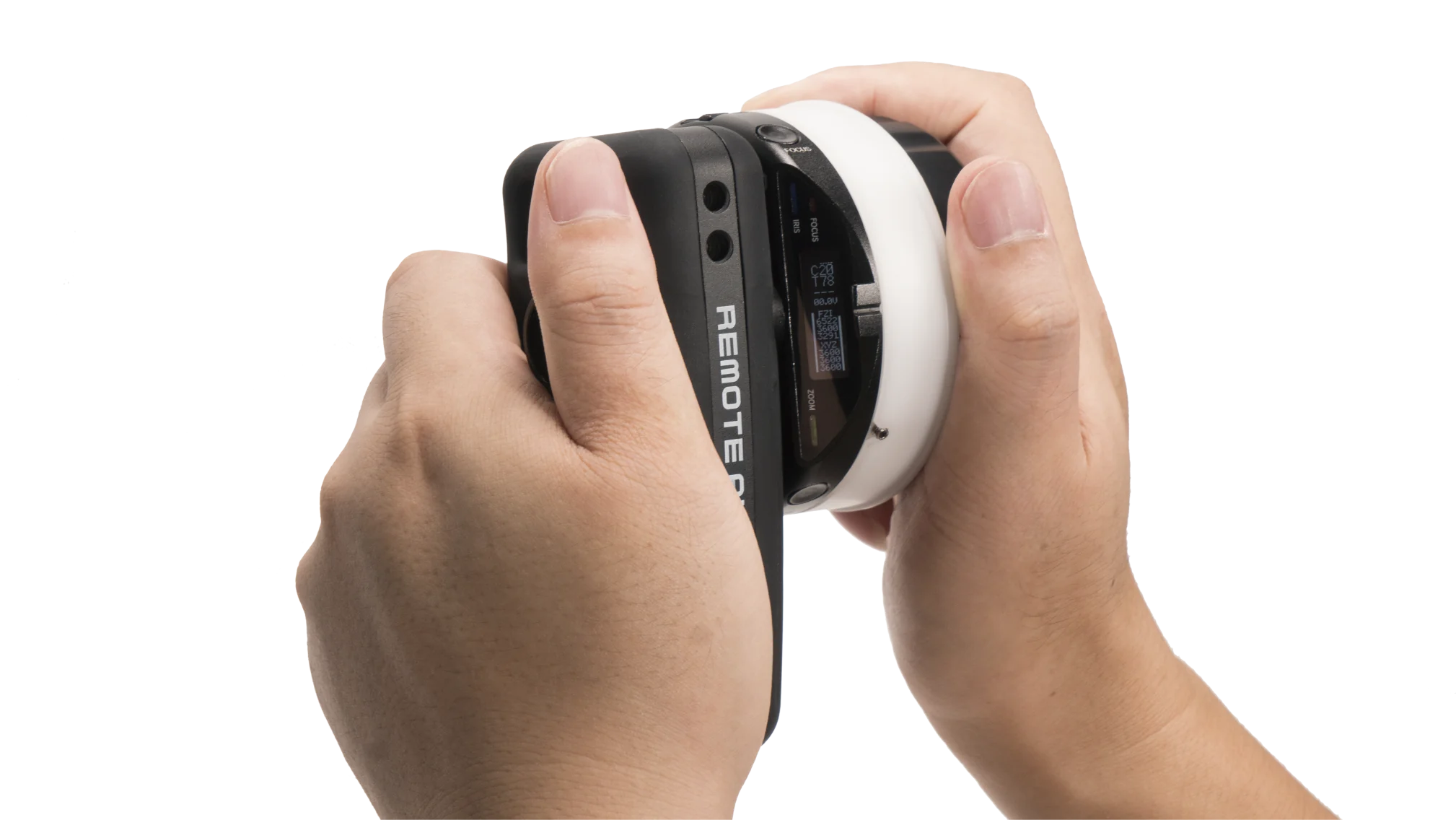

- Handwheel Controls Focus, Zoom, and Iris
- 19 Wireless Channels

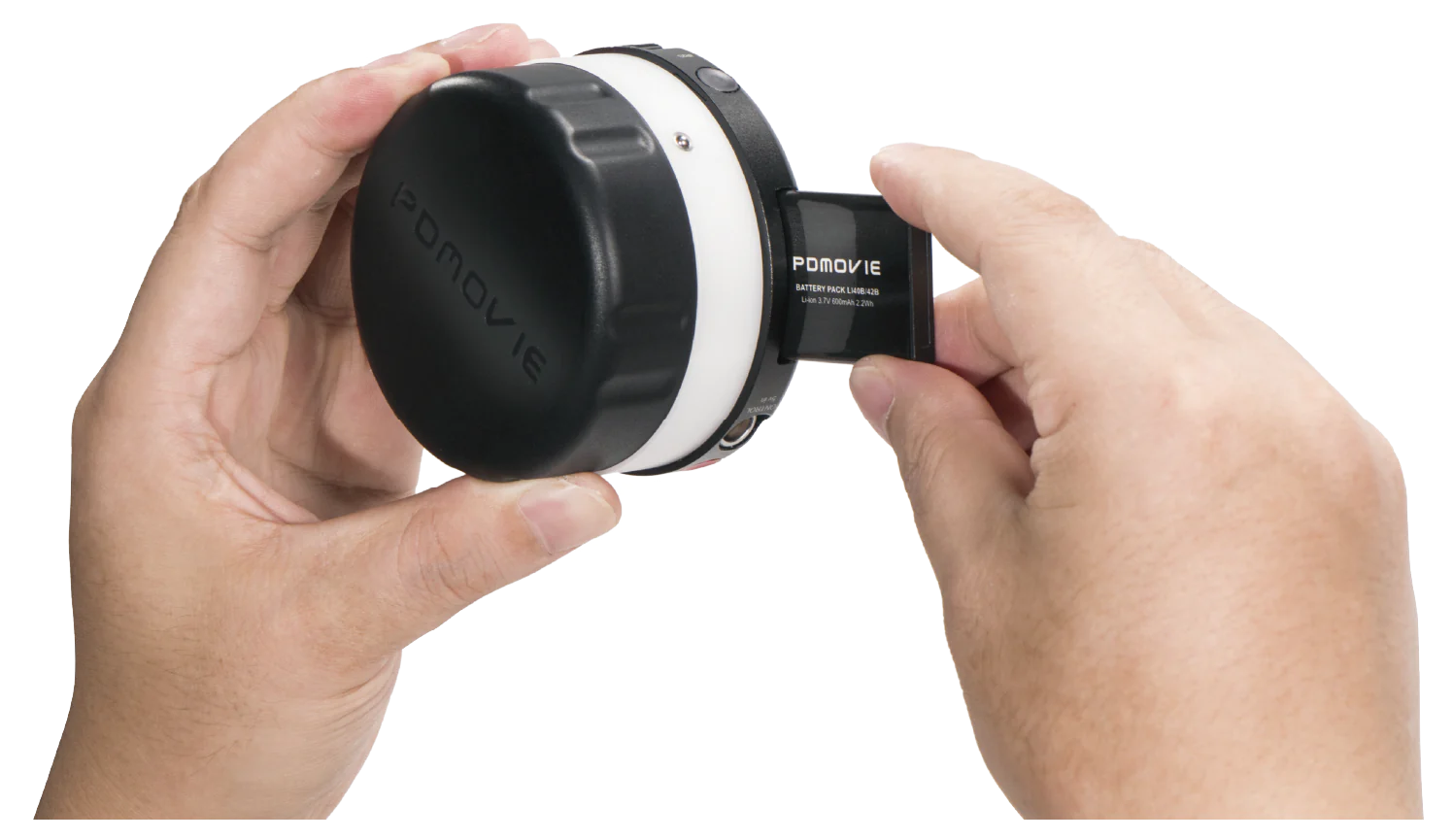

- Removable Battery with 12-Hour Runtime
- 0.8 MOD Cine-Style Drive Gear
- For Lenses with/without Hardstops
- OLED Info Screen on Motor and Handwheel

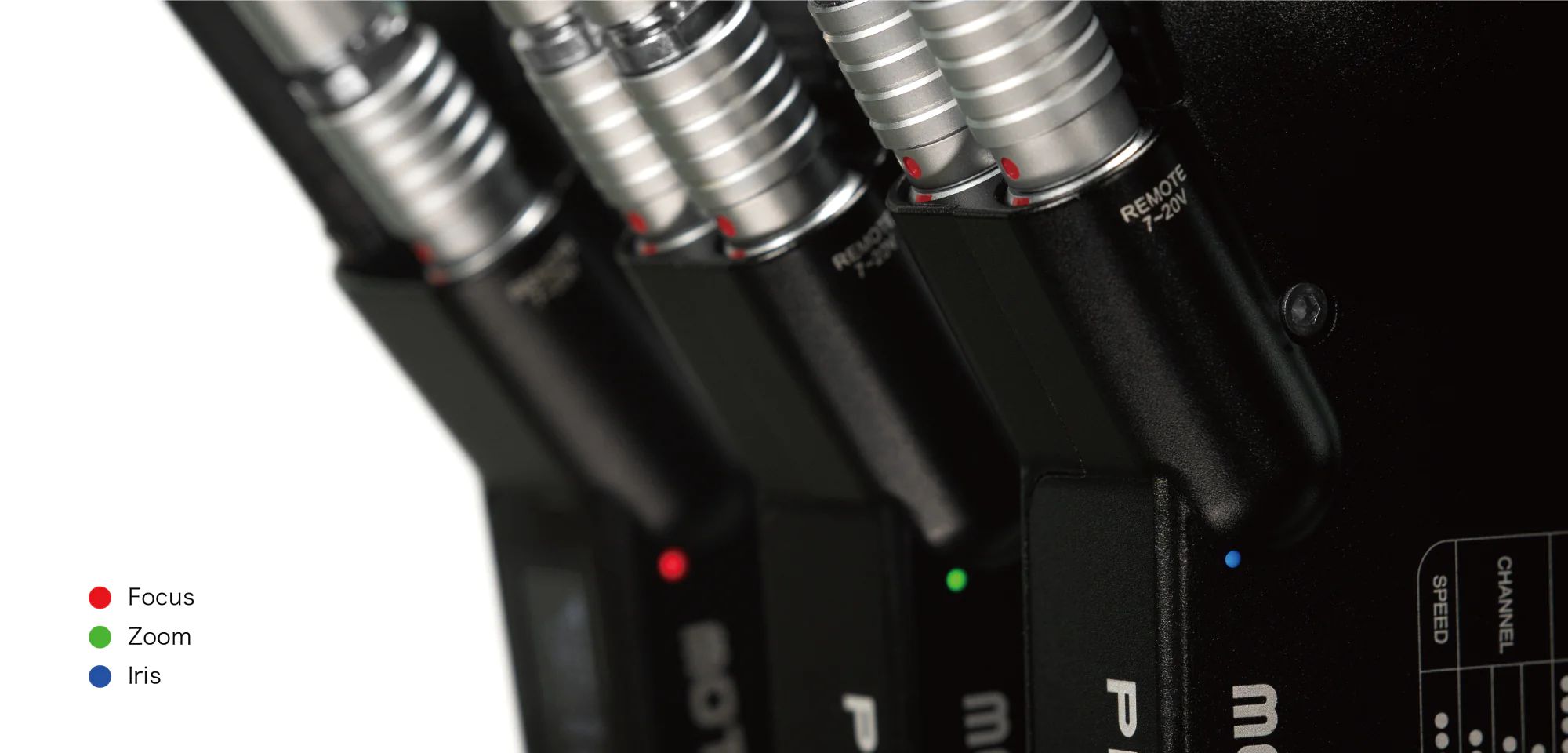

Three-color Control Channel
The controller and the motor are equipped with 6 control channels respectively, namely red, green and blue three control channels (main control channels) and green, yellow and purple three control channels (backup control channels).

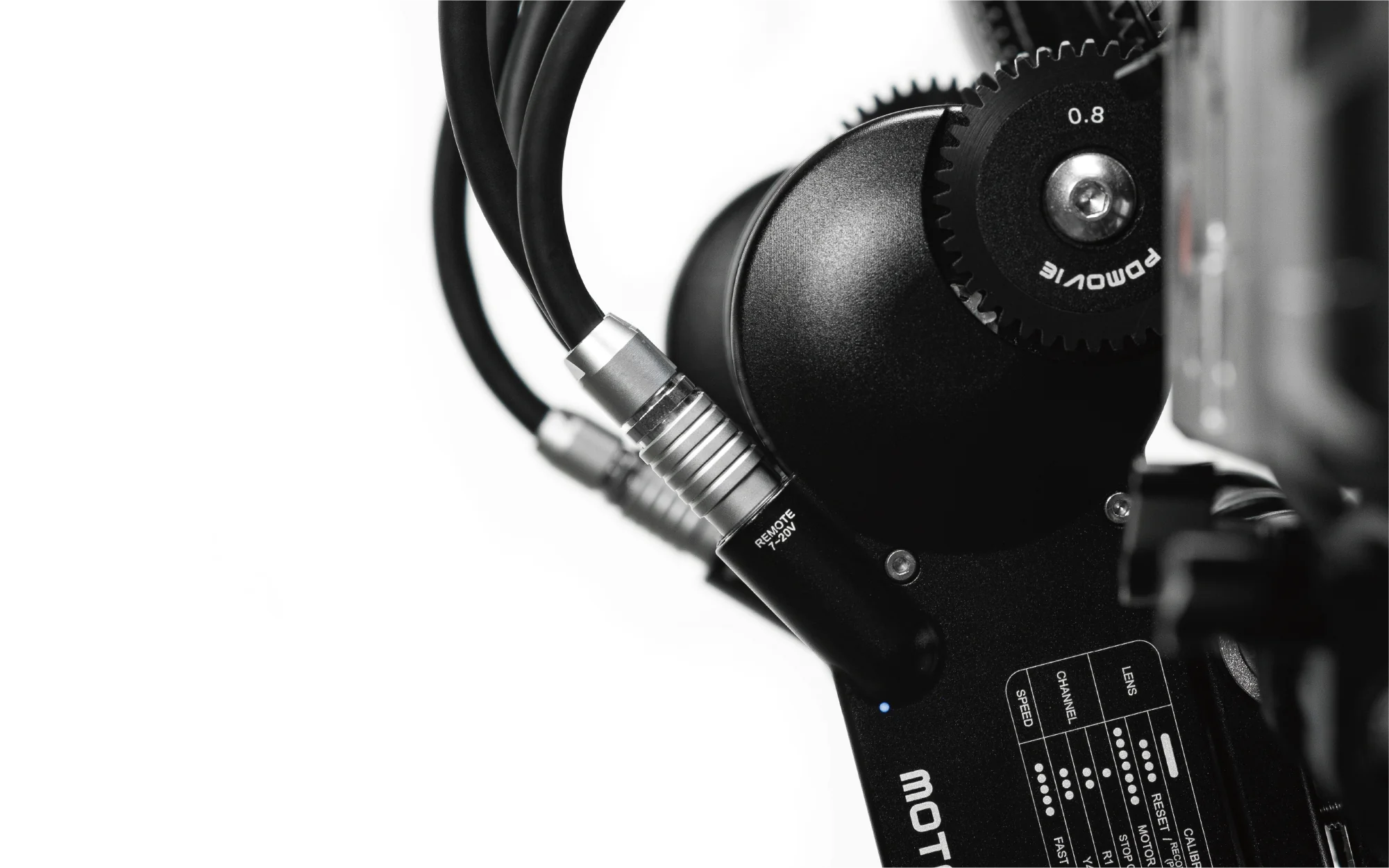

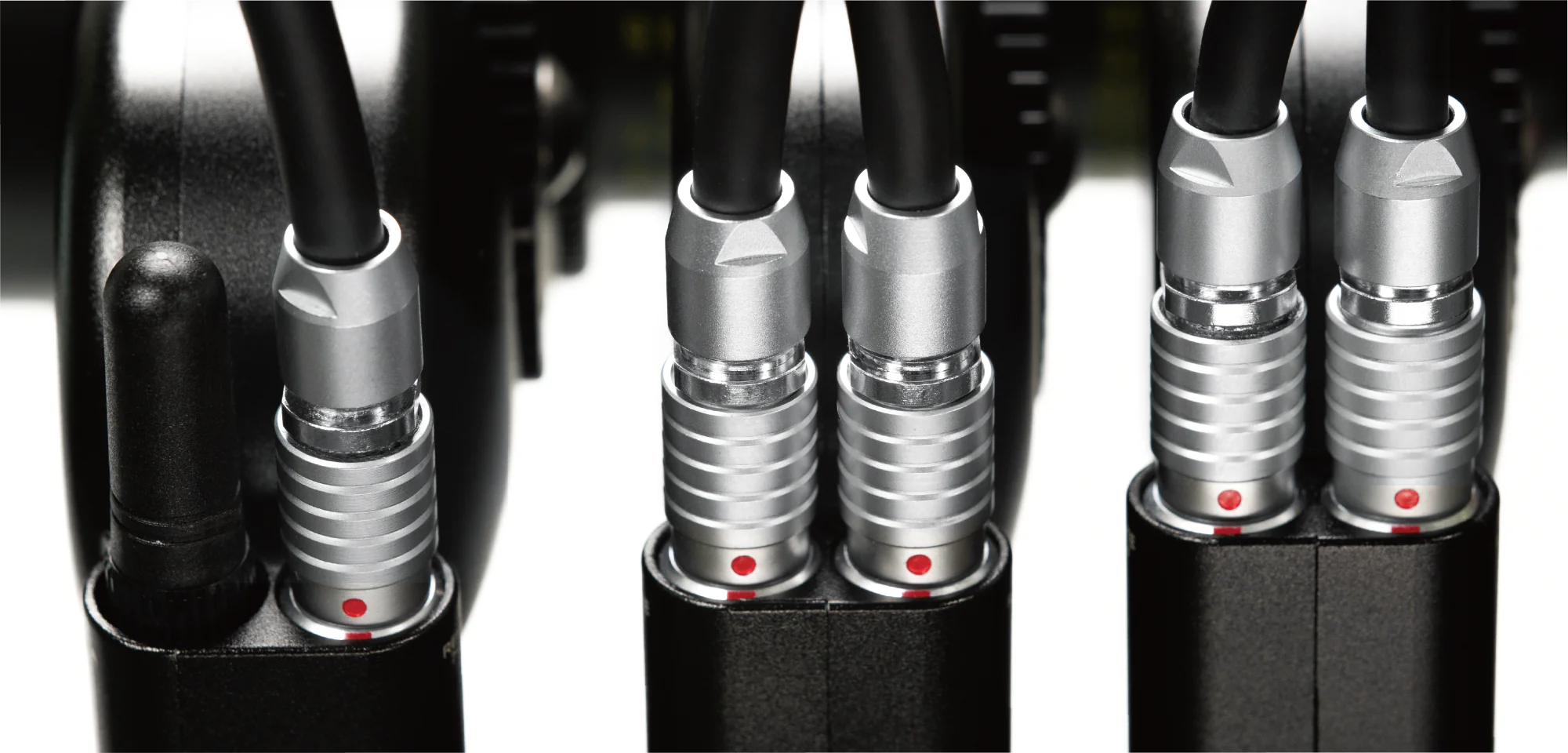

6Pin Self-locking Plug
Aviation self-locking plug, stable and safe, can not only ensure power supply but also ensure stable signal transmission. Not easy to damage.

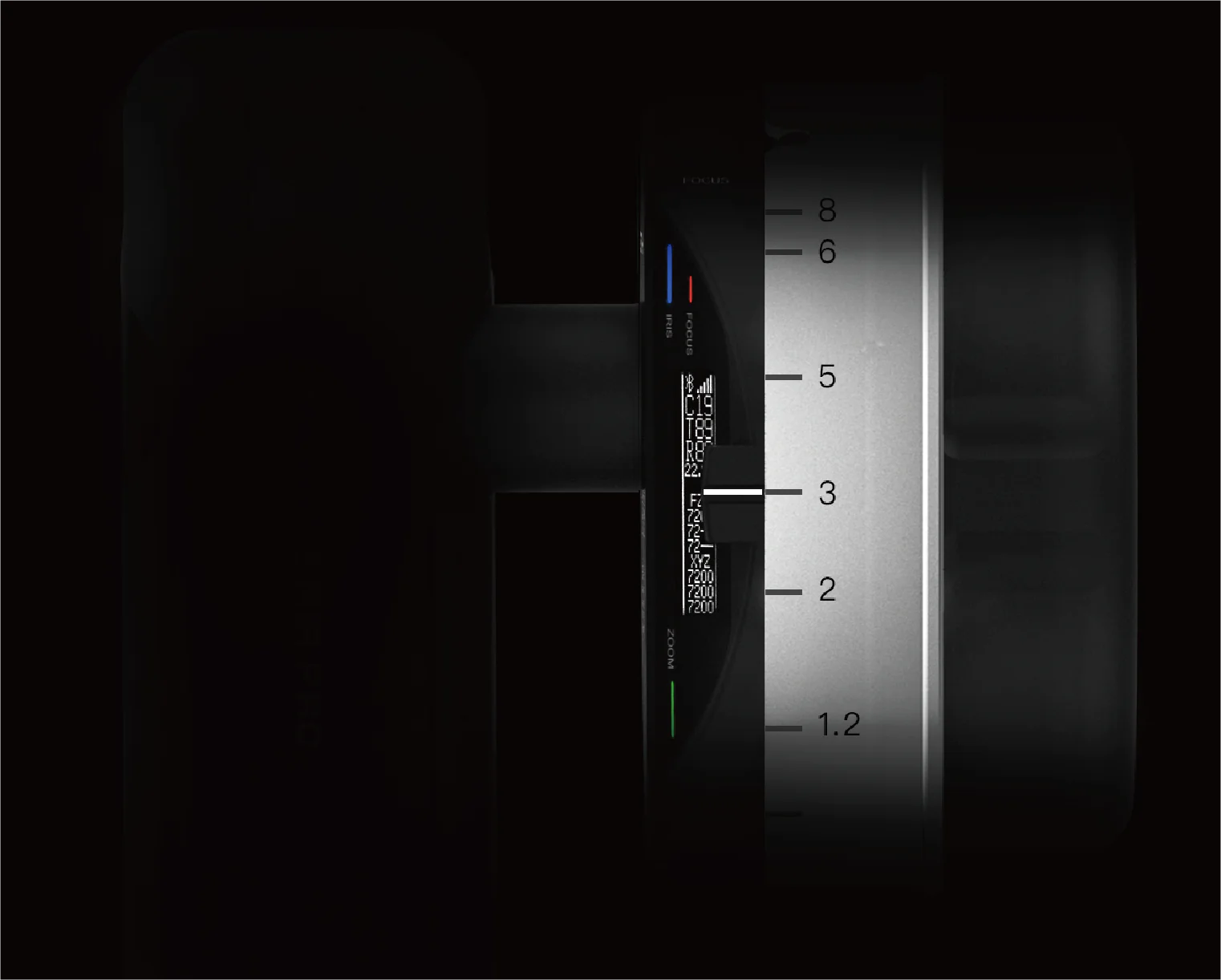

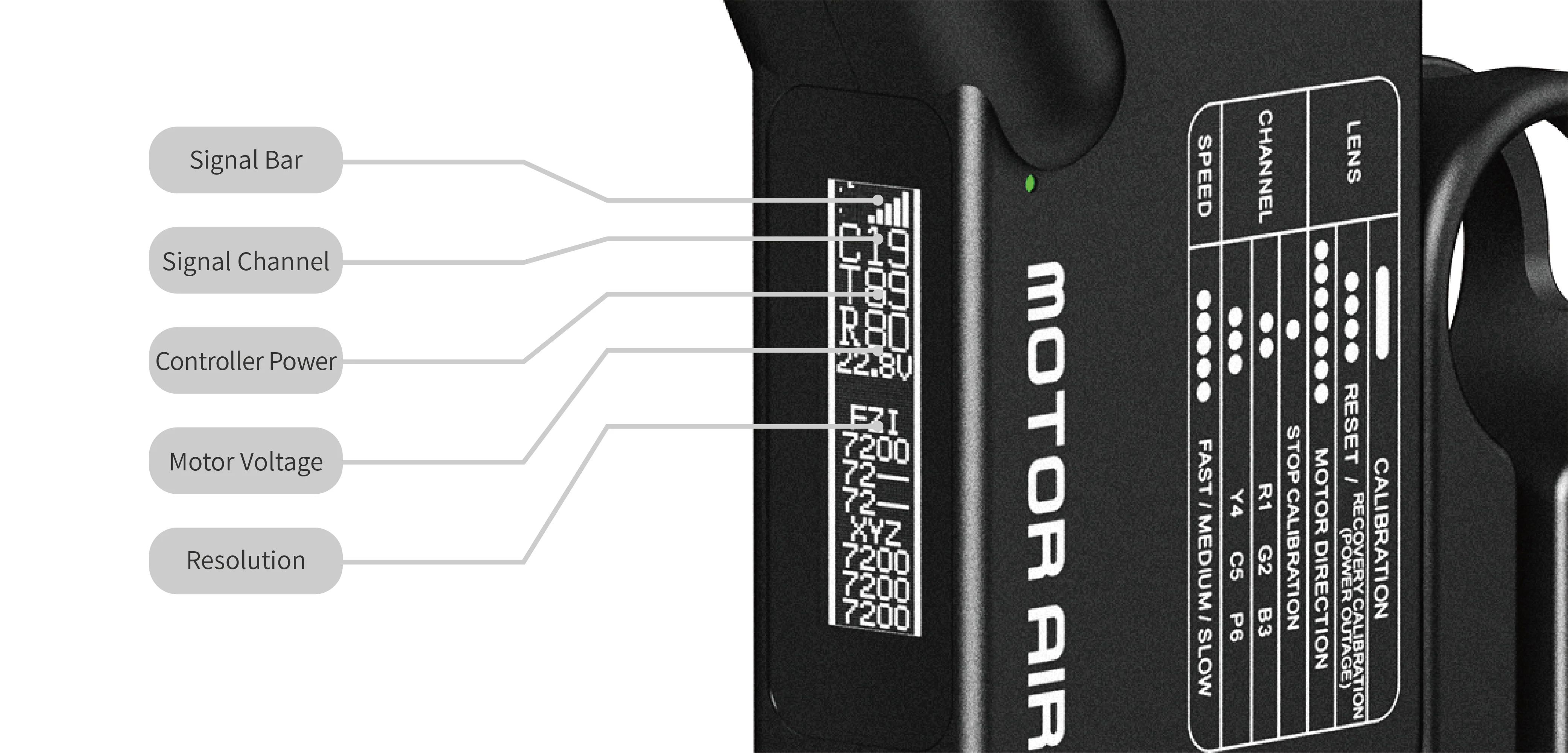

Clear Data Display
The controller and the receiving motor use the same OLED screen display mode, and all data are clearly visible.

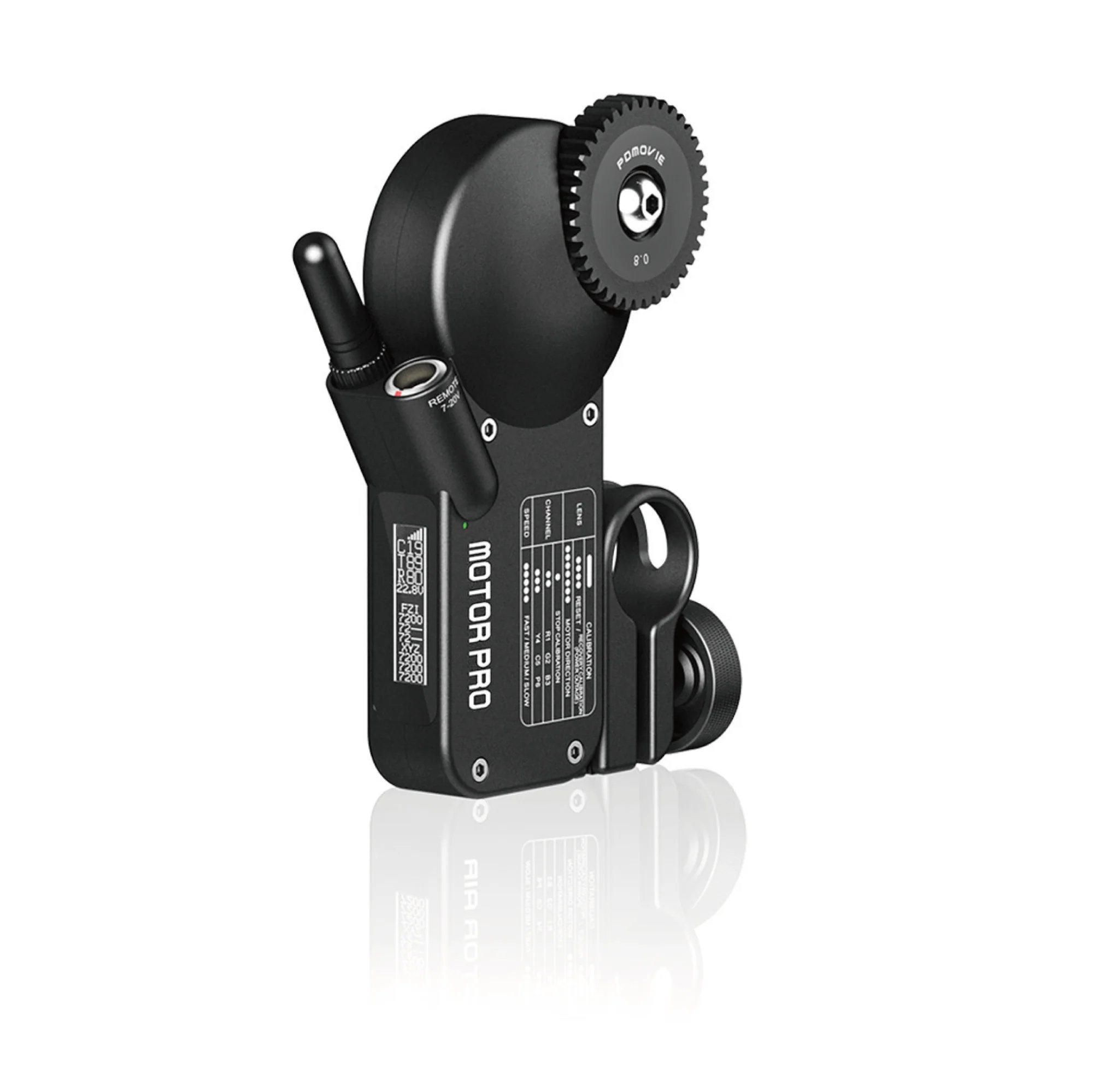

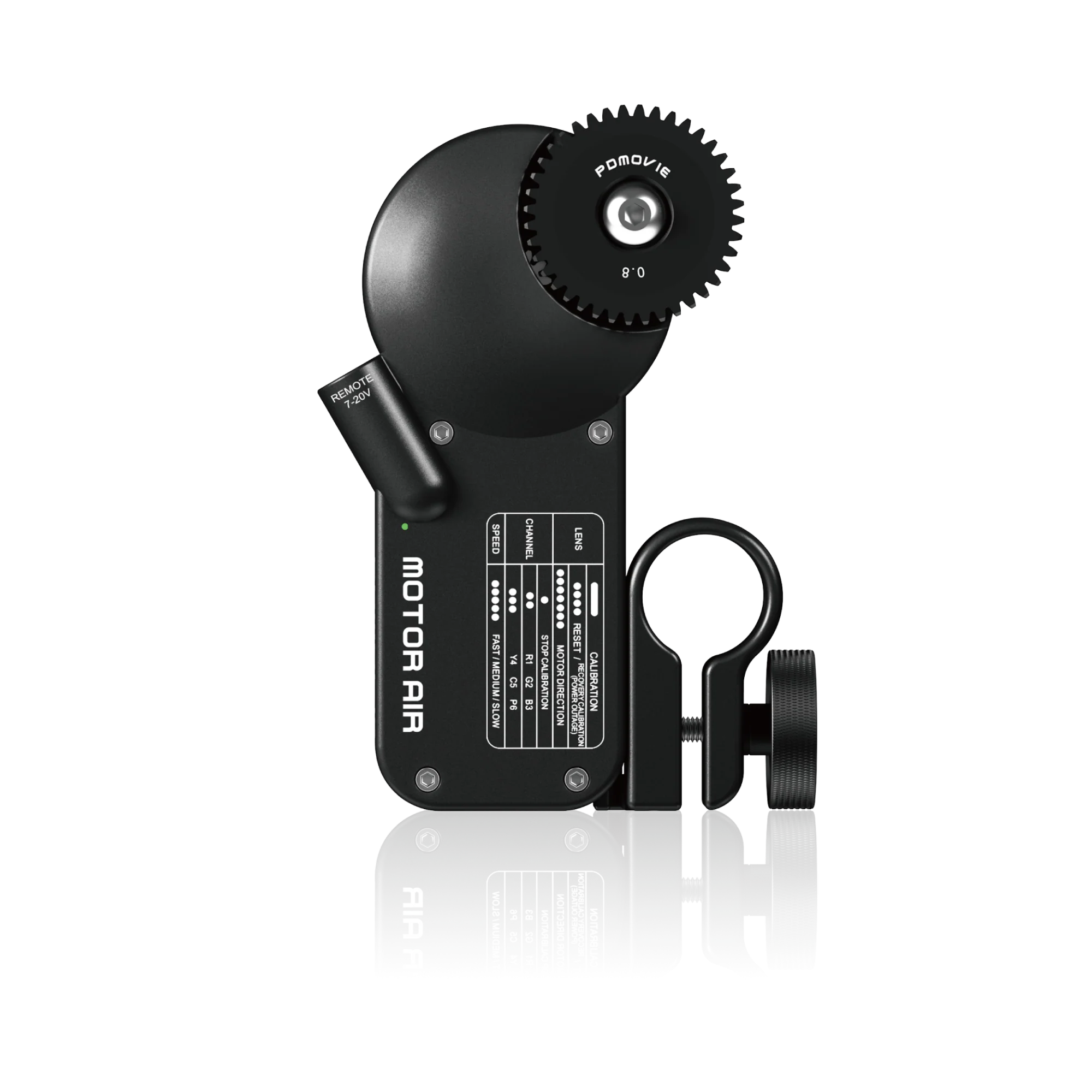

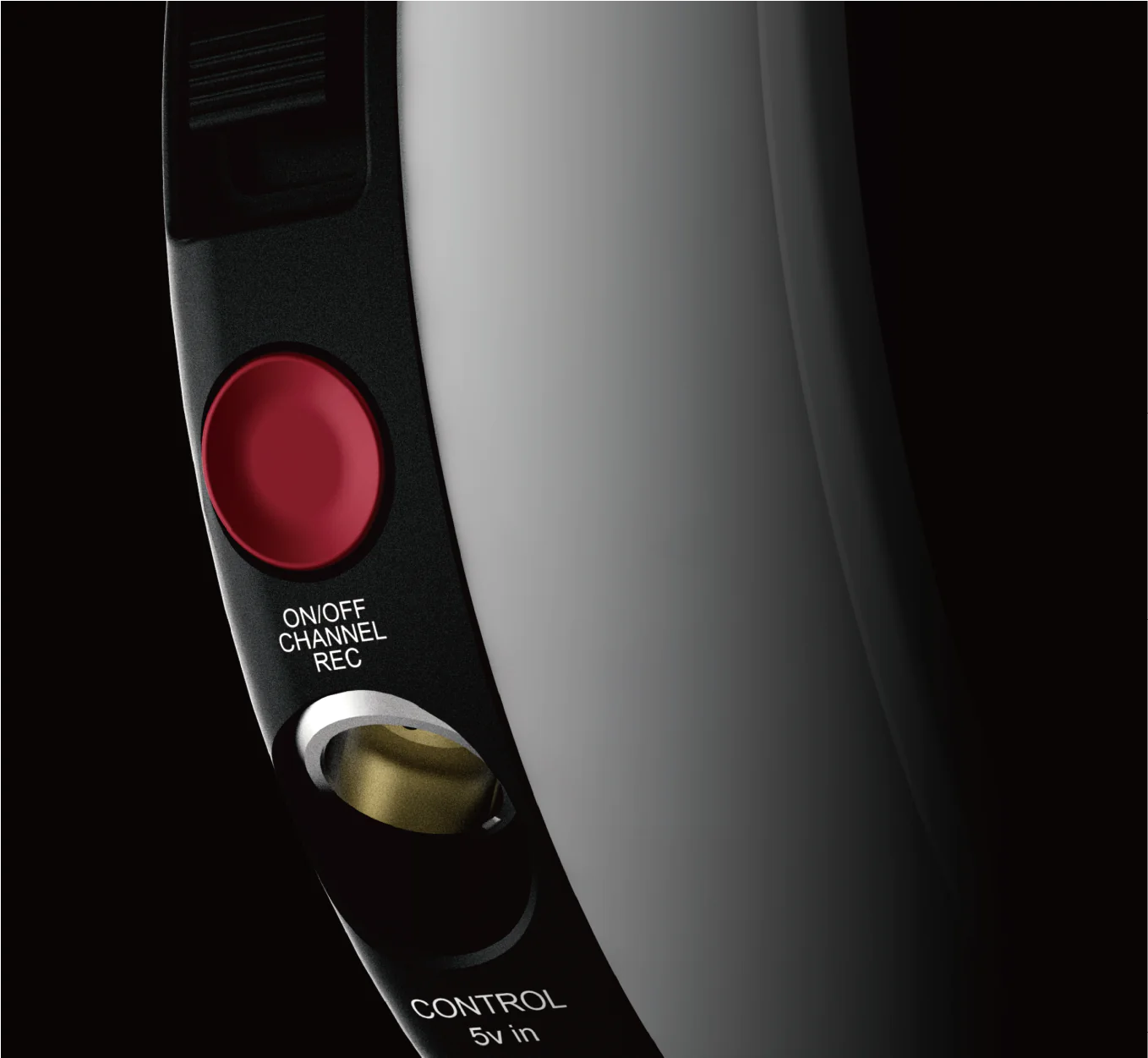

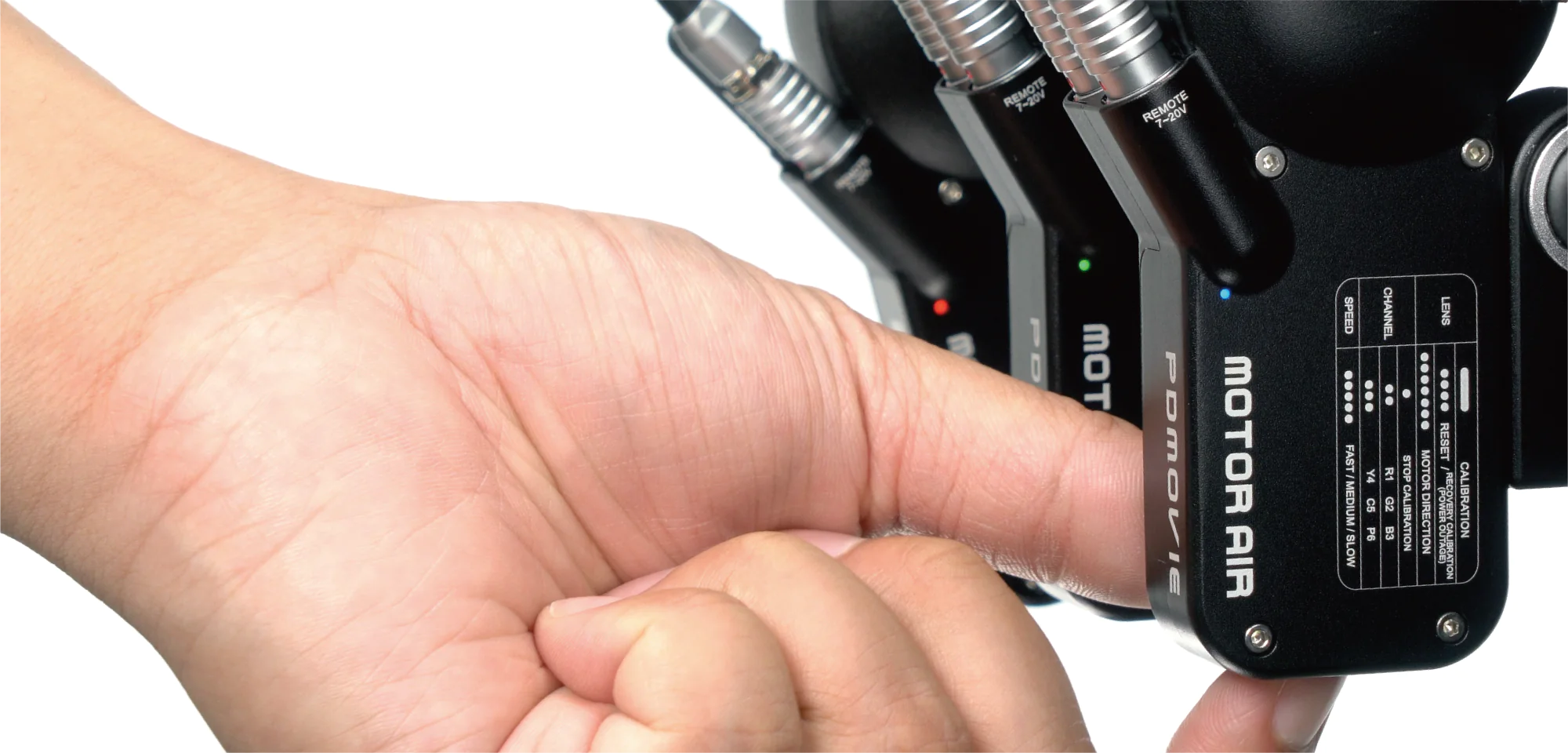

Easy Setup on 1 Button
Through the button at the bottom of the motor, various commands can be set with one key. (Such as switching signal channels, switching control channels, auto-calibrating lens strock and other commands.)

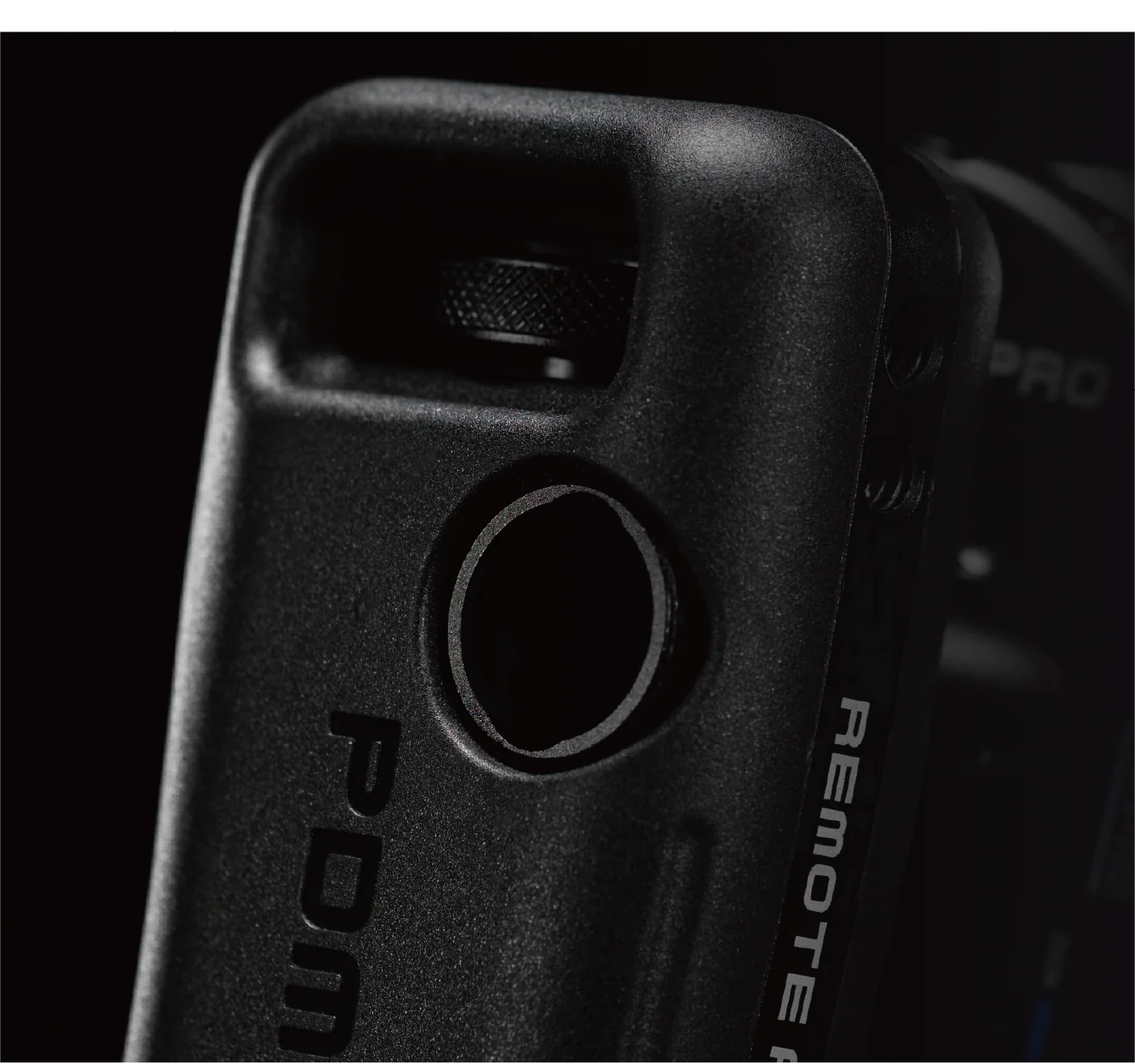

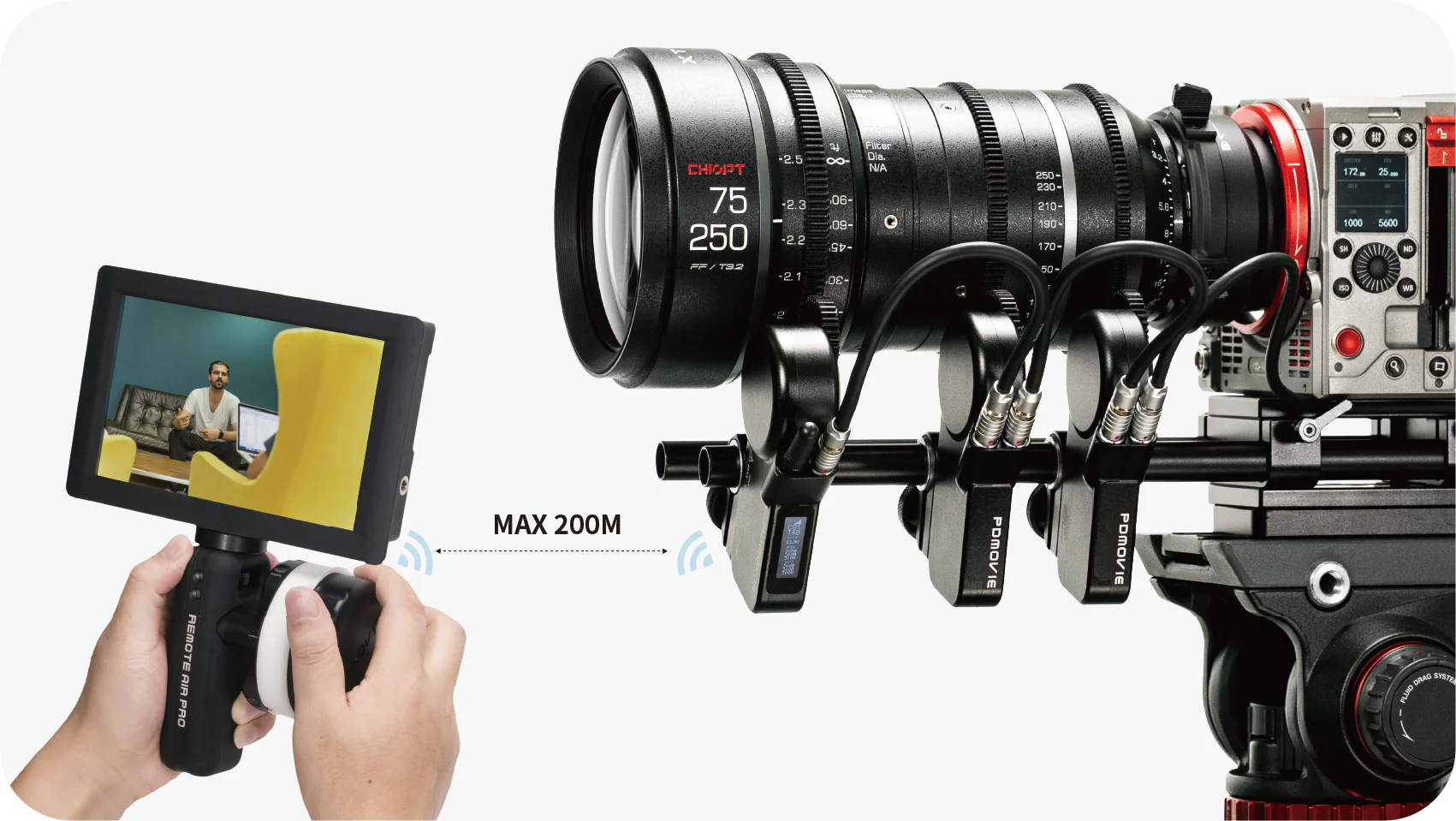

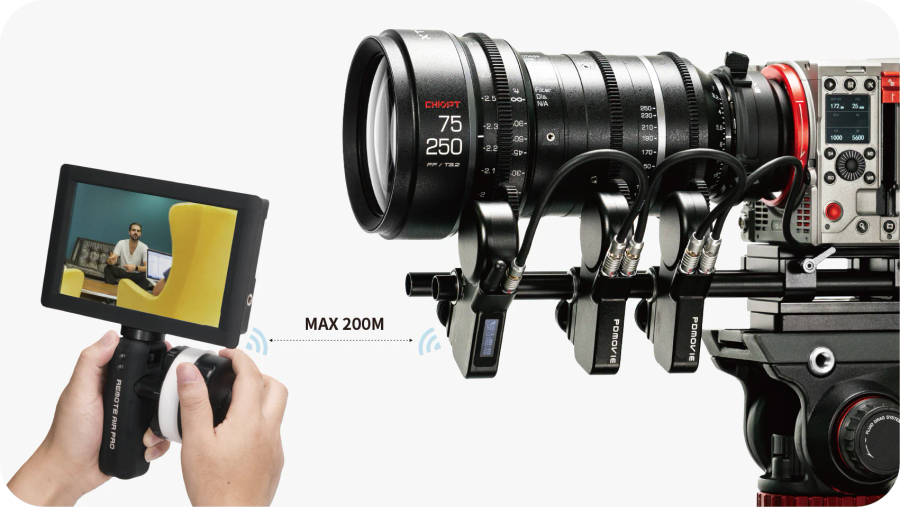

Extension & Distance
There are 10 of 1/4 screw holes reserved on the handle, which can be used to expand monitors or mobile phones. The controller built-in double antenna does not affect the range and stability of data transmission at all, and the farthest straight-line control distance can reach 200m.

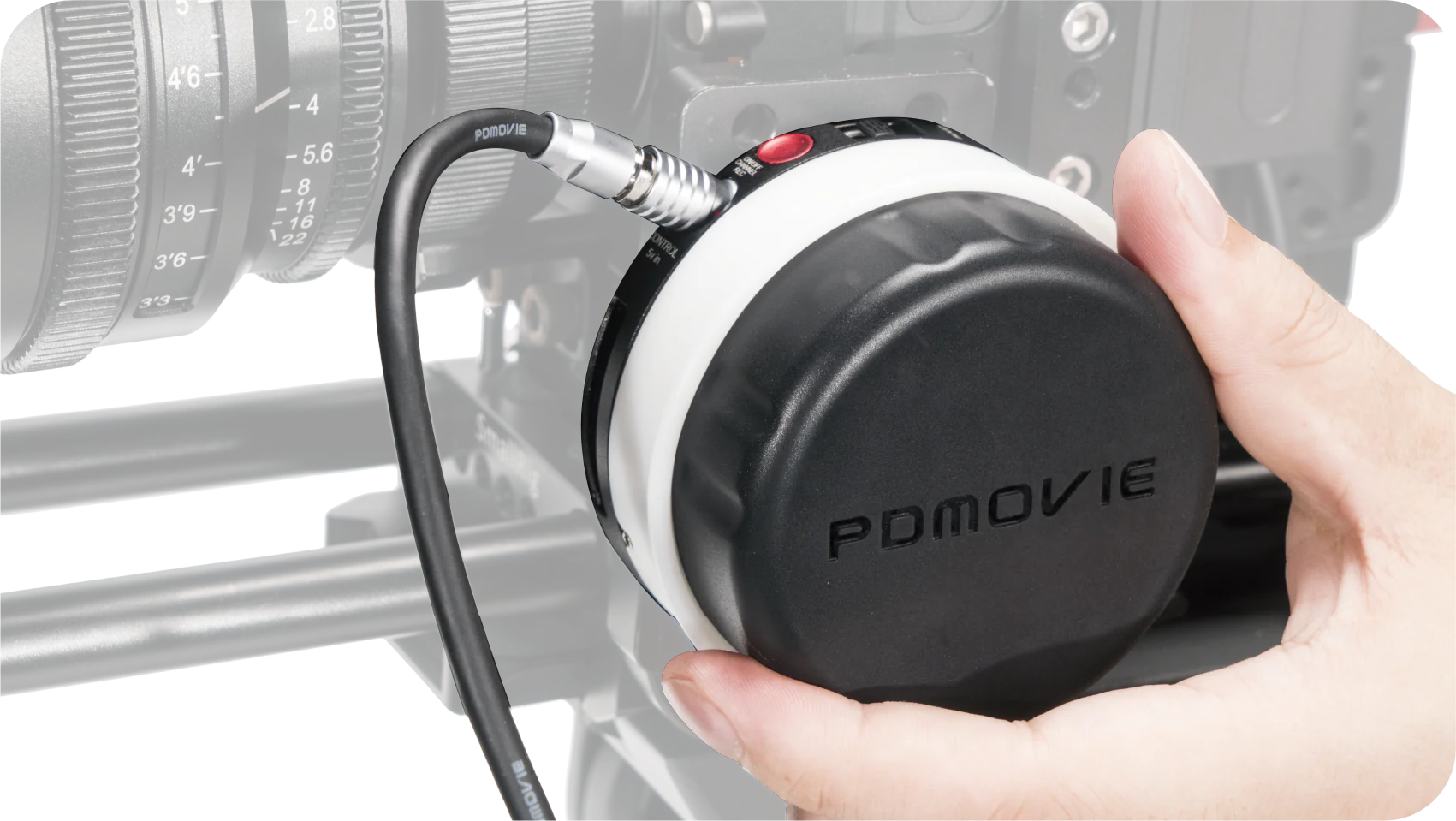

Wireless & Wired Two-In-One
REMOTE AIR PRO 3 can be wireless or wired control. In the case of very strong signal interference, the controller is connected with the 6-pin socket on the PD-MX motor by the serial line, can transfer to the wired control.

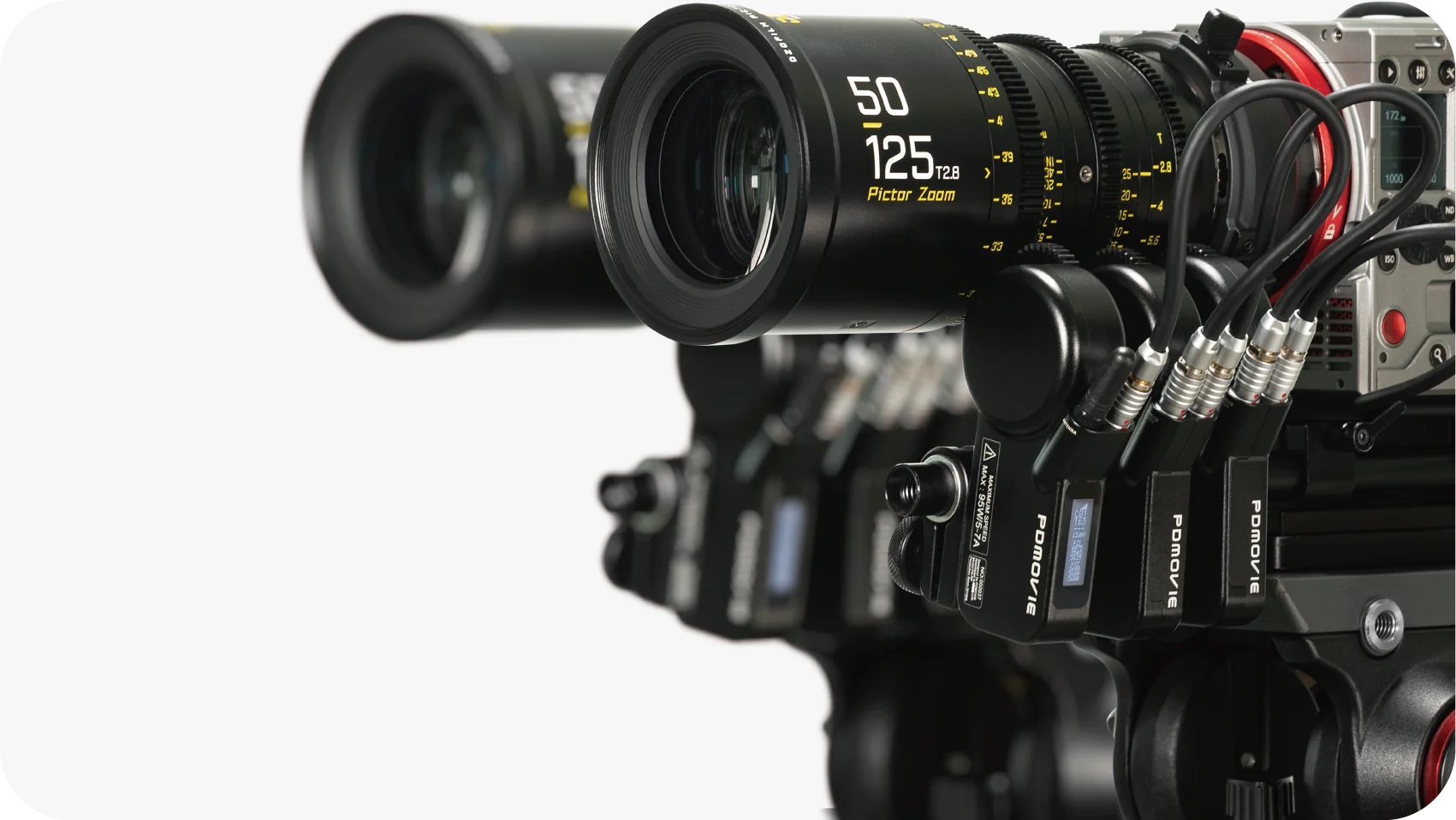

3D Sync Lens Control
REMOTE AIR PRO 3 also supports the synchronization focus, zoom, and iris for 3D shooting.
System
|
Number of Channels |
2 |
|
Maximum Range |
328' / 99.97 m |
|
Wireless Frequency |
2.4 GHz |
Receiver / Motor
|
Bluetooth |
Yes |
|
Included Drive Gear |
0.8 MOD 40 Teeth |
|
Included Motors |
2 |
|
Maximum Peak Torque |
0.5 Nm (Master) |
|
Motor Noise |
28 dB |
Transmitter / Controller
|
Camera Trigger |
Yes |
|
Battery Type |
LI-42B |
|
DC Input Power |
3.7 VDC |
|
Dimensions |
3.15 x 3.15 x 1.77" / 8 x 8 x 4.5 cm |
|
Weight |
9.24 oz / 262 g |
