Pixfra Chiron C435 Thermal Scope OLED 35mm 12 um pix 384x288 dis 1440x1080 **
- Vanadium oxide uncooled focal plane detector.
- Ultra-low power consumption.
- Connects to the mobile app through Wi-Fi.
- Calculates distance using video analysis.
- Lightweight and portable.
- Picture in picture.
- Impact resistance reaches up to 1,000 g/1 ms.
- RAR (Recoil Activated Recorder).
- 1440 × 1080 OLED screen.
- Metal housing.
- IP67 rated.

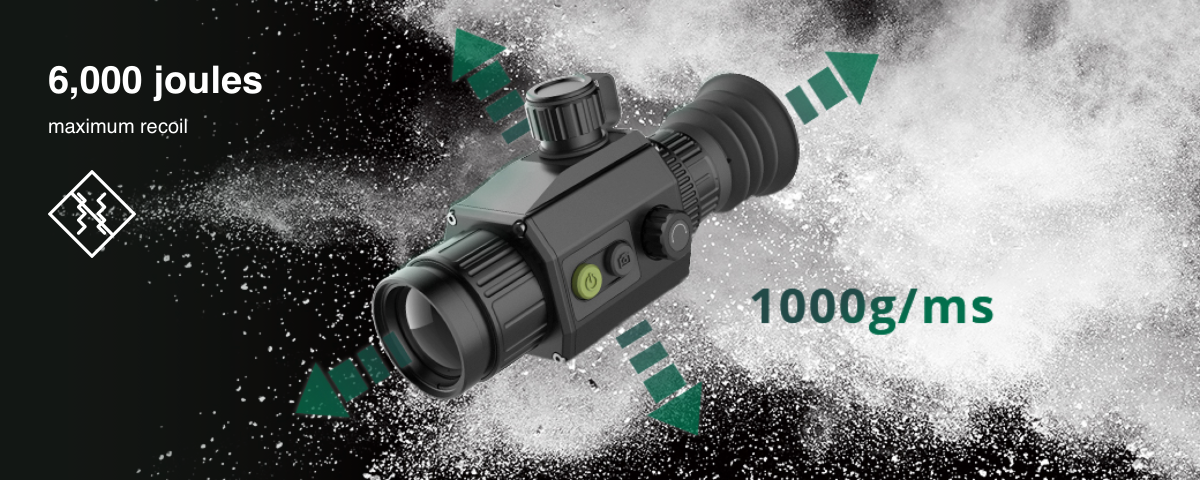

High Shock Resistance
The rugged structure is designed to withstand a maximum recoil of over 6,000 joules, perfect for a variety of rifle with calibers of 12 gauge, 9.3x64, .375H&H, etc.

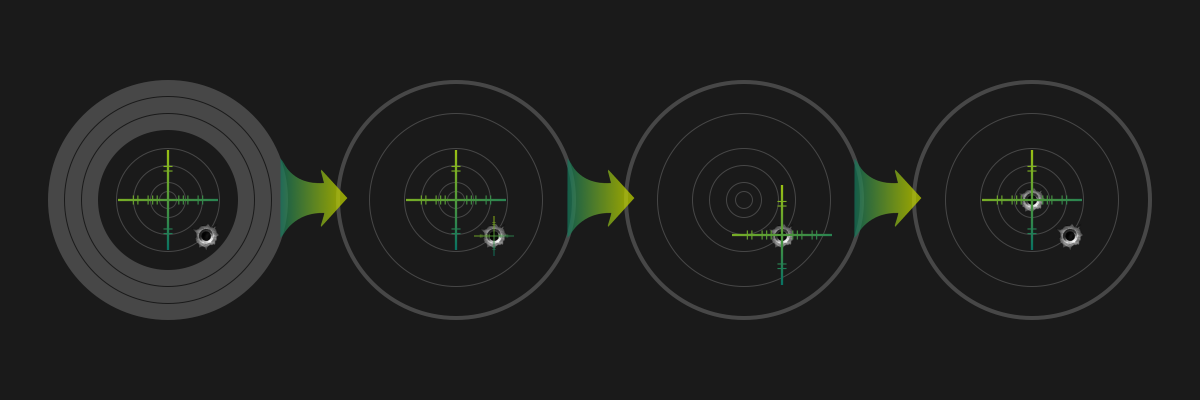

Better Zeroing Experience
Chiron supports one-shot zeroing. It supports the configuration of 5 x 6 reticles, and has more than 10 reticle types with a variety of colors optional. It also supports picture-in-picture mode or picture freeze mode when you zero, to help you zero faster.
Pro-grade Image Sensor
All models adopt 12μm detector, up to 640×512 resolution, detector sensitivity 30mk, even in heavy rain, fog or cold harsh environment, can perfectly present details, clearly observe the target feature details.

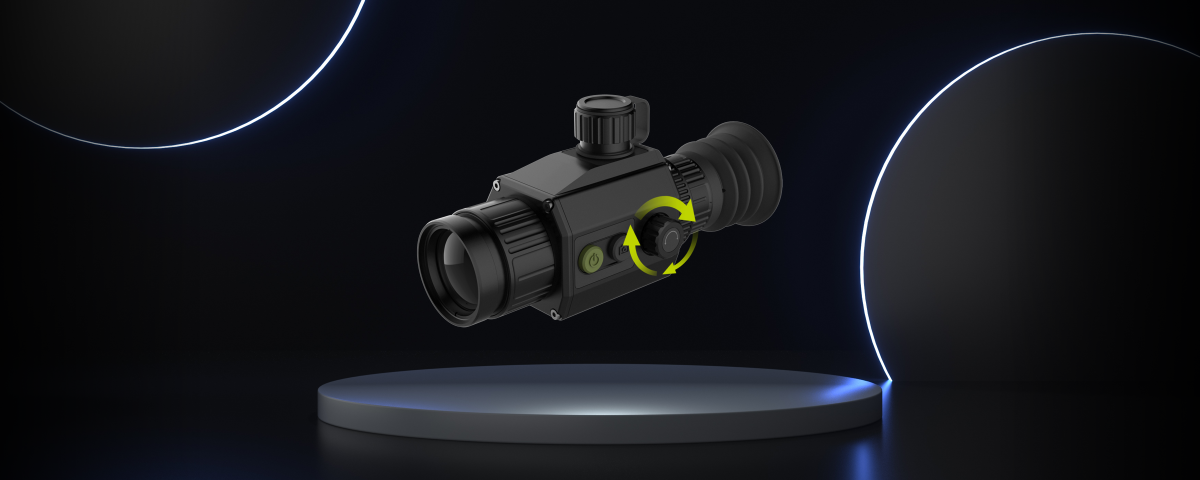

Easy on Your Hand, Simplified Operation
The Chiron series has a rotary knob design to help you quickly operate the menu for a more convenient and fast operating experience.
Ultra-low Latency
Hunting is all about “The moment,” so there must be no error between what you see on your device‘s display and where your target actually is. PIPS（ Pixfra Imaging Processing Solution ） allows image latency of less than 20ms, compared to 60ms with conventional image solutions, which will help you to accurately aim at the target.

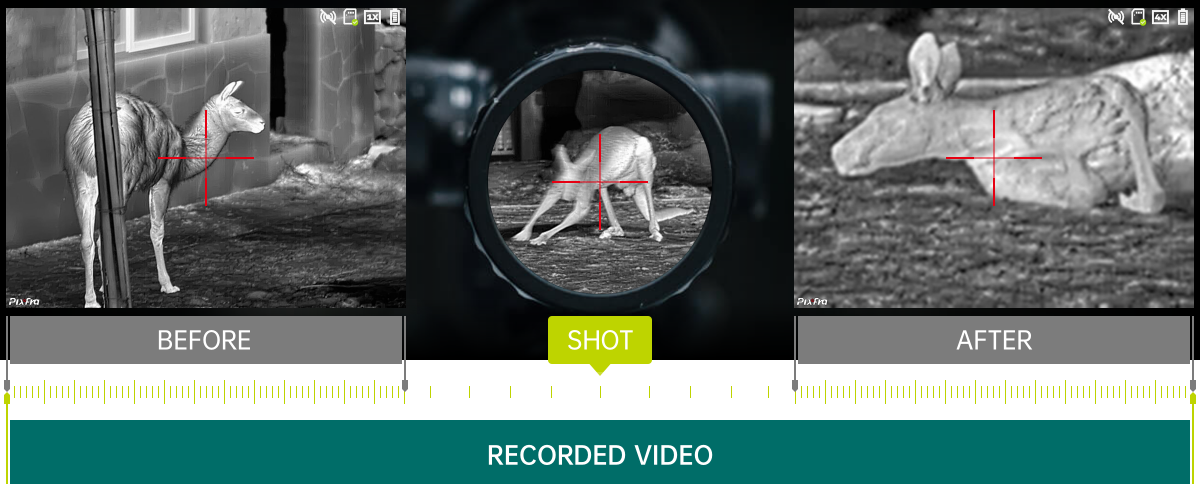

Pre For the Magic Moment
Chiron supports Recoil Activated Recording (RAR), it automatically records key moments as you shoot, so you don't miss any of the highlights. With the Pixfra APP, you can also quickly share videos with your friends.
Thermal
|
Detector Type |
Vanadium oxide uncooled focal plane detector |
|
Effective Pixels |
384 (H) × 288 (V) |
|
Pixel Pitch |
12 μm |
|
Spectral Range |
8 μm–14 μm |
|
Sensitivity (NETD) |
≤30 mK@f/1.0, 25°C |
|
Focal Length |
35 mm |
|
Aperture |
F1.0 |
|
Field of View |
H: 7.8°; V: 5.9° |
|
Focus Control |
Fixed |
|
Close Focus Distance |
2 m (6.56 ft) |
|
Detection Distance |
1,800 m (5,905.51 ft) |
|
Magnification |
2.95 × |
|
Frame Rate |
50 Hz |
Display
|
Screen |
1440 × 1080, 0.41 inch, OLED |
|
Color Palettes |
6 (white hot/black hot/iron red/alarm/emerald/amber) |
|
Video Compression |
H.264 |
|
Diopter Adjust |
–5 D to +5 D |
|
Eye Relief |
44 mm (1.73") |
|
Exit Pupil |
6 mm |
Function
|
Digital Zoom |
1×; 2×; 4×; 8× |
|
Reticle |
Multiple Patterns & Color Options |
|
Zeroing |
Yes |
|
Video Recorder |
Yes |
|
Snapshot |
Yes |
|
WiFi Hotspot |
Yes |
|
Hot Spot Track |
Yes |
|
Video Distance Measurement |
Yes |
|
FFC Calibration |
Auto; manual; immediately |
|
Standby Mode |
Yes |
|
PIP (Picture in Picture) |
Yes |
|
DPC (Defective Pixel Correction) |
Yes |
|
RAR (Recoil Activated Recorder) |
Yes |
| Datasheets | |
|---|---|
| Pixfra Chiron C435 Thermal Scope OLED 35mm 12 um pix 384x288 dis 1440x1080 ** - Datasheet | Product Manuals |
| Pixfra Chiron C435 Thermal Scope OLED 35mm 12 um pix 384x288 dis 1440x1080 ** - Product Manual |
Brand: Pixfra |
Code: PFI-C435
Supplier Code: 1.0.01.34.13860-0005
Brand: Pixfra |
Code: PFI-C435
Supplier Code: 1.0.01.34.13860-0005
At a glance
- Vanadium oxide uncooled focal plane detector.
- Ultra-low power consumption.
- Connects to the mobile app through Wi-Fi.
- Calculates distance using video analysis.
- Lightweight and portable.
- Picture in picture.
- Impact resistance reaches up to 1,000 g/1 ms.
- RAR (Recoil Activated Recorder).
- 1440 × 1080 OLED screen.
- Metal housing.
- IP67 rated.
High Shock ResistanceThe rugged structure is designed to withstand a maximum recoil of over 6,000 joules, perfect for a variety of rifle with calibers of 12 gauge, 9.3x64, .375H&H, etc. |
|
|
Better Zeroing ExperienceChiron supports one-shot zeroing. It supports the configuration of 5 x 6 reticles, and has more than 10 reticle types with a variety of colors optional. It also supports picture-in-picture mode or picture freeze mode when you zero, to help you zero faster. |
Pro-grade Image SensorAll models adopt 12μm detector, up to 640×512 resolution, detector sensitivity 30mk, even in heavy rain, fog or cold harsh environment, can perfectly present details, clearly observe the target feature details. |
|
|
Easy on Your Hand, Simplified OperationThe Chiron series has a rotary knob design to help you quickly operate the menu for a more convenient and fast operating experience. |
Ultra-low LatencyHunting is all about “The moment,” so there must be no error between what you see on your device‘s display and where your target actually is. PIPS（ Pixfra Imaging Processing Solution ） allows image latency of less than 20ms, compared to 60ms with conventional image solutions, which will help you to accurately aim at the target. |
|
|
Pre For the Magic MomentChiron supports Recoil Activated Recording (RAR), it automatically records key moments as you shoot, so you don't miss any of the highlights. With the Pixfra APP, you can also quickly share videos with your friends. |

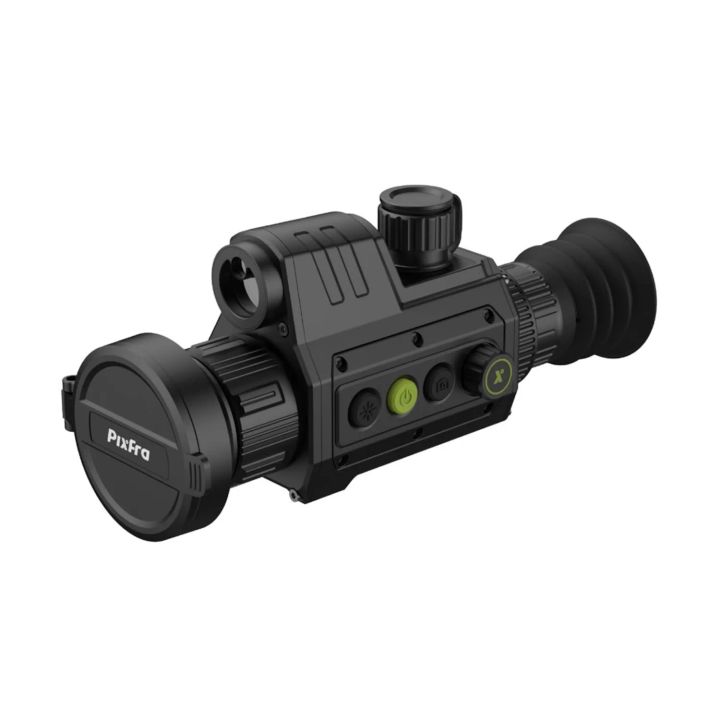

Pixfra CHIRON LRF Thermal Riflescope OLED 50mm Pix 640x512 Dis 1440x1080
