SLIK 504QF II Aluminium Tripod with 504QF II Video Fluid Pan Head
- 2-Way Fluid Head
- 11 lb Capacity
- Unique 3-Way Fluid Head
- Three Angle Leg Opening Width
- Thumb-Turn Leg Lock
- Anti-Rotation D-Shaped Aluminum Pipe

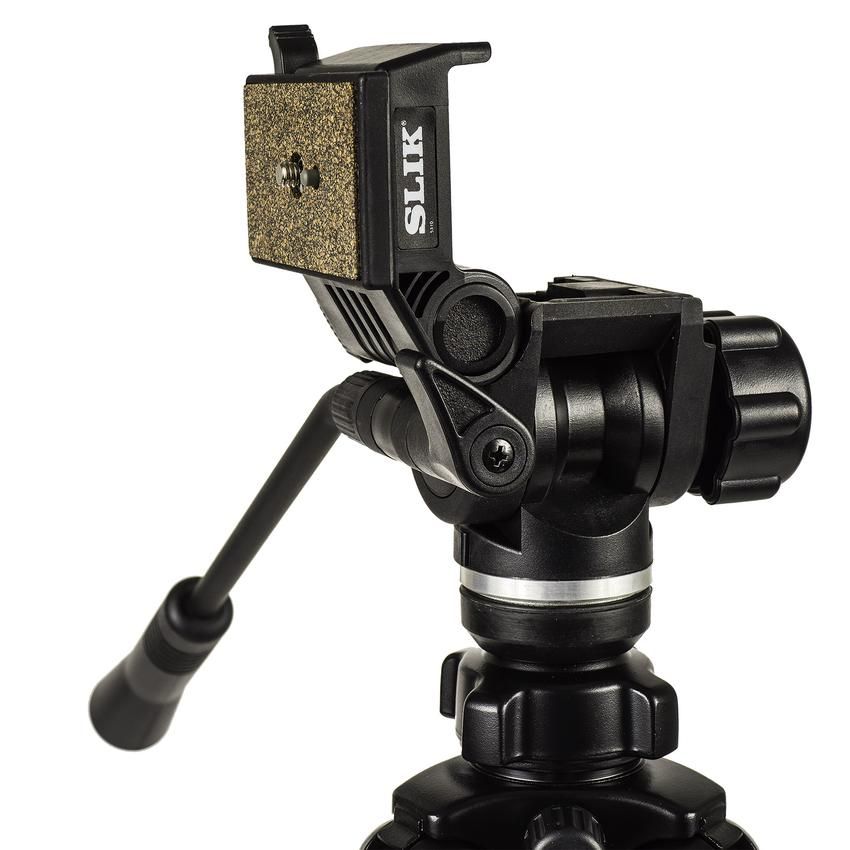

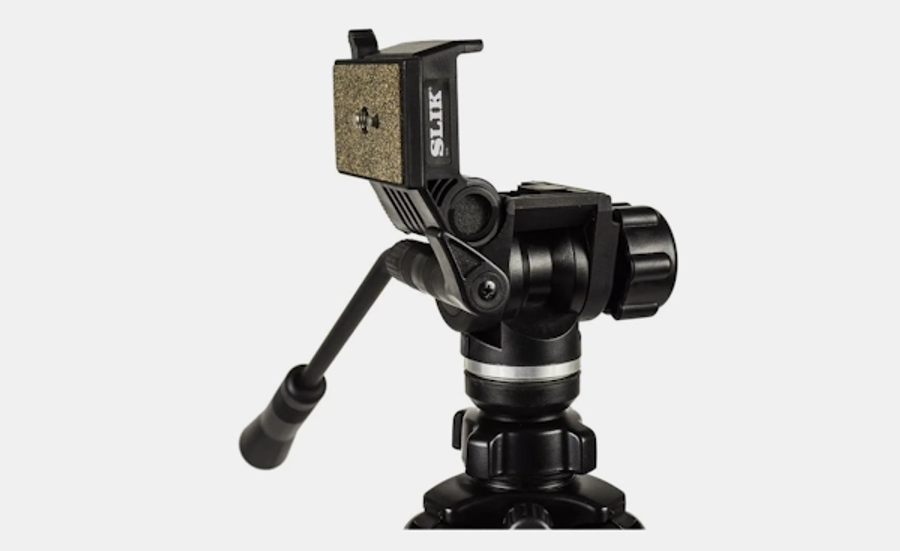

Unique 3-Way Fluid Head
504QF II tripod package comes with SLIK's uniquely designed video head. Built-in counterbalance and pan-tilt drag, it can handle both still images and movies. Since the top stage can be tilted 90 degrees to the right, it is possible to shoot videos for smartphones and digital signage.

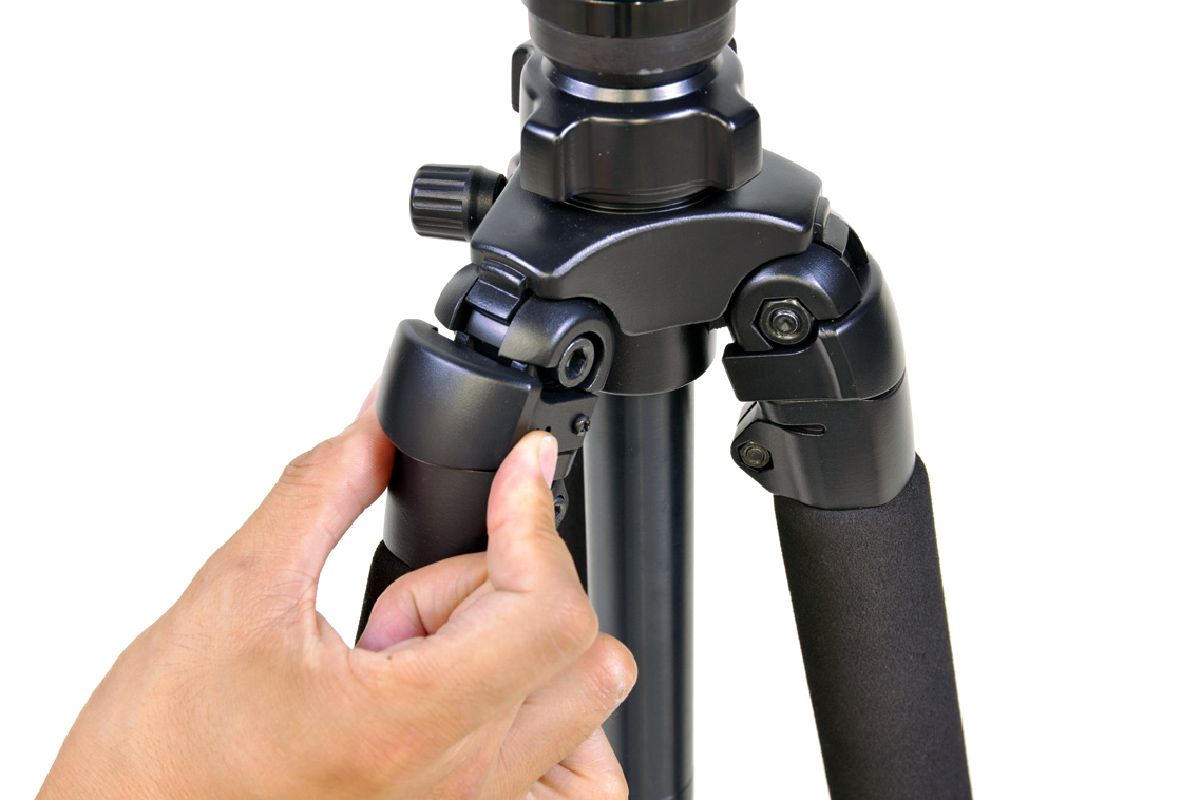

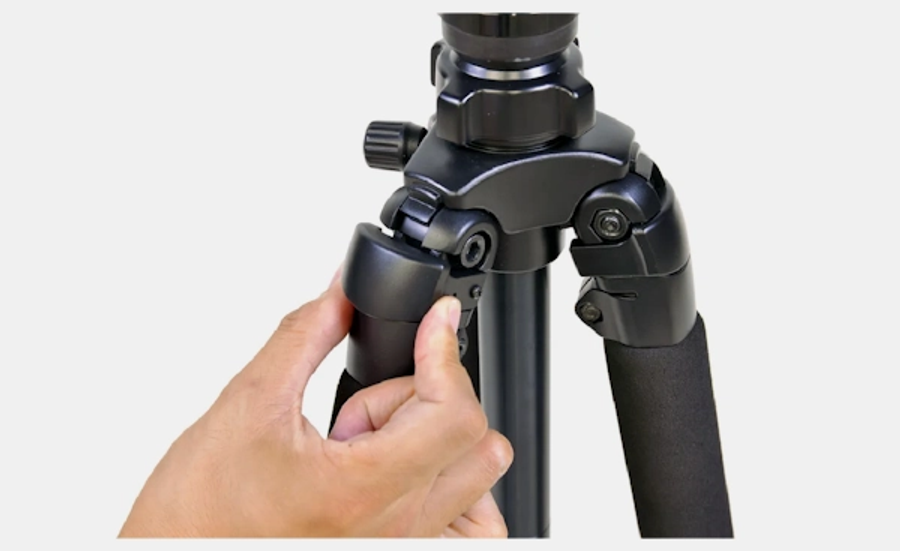

Three Angle Leg Opening Width
The leg opening angle can be adjusted in three ways. By sliding the "leg angle adjustment locks" on the leg joint part, it is possible to set three tripod stages of high, middle, and low. In addition, it is also possible to adjust the opening angle of the three legs separately. It can be quickly placed straight for a variety of situations, such as stairs and uneven terrain.

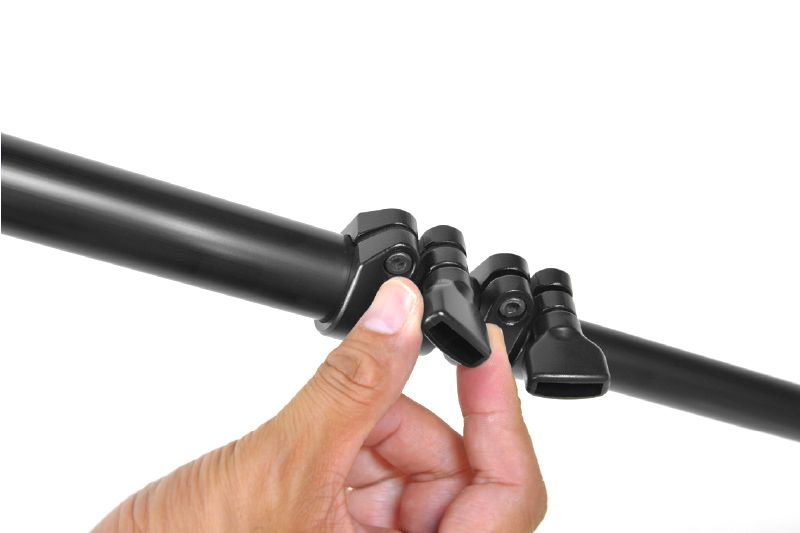

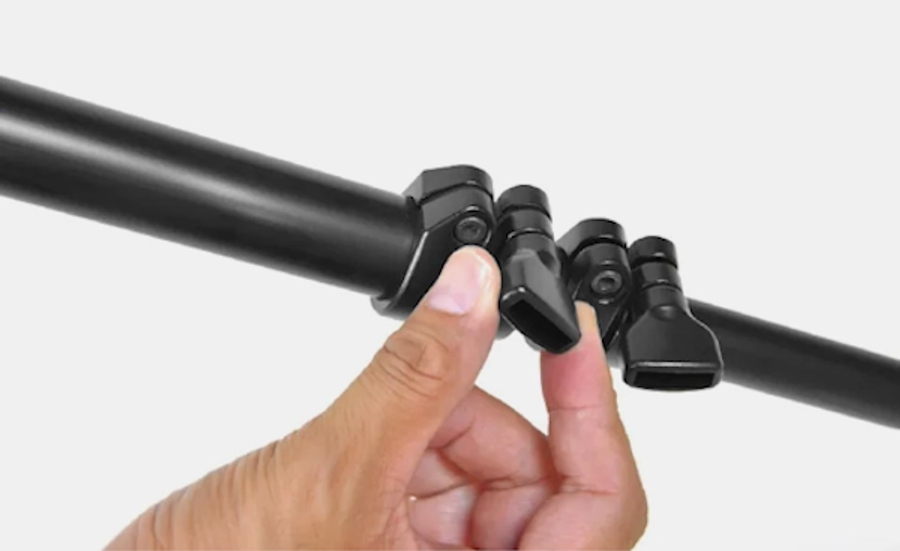

Thumb-Turn Leg Lock
The thumb-turn locking mechanism allows for intuitive leg lock & unlocking

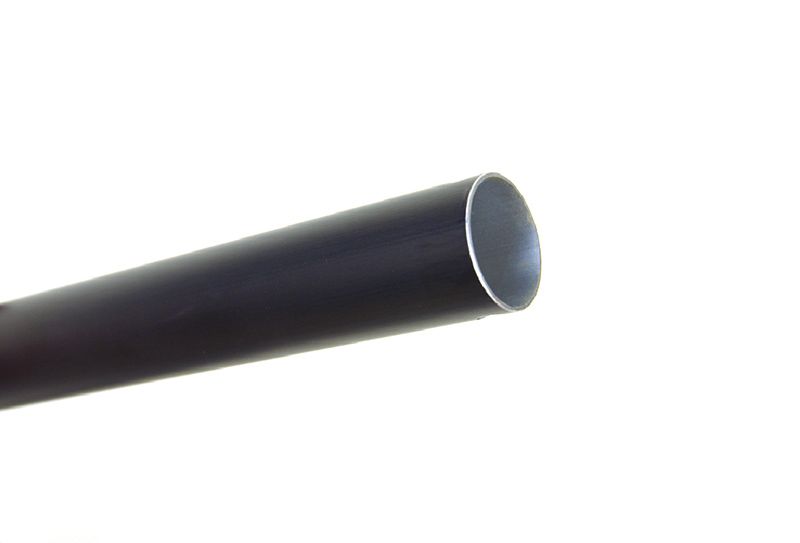

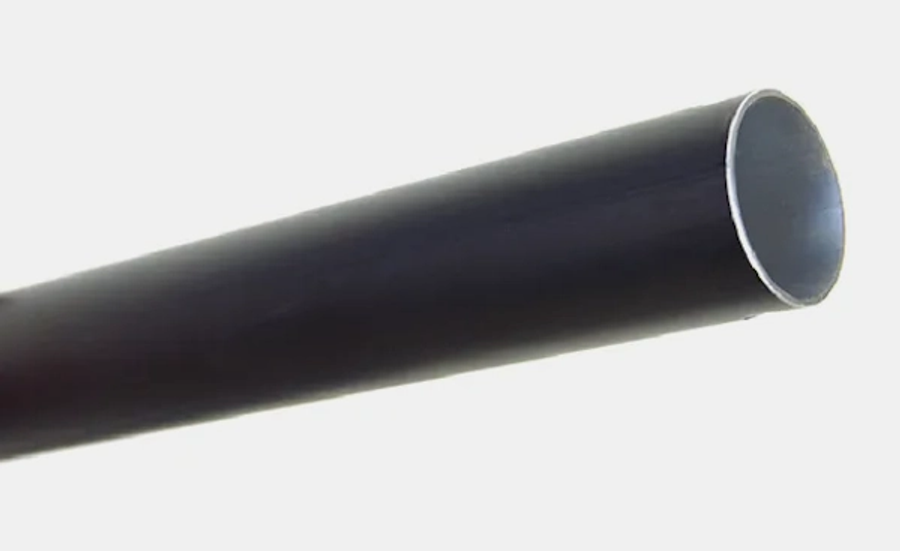

Anti-Rotation D-Shaped Aluminum Pipe
The top row uses a round pipe, and the second and third stages are D-shaped aluminum pipes. Pipes do not rotate and can be stretched smoothly.
|
Folded Length: |
690mm |
|
Maximum Operating Height: |
1,560mm |
|
Minimum Operating Height: |
450mm (330mm) |
|
Maximum Center Column Ext.: |
265mm |
|
Weight: |
2,570g |
|
Head Portion Weight: |
620g |
|
Leg Portion Weight: |
1,950g |
|
Leg Lock Type: |
T.L. |
|
Leg Tip: |
Rubber |
|
How To Mount Camera: |
Q.R.S. 6027 |
|
Number of Leg Sections: |
3 |
|
Shape of Leg Pipe/Tube: |
|
|
Diameter of the first upper leg: |
27mm |
|
Type of Center Column Elevation: |
Center column type |
|
Panhead: |
3-way video head 504QF II HEAD |
|
Type of Bubble Level: |
Single bubble level |
|
Special Features: |
Multi-position leg |
| Product Manuals | |
|---|---|
| SLIK 504QF II Aluminium Tripod with 504QF II Video Fluid Pan Head - Product Manual |
Brand: Leica Geosystems |
Code: SH-6153591
APN: 4906752103203 |
Supplier Code: 6153391
Brand: Leica Geosystems |
Code: SH-6153591
APN: 4906752103203 |
Supplier Code: 6153391
At a glance
- 2-Way Fluid Head
- 11 lb Capacity
- Unique 3-Way Fluid Head
- Three Angle Leg Opening Width
- Thumb-Turn Leg Lock
- Anti-Rotation D-Shaped Aluminum Pipe
Unique 3-Way Fluid Head504QF II tripod package comes with SLIK's uniquely designed video head. Built-in counterbalance and pan-tilt drag, it can handle both still images and movies. Since the top stage can be tilted 90 degrees to the right, it is possible to shoot videos for smartphones and digital signage. |
|
|
Three Angle Leg Opening WidthThe leg opening angle can be adjusted in three ways. By sliding the "leg angle adjustment locks" on the leg joint part, it is possible to set three tripod stages of high, middle, and low. In addition, it is also possible to adjust the opening angle of the three legs separately. It can be quickly placed straight for a variety of situations, such as stairs and uneven terrain. |
Thumb-Turn Leg LockThe thumb-turn locking mechanism allows for intuitive leg lock & unlocking |
|
|
Anti-Rotation D-Shaped Aluminum PipeThe top row uses a round pipe, and the second and third stages are D-shaped aluminum pipes. Pipes do not rotate and can be stretched smoothly. |
