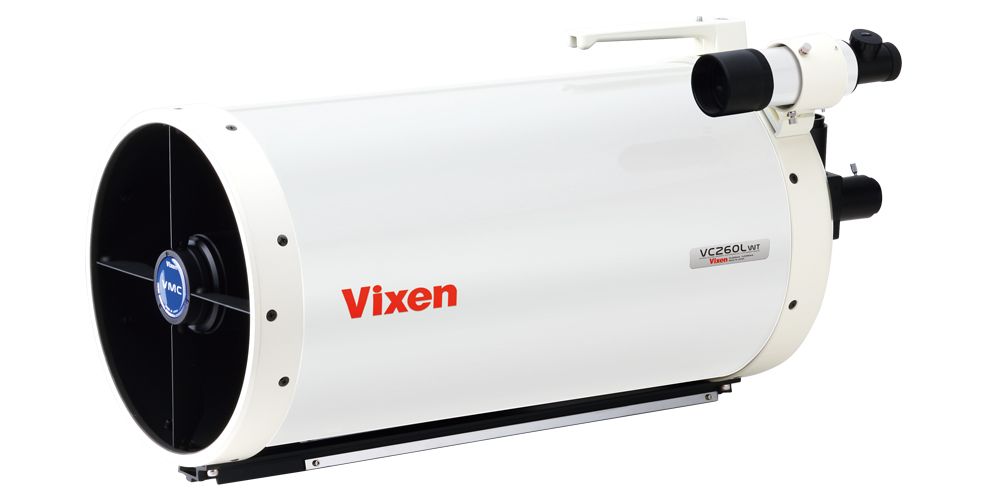

Vixen VMC260L AXD-Vers Telescope Optical Tube Assembly (OTA)
- Cassegrain reflector
- Compatible with Vixen AXD2, AXJ, SXP2 mounts.
Color of the optical tube has been changed from dark green to white.
Vixen's optical tubes has unified into fresh white color.
Vixen's original modified Maksutov Cassegrain.
The VMC features a combination of a miniscus lens unit in front of the secondary mirror and high-precision spherical mirrors that are shaped with extreme accuracy. Spherical aberration and curvature of field are corrected to a high level of optical performance for clear and sharp images. With its 260mm aperture dielectric coated mirror, the VMC260L collects enough light for serious visual and photographic applications and for both planetary and seep sky observing.
Optical Tube
| Primary mirror | 260mm effective aperture, precision spherical mirror, multicoated |
| Focal length (Focal ratio) | 3,000mm (F11.5) |
| Resolving power / Limiting magnitude | 0.45 arc seconds / 13.8 |
| Light gathering power | 1380×unaided eye |
| Dimensions / Weight | 304mm dia. and 680mm long (720mm incl. protruded focus knob) / 12.1kg (Net 10kg) |
| Finder scope | 7×50mm with dark-field illuminated reticle, 7 degrees field of view |
Focuser
| Adapter thread / Visual back | 60mm and 42mmforT-ring / 50.8mm and 31.7mm push fit with flip mirror diagonal |
Others
| Accessories | Dovetail attachment rail, Metal carry handle, Saddle plate |
| Photography | Usable with Prime focus, Eyepiece projection and Afocal imaging |
| Solar observation | Not available |
| Product Manuals | |
|---|---|
| Vixen VMC260L AXD-Vers Telescope Optical Tube Assembly (OTA) - Product Manual |
- Vixen Optics VMC260L 260mm f/11.5 Catadioptric Telescope OTA
- 7x50 Finderscope with Bracket
- Carry Handle
- Wide Dovetail Slide Rail
- Mounting Block
Note, mount (AXD2, AXJ, SXP2) and tripod sold separately.
Brand: Vixen |
Code: VX26202
APN: 4955295263028 |
Supplier Code: 26302
Brand: Vixen |
Code: VX26202
APN: 4955295263028 |
Supplier Code: 26302
At a glance
- Cassegrain reflector
- Compatible with Vixen AXD2, AXJ, SXP2 mounts.
Color of the optical tube has been changed from dark green to white.Vixen's optical tubes has unified into fresh white color. |
|
|
Vixen's original modified Maksutov Cassegrain.The VMC features a combination of a miniscus lens unit in front of the secondary mirror and high-precision spherical mirrors that are shaped with extreme accuracy. Spherical aberration and curvature of field are corrected to a high level of optical performance for clear and sharp images. With its 260mm aperture dielectric coated mirror, the VMC260L collects enough light for serious visual and photographic applications and for both planetary and seep sky observing. |
