Vixen VC200L 200mm f/9.0 Catadioptric Telescope Optical Tube Assembly
$3,150.00
ETA: 19/10/2025
- Pinpoint star images with no coma or field curvature for exceptional clarity.
- Vixen’s unique VISAC system: aspherical primary mirror, convex secondary mirror, and triplet corrector lens.
- Perfectly corrected aberrations (coma, spherical, curvature) for sharp, high-definition results.
- Edge-to-edge performance: star images under 15 microns across the full 42mm image circle.

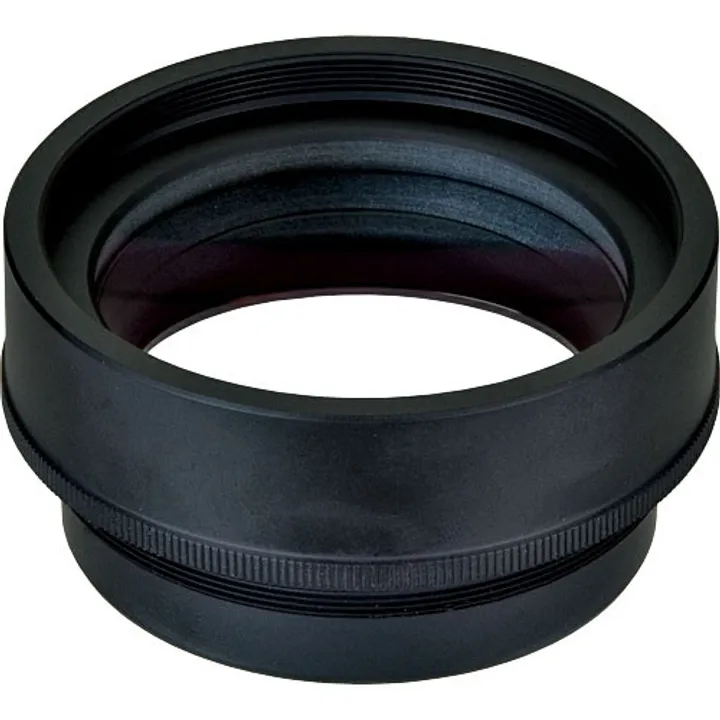

- Versatile use: ideal for both visual observation and astrophotography, with optional F6.4 reducer for deep sky imaging.
| Primary mirror | 200mm effective aperture, sixth-order aspherical mirror, multicoated |
| Focal length (Focal ratio) | 1,800mm (F9.0) |
| Resolving power / Limiting magnitude | 0.58 arc seconds / 13.3 |
| Light gathering power | 816×unaided eye |
|
Dimensions / Weight
|
232mm dia. and 600mm long / 6.9kg (6.0kg) |
| Finder scope | 7×50mm with dark-field illuminated reticle, 7 degrees field of view |
| Adapter thread / Visual back | 60mm and 42mmforT-ring / 50.8mm and 31.7mm push fit with flip mirror diagonal |
| Accessories | Dovetail attachment rail, Metal carry handle |
| Photography | Usable with Prime focus, Eyepiece projection and Afocal imaging |
| Solar observation | Not available |
| Product Manuals | |
|---|---|
| Vixen VC200L 200mm f/9.0 Catadioptric Telescope Optical Tube Assembly - Product Manual |
- Vixen Optics VC200L 200mm f/9 Catadioptric Telescope (Optical Tube Assembly Only)
- Vixen Optics 7x50 Finderscope
- Vixen Optics 50mm SX Finder Bracket - Short
- Vixen Optics Finder Bracket Shoe
- SX 60mm to 50.8mm Adapter
- Vixen Optics Flip Mirror System
- Dovetail Rail
- Carrying Handle
- Limited 5-Year Manufacturer Warranty
