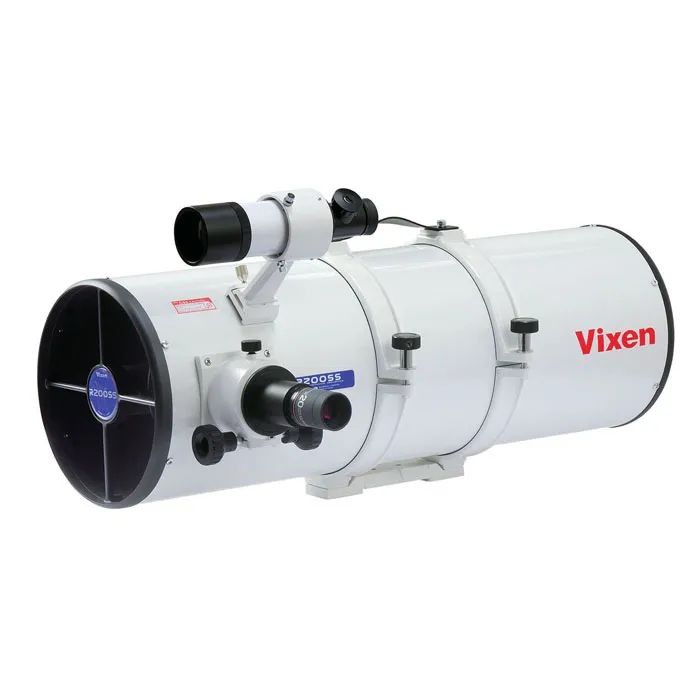

Vixen R200SS Telescope Optical Tube Assembly (OTA)
| Optical Tube | |
|
Primary mirror |
200mm effective aperture, parabolic mirror, multicoated |
|
Focal length (Focal ratio) |
800mm (F4.0) |
|
Resolving power / Limiting magnitude |
0.58 arc seconds / 13.3 |
|
Light gathering power |
816×unaided eye |
|
Dimensions / Weight |
232mm dia. and 700mm long / 7.2kg (5.3kg) |
|
Finder scope |
7×50mm with dark-field illuminated reticle, 7 degrees field of view |
|
Eyepiece section |
|
|
Adapter thread / Visual back |
60mm and 42mmforT-ring / 50.8mm and 31.7mm push fit |
|
Others |
|
|
Accessories |
Dovetail tube plate, Tube rings |
|
Photography |
Usable with Prime focus, Eyepiece projection and Afocal imaging |
|
Solar observation |
Not available |
| Product Manuals | |
|---|---|
| Vixen R200SS Telescope Optical Tube Assembly (OTA) - Product Manual |
Brand: Vixen |
Code: VX2642
APN: 4955295264209 |
Supplier Code: 2642
Brand: Vixen |
Code: VX2642
APN: 4955295264209 |
Supplier Code: 2642
At a glance
The Vixen R200SS OTA Telescope Optical Tube Assembly is a high-quality reflector telescope from renowned Japanese manufacturer Vixen, a brand celebrated for its precision optics since 1949. This 200mm (8-inch) reflector optical tube assembly features a Newtonian design with a compact primary mirror system, delivering excellent light-gathering capabilities with a shorter tube length. Designed for serious astronomers, the R200SS offers sharp, detailed views of deep-sky objects whilst maintaining portability. The optical tube assembly comes without a mount, making it ideal for those looking to upgrade their existing telescope system or pair it with their preferred mount configuration.
