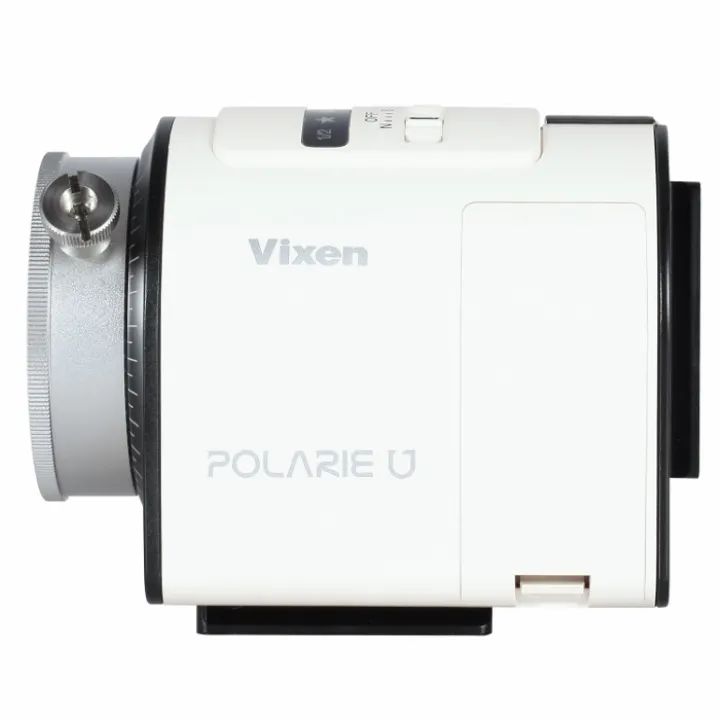

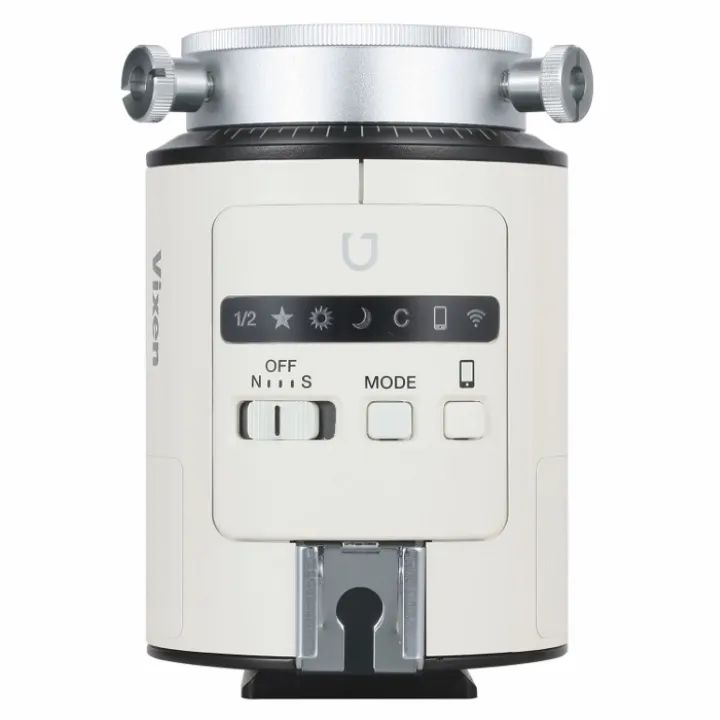

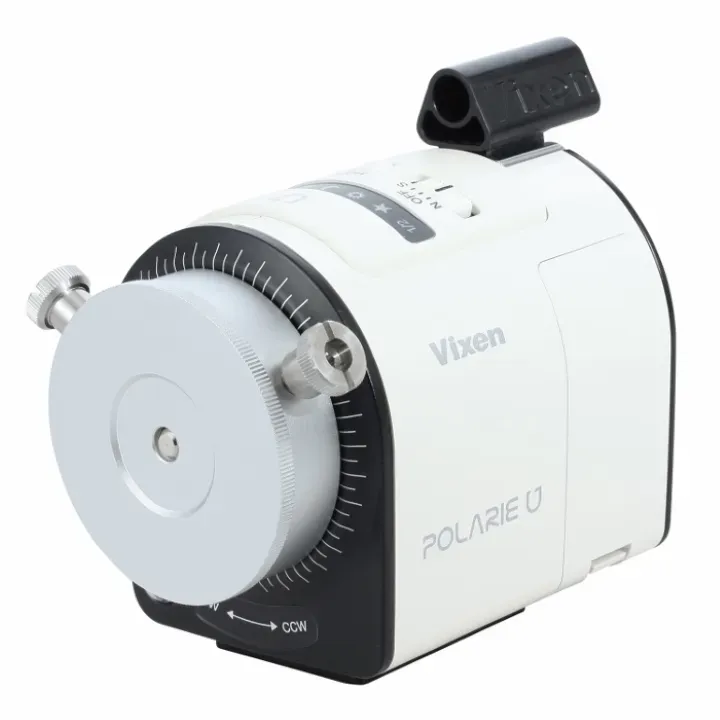

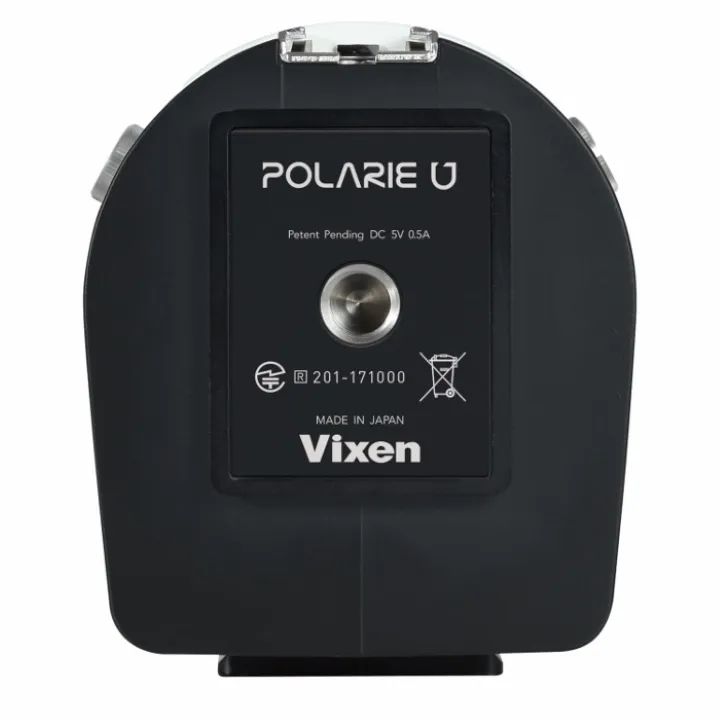

Vixen Polarie U Star Tracker
The Vixen Polarie U Star Tracker is an ultra-compact, lightweight, and highly portable automatic star tracking device designed to easily capture the beauty of the night sky. Combining state-of-the-art technology with high performance, it allows you to effortlessly produce stunning astrophotography and time-lapse sequences.
Key Features
- Compact and lightweight design weighing only 575g, making it highly portable for outdoor photography.
- Smartphone-controlled customisation for rotation speeds, shutter release intervals, and camera control via Wi-Fi.
- Versatile tracking rates including celestial, solar, lunar, and 0.5x celestial speed, compatible with both Northern and Southern hemispheres.
- Impressive loading capacity of up to 2.5kg for standard setups, upgradable to 6.5kg, and up to 10kg for time-lapse photography.
- Built-in sight tube finder for quick polar alignment alongside a bubble level for precise levelling.
- Multiple power options including four AA batteries or external USB Type-C power sources.
With its advanced features and seamless smartphone integration, this star tracker is the perfect companion for both budding and experienced night-sky photographers. Start capturing spectacular, pin-sharp images of the cosmos and beautiful time-lapse videos with ease.

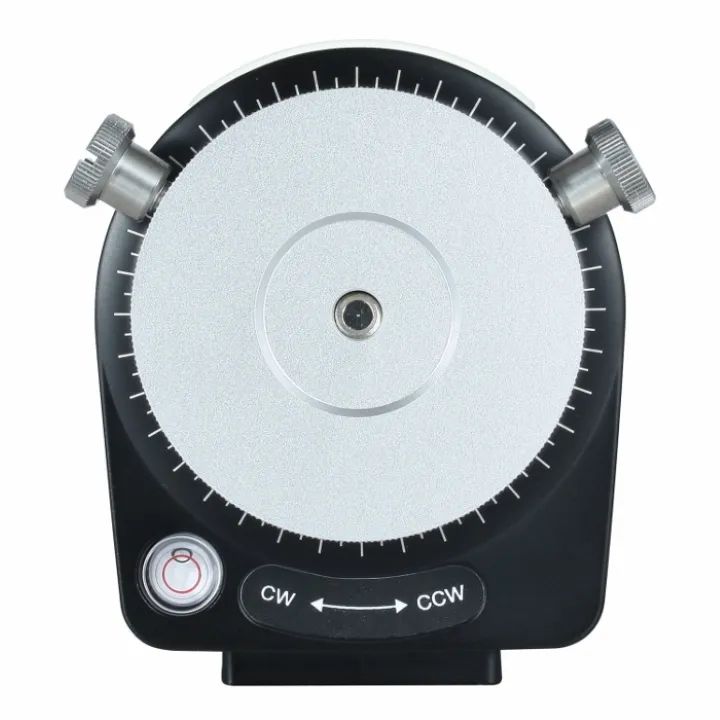

| R.A. slow motion control | Wheel and worm gears full circle micro movement, 58.4mm in diameter, 144-tooth, made of aluminum alloy |
| Worm gear shaft | 9.8mm in diameter, made of brass |
| R.A. axis (Polar axis) | 40mm in diameter, made of aluminum alloy |
| Number of bearings | 2 pieces |
| Drive | Pulse motor drive |
| Locading capacity | 2.5 kg(5.5 lbs): Standard / 6.5 kg(14 lbs): Upgraded / 10 kg(22 lbs): Time-lapse |
| Tracking rates | Celestial speed, 0.5x celestial, solar, lunar, available in N and S hemispheres (Remote setting is possible with a smartphone.) |
| Sight tube finder | It is used in the northern hemisphere to guide the unit to Polaris. 8.9 degrees field of view with no magnification. |

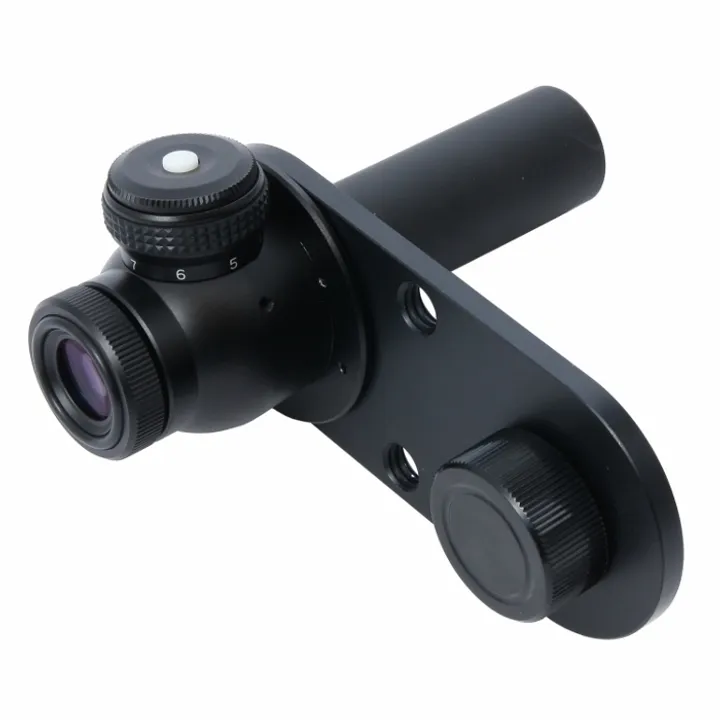

| Polar scope | Optionally available Polar alignment scope PF-L II is usable. Polar scope arm bracket sold separately is needed. |

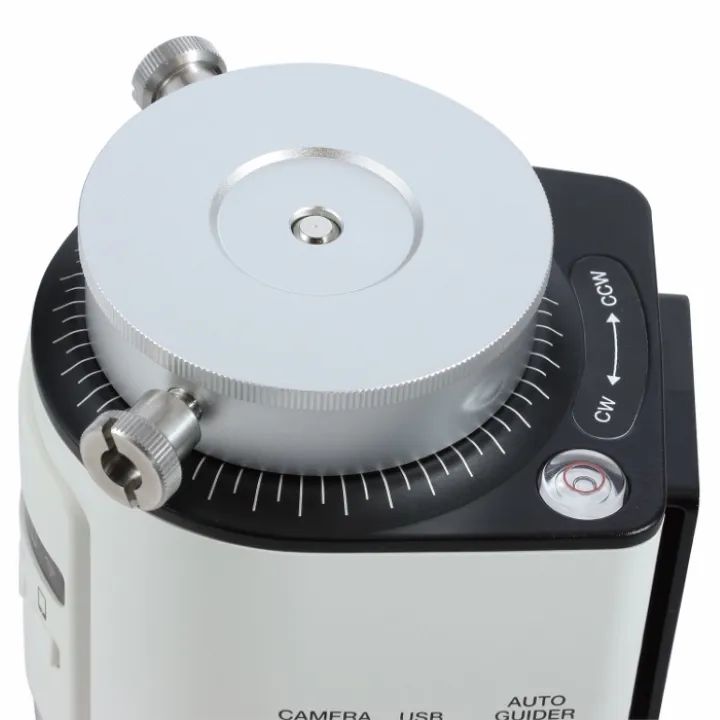

| Leveling | Bubble lvel is provided for time-lapse photography.` |
| Tripod adapter block | 3/8" camera screw sockets (2 places) with a conversion adaper for 1/4" screw, compatible with attachment plates of the standard thin type. |
| Shutter release terminal | 2.5mm female jack for tripolar stereo mini plug, Pin assignment: On order of full shutter, half shautter and common, from center to outward |
| Autoguider Port | 6-pole 6-wired modular jack (for an external autoguider) |
| External Power Supply Port | USB Type-C |
| Power Source | 4 x AA alkaline batteries, Ni-MH or Ni-Cd rechargeable batteries, USB Type-C external power batteries |
| Working Voltage / Electricity Consumption | AA batteries: DC 4.8V to 6.0V, Max. 0.6A (at 2.5kg/5.5 lbs. loading weight)External power supply: DC 4.4V to 5.25V, Max. 0.3A (at 2.5kg/5.5 lbs. loading weight) |
| Working Duration | About 7 hours at 20 degrees C (68 F) temperature, with use of Alkaline batteries (at 2.5kg/5.5 lbs loading weight). |
| Wi-Fi | Application software for POLARIE U and a smartphone or communication terminal device that works on Wi-Fi are needed. |
| Operating Environment for Application Software | OS: Android 4.4 and over or iOS 9.9 and over* Wi-Fi: IEEE 802.11b/g, Data Encryption Method: WPA2-PSK, *IBe sure to confirm the operation of the application, as some smartphones do not meet the requirements. |
| Operating Temperature | 0 degree to 40 degrees C (104 F) |
| Dimensions | 88.5mm x 72mm x 110.5mm |
| Weight | 575 g / 1.26 lbs. (without batteries) |

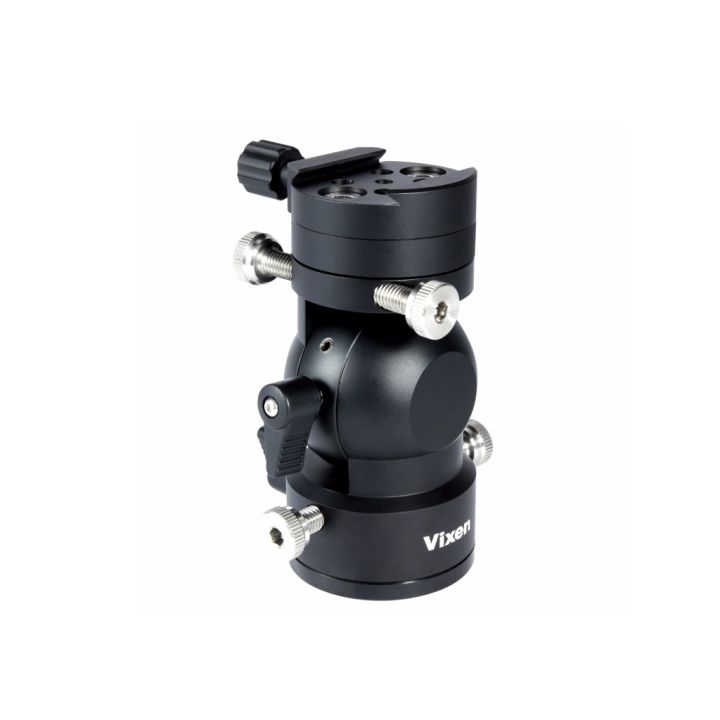

| Optional Accessories | Polar alignment scope PF-L II, Polar scope arm bracket, Polar fine adjustment unit DX, Polar meter |
- POLARIE U Star Tracker
- Sight tube finder
- Time-lapse direction sticker
- Allen wrench of 3mm on a side
- User manual
