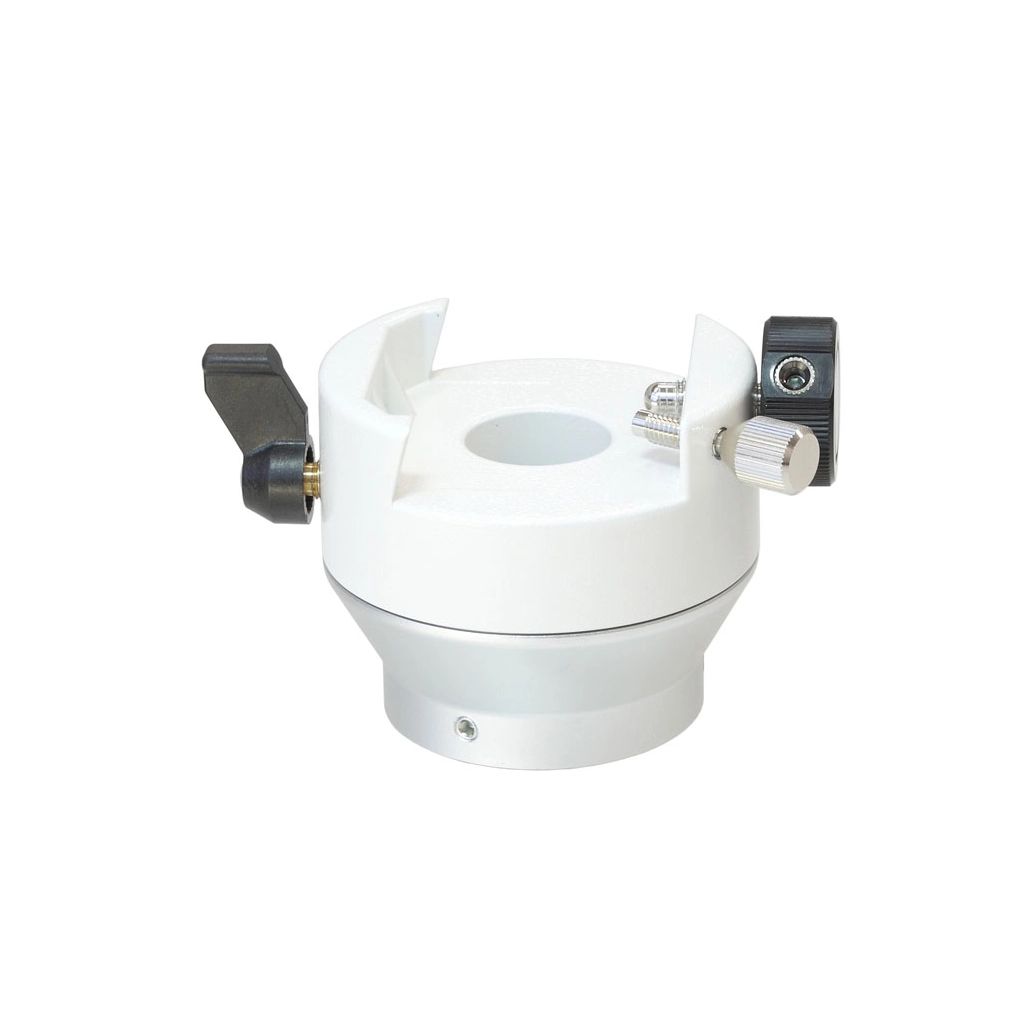

VIXEN POLARIE Multi Mounting Block Star Tracker accessory
For more loading capacity with the POLARIE!

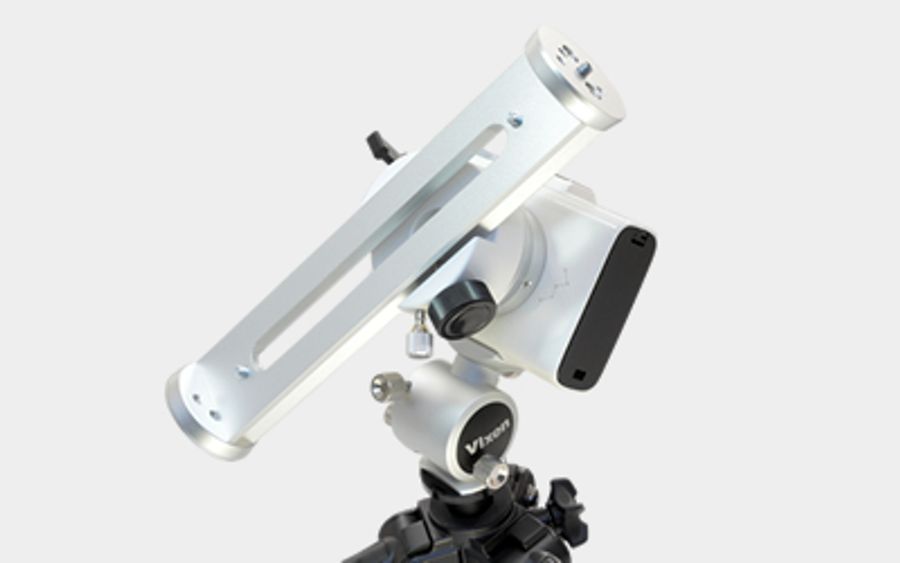

By exchanging the camera mounting block of the POLARIE with the POLARIE multi mounting base, Vixen's original plates such as the dovetail slide bar DD can be installed.
More loading capacity with the POLARIE
By exchanging the camera mounting block of the POLARIE with the POLARIE multi mounting base, Vixen's original plates such as the dovetail slide bar DD can be installed.Upon achieving balance of weight by such as a counterweight, you can install up to 6.5kg of equipment such as camera. Potentiality of lightweight and compact but sturdy POLARIE can be maximized.

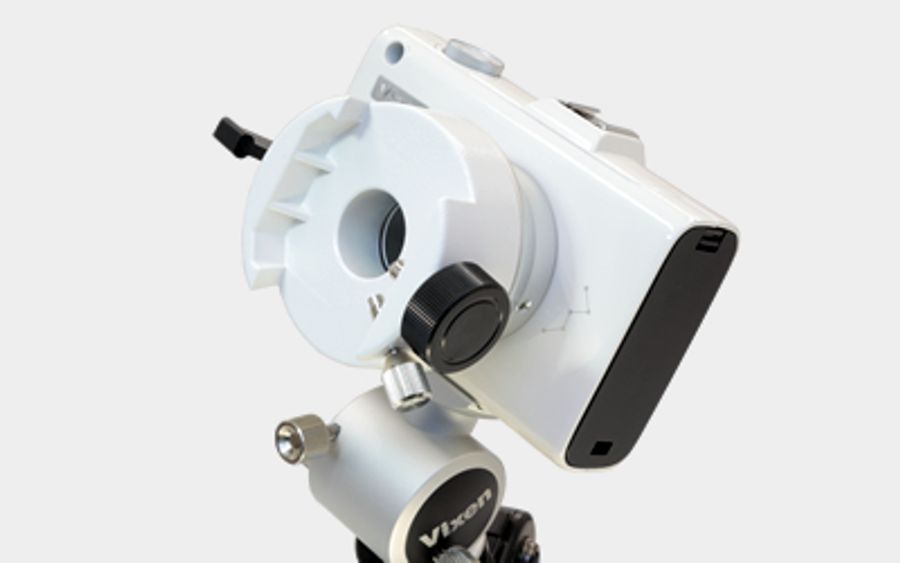

Provided with clamp system and a center hole compatile with the polar axis scope
Equipped with rotation mechanism by clamp.By loosening the clamp, you can rotate freely in the tracking direction. As a part of the POLARIE star tracker, it is designed to facilitate a positioning when a camera is installed. Composition can be decided comfortably by veterans as well as beginners.A center hole which corresponds to the POLARIE polar axis scope PF-L is provided. A combination with the dovetail slide bar DD or dovetail slide bar PG permits to view polar axis while being attached.
| Applicable model | POLARIE star tracker |
| Attachable plates | Dovetail slide bar DD, dovetail slide bar PG, dovetail tube plate, dovetail slide bar M, dovetail slide bar L |
| Rotating mechanism | Coarse motion clamp system with clamp |
| Loading capacity | Max. 6.5kg including the star tracker (excluding counterweight)65kg-cm torque load at point of 10cm from the fulcrum |
| Dimensions | Dia. 78 x 65.5(H)mm |
| Weight | 440g |
Brand: Vixen |
Code: VX35522
APN: 4955295355228 |
Supplier Code: 35522
Brand: Vixen |
Code: VX35522
APN: 4955295355228 |
Supplier Code: 35522
