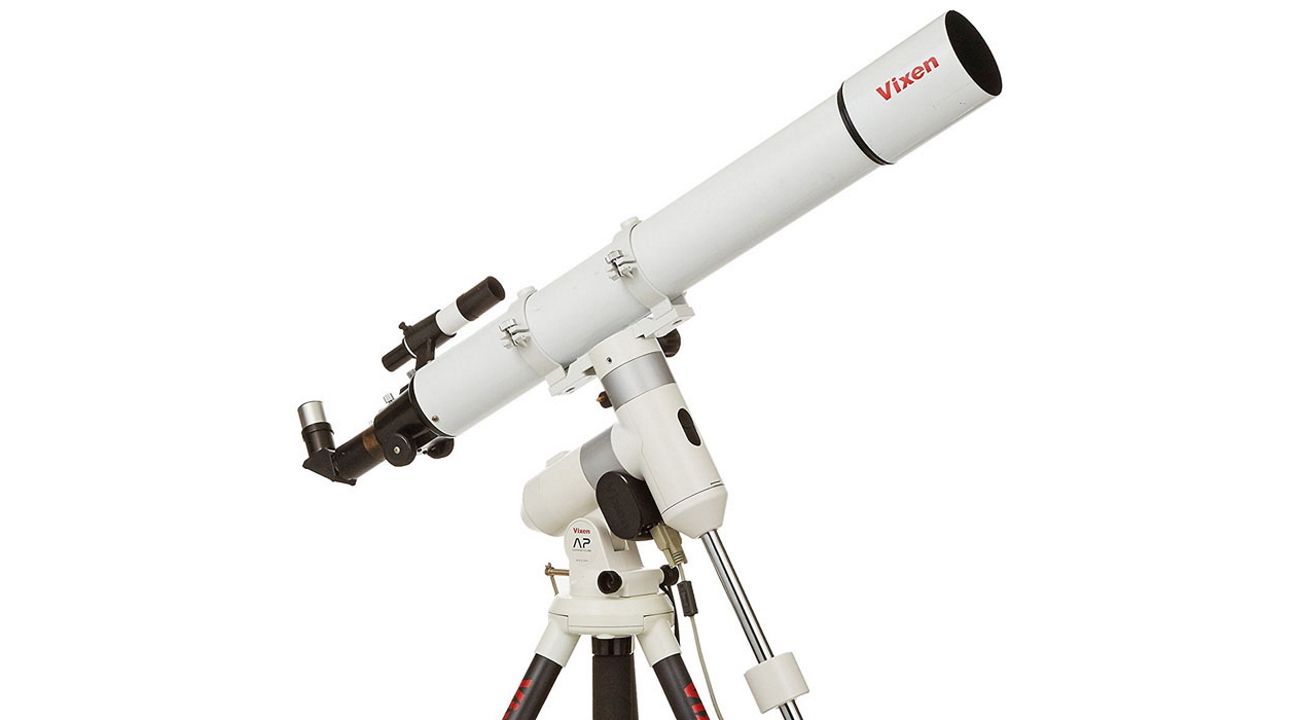

VIXEN AP-A80Mf-SM Telescope with mount Tripod and Motor
AP-SM equatorial mount
With its friction control system, the mount can be quickly moved to your target object. The built-in motor drives automatically to track objects after secured an obect by friction control system. Simply attaching an optional polar meter, you can easily align polar axis.

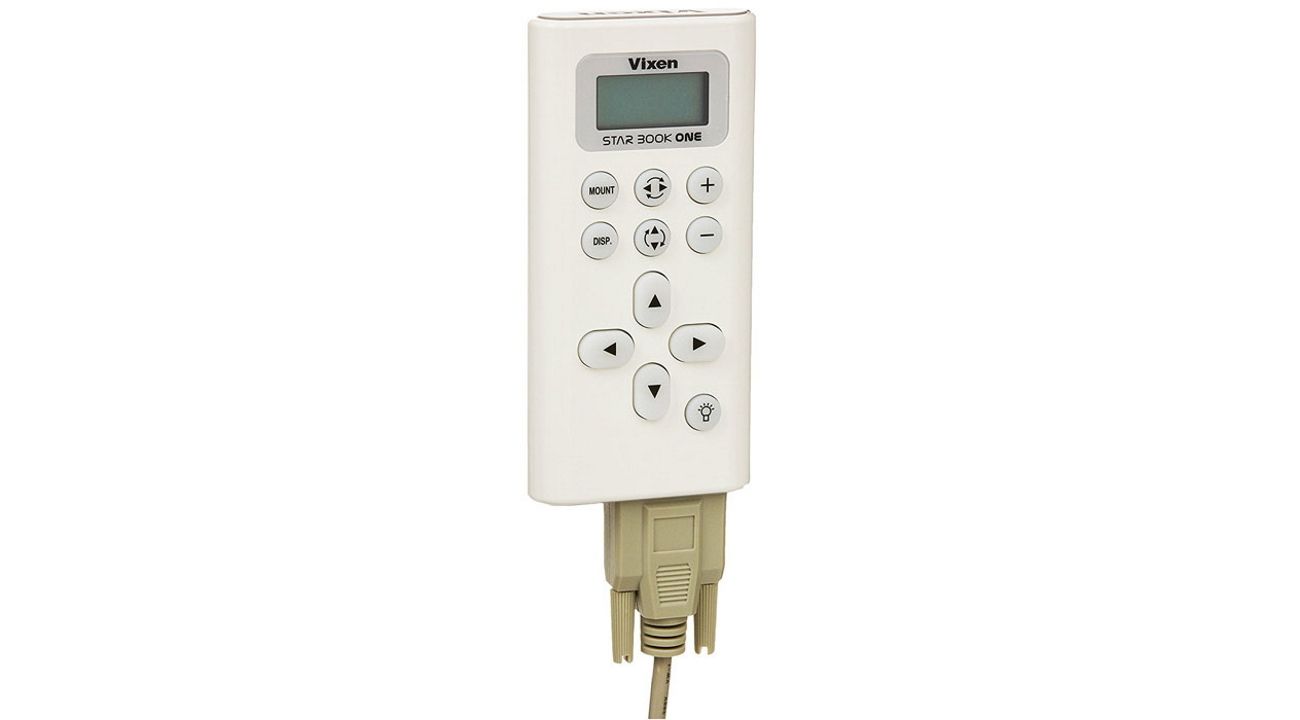

R.A. Motor module and STAR BOOK ONE set
The AP-SM equatorial mount is supplied with the R.A. motor module and STAR BOOK ONE set (main motor of the AP equatorial mount for tracking celestial object) which includes STAR BOOK ONE controller. R.A. motor module and STAR BOOK ONE set is an integral part of the AP system. Your own system is created based on the R.A. motor module and STAR BOOK ONE set by adding other modules.
Stylish design
The new stylish and smart design removes a difficult image on astronomical telescopes. Together with just 3.6kg lightweight body (without counterweight), you can easily handle full-scale astronomical telescopes. As the four AA batteries for power supply is integrated inside the body and adoption of internal electrical contacts eliminates successfully external wiring which is exposed to the outside in the past.
Friction control system
Simply point the target objects by moving the optical tube by hands. The friction control system allows you to manually point the telescope at the object without using knobs and clamps.
Simple polar alignment
The optional polar meter can be attached on the equatorial mount for simple polar alignment. Even beginners can quickly align polar axis. For precision alignment, the polar axis scope is usually used, but the polar meter can outperforms especially where Polaris is not visible.
Polar alignment scope PF-L
The polar alignment scope PF-L features an employment of three stars alignment system and built-in dark field illuminator to enable alignment while looking into the polar alignment scope. This illumination powers off automatically to prevent unnecessary consumption of power.Corresponding to the polar alignment scope PF-L, we delivers free applications "PFL Assist" for smartphone and tablet that support polar alignment by visuallizing a visible position in the constellation displayed.
Power supply system focusing on mobility and comfort
The motor module operates with 4 pieces of the AA batteries which are commercially available anywhere easily, not only corresponding to the alkaline battery but also economical rechargeable batteries (Ni-MH, Ni-Cd). For long term use, a commercially available USB external power supply such as USB mobile battery or USB AC adapter can be used connecting to the provided USB Micro-B termnial.
A80Mf optical tube
High quality at low price f-series 80mm aperture achromatic refractor with multi-coated is ideal for star gazing of moon crater, Saturn's ring, stripe of Jupitor.
APP-TL130 tripod
The compact APP-TL130 tripod is adjustable between 60cm and 130cm, combining both the portability of the photographic tripod and strength of the astronomical telescope tripod. Tipo of the tripod can be switched between rubber and metal spikes, so that it will not damage floor even when it is used indoors. The compact APP-TL130 tripod is adjustable between 60cm and 130cm, combining both the portability of the photographic tripod and strength of the astronomical telescope tripod. Tipo of the tripod can be switched between rubber and metal spikes, so that it will not damage floor even when it is used indoors.
Optical tube
| Achromatic objective | 80mm achromatic refractor with multi-coating |
| Focal length | 910mm (f/11.4) |
| Resolving power / Limiting magnitude | 1.45 arc sec. / 11.3 |
| Light gathering power | 131x unaided eye |
| Dimensions / Weight | L: 860mm x OD 90mm, 3.3kg (Body 2.5kg) |
| Finder scope | 6x30mm, 7°actual field of view |
Drawtube
| Visual back | 43mm, 42mm for T-ring, 31.7mm push-fit |
| Eyepiece (Dia. 31.7mm) | PL20mm (46x), PL6.3mm (144x) |
Tripod
| Material, Type | Aluminum 3-section leg |
| Dimensions / Weight | L:570⇔1,296mm, H:526⇔1,159mm, closed 598.4mm, Radius: 350⇔710mm, 3.0kg |
Others
| Accessories | Counterweight 1kg x 1 pc. |
| Photography | Eyepiece projection, prime-focus, afocal imaging. |
| Solar observation | Possible using optional sun projection screen set A |
| Total weight | 11.3kg without battery and eyepiece |
Brand: Vixen |
Code: VX39977
APN: 4955295399772 |
Supplier Code: 39977
