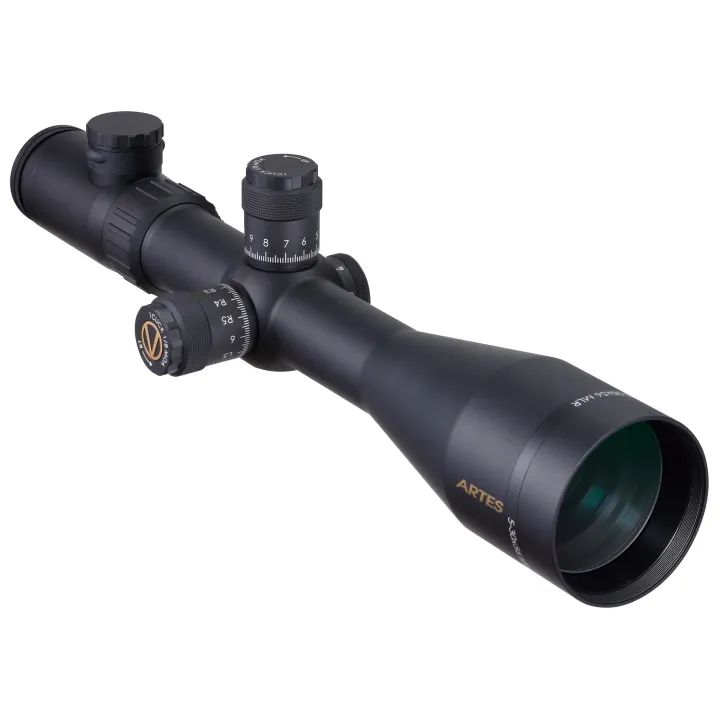

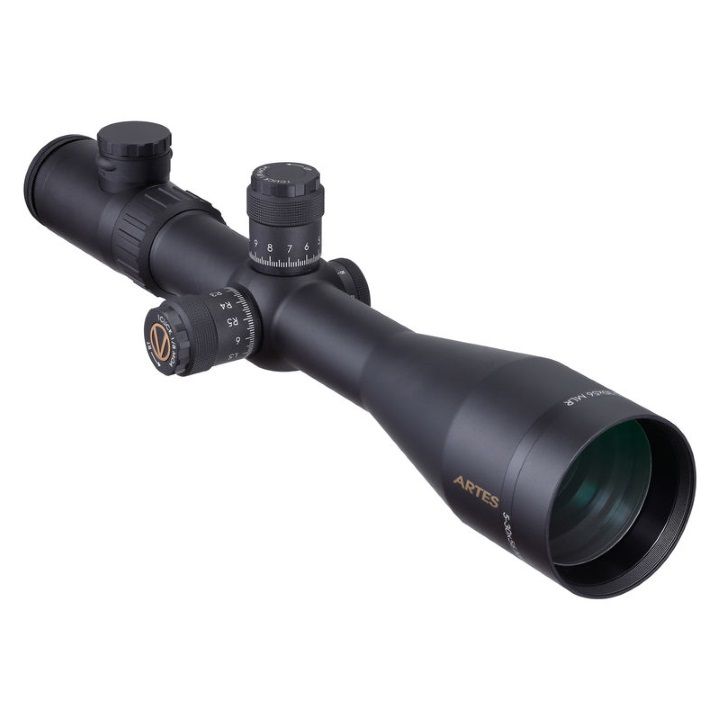

Vixen 5-30x56mm ED 34mm with IR ELD20 Reticle Zero Stop Tactical Riflescope
Vixen Optics' 5-30x56 V-III Artes SF Riflescope sets standards in precision, quality, and durability. Its 6x optical system has fully multi-coated elements that deliver bright, crisp, and vivid images with reduced glare. The second focal plane contains a glass-etched EDL 20 illuminated reticle that will empower you with laser-sharp aiming capability. This reticle offers a pattern that resembles an inverted German #4 reticle, consisting of three posts (one on the top and two on the sides) and a fine crosshair with a system of thin ranging bars and an illuminated center cross. For exceptional precision while aiming, the reticle is also parallax-free from 10 yards to infinity, via a side focus parallax corrector knob. To account for the effects introduced by ballistics and winds, the scope offers windage and elevations adjustments with 1/8 MOA clicks and wide 100 MOA ranges.
Vixen Series V-III Riflescope Features
All Vixen riflescopes are covered by a Limited lifetime warranty against manufacturing defects for the original purchaser. The warranty does not cover accidental breakage or abuse and is not transferable. This warranty does not cover products purchased outside of Australia
Magnification | 5-30x |
Objective Lens Diameter | 56mm |
Maintube Diameter | 34 mm |
Reticle | EDL 20 Reticle 2nd focal plane |
Field of View | 7.8-1.3 m at 100 m |
Parallax Correction | 9.14 m to infinity |
Eye Relief | 9.9 cm |
Exit Pupil Diameter | 11.2-1.9 mm |
Impact Point Correction | 1/8 MOA |
Windage Adjustment | 100 MOA |
Weatherproofing | Waterproof, nitrogen-filled fogproof |
Battery | 1 x CR-2032 battery |
Dimensions | 36.3 cm |
Weight | 975.2 g |
Brand: Vixen |
Code: VX82041
APN: 4955295820412 |
Supplier Code: 82041
Brand: Vixen |
Code: VX82041
APN: 4955295820412 |
Supplier Code: 82041
This product may contain or use a button cell battery
If swallowed, a lithium button battery can
cause severe or fatal injuries within 2 hours.
Keep batteries out of reach of children.
If you think batteries may have been
swallowed or placed inside any part of the
body, seek immediate medical attention.
