UHD Glass

Extra-Low Dispersion glass significantly reduces chromatic aberration giving you an utmost bright and sharp image with true color reproduction.

Illuminated Reticle

The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.

First Focal Plane Reticle

First focal plane reticle stays valid at all power settings allowing you to fully utilize the specially designed reticle that shrinks or grows along with your target as you zoom in or out. The reticle offers quick target engagement at low power while offering precise holdover positions with finer details.

Etched Glass Reticle

Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil

Advanced Fully Multicoated

Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses

XPL Coating

XPL Coating gives you an extra protection on the exterior lenses from dirt, oil and scratches or anything else mother nature can throw at you.

Precision Zero Stop System

The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even you are turning it in pitch-dark or blind folded.

Locking Windage Turret

This Locking Feature allows you to push down to lock the turret and pull up to turn. This feature prevents the windage knob from being turned accidentally and keeps your zero all the time.

High Precision Erector System

The high precision erector system processed by high precision CNC machine with +/- 0.0001mm tolerance level to provide you the most accurate power settings and smoothest magnification change

6061 T6 Aluminum

The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.

Exposed Tactical Direct Dial

Exposed Direct Dial Turrets for elevation and windage allow you to quickly make adjustment as you needed and engage your target within a blink of your eyes

One Piece Tube Construction

Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product

Waterproof

Waterproof to protect the scope in the harshest weather conditions or if accidently submerged underwater

Fog proof

Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside

Shockproof

Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.

Argon Purged

Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability .

Magnification

4.5-30

Objective Lens Diameter

56 mm

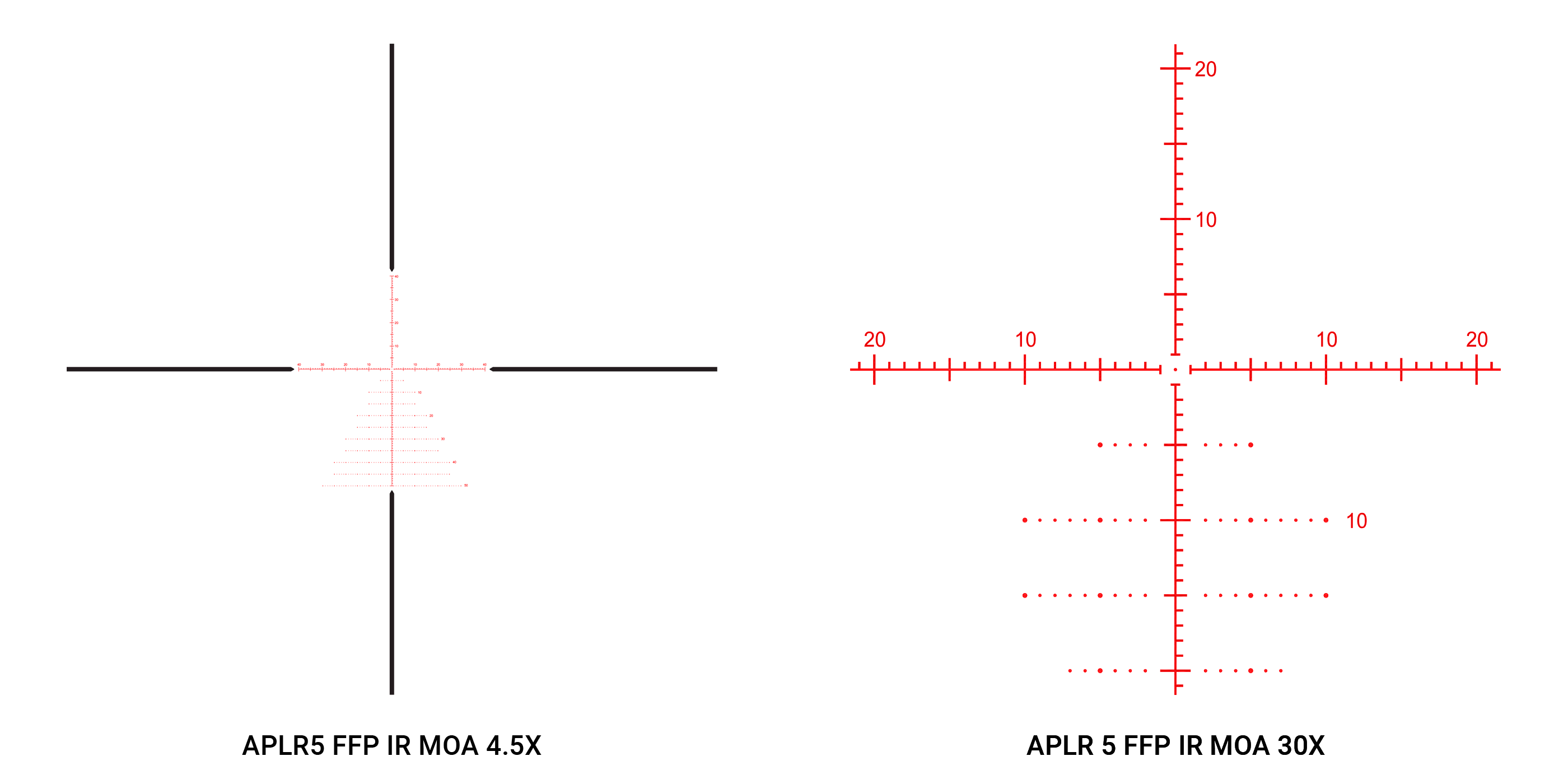

Reticle

APLR5 FFP IR MOA, Glass Etched

Surface Finish

Matte/Brown

Lens Coating

Advanced Fully Multicoated

Extra Coating

Xtra Protective Coating

Tube Material

Aircraft Grade Aluminium

Tube Diameter

34 mm

Exit Pupil

8.8-1.9mm

Eye Relief

3.9"

Field of View @100 yards

24.5-3.75 ft

Click Value

0.25 MOA

Adjustment range per rotation

25 MOA

Total Elevation Adjustment

110 MOA

Total Windage Adjustment

110 MOA

Turret Style

Exposed Direct Dial/Locking Windage Turret

Parallax Adjustment

Side Focus – 25 yards to infinity

Purging Material

Argon

Length

15.3"

Weight

36.5 oz
