Pentax K-3 Mark III DSLR Black (Body Only)

$2,699.00 ETA: 20/05/2024

Effective Pixels 25.73M
PRIME V & Accelerator II
ISO 100 to 16000000
Approx. 12 FPS Continuous Shooting
In-body Shake Reduction 5 Axis, 5.5steps
Weather-resistant body
Smart Function
Pixel Shift Resolution

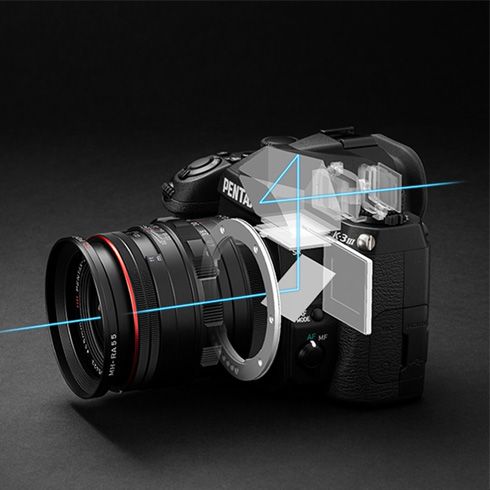

High-performance viewfinder

Optical viewfinder with approx. 100% field of view, and approx. 1.05X magnification

The PENTAX K-3 Mark III features a high-performance viewfinder with a high-refraction glass pentaprism to provide approximately 1.05-times magnification (with an FA 50mm F1.4 lens set at infinity). Despite the compact, lightweight APS-C-format SLR body, it delivers a truthful, wide-view image equal to that of a full-frame SLR, and helps you to become more fully immersed in the photo-shooting process. This viewfinder also provides an almost 10-percent increase in brightness, thanks to the improved reflectance of the pentaprism, while also assuring a nearly 100-percent field of view. By incorporating a distortion-compensating optical element and optimizing the lens coatings, it provides natural, true-to-life image rendition with high-magnification observations.

High-speed drive system

High-speed drive, with a maximum speed of approximately 12 images per second

Thanks to the combination of a newly developed mirror and shutter driving unit and the high-speed, high-performance PRIME V imaging engine, the PENTAX K-3 Mark III provides a high-speed drive system with a maximum speed of approximately 12 images per second in the AF.S mode, or approximately 11 images per second in the AF.C mode. This system lets you capture a momentary expression of the subject, which couldn’t otherwise have been captured by previous models.

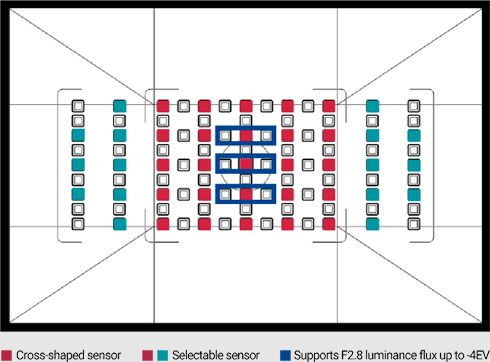

High-precision autofocus system

SAFOX 13 AF system with 101 focus points

The number of focus points in the PENTAX K-3 Mark III have been increased to 101, from 27 in the PENTAX K-3 II. The AF area also has been greatly expanded. Of 41 user-selectable points,* 25 are cross-type sensors. This high-density AF system enhances the flexibility of image composition, while optimizing focusing accuracy on the subject. Since its middle focus point is designed to detect an F2.8 luminance flux, the camera assures super-high-precision focusing when using a bright lens with an open aperture of F2.8 or larger.

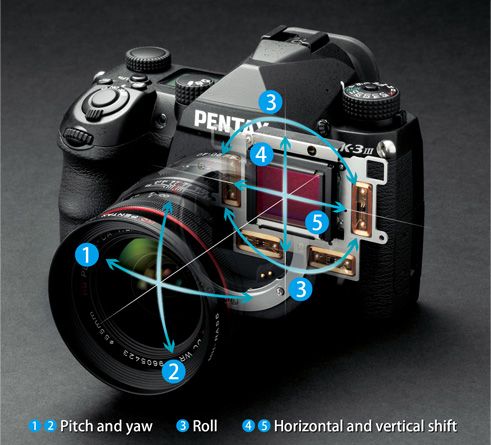

SR (Shake Reduction) mechanism

SRII for five-axis, 5.5-shutter-step camera shake compensation

The PENTAX K-3 Mark III’s SR II mechanism compensates for camera shake caused by horizontal and vertical shift, roll, pitch and yaw, with a wide compensation range up to approximately 5.5 shutter steps.* In addition to the all-purpose Auto mode, this mechanism also provides a Panning mode to capture slow-moving subjects. You can choose the mode that provides the ideal compensation effect for your subject.

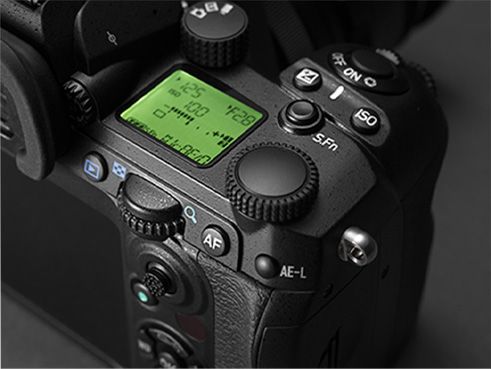

Smart Function

More versatile Smart Function

The PENTAX-original Smart Function provides easy, single-action selection of menu items and functions. Featuring a new Smart Function button, the PENTAX K-3 Mark III now lets you preprogram a maximum of five functions from 22 options, and displays a list of the selected functions in the viewfinder window, so you can select the desired function without removing your eye from the viewfinder. It even lets you select and program the desired values for each function, allowing you to more precisely customize this function to meet your preferences.

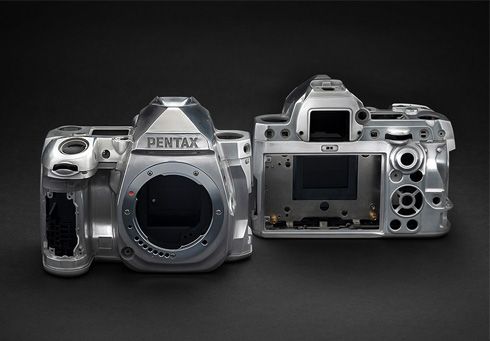

Rugged construction

All-surface magnesium-alloy body

The PENTAX K-3 Mark III’s top, bottom, front and rear panels are all made of magnesium alloy. This lightweight, high-rigidity material not only protects the camera’s internal mechanisms from shock and vibration, but also creates the look of a solid, high-grade camera body.

Model Description

Type	TTL autofocus, auto-exposure SLR digital-still camera
Lens Mount	PENTAX KAF2 bayonet mount (AF coupler, lens information contacts, K-mount with power contacts)
Compatible Lens	KAF4, KAF3, KAF2 (power zoom compatible), KAF, KA mount lens

Image Capture Unit

Image Sensor	Primary color filter, CMOS. Size: 23.3 x 15.5 (mm)
Effective Pixels	Approx. 25.73 megapixels
Total Pixels	Approx. 26.78 megapixels
Dust Removal	Image sensor cleaning using ultrasonic vibrations "DR II"
Sensitivity (Standard output)	ISO AUTO/100 to 1600000 (EV steps can be set to 1EV, 1/2EV or 1/3EV)
Image Stabilizer	Sensor-shift shake reduction "SR II"(5-axis), Auto/Panning/Off
AA Filter Simulator	Moiré reduction using SR unit. OFF/Low/High/Bracketing(2 images)/Bracketing (3 images)

File Formats

File Format	RAW (PEF/DNG), JPEG (Exif 2.3), DCF2.0 compliant
Recorded Pixels	JPEG:L(26M:6192x4128)、M(15M:4752x3168)、S(9M:3648x2432)、XS(2M:1920x1280) RAW:(26M:6192x4128)
Quality Level	RAW (14bit): PEF, DNG JPEG: ★★★ (Best), ★★ (Better), ★ (Good), RAW + JPEG simultaneous capturing available
Color Space	sRGB、AdobeRGB
Storage Medium	SD, SDHC and SDXC Memory Cards UHS-1/UHS-II compatible (UHS-II is only available for the memory card inserted in the SD1 slot.)
Dual SD Slot	Sequential Use, Save to Both, Separate RAW/JPG, Image copy between slots possible
Storage Folder	Folder Name: Date (100_1018,101_1019...) or User assigned folder name (Default "PENTX")
Recording File	File Name: ""IMGP****"" or User assigned file name File name numbering: Sequential, Reset

Viewfinder

Type	Pentaprism Finder
Coverage (FOV)	Approx. 100%
Magnification	Approx. 1.05x (FA 50mmF1.4 at infinity)
Eye-Relief Length	Approx. 20.5mm (from the view window), Approx. 22.0mm (from the center of lens)
Diopter adjustment	Approx. -4.0m to + 1.0m^-1
Focusing Screen	Natural-Bright-Matte III focusing screen
Viewfinder Overlay	AF Points, Grid Display, Electronic Level, AF Frame, Spot Metering Frame, Crop, Smart Function, Operation Control Lock

Live View

Type	TTL method using image sensor
Focusing Mechanism	Contrast detection (Auto Area, Zone Select, Tracking, Select(L/M/S), Spot)
Functions	Focus Peaking, Face detection, Touch AF
Display	Field of View approx. 100%, Magnified view (up to 16x), Grid Display (4x4 Grid, Golden Section, Scale, Square(L), Square(S), Grid Color: Black/Gray/White ), Histogram, Bright area warning, Composition Adjustment

LCD Monitor

Type	Wide viewing angle TFT color LCD, Air-gapless glass
Size	3.2 inch (aspect ratio 3:2)
Dots	Approx. 1620K dots
Touch Screen	Capacitive sensing method
Adjustment	Brightness, Saturation and Colors adjustable
Outdoor View Setting	Adjustable ±2 step
Night Vision LCD Display	ON/OFF

White Balance

Type	Method using a combination of the image sensor and the RGBIr sensor
White Balance	AUTO WB, Multi Auto WB, Daylight, Shade, Cloudy, Fluorescent Light (D:Daylight Color, N:Daylight White, W:Cool White, L:Warm White), Tungsten Light, CTE, Manual WB (up to 3 settings), Color Temperature Configuration (up to 3 settings), Copying the white balance setting of a captured image
Fine Adjustment	Adjustable ±14 steps on A-B axis or G-M axis

Autofocus System

Type	TTL: Phase-matching autofocus
Focus Sensor	SAFOX 13, 101 point (25 cross type focus points)
Brightness Range	EV-4 to 18 (ISO 100 / at normal temperature) *-4 EV is only available for AF points that support F2.8 light flux when an F2.8-light-flux compatible lens is attached.
AF mode	Single AF (AF.S), Continuous AF (AF.C)
AF Point Selection	Auto Area, Zone Select, Select, Expanded Area(S, M, L), Select(S), Spot
AF Assist Light	Dedicated LED AF assist light

Metering

Type	TTL open aperture metering using 307K pixel RGBIr sensor, Multi-segment, Center-weighted, Spot and Highlight-weighted
Metering Range	EV-3 to 20 (ISO100 at 50mm F1.4)
Exposure Mode	Scene Analyze Auto, Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb, Flash X-sync Speed, USER1, USER2, USER3, USER4, USER5
EV Compensation	±5EV (1/2EV steps or 1/3EV steps can be selected)
AE Lock	Button type (timer type: two times the meter operating time set in Custom Setting); Continuous as long as the shutter button is halfway pressed

Shutter

Type	Electronically controlled vertical-run focal plane shutter *Electronic shutter when using Pixel Shift Resolution
Shutter Speed	Auto:1/8000 to 30 sec., Manual:1/8000 to 30 sec. (1/3EV steps or 1/2EV steps), Bulb (Timed exposure setting possible from 1 sec. to 20min.)

Drive Modes

Mode Selection	Single Frame, Continuous (H, M, L), Bracketing (2, 3 or 5 frames), Depth of Field Bracketing, Motion Bracketing, Mirror-up, Multi-Exposure(Average/Additive/Bright), Interval Shooting, Interval Composite
Self-timer	12s, 2s
Remote Control	0s, 3s
Continuous Shooting	Max. approx. 12 fps, JPEG ( L: ★★★ at Continuous H): up to approx. 37 frames, RAW: up to approx. 32 frames, RAW+: up to approx. 30 frames Max. approx. 7.0 fps, JPEG ( L: ★★★ at Continuous M): up to approx. 60 frames, RAW: up to approx. 37 frames, RAW+: up to approx. 33 frames Max. approx. 2.5 fps, JPEG ( L: ★★★ at Continuous L): up to approx. 90 frames, RAW: up to approx. 39 frames, RAW+: up to approx. 37 frames * The number of images captured in the continuous shooting mode is an approximate figure, tested at a sensitivity of ISO 100. The number may vary depending on the type of memory card used and/or the photographic conditions. * The continuous shooting speed may decrease depending on the type of lens used and/or the aperture, shutter speed and sensitivity selected by the user. * A certain amount of time is required for the playback of images captured in the continuous shooting mode. The time required may vary depending on the number of captured images and/or the recording format.

External Flash

Flash Modes	Auto Flash Discharge, Auto Flash + Red-eye Reduction, Flash On, Flash On + Red-eye Reduction, Slow-speed Sync, Slow-speed Sync + Red-eye, P-TTL, Contrast-control-sync, High-speed sync, Wireless sync *Contrast-control-sync and High-speed sync requires 2 or more dedicated external flash
Sync Speed	1/200sec.
Flash Exposure Compensation	-2.0 to +1.0EV

Capture Settings

Custom Image	Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing
Cross Process	Random, Preset 1-3, Favorite 1-3
Digital Filter	Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Tone Expansion, Bold Monochrome, Grainy Monochrome
Clarity	Adjustable ±4 step
Skin Tone	Type1/Type2
HDR	Auto, HDR1, HDR2, HDR3, Advanced HDR, Exposure bracket value adjustable, Automatic composition correction function
Pixel Shift Resolution	Available, Motion Correction On/Off
Lens Correction	Distortion Correction, Peripheral Illumin. Correction, Lateral Chromatic Aberration Correction, Diffraction Correction
D-Range Correction	Highlight Correction, Shadow Correction
Noise Reduction	Slow Shutter Speed NR, High-ISO Noise Reduction
Horizon Correction	SR On: correction up to 1 degrees, SR Off: correction up to 2 degrees
Composition Adjustment	Adjustment range of ±1.5mm up, down, left or right (±1mm when rotated); Rotating range of ±1 degree
Electronic Level	Displayed in viewfinder (Horizontal and vertical); Displayed on LCD monitor (Horizontal and vertical)
Program Line	AUTO, Normal, Hi-speed Priority, DOF Priority (Deep), DOF Priority (Shallow), MTF Priority

Movie

File Format	MPEG-4 AVC/H.264(MOV)
Recorded Pixels	4K(3840x2160, 30p/24p) Full HD(1920x1080, 60p/30p/24p)
Sound	Built-in stereo microphone, external microphone (stereo recording compatible) Recording sound level adjustable, Wind Noise Reduction
Recording Time	Up to 25 minutes or 4GB ; automatically stops recording if the internal temperature of the camera becomes high.
White Balance	AUTO WB, Daylight, Shade, Cloudy, Fluorescent Light (D:Daylight Color, N:Daylight White, W:Cool White, L:Warm White), Tungsten Light, CTE, Manual WB (up to 3 settings), Color Temperature Configuration (up to 3 settings), Copying the white balance setting of a captured image
Custom Images	Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing
Cross Processing	Random, Preset 1-3, Favorite 1-3.
Digital Filter	Extract Color, Replace Color, Retro, High Contrast, Invert Color, Unicolor Bold, Bold Monochrome

Playback

Playback View	Single frame, Multi-image display (20, 48, 70 segmentation), Display magnification (up to 16, 100% display, quick zoom and Focus Magnification available), Grid display (4x4 Grid, Golden Section, Scale, Square(L), Square(S), Grid Color: Black/Gray/White), Rotating, Histogram (Y histogram, RGB histogram), Bright area warning, Auto Image Rotation, Detailed information, Copyright information (Photographer, Copyright holder), GPS information (latitude, longitude, altitude, Coordinated Universal Time) , Orientation, Folder Display, Calendar Filmstrip Display
Delete	Single image, All images, Selected images, Folder, Images on the selected shooting date, Instant review image
Digital Filter	Base Parameter Adj, Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Tone Expansion, Bold Monochrome, Grainy Monochrome, Miniature, Soft, Fish-eye, Slim, Monochrome, Frame Composite
RAW Development	RAW file select: Select Single Image, Select Multiple Images, Select a folder, Select a shooting date RAW Development Parameter: White Balance, Custom Image, Sensitivity, Digital filter, Clarity, Skin Tone, HDR, Pixel Shift Resolution, Distortion Correction, Peripheral Illumin. Corr., Lateral Chromatic Aberration Correction, Diffraction Correction, Color Fringe Correction, High-ISO Noise Reduction, Shadow Correction, File Format (JPEG/TIFF), JPEG Recorded Pixels, JPEG Quality, Aspect Ratio, Color Space
Edit	Protect, Image Rotation, Image Copy, File Transfer, Save RAW Data in buffer memory, Resize, Cropping (Aspect ratio and Slant adjustment available), Levels Adjustment, WB Adjustment, Color Moiré Correction, Movie Edit (Divide or delete selected frames), Capturing a JPEG still picture from a movie

Customization

Settings

USER Mode, Fx Button, AF/AE Lock Settings, Preview Dial, E-Dial Programming, Smart Function, Monitor Touch Operation, Eye Sensor, Viewfinder Display, LCD Panel, Monitor Display, Instant Review, Zoom Review, Warning Display, Control Panel, Memory, EV Steps, ISO Sensitivity Steps, Color Temperature Steps, Input MF Lens Focal Length, Save Rotation Information, Aperture Information Record, AF Fine Adjustment, Copyright Information

Language

English, French, German, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Thai, Korean, Traditional Chinese, Simplified Chinese, Japanese

Power Supply

Battery Type	Rechargeable Lithium-ion Battery D-LI90
AC Adapter	AC Adapter Kit K-AC166(Optional)
Battery Life	Number of recordable images: Approx. 800 images Playback time: Approx. 250 minutes *With a fully-recharged Rechargeable Lithium-ion Battery. Tested in compliance with CIPA standard. Actual results may vary depending on the shooting condition.

Interfaces

Connection Port	USB Terminal(USB Type-C), External cable switch terminal(2.5mm diameter), X-sync socket, HDMI output terminal (Type D) , Stereo microphone input terminal, Headphone terminal
USB Connection	USB 3.2 Gen1, Data Transfer: MTP/CD-ROM, Battery Recharge/Power Supply (Optional AC Adapter required)

Wireless LAN

Standards	IEEE 802.11b/g/n
Frequency (Center Frequency)	2412MHz～2462MHz (1ch～11ch)
Security	Authentication: WPA2, Encryption: AES

Bluetooth

Standards	Bluetooth^® v4.2 (Bluetooth Low Energy）
Frequency (Center Frequency)	2402MHz～2480MHz(CH0～CH39)

Dimensions and Weight

Dimensions	Approx. 134.5mm (W) x103.5mm (H) x 73.5mm (D) (excluding protrusions)
Weight	Approx. 820g (Including dedicated battery and SD Memory Card), Approx. 735g (body only)

Operating Environment

Temperature	-10°C～40°C (14°F～104°F)
Humidity	85% or less (no condensation)

* The contents of this web-page are all copyrighted, and must not be used, duplicated or transmitted, whether in part or in entirety, without permission.
* Designs and specifications are subject to change without notice.

Storage Capacity

＜Still＞(approx.)

JPEG

RAW

Recorded Pixels

L: 26M

M: 15M

S: 9M

XS: 2M

6192 x 4128

6192 x 4128

4752 x 3168

3648 x 2432

1920 x 1280

Quality Level

★★★

★★

★

★★★

★★

★

★★★

★★

★

★★★

★★

★

PEF

8GB

495

1120

2190

837

1872

3607

1401

3105

5840

4717

9812

16353

141

shots

＜Movie＞(approx.)

Recorded Pixels	4K 3840 x 2160		Full HD 1920 x 1080
Recorded Pixels	30p	24p	60p	30p	24p
8GB	00:08′39″	00:10′46″	00:12′17″	00:24′09″	00:29′56″

Hours : Minutes' Seconds''

* You can record up to 25 min. or 4GB movie for one shooting.
* ‘Storage Capacity’ refers to confirmed operation by RICOH IMAGING, and is intended for customer convenience but is not a guarantee by RICOH IMAGING to the customer.
* Use a high-speed SD memory card when recording movies. If the writing speed cannot keep up with the recording speed, writing may be interrupted during recording.

Related Categories

Brand: Pentax | Code: 1052
APN: 027075302327 | Supplier Code: S0001052

At a glance

Effective Pixels 25.73M
PRIME V & Accelerator II
ISO 100 to 16000000
Approx. 12 FPS Continuous Shooting
In-body Shake Reduction 5 Axis, 5.5steps
Weather-resistant body
Smart Function
Pixel Shift Resolution

Related Categories

High-performance viewfinder Optical viewfinder with approx. 100% field of view, and approx. 1.05X magnification The PENTAX K-3 Mark III features a high-performance viewfinder with a high-refraction glass pentaprism to provide approximately 1.05-times magnification (with an FA 50mm F1.4 lens set at infinity). Despite the compact, lightweight APS-C-format SLR body, it delivers a truthful, wide-view image equal to that of a full-frame SLR, and helps you to become more fully immersed in the photo-shooting process. This viewfinder also provides an almost 10-percent increase in brightness, thanks to the improved reflectance of the pentaprism, while also assuring a nearly 100-percent field of view. By incorporating a distortion-compensating optical element and optimizing the lens coatings, it provides natural, true-to-life image rendition with high-magnification observations.
	High-speed drive system High-speed drive, with a maximum speed of approximately 12 images per second Thanks to the combination of a newly developed mirror and shutter driving unit and the high-speed, high-performance PRIME V imaging engine, the PENTAX K-3 Mark III provides a high-speed drive system with a maximum speed of approximately 12 images per second in the AF.S mode, or approximately 11 images per second in the AF.C mode. This system lets you capture a momentary expression of the subject, which couldn’t otherwise have been captured by previous models.
High-precision autofocus system SAFOX 13 AF system with 101 focus points The number of focus points in the PENTAX K-3 Mark III have been increased to 101, from 27 in the PENTAX K-3 II. The AF area also has been greatly expanded. Of 41 user-selectable points,* 25 are cross-type sensors. This high-density AF system enhances the flexibility of image composition, while optimizing focusing accuracy on the subject. Since its middle focus point is designed to detect an F2.8 luminance flux, the camera assures super-high-precision focusing when using a bright lens with an open aperture of F2.8 or larger.
	SR (Shake Reduction) mechanism SRII for five-axis, 5.5-shutter-step camera shake compensation The PENTAX K-3 Mark III’s SR II mechanism compensates for camera shake caused by horizontal and vertical shift, roll, pitch and yaw, with a wide compensation range up to approximately 5.5 shutter steps.* In addition to the all-purpose Auto mode, this mechanism also provides a Panning mode to capture slow-moving subjects. You can choose the mode that provides the ideal compensation effect for your subject.
Smart Function More versatile Smart Function The PENTAX-original Smart Function provides easy, single-action selection of menu items and functions. Featuring a new Smart Function button, the PENTAX K-3 Mark III now lets you preprogram a maximum of five functions from 22 options, and displays a list of the selected functions in the viewfinder window, so you can select the desired function without removing your eye from the viewfinder. It even lets you select and program the desired values for each function, allowing you to more precisely customize this function to meet your preferences.
	Rugged construction All-surface magnesium-alloy body The PENTAX K-3 Mark III’s top, bottom, front and rear panels are all made of magnesium alloy. This lightweight, high-rigidity material not only protects the camera’s internal mechanisms from shock and vibration, but also creates the look of a solid, high-grade camera body.

APS-C flagship model

Pentax is the first SLR camera in Japan to be made. The K-3 Mark III was born with all of its philosophy, technology and passion.

Field of view 100%, approx. 1.05x optical viewfinder

Although it is a compact and lightweight APS-C SLR camera, it has a wide viewing angle equivalent to that of a full-size camera. Brightness is increased by about 10% by improving the reflectance of the pentaprism (compared to K-3 II).

Finder to deepen the immersive feeling

The viewfinder and the height of the image monitor are designed so that the nose does not hit easily so that you can look into it more naturally. Also equipped with an eye sensor. The image monitor turns off at the same time as the viewfinder is removed. The monitor light does not enter during shooting, so shooting is comfortable.

Maximum ISO sensitivity 1.6 million

Achieves excellent descriptive power in the entire sensitivity range. Multi-dimensional image space filtering reduces noise while leaving fine contours. It maximizes the resolution performance and reproduces the texture and details of the subject.

5-axis 5.5-stage in-body image stabilization mechanism SRII

You can correct camera shake with all lenses. SR II supports 5-axis correction of angle shake, shift shake, and rotation shake. The K-3 Mark III has a high correction effect of 5.5 steps. It also supports panning, and the optimum correction is possible according to the subject.

Dust-proof / drip-proof structure / Magnesium body

Thorough dust-proof and drip-proof structure with 95 sealing parts on the body prevents water droplets and dust from entering. Great for outdoor activities. High-strength and lightweight magnesium alloy is used for the entire cover that covers the camera. Achieves a body that is strong against impact and has excellent durability.

Maximum 12 frames / second high-speed drive

With the newly developed mirror / shutter drive system and high-speed image processing of PRIME V, high-speed continuous shooting of up to about 12 frames / second with AF.S and up to about 11 frames / second with AF.C is achieved.

101-point AF system SAFOX13

The number of AF points has been increased to 101 points. The AF coverage area has also been expanded to achieve highly accurate subject capture.

Dual slot UHS-II compatible

Equipped with two SD memory card slots. Slot 1 is compatible with the UHS-II standard, which enables high-speed writing. Images can be copied between cards.

Touch panel type image monitor

Equipped with a large LCD monitor that supports touch operations. More speedy operation is possible.

Model Description

Type	TTL autofocus, auto-exposure SLR digital-still camera
Lens Mount	PENTAX KAF2 bayonet mount (AF coupler, lens information contacts, K-mount with power contacts)
Compatible Lens	KAF4, KAF3, KAF2 (power zoom compatible), KAF, KA mount lens

Image Capture Unit

Image Sensor	Primary color filter, CMOS. Size: 23.3 x 15.5 (mm)
Effective Pixels	Approx. 25.73 megapixels
Total Pixels	Approx. 26.78 megapixels
Dust Removal	Image sensor cleaning using ultrasonic vibrations "DR II"
Sensitivity (Standard output)	ISO AUTO/100 to 1600000 (EV steps can be set to 1EV, 1/2EV or 1/3EV)
Image Stabilizer	Sensor-shift shake reduction "SR II"(5-axis), Auto/Panning/Off
AA Filter Simulator	Moiré reduction using SR unit. OFF/Low/High/Bracketing(2 images)/Bracketing (3 images)

File Formats

File Format	RAW (PEF/DNG), JPEG (Exif 2.3), DCF2.0 compliant
Recorded Pixels	JPEG:L(26M:6192x4128)、M(15M:4752x3168)、S(9M:3648x2432)、XS(2M:1920x1280) RAW:(26M:6192x4128)
Quality Level	RAW (14bit): PEF, DNG JPEG: ★★★ (Best), ★★ (Better), ★ (Good), RAW + JPEG simultaneous capturing available
Color Space	sRGB、AdobeRGB
Storage Medium	SD, SDHC and SDXC Memory Cards UHS-1/UHS-II compatible (UHS-II is only available for the memory card inserted in the SD1 slot.)
Dual SD Slot	Sequential Use, Save to Both, Separate RAW/JPG, Image copy between slots possible
Storage Folder	Folder Name: Date (100_1018,101_1019...) or User assigned folder name (Default "PENTX")
Recording File	File Name: ""IMGP****"" or User assigned file name File name numbering: Sequential, Reset

Viewfinder

Type	Pentaprism Finder
Coverage (FOV)	Approx. 100%
Magnification	Approx. 1.05x (FA 50mmF1.4 at infinity)
Eye-Relief Length	Approx. 20.5mm (from the view window), Approx. 22.0mm (from the center of lens)
Diopter adjustment	Approx. -4.0m to + 1.0m^-1
Focusing Screen	Natural-Bright-Matte III focusing screen
Viewfinder Overlay	AF Points, Grid Display, Electronic Level, AF Frame, Spot Metering Frame, Crop, Smart Function, Operation Control Lock

Live View

Type	TTL method using image sensor
Focusing Mechanism	Contrast detection (Auto Area, Zone Select, Tracking, Select(L/M/S), Spot)
Functions	Focus Peaking, Face detection, Touch AF
Display	Field of View approx. 100%, Magnified view (up to 16x), Grid Display (4x4 Grid, Golden Section, Scale, Square(L), Square(S), Grid Color: Black/Gray/White ), Histogram, Bright area warning, Composition Adjustment

LCD Monitor

Type	Wide viewing angle TFT color LCD, Air-gapless glass
Size	3.2 inch (aspect ratio 3:2)
Dots	Approx. 1620K dots
Touch Screen	Capacitive sensing method
Adjustment	Brightness, Saturation and Colors adjustable
Outdoor View Setting	Adjustable ±2 step
Night Vision LCD Display	ON/OFF

White Balance

Type	Method using a combination of the image sensor and the RGBIr sensor
White Balance	AUTO WB, Multi Auto WB, Daylight, Shade, Cloudy, Fluorescent Light (D:Daylight Color, N:Daylight White, W:Cool White, L:Warm White), Tungsten Light, CTE, Manual WB (up to 3 settings), Color Temperature Configuration (up to 3 settings), Copying the white balance setting of a captured image
Fine Adjustment	Adjustable ±14 steps on A-B axis or G-M axis

Autofocus System

Type	TTL: Phase-matching autofocus
Focus Sensor	SAFOX 13, 101 point (25 cross type focus points)
Brightness Range	EV-4 to 18 (ISO 100 / at normal temperature) *-4 EV is only available for AF points that support F2.8 light flux when an F2.8-light-flux compatible lens is attached.
AF mode	Single AF (AF.S), Continuous AF (AF.C)
AF Point Selection	Auto Area, Zone Select, Select, Expanded Area(S, M, L), Select(S), Spot
AF Assist Light	Dedicated LED AF assist light

Metering

Type	TTL open aperture metering using 307K pixel RGBIr sensor, Multi-segment, Center-weighted, Spot and Highlight-weighted
Metering Range	EV-3 to 20 (ISO100 at 50mm F1.4)
Exposure Mode	Scene Analyze Auto, Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb, Flash X-sync Speed, USER1, USER2, USER3, USER4, USER5
EV Compensation	±5EV (1/2EV steps or 1/3EV steps can be selected)
AE Lock	Button type (timer type: two times the meter operating time set in Custom Setting); Continuous as long as the shutter button is halfway pressed

Shutter

Type	Electronically controlled vertical-run focal plane shutter *Electronic shutter when using Pixel Shift Resolution
Shutter Speed	Auto:1/8000 to 30 sec., Manual:1/8000 to 30 sec. (1/3EV steps or 1/2EV steps), Bulb (Timed exposure setting possible from 1 sec. to 20min.)

Drive Modes

Mode Selection	Single Frame, Continuous (H, M, L), Bracketing (2, 3 or 5 frames), Depth of Field Bracketing, Motion Bracketing, Mirror-up, Multi-Exposure(Average/Additive/Bright), Interval Shooting, Interval Composite
Self-timer	12s, 2s
Remote Control	0s, 3s
Continuous Shooting	Max. approx. 12 fps, JPEG ( L: ★★★ at Continuous H): up to approx. 37 frames, RAW: up to approx. 32 frames, RAW+: up to approx. 30 frames Max. approx. 7.0 fps, JPEG ( L: ★★★ at Continuous M): up to approx. 60 frames, RAW: up to approx. 37 frames, RAW+: up to approx. 33 frames Max. approx. 2.5 fps, JPEG ( L: ★★★ at Continuous L): up to approx. 90 frames, RAW: up to approx. 39 frames, RAW+: up to approx. 37 frames * The number of images captured in the continuous shooting mode is an approximate figure, tested at a sensitivity of ISO 100. The number may vary depending on the type of memory card used and/or the photographic conditions. * The continuous shooting speed may decrease depending on the type of lens used and/or the aperture, shutter speed and sensitivity selected by the user. * A certain amount of time is required for the playback of images captured in the continuous shooting mode. The time required may vary depending on the number of captured images and/or the recording format.

External Flash

Flash Modes	Auto Flash Discharge, Auto Flash + Red-eye Reduction, Flash On, Flash On + Red-eye Reduction, Slow-speed Sync, Slow-speed Sync + Red-eye, P-TTL, Contrast-control-sync, High-speed sync, Wireless sync *Contrast-control-sync and High-speed sync requires 2 or more dedicated external flash
Sync Speed	1/200sec.
Flash Exposure Compensation	-2.0 to +1.0EV

Capture Settings

Custom Image	Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing
Cross Process	Random, Preset 1-3, Favorite 1-3
Digital Filter	Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Tone Expansion, Bold Monochrome, Grainy Monochrome
Clarity	Adjustable ±4 step
Skin Tone	Type1/Type2
HDR	Auto, HDR1, HDR2, HDR3, Advanced HDR, Exposure bracket value adjustable, Automatic composition correction function
Pixel Shift Resolution	Available, Motion Correction On/Off
Lens Correction	Distortion Correction, Peripheral Illumin. Correction, Lateral Chromatic Aberration Correction, Diffraction Correction
D-Range Correction	Highlight Correction, Shadow Correction
Noise Reduction	Slow Shutter Speed NR, High-ISO Noise Reduction
Horizon Correction	SR On: correction up to 1 degrees, SR Off: correction up to 2 degrees
Composition Adjustment	Adjustment range of ±1.5mm up, down, left or right (±1mm when rotated); Rotating range of ±1 degree
Electronic Level	Displayed in viewfinder (Horizontal and vertical); Displayed on LCD monitor (Horizontal and vertical)
Program Line	AUTO, Normal, Hi-speed Priority, DOF Priority (Deep), DOF Priority (Shallow), MTF Priority

Movie

File Format	MPEG-4 AVC/H.264(MOV)
Recorded Pixels	4K(3840x2160, 30p/24p) Full HD(1920x1080, 60p/30p/24p)
Sound	Built-in stereo microphone, external microphone (stereo recording compatible) Recording sound level adjustable, Wind Noise Reduction
Recording Time	Up to 25 minutes or 4GB ; automatically stops recording if the internal temperature of the camera becomes high.
White Balance	AUTO WB, Daylight, Shade, Cloudy, Fluorescent Light (D:Daylight Color, N:Daylight White, W:Cool White, L:Warm White), Tungsten Light, CTE, Manual WB (up to 3 settings), Color Temperature Configuration (up to 3 settings), Copying the white balance setting of a captured image
Custom Images	Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing
Cross Processing	Random, Preset 1-3, Favorite 1-3.
Digital Filter	Extract Color, Replace Color, Retro, High Contrast, Invert Color, Unicolor Bold, Bold Monochrome

Playback

Playback View	Single frame, Multi-image display (20, 48, 70 segmentation), Display magnification (up to 16, 100% display, quick zoom and Focus Magnification available), Grid display (4x4 Grid, Golden Section, Scale, Square(L), Square(S), Grid Color: Black/Gray/White), Rotating, Histogram (Y histogram, RGB histogram), Bright area warning, Auto Image Rotation, Detailed information, Copyright information (Photographer, Copyright holder), GPS information (latitude, longitude, altitude, Coordinated Universal Time) , Orientation, Folder Display, Calendar Filmstrip Display
Delete	Single image, All images, Selected images, Folder, Images on the selected shooting date, Instant review image
Digital Filter	Base Parameter Adj, Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Tone Expansion, Bold Monochrome, Grainy Monochrome, Miniature, Soft, Fish-eye, Slim, Monochrome, Frame Composite
RAW Development	RAW file select: Select Single Image, Select Multiple Images, Select a folder, Select a shooting date RAW Development Parameter: White Balance, Custom Image, Sensitivity, Digital filter, Clarity, Skin Tone, HDR, Pixel Shift Resolution, Distortion Correction, Peripheral Illumin. Corr., Lateral Chromatic Aberration Correction, Diffraction Correction, Color Fringe Correction, High-ISO Noise Reduction, Shadow Correction, File Format (JPEG/TIFF), JPEG Recorded Pixels, JPEG Quality, Aspect Ratio, Color Space
Edit	Protect, Image Rotation, Image Copy, File Transfer, Save RAW Data in buffer memory, Resize, Cropping (Aspect ratio and Slant adjustment available), Levels Adjustment, WB Adjustment, Color Moiré Correction, Movie Edit (Divide or delete selected frames), Capturing a JPEG still picture from a movie

Customization

Settings

Language

Power Supply

Battery Type	Rechargeable Lithium-ion Battery D-LI90
AC Adapter	AC Adapter Kit K-AC166(Optional)
Battery Life	Number of recordable images: Approx. 800 images Playback time: Approx. 250 minutes *With a fully-recharged Rechargeable Lithium-ion Battery. Tested in compliance with CIPA standard. Actual results may vary depending on the shooting condition.

Interfaces

Connection Port	USB Terminal(USB Type-C), External cable switch terminal(2.5mm diameter), X-sync socket, HDMI output terminal (Type D) , Stereo microphone input terminal, Headphone terminal
USB Connection	USB 3.2 Gen1, Data Transfer: MTP/CD-ROM, Battery Recharge/Power Supply (Optional AC Adapter required)

Wireless LAN

Standards	IEEE 802.11b/g/n
Frequency (Center Frequency)	2412MHz～2462MHz (1ch～11ch)
Security	Authentication: WPA2, Encryption: AES

Bluetooth

Standards	Bluetooth^® v4.2 (Bluetooth Low Energy）
Frequency (Center Frequency)	2402MHz～2480MHz(CH0～CH39)

Dimensions and Weight

Dimensions	Approx. 134.5mm (W) x103.5mm (H) x 73.5mm (D) (excluding protrusions)
Weight	Approx. 820g (Including dedicated battery and SD Memory Card), Approx. 735g (body only)

Operating Environment

Temperature	-10°C～40°C (14°F～104°F)
Humidity	85% or less (no condensation)

Storage Capacity

＜Still＞(approx.)

JPEG

RAW

Recorded Pixels

L: 26M

M: 15M

S: 9M

XS: 2M

6192 x 4128

6192 x 4128

4752 x 3168

3648 x 2432

1920 x 1280

Quality Level

★★★

★★

★

★★★

★★

★

★★★

★★

★

★★★

★★

★

PEF

8GB

495

1120

2190

837

1872

3607

1401

3105

5840

4717

9812

16353

141

shots

＜Movie＞(approx.)

Recorded Pixels	4K 3840 x 2160		Full HD 1920 x 1080
Recorded Pixels	30p	24p	60p	30p	24p
8GB	00:08′39″	00:10′46″	00:12′17″	00:24′09″	00:29′56″
