Tokina atx-m 23mm f/1.4 Lens for Fujifilm X-Mount
- Free Tokina INSTANT ACTION 52mm Filter Set
- X-Mount Lens/APS-C Format
- 35mm (35mm Equivalent)
- Aperture Range: f/1.4 to f/16
- Two SD Elements
- Multi-Layer Coating
- STM Stepping AF Motor
- De-Clicked Aperture Ring
- 9-Blade Diaphragm
Product Overview
Presenting Tokina atx-m 23mm F1.4 X - fast prime lens for Fuji X mirrorless camera mount.Tokina atx-m 23mm F1.4 X featuring angle of view equal to approx. 35mm in full frame (wide angle) is designed to be an ideal tool for amateur or even semi - professional photographer to shoot street snaps, landscapes and close-up photos.

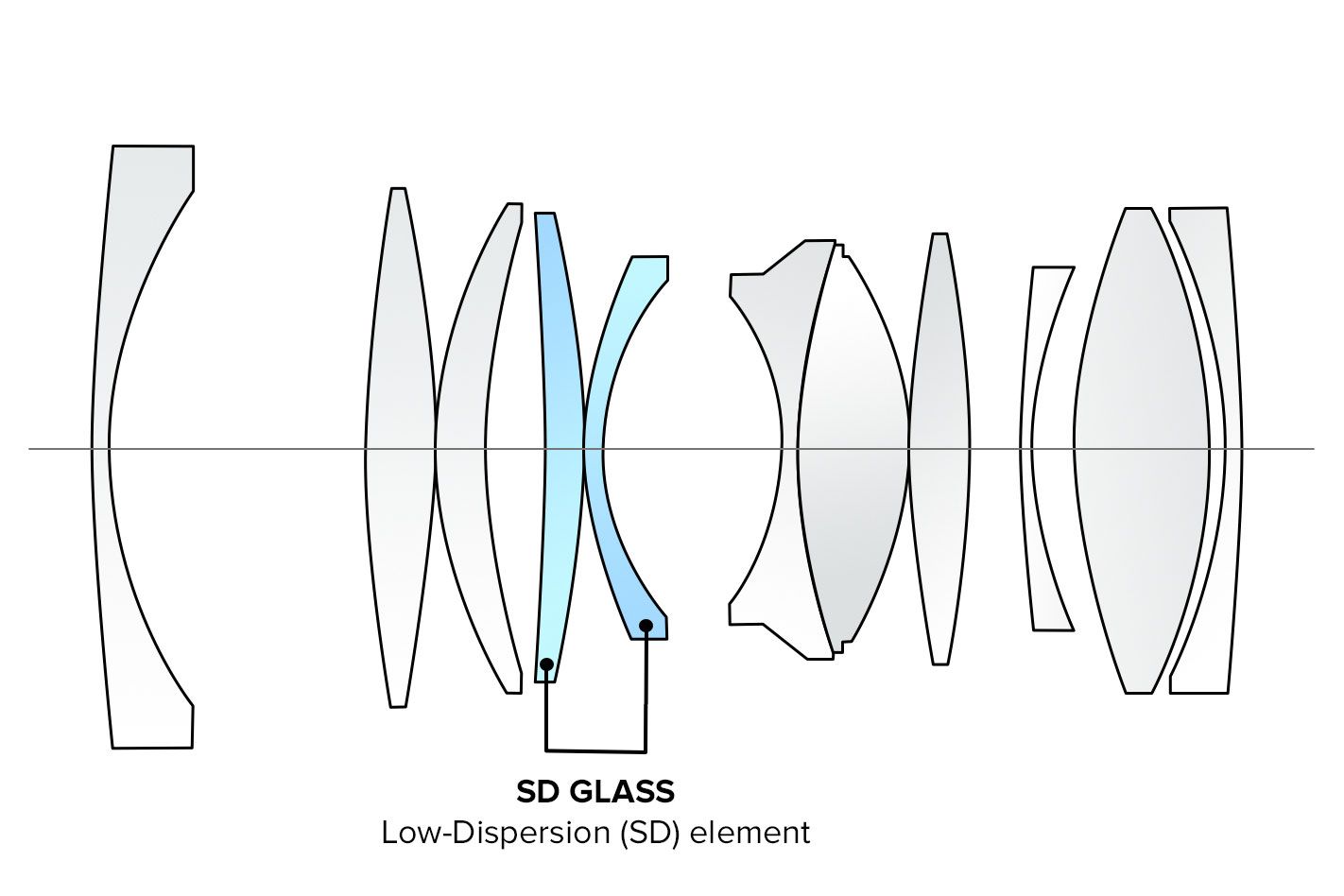

LENS CONSTRUCTION
Special optical design formula together with two Low-Dispersion (SD) glass elements provides excellent optical performance and corrects aberrations.

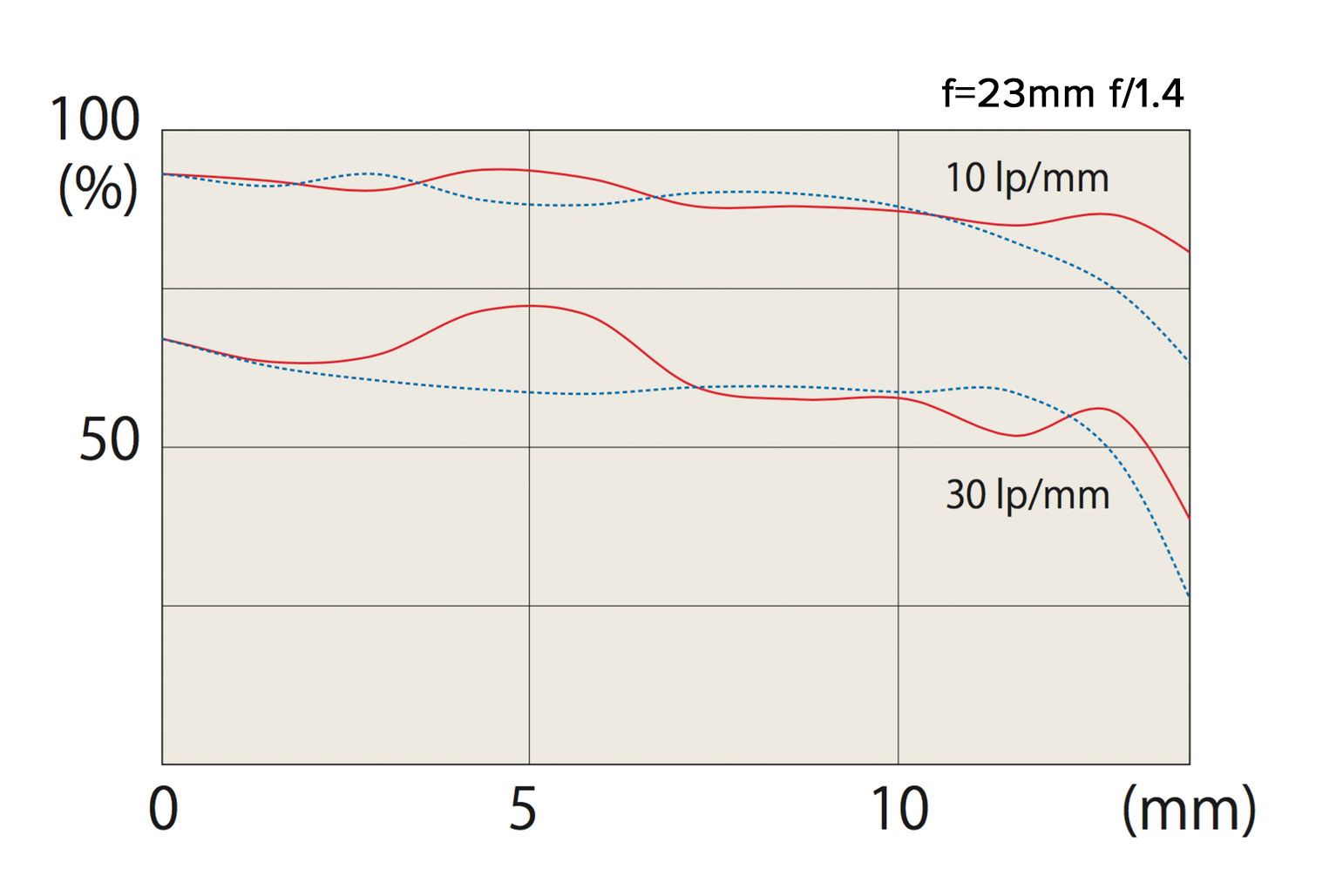

MTF CHART
atx-m
atx-m series is targeting high speed growing mirrorless cameras market with high quality and yet superior cost performance optical lenses.

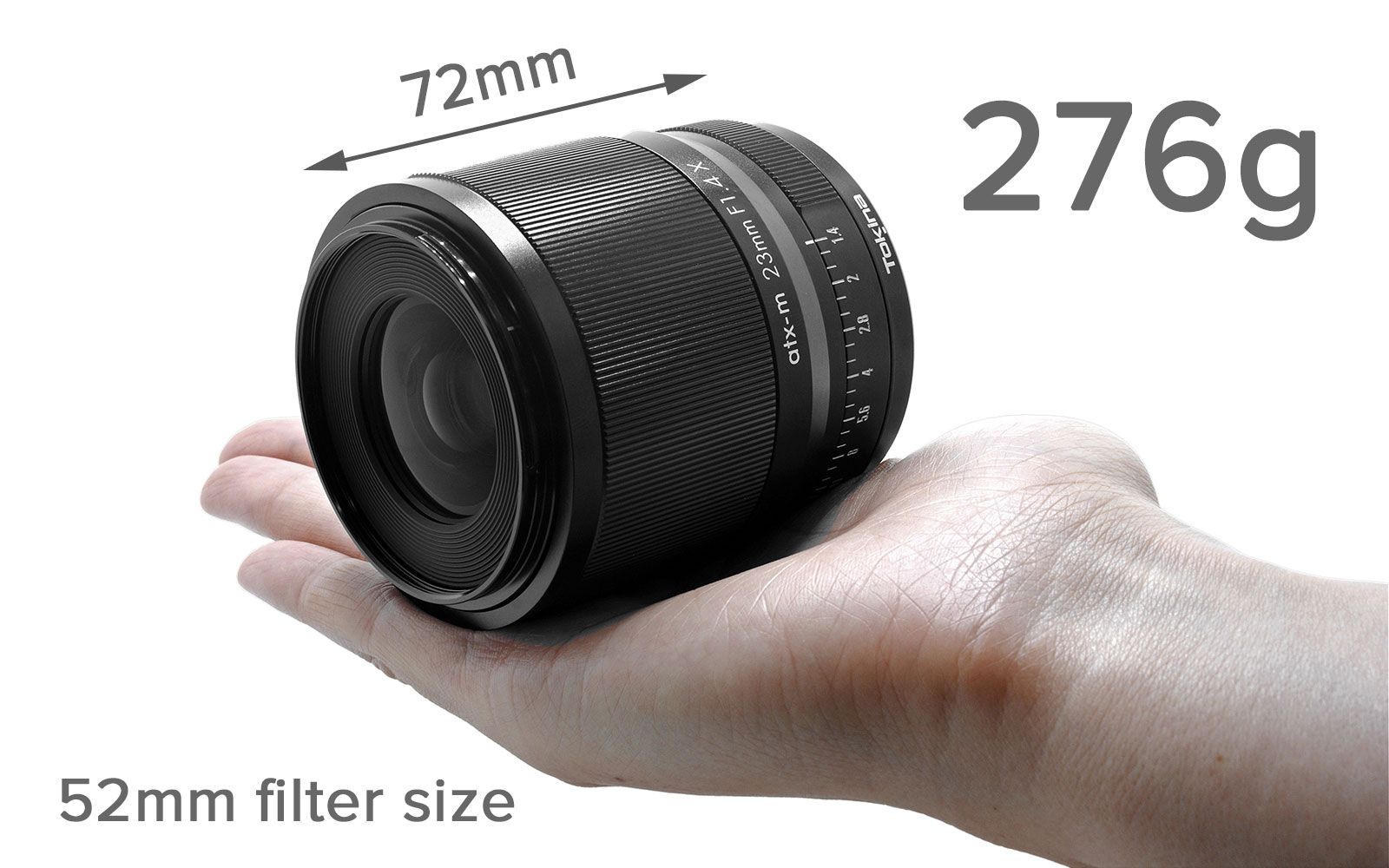

F1.4 fast, but light and small
Exclusively designed to fit contemporary mirrorless cameras in terms of weight and size.The basic property of mirrorless camera is compactness and lightweight. Incorporating made of metal mount and barrels for built quality we succeeded to create the lens light and small - perfect combination with Fujifilm X mount APS-C mirrorless cameras.
Fast, but silent AF
Tokina atx-m 23mm F1.4 X incorporates accurate responsive AF system that fully communicates with the camera body. Quiet and fast focusing is realized by ST-M focus motor.

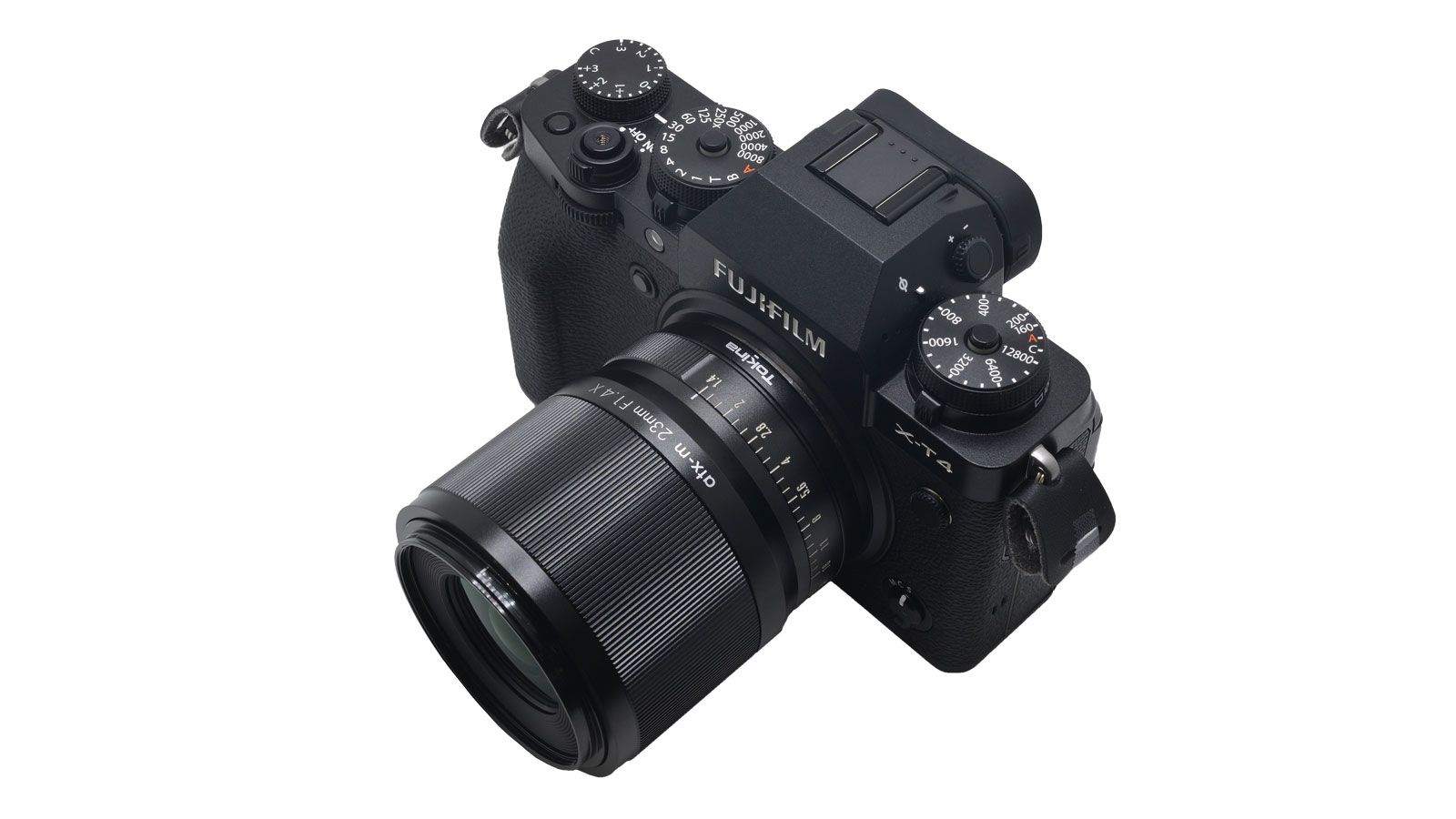

Full communication with camera
Tokina atx-m 23mm F1.4 X is fully communicable with the camera body to support 5-Axis In-Body Image Stabilization.

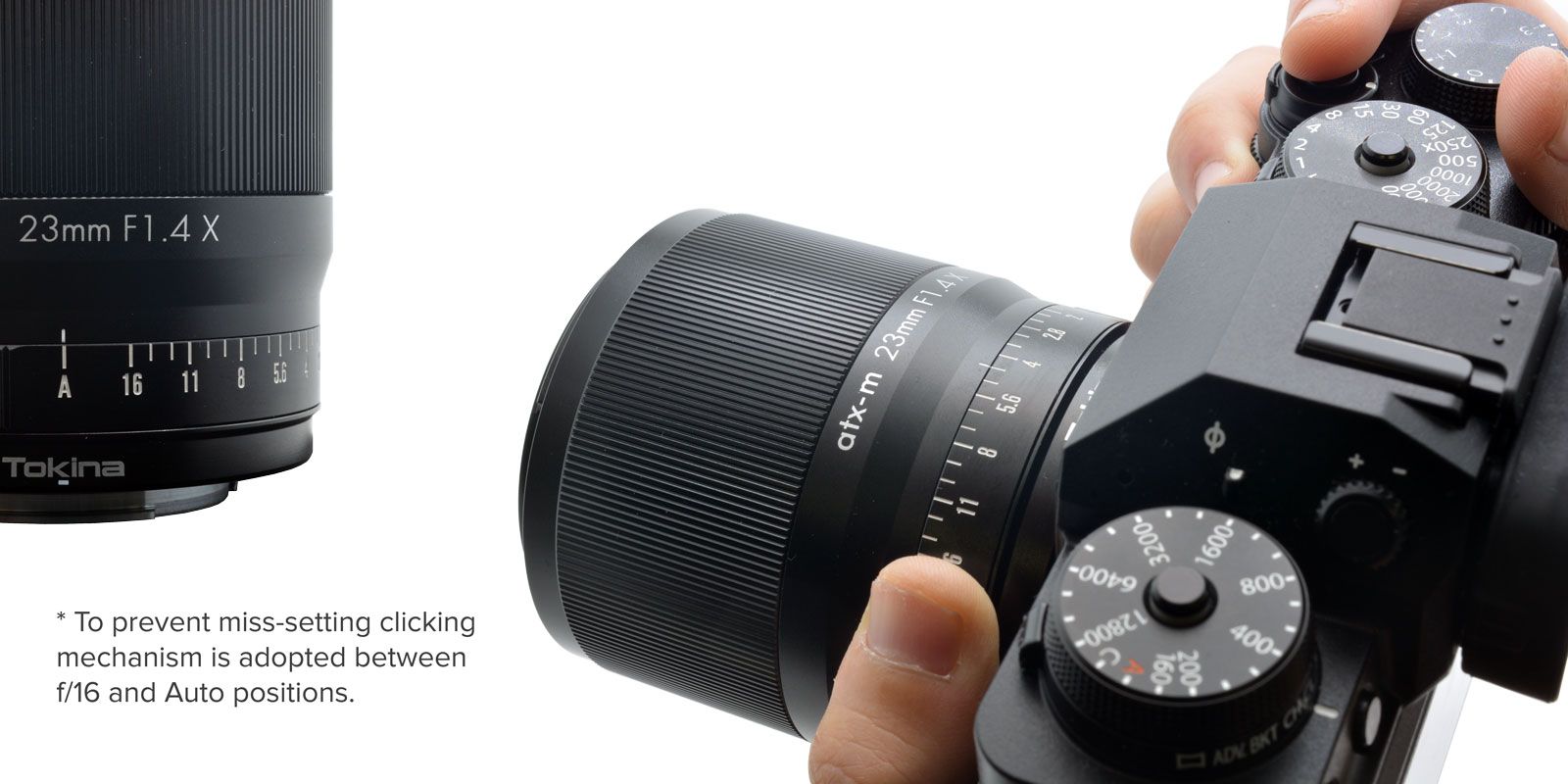

Click-less aperture ring
Fujifilm's design philosophy has always been to be about dials on the cameras and emulating a traditional film shooting experience. Tokina atx-m 23mm F1.4 X incorporates aperture click-less ring allowing users to smoothly control aperture manually from f/1.4 to f/16 in video mode, but also automatically (position A) via camera setting in still mode.
Superior close-up shooting abilities
Tokina atx-m 23mm F1.4 X can focus on subjects from 0.3m. This specification allows to shoot close-up and table photos, thus widely expanding the ways of utilization of this lens in different genres.
|
Focal Length |
23mm (35mm Equivalent Focal Length: 35mm) |
|
Maximum Aperture |
f/1.4 |
|
Minimum Aperture |
f/16 |
|
Lens Mount |
FUJIFILM X |
|
Format Compatibility |
APS-C |
|
Angle of View |
63.4° |
|
Minimum Focus Distance |
11.8" / 30 cm |
|
Maximum Magnification |
0.1x |
|
Optical Design |
11 Elements in 10 Groups |
|
Diaphragm Blades |
9 |
|
Focus Type |
Autofocus |
|
Image Stabilization |
No |
|
Filter Size |
52 mm (Front) |
|
Dimensions (ø x L) |
2.6 x 2.8" / 65 x 72 mm |
|
Weight |
9.7 oz / 276 g |
*This Tokina atx-m 23mm F1.4 lens for Fuji X-mount Comes with a free Tokina INSTANT ACTION magnetic 52mm Protector Filter and Adapter Ring set
| Product Manuals | |
|---|---|
| Tokina atx-m 23mm f/1.4 Lens for Fujifilm X-Mount - Product Manual |
- Tokina atx-m 23mm f/1.4 X Lens for FUJIFILM X
- Front and Rear Lens Caps
- BH-523 Lens Hood
- Tokina INSTANT ACTION magnetic 52mm Protector Filter and Adapter Ring set
Brand: Tokina |
Code: 12B0589
APN: 4961607634646 |
Supplier Code: 12B0589
Brand: Tokina |
Code: 12B0589
APN: 4961607634646 |
Supplier Code: 12B0589
At a glance
- Free Tokina INSTANT ACTION 52mm Filter Set
- X-Mount Lens/APS-C Format
- 35mm (35mm Equivalent)
- Aperture Range: f/1.4 to f/16
- Two SD Elements
- Multi-Layer Coating
- STM Stepping AF Motor
- De-Clicked Aperture Ring
- 9-Blade Diaphragm
Product OverviewPresenting Tokina atx-m 23mm F1.4 X - fast prime lens for Fuji X mirrorless camera mount.Tokina atx-m 23mm F1.4 X featuring angle of view equal to approx. 35mm in full frame (wide angle) is designed to be an ideal tool for amateur or even semi - professional photographer to shoot street snaps, landscapes and close-up photos. |
|
|
LENS CONSTRUCTIONSpecial optical design formula together with two Low-Dispersion (SD) glass elements provides excellent optical performance and corrects aberrations. |
MTF CHART |
|
|
atx-matx-m series is targeting high speed growing mirrorless cameras market with high quality and yet superior cost performance optical lenses. |
F1.4 fast, but light and smallExclusively designed to fit contemporary mirrorless cameras in terms of weight and size.The basic property of mirrorless camera is compactness and lightweight. Incorporating made of metal mount and barrels for built quality we succeeded to create the lens light and small - perfect combination with Fujifilm X mount APS-C mirrorless cameras. |
|
|
Fast, but silent AFTokina atx-m 23mm F1.4 X incorporates accurate responsive AF system that fully communicates with the camera body. Quiet and fast focusing is realized by ST-M focus motor. |
Full communication with cameraTokina atx-m 23mm F1.4 X is fully communicable with the camera body to support 5-Axis In-Body Image Stabilization. |
|
|
Click-less aperture ringFujifilm's design philosophy has always been to be about dials on the cameras and emulating a traditional film shooting experience. Tokina atx-m 23mm F1.4 X incorporates aperture click-less ring allowing users to smoothly control aperture manually from f/1.4 to f/16 in video mode, but also automatically (position A) via camera setting in still mode. |
Superior close-up shooting abilitiesTokina atx-m 23mm F1.4 X can focus on subjects from 0.3m. This specification allows to shoot close-up and table photos, thus widely expanding the ways of utilization of this lens in different genres. |
|
atx-m series is targeting high speed growing mirrorless cameras market with high quality and yet superior cost performance optical lenses.
Preserving the Tokina's advanced technology (atx) new series is marked with "m" letter, that stands for "motif" and "mirrorless"- motivation that Tokina provides to photographer for creating unique and breathtaking photos with mirrorless cameras.
Beautiful bokeh & impressive light intake
Tokina atx-m 23mm F1.4 X features fast f/1.4 aperture that creates creamy and beautiful front and back bokeh, providing huge advantage in low light shooting.
- Extremely compact and lightweight - perfect combination with Fujifilm X mount APS-C mirrorless cameras.
- f/1.4 aperture for creamy and beautiful front and back bokeh and great light intake as a huge advantage in low light shooting.
- Fast, but silent AF realized by ST-M focus motor.
- Fully communicable with the camera body to support 5-axis in-body image stabilization.

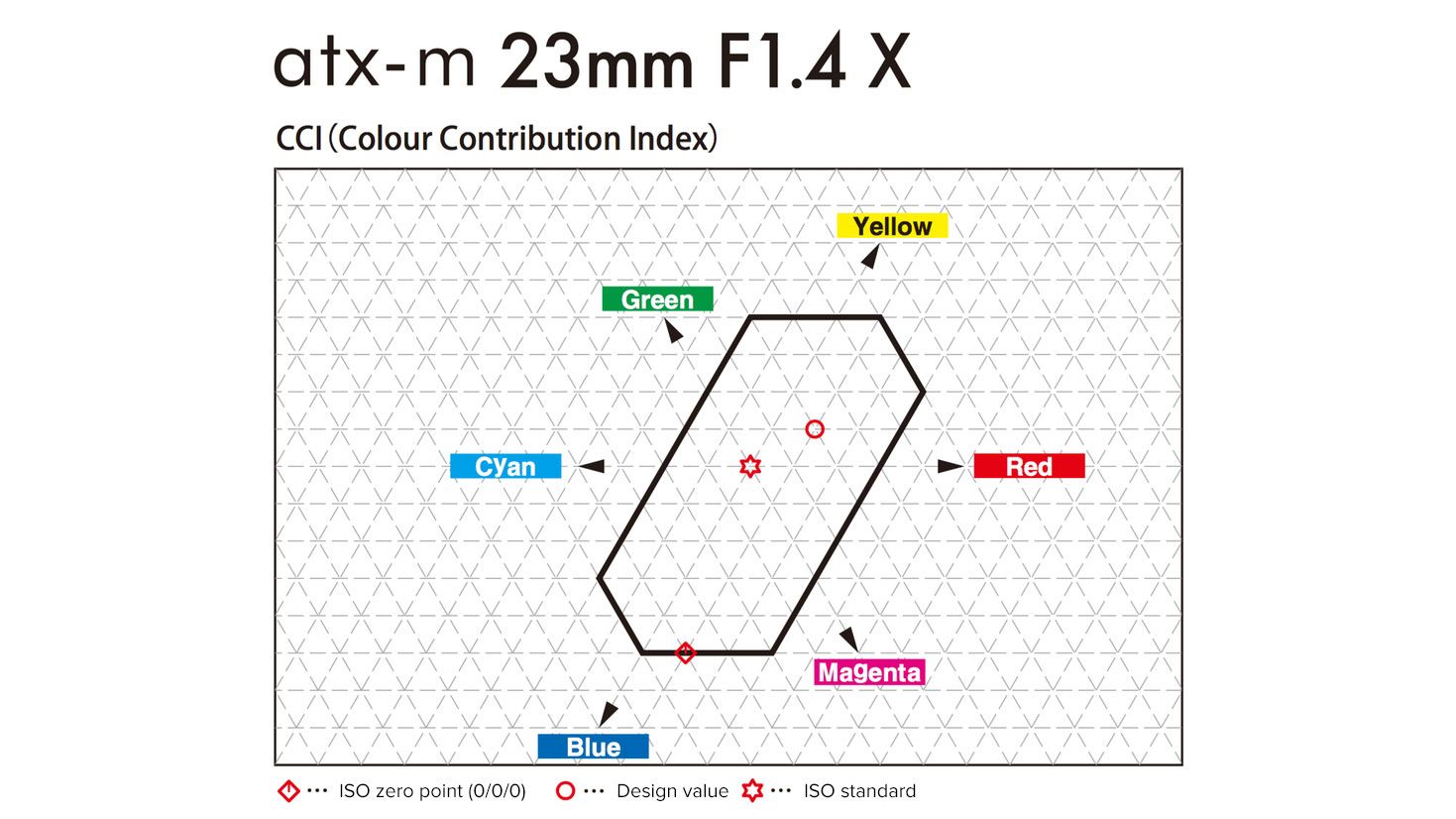

- Well balanced color reproduction that makes shooting with different Film Simulation modes more exciting.
- Click-less aperture ring to smoothly control aperture manually in video mode.
