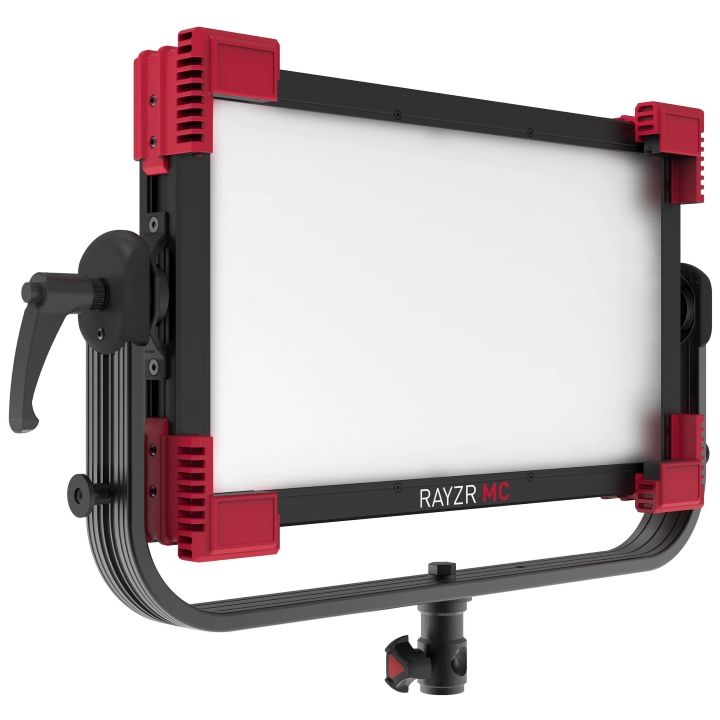

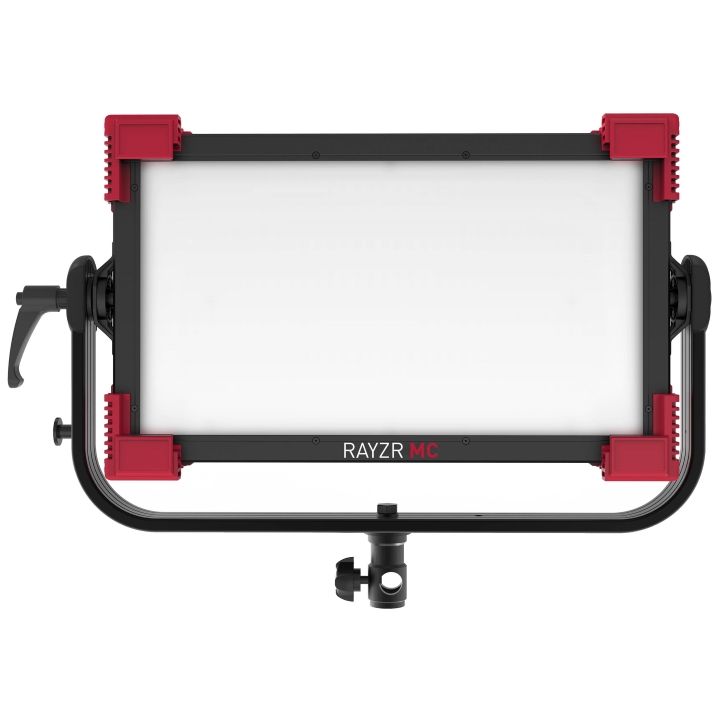

Rayzr 7 MC100 Multi Color RGB, WW, CW Soft LED Panel Light
Light Fixture
|
Beam Angle |
120° |
|
Color Temperature |
2400 to 9900K |
|
Color Accuracy Standard |
CRI 95 |
|
Cooling System |
Passive |
|
Dimming |
Yes, 0 to 100% |
|
Display |
LCD |
|
Housing Material |
Metal |
|
Photometrics |
120° at 5600K: |
|
Fixture Dimensions |
19.7 x 13.6 x 3.7" / 500.0 x 345.0 x 93.0 mm (Including Yoke & Barndoors) |
|
Fixture Weight |
7.7 lb / 3.49 kg |

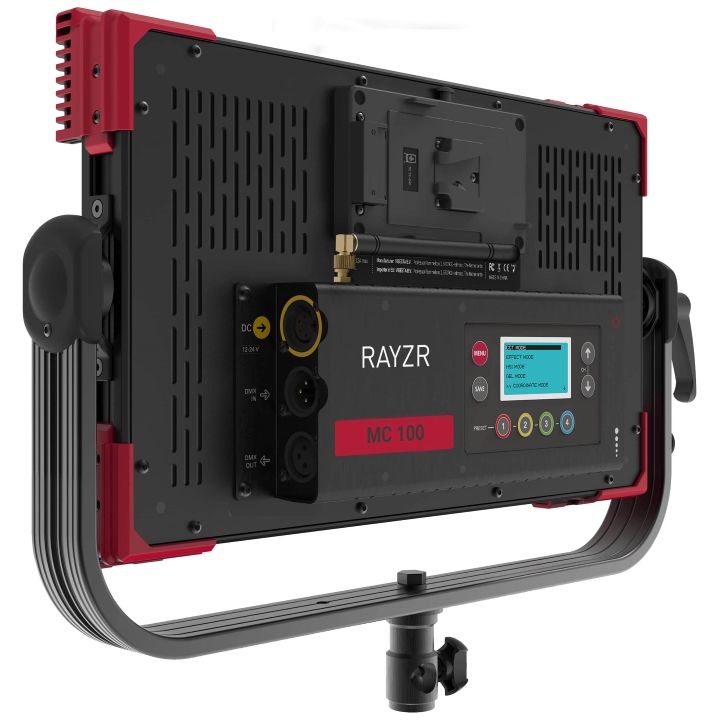

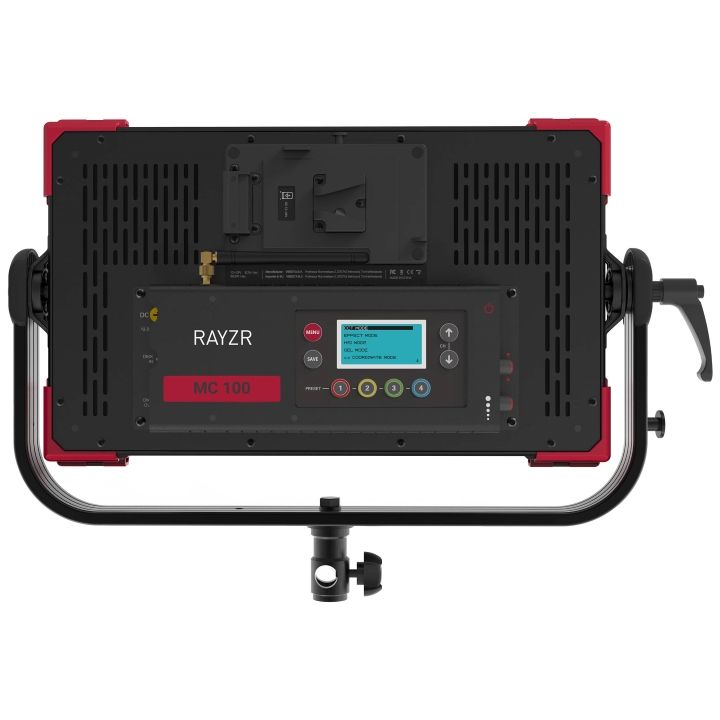

Connectors
|
Battery Plate |
1 x V-Mount |
|
Power Input Connector |
4-Pin XLR |
|
DMX Connector |
3-Pin XLR |
Yoke
|
Yoke Material |
Metal |
|
Yoke Type |
Yoke/Bracket |
Power
|
DC Input Power |
12 to 24 VDC at 9.8 A |
|
Power Source |
AC Adapter, External Battery |
|
Max Power Consumption |
98 W |
Remote Operation
|
Remote Control Type |
DMX, Wi-Fi |
Physical
|
IP Rating |
IP20 |
Brand: Rayzr 7 |
Code: 16030603
APN: 4250972502323 |
Supplier Code: 16030601
Brand: Rayzr 7 |
Code: 16030603
APN: 4250972502323 |
Supplier Code: 16030601
