Tokina Cinema 16-28mm T3 Lens for Sony E-Mount

Loading
  • Tokina Cinema 16-28mm T3 Lens for Sony E-Mount
  • Tokina Cinema 16-28mm T3 Lens for Sony E-Mount
  • Tokina Cinema 16-28mm T3 Lens for Sony E-Mount
  • Tokina Cinema 16-28mm T3 Lens for Sony E-Mount
$5,499.00 HURRY! Only 3 units left

  • Covers Full-Frame 35mm Sensors
  • Parfocal Lens Design Maintains Focus
  • Reduced Breathing and Image Shift
  • Constant T3.0 Aperture Thru Zoom Range
  • Aspherical, SLD Glass Elements
  • Suitable for 4K Image Capturing
  • De-Clicked 9-Bladed Aperture Ring

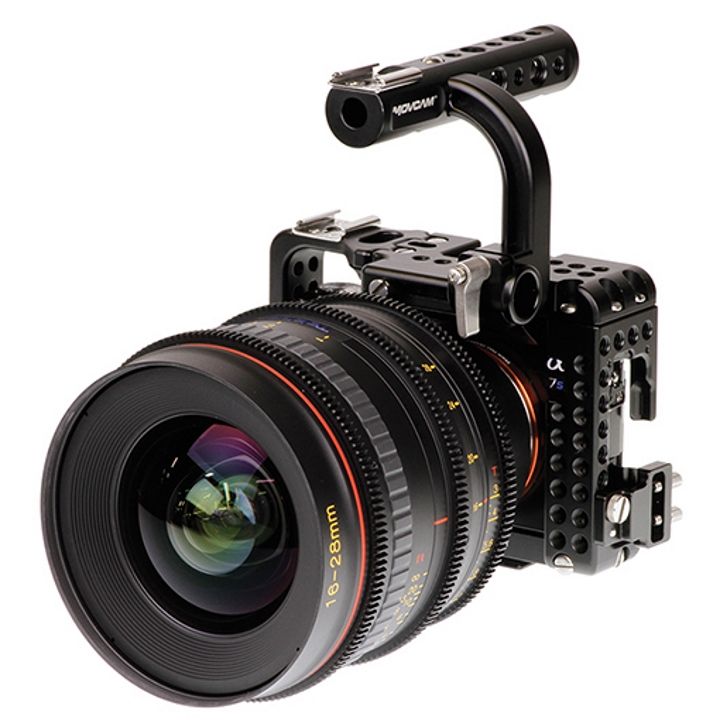

The Tokina Cinema ATX 16-28mm T3.0 (Sony E) is a version of Tokina's wide-angle DSLR zoom lens, re-engineered for video use and capable of producing images suitable for 4K capture. It covers full-frame 35mm image sensors and is a parfocal lens, enabling you to maintain focus throughout a zoom move. The Cinema ATX 16-28mm can open up to a T3.0 aperture throughout its zoom range, eliminating the need for exposure compensation on the tight end of the zoom. The lens design also reduces the breathing and image shifting sometimes encountered while zooming and focusing.

The Tokina Cinema ATX 16-28mm employs aspherical super-low dispersion elements for optimal color correction and minimal distortion. Its 9-bladed iris diaphragm produces attractive bokeh in out-of-focus areas.

Cinema ATX 16-28mm features include focus, iris, and zoom markings on both sides of the lens barrel, a de-clicked aperture ring for smooth iris pulls, an all-metal housing, and standard gears for use with a follow focus system. A minimum focus distance of just under 1' and an industry-standard 114mm front diameter fitting most matte boxes are additional cine features.

  • Wide-angle T3 manual-focus zoom lens
  • Parfocal lens design maintains focus while zooming
  • Covers full-frame 35mm sensors, images are suitable for 4K capture
  • Reduced breathing and image shifting while zooming or focusing
  • T3.0 aperture can be maintained throughout the zoom range
  • Aspherical, SLD (super-low dispersion) glass elements optimize color correction and reduce distortion
  • De-clicked 9-bladed iris for precise exposure control and attractive bokeh
  • 114mm front diameter is compatible with most matte boxes
  • 11" minimum focus distance allows for wide but close shots
  • Cine-style lens housing is designed for use with follow focus systems

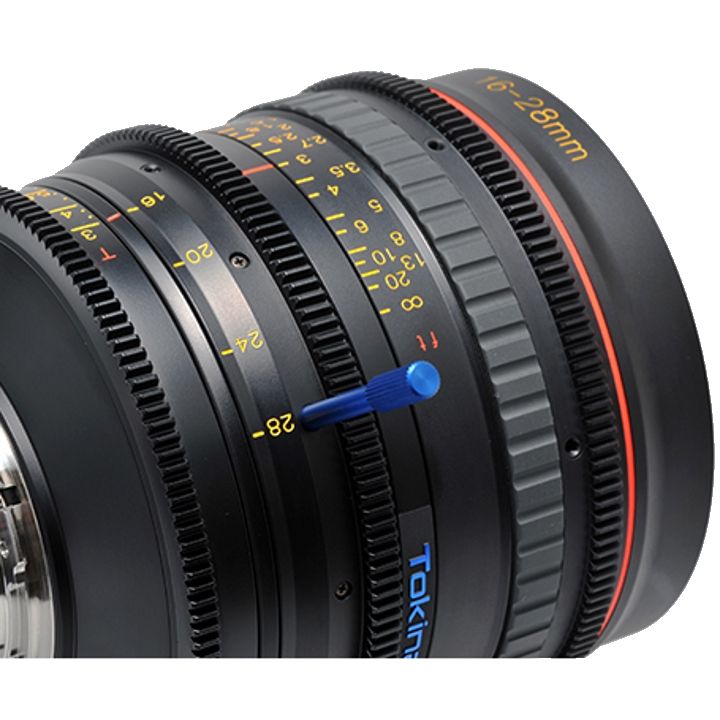

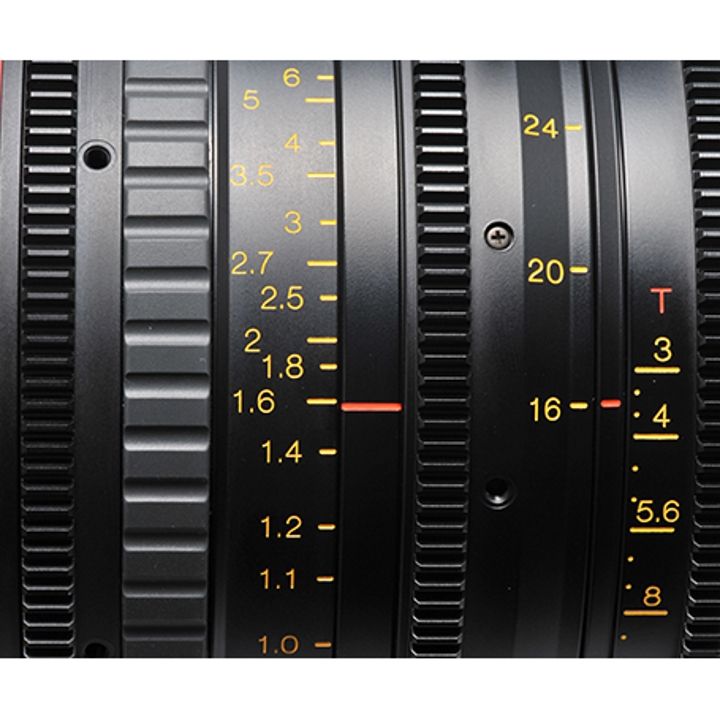

  • Focus, iris, and zoom markings are on both sides of the lens barrel

Focal Length

16 - 28mm

Lens Mount

Canon EF

Format

Full Frame

Maximum T-Stop

T3

Maximum F-Stop

f/2.8

Minimum T-Stop

T22

Minimum F-Stop

f/22

Minimum Focus Distance from Image Plane

11" / 28 cm

Elements/Groups

15 / 13

Iris Blades

9

Gear MOD & Pitch

Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch

Front Diameter

114 mm

Filter Thread

112 mm

Zoom Ratio

1.75x

Maximum Magnification Ratio

1:5.26

Dimensions (W x H)

4.8 x 4.8" / 121.9 x 121.9 mm

Length

6.5" / 166.2 mm

Weight

3.3 lb / 1.5 kg

Brand: Tokina | Code: 1628CINEFXE
APN: 4968808220159 | Supplier Code: 1628CINEFXE

Brand: Tokina | Code: 1628CINEFXE
APN: 4968808220159 | Supplier Code: 1628CINEFXE

At a glance

  • Covers Full-Frame 35mm Sensors
  • Parfocal Lens Design Maintains Focus
  • Reduced Breathing and Image Shift
  • Constant T3.0 Aperture Thru Zoom Range
  • Aspherical, SLD Glass Elements
  • Suitable for 4K Image Capturing
  • De-Clicked 9-Bladed Aperture Ring
