Tokina Cinema 16-28mm T3 FX Lens for PL Mount

Tokina Cinema 16-28mm T3 FX Lens for PL Mount

$5,499.00
CHOOSE OPTIONS
low stock   HURRY! ONLY 2 UNITS LEFT
low stock   HURRY! ONLY 2 UNITS LEFT
PRODUCT ENQUIRY

or interest free for up to 12 months with

  • Covers Full-Frame 35mm Sensors
  • Parfocal Lens Design Maintains Focus
  • Reduced Breathing and Image Shift
  • Constant T3.0 Aperture Thru Zoom Range
  • Aspherical, SLD Glass Elements
  • Suitable for 4K Image Capturing
  • De-Clicked 9-Bladed Aperture Ring
  • 114mm Front Diameter
Brand: Tokina   |    Code: 1628CINEFXPL
APN: 4968808220067   |    Supplier Code: 1628CINEFXPL Supplier Description: TOKINA 16-28 T3 FX PL *CINE*

Go Super-Wide to Capture More Scene Per Frame

The highly innovative Tokina Cinema 16-28mm T3.0 has beenre-engineered to meet the demanding needs of the professional cinematographer. Using the successful optical formula of the award winning still lens, Tokina engineers have created a lens that is Parfocal, has dramatically reduced breathing and image shift, and a de-clicked, 9-bladed, curved iris for beautiful bokeh and precise exposure control. With its 28cm close-focus capability, the lens allows you the freedom to capture a super wide-angle of view while still maintaining a tight perspective on your subject.

FEATURES:

  • Full frame super-wide 16-28mm lens
  • Parfocal lens design allows you to maintain precise focus while using the zoom control
  • Fast constant T3.0 aperture throughout the 16mm to 28mm zoom range
  • Reduced breathing so you can focus on the scene and not the lens
  • Smooth, de-clicked, 9-bladed, curved iris for beautiful out-of-focus areas
  • Virtually no image shift when using the zoom control during filming
  • Aspherical elements and Super-Low Dispersion glass reduce distortion and increase optical performance
  • 4K image ready
  • Durable, all-metal cine-style housing with geared manual zoom, focus and aperture rings for use in follow-focus systems
  • Common 114mm front diameter for use with a wide variety of matte boxes and accessories

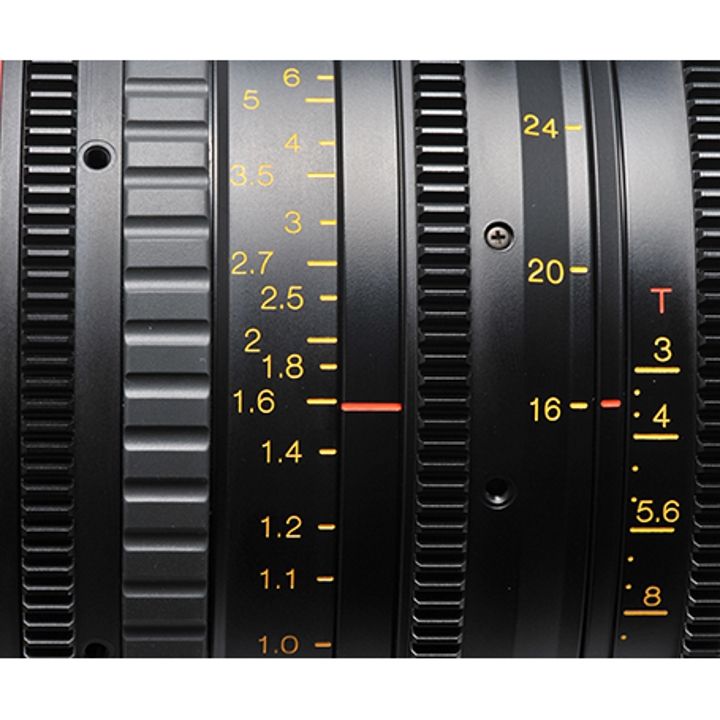

  • Zoom, focus, and iris marking are on both sides of the lens for easy viewing and more mounting/follow-focus options
  • LDS (Lens Data System) support is possible

Lens Construction

MTF Chart

Focal Distance 16 – 28mm
Zoom Ratio 1.75:1
Optical Structure 13 groups /15 elements
Sensor Size Full Frame 35mm
Minimum Focusing Distance 0.28m
Maximum Macro Magnification 1:5.26
Zoom Mode Rotary Zoom
Aperture/Iris Blades 9
Depth of Field T3.0 – T22 (F2.8 – F22)
Filter Size 112 mm
Overal Length
  • PL Mount: 144mm (from 127mm mount surface)
  • Canon EF Mount: 140.5mm (from 135mm mount surface)
  • Sony E Mount: 166.2mm (from 161mm mount surface)
Diameter of Front Head 114mm
Maximum Diameter 123mm
Weight 1.5kg
  • Tokina Cinema ATX 16-28mm T3 Wide-Angle Zoom Lens for Canon EF

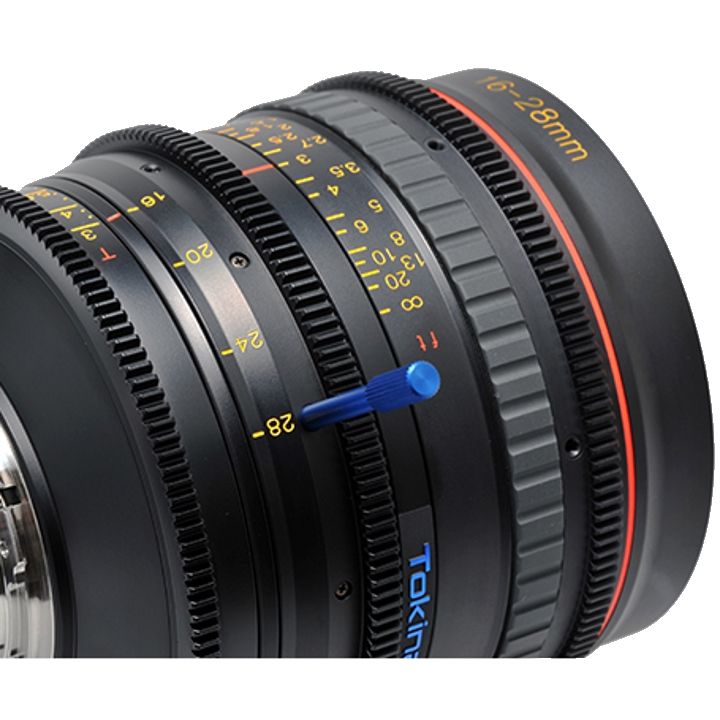

  • Focus/Zoom Pin

OVERVIEW

The Tokina Cinema ATX 16-28mm T3.0 (PL) is a version of Tokina's wide-angle DSLR zoom lens, re-engineered for video use and capable of producing images suitable for 4K capture. It covers full-frame 35mm image sensors and is a parfocal lens, enabling you to maintain focus throughout a zoom move. The Cinema ATX 16-28mm can open up to a T3.0 aperture throughout its zoom range, eliminating the need for exposure compensation on the tight end of the zoom. The lens design also reduces the breathing and image shifting sometimes encountered while zooming and focusing.

The Tokina Cinema ATX 16-28mm employs aspherical super-low dispersion elements for optimal color correction and minimal distortion. Its 9-bladed iris diaphragm produces attractive bokeh in out-of-focus areas.

Cinema ATX 16-28mm features include focus, iris, and zoom markings on both sides of the lens barrel, a de-clicked aperture ring for smooth iris pulls, an all-metal housing, and standard gears for use with a follow focus system. A minimum focus distance of just under 1' and an industry-standard 114mm front diameter fitting most matte boxes are additional cine features.

  • Wide-angle T3 manual-focus zoom lens
  • Parfocal lens design maintains focus while zooming
  • Covers full-frame 35mm sensors, images are suitable for 4K capture
  • Reduced breathing and image shifting while zooming or focusing
  • T3.0 aperture can be maintained throughout the zoom range
  • Aspherical, SLD (super-low dispersion) glass elements optimize color correction and reduce distortion
  • De-clicked 9-bladed iris for precise exposure control and attractive bokeh
  • 114mm front diameter is compatible with most matte boxes
  • 11" minimum focus distance allows for wide but close shots
  • Cine-style lens housing is designed for use with follow focus systems
  • Focus, iris, and zoom markings are on both sides of the lens barrel

SPECIFICATIONS

Focal Length

16 - 28mm

Lens Mount

ARRI PL

Format

Full Frame

Maximum T-Stop

T3

Maximum F-Stop

f/2.8

Minimum T-Stop

T22

Minimum F-Stop

f/22

Minimum Focus Distance from Image Plane

11" / 28 cm

Elements/Groups

15 / 13

Iris Blades

9

Gear MOD & Pitch

Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch

Front Diameter

114 mm

Filter Thread

112 mm

Zoom Ratio

1.75x

Maximum Magnification Ratio

1:5.26

Dimensions (W x H)

4.8 x 4.8" / 121.9 x 121.9 mm

Length

6.5" / 166.2 mm

Weight

3.3 lb / 1.5 kg
