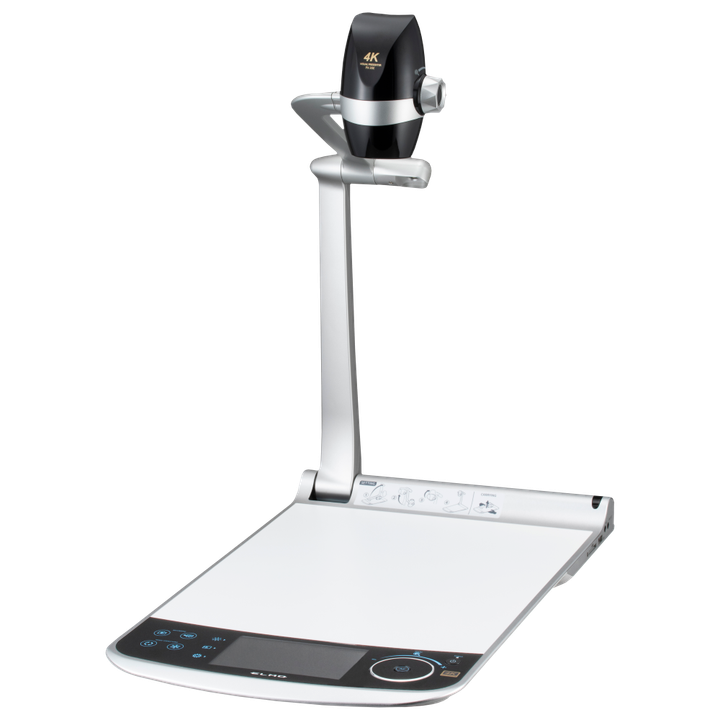

Elmo PX-30E Visual Presenter 4K, 12x Opt Zoom, HDMI, RS-232 * Ex DEMO* Full Warranty
- FULLY FUNCTIONAL AS THE NORMAL UNIT
- Slight Surface Marks may present
- Capture/Output 4K/30 Video & 12MP Stills
- HDMI, HDBaseT, USB, and VGA Outputs
- 70m 4K / 100m 1080p HDBaseT Extension
- Zoom and Jog Dials, AutoFocus
- Wake-on-LAN, TCP/IP Control
- Record HDMI Signal to SD Card/USB Drive
- RS-232C Input, Mic Input, Line Out
- Up to 288x Zoom / Bright LED Light
- 5" Touchscreen LCD / HDMI Cable Locks
- Interactive Toolbox Software (Win/Mac)
Ultra 4K Image
The PX-30E has a specially crafted lens that captures rich Ultra 4K image and can record video in 4K at 30fps and Full HD at 60fps.
288x Zoom
With 12x optical, 12x digital zoom, and 2x sensor zoom, the PX-30E is capable of an incredible 288x zoom so you can see every vibrant detail.
Touch Navigation
The PX-30E comes with an all-new 5” High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control and a zoom toggle wheel with autofocus.
Multiple Outputs
The PX-30E offers HDMI, VGA, USB and HDBaseT output options for compatibility with a wide array of products. Also comes with TCP/IP control.
Widescreen Mode
The PX-30E comes with a variety of shooting modes including 4:3, widescreen 16:9, and a capture area of up to A4 portrait and A3 landscape.
Main Camera
|
IMAGE PICK-UP DEVICE |
12 Megapixel CMOS |
|
EFFECTIVE PIXELS |
3840 x 2160 (16:9) 8.3M |
|
RESOLUTION |
1,600 TV lines (center) |
|
ZOOM |
12x Optical / 12x Digital / 2x Sensor |
|
FOCUS MODE |
Zoom sync AF / One-push AF |
|
FOCUS RANGE |
WIDE end: 5cm～∞ |
|
SHOOTING AREA |
17" x 12.6" (4:3) up to A4 |
|
ILLUMINATION |
Upper light (LED) |
|
HDMI OUTPUT |
4K, 1080p, 720p |
|
RGB OUTPUT |
1080p, 720p |
|
USB OUTPUT |
4K, 1080p, 720p, QUXGA, UXGA, XGA |
|
HDMIBASET OUTPUT |
4K, 1080p, 720p |
|
NETWORK CONTROL |
TCP/IP Control |
|
IMAGE ADJUSTMENT |
Brightness, White balance, Contrast, Contour Correct, Image mask |
|
IMAGE MODES |
Normal, Emphasis, Color emphasis, Black/White, DLP Projector |
General
|
OPERATION PANEL |
Power, AF, Brightness, Freeze, Image Rotation, Capture Image, Video Record, Settings, Input Selection |
|
LCD PANEL |
HQ (800x480) 5" CApacitive-type |
|
INPUT TERMINAL |
HDMI x2, RGB Dsub15x1 |
|
EXTERNAL CONTROL |
RS-232C (inc. setting menu lock), USB, Remote Control, Network Control |
|
RECORDING/PLAYBACK |
SD card, USB flash device (only photo), internal memory storage |
|
AUDIO |
INPUT: External microphone (HDMI) |
|
DIMENSIONS |
11.7" x 19" x 18.8" (set up) |
|
WEIGHT |
9.9lbs |
| Product Manuals | |
|---|---|
| Elmo PX-30E Visual Presenter 4K, 12x Opt Zoom, HDMI, RS-232 * Ex DEMO* Full Warranty - Product Manual |
- 1x Elmo PX-30E Document Camera *DEMO MODEL*
- 1x AC Adapter
- 1x AC Power Cord
- 1x USB 3.0 Cable (1.5m)
- 1x Remote Control
- 1x CR2025 Lithium Coin Battery for Remote Control
- 1x Whiteboard Sheet
- 1x Melamine Sponge for Whiteboard Sheet
- 1x Caution Sticker
Brand: Elmo |
Code: 201375D
APN: 9319499224844 |
Supplier Code: 201375
Brand: Elmo |
Code: 201375D
APN: 9319499224844 |
Supplier Code: 201375
At a glance
- FULLY FUNCTIONAL AS THE NORMAL UNIT
- Slight Surface Marks may present
- Capture/Output 4K/30 Video & 12MP Stills
- HDMI, HDBaseT, USB, and VGA Outputs
- 70m 4K / 100m 1080p HDBaseT Extension
- Zoom and Jog Dials, AutoFocus
- Wake-on-LAN, TCP/IP Control
- Record HDMI Signal to SD Card/USB Drive
- RS-232C Input, Mic Input, Line Out
- Up to 288x Zoom / Bright LED Light
- 5" Touchscreen LCD / HDMI Cable Locks
- Interactive Toolbox Software (Win/Mac)
Ultra 4K ImageThe PX-30E has a specially crafted lens that captures rich Ultra 4K image and can record video in 4K at 30fps and Full HD at 60fps. |
|
|
288x ZoomWith 12x optical, 12x digital zoom, and 2x sensor zoom, the PX-30E is capable of an incredible 288x zoom so you can see every vibrant detail. |
Touch NavigationThe PX-30E comes with an all-new 5” High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control and a zoom toggle wheel with autofocus. |
|
|
Multiple OutputsThe PX-30E offers HDMI, VGA, USB and HDBaseT output options for compatibility with a wide array of products. Also comes with TCP/IP control. |
Widescreen ModeThe PX-30E comes with a variety of shooting modes including 4:3, widescreen 16:9, and a capture area of up to A4 portrait and A3 landscape. |
|
