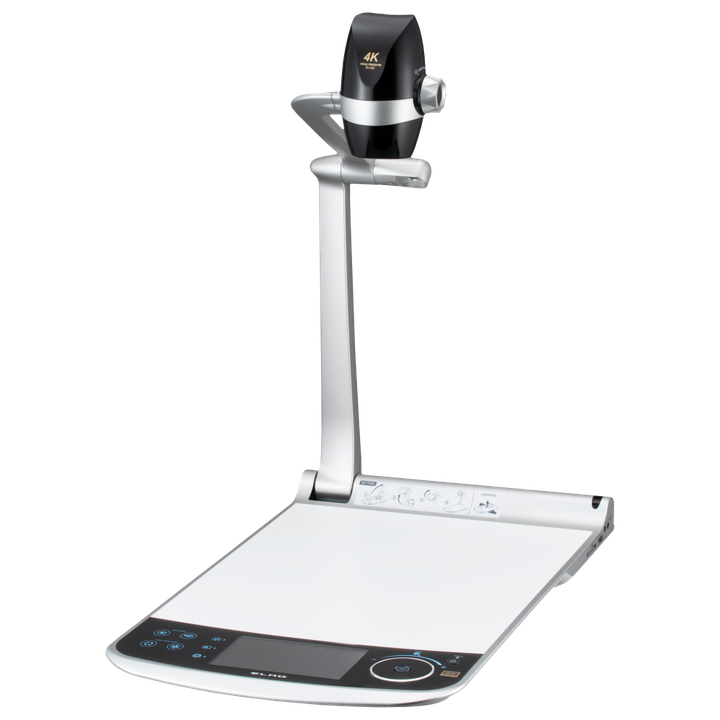

Elmo PX-30E Visual Presenter 4K, 12x Optical Zoom, HDMI, USB 3.0, RS-232C, IP Control
With an unprecedented 288x zoom, the PX-30E captures in ultra-vibrant 4K resolution and records video at 30fps that can be saved via SD card, USB flash device, or the camera’s internal memory. PX-30E comes with a variety of shooting modes including 4:3 and widescreen 16:9, with a capture area of up to A4 portrait and A3 landscape. The PX-30E also features an all-new 5” High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control, a zoom toggle wheel with autofocus, as well as a variety of output options (HDMI, VGA, USB, HDBaseT and TCP/IP control). The platform stage is magnetic and comes with a custom whiteboard surface that can be written on with dry erase markers to show lessons and annotate during demonstrations.
Enhancements from the PX-30 model include a zoom dial and auto focus button on the camera head, upgraded LED light to reduce glare, HDMI cable connection locks, reduced height jog dial that bring it flush to the stage, quicker brightness control response, an operation panel lock-out feature, and a wake on LAN feature.
Main Camera
|
IMAGE PICK-UP DEVICE |
12 Megapixel CMOS |
|
EFFECTIVE PIXELS |
3840 x 2160 (16:9) 8.3M |
|
RESOLUTION |
1,600 TV lines (center) |
|
ZOOM |
12x Optical / 12x Digital / 2x Sensor |
|
FOCUS MODE |
Zoom sync AF / One-push AF |
|
FOCUS RANGE |
WIDE end: 5cm～∞ |
|
SHOOTING AREA |
17" x 12.6" (4:3) up to A4 |
|
ILLUMINATION |
Upper light (LED) |
|
HDMI OUTPUT |
4K, 1080p, 720p |
|
RGB OUTPUT |
1080p, 720p |
|
USB OUTPUT |
4K, 1080p, 720p, QUXGA, UXGA, XGA |
|
HDMIBASET OUTPUT |
4K, 1080p, 720p |
|
NETWORK CONTROL |
TCP/IP Control |
|
IMAGE ADJUSTMENT |
Brightness, White balance, Contrast, Contour Correct, Image mask |
|
IMAGE MODES |
Normal, Emphasis, Color emphasis, Black/White, DLP Projector |
General
|
OPERATION PANEL |
Power, AF, Brightness, Freeze, Image Rotation, Capture Image, Video Record, Settings, Input Selection |
|
LCD PANEL |
HQ (800x480) 5" CApacitive-type |
|
INPUT TERMINAL |
HDMI x2, RGB Dsub15x1 |
|
EXTERNAL CONTROL |
RS-232C (inc. setting menu lock), USB, Remote Control, Network Control |
|
RECORDING/PLAYBACK |
SD card, USB flash device (only photo), internal memory storage |
|
AUDIO |
INPUT: External microphone (HDMI) |
|
DIMENSIONS |
11.7" x 19" x 18.8" (set up) |
|
WEIGHT |
9.9lbs |
| Product Manuals | |
|---|---|
| Elmo PX-30E Visual Presenter 4K, 12x Optical Zoom, HDMI, USB 3.0, RS-232C, IP Control - Product Manual |
Brand: Elmo |
Code: 201375
APN: 4560353282424 |
Supplier Code: 201375
Brand: Elmo |
Code: 201375
APN: 4560353282424 |
Supplier Code: 201375
At a glance
Ultra 4K ImageThe PX-30E has a specially crafted lens that captures rich Ultra 4K image and can record video in 4K at 30fps and Full HD at 60fps. |
 |
 |
288x ZoomWith 12x optical, 12x digital zoom, and 2x sensor zoom, the PX-30E is capable of an incredible 288x zoom so you can see every vibrant detail. |
Touch NavigationThe PX-30E comes with an all-new 5” High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control and a zoom toggle wheel with autofocus. |
 |
 |
Multiple OutputsThe PX-30E offers HDMI, VGA, USB and HDBaseT output options for compatibility with a wide array of products. Also comes with TCP/IP control. |
Widescreen ModeThe PX-30E comes with a variety of shooting modes including 4:3, widescreen 16:9, and a capture area of up to A4 portrait and A3 landscape. |
 |
Elmo PX-30E Visual Presenter 4K, 12x Opt Zoom, HDMI, RS-232 * Ex DEMO* Full Warranty

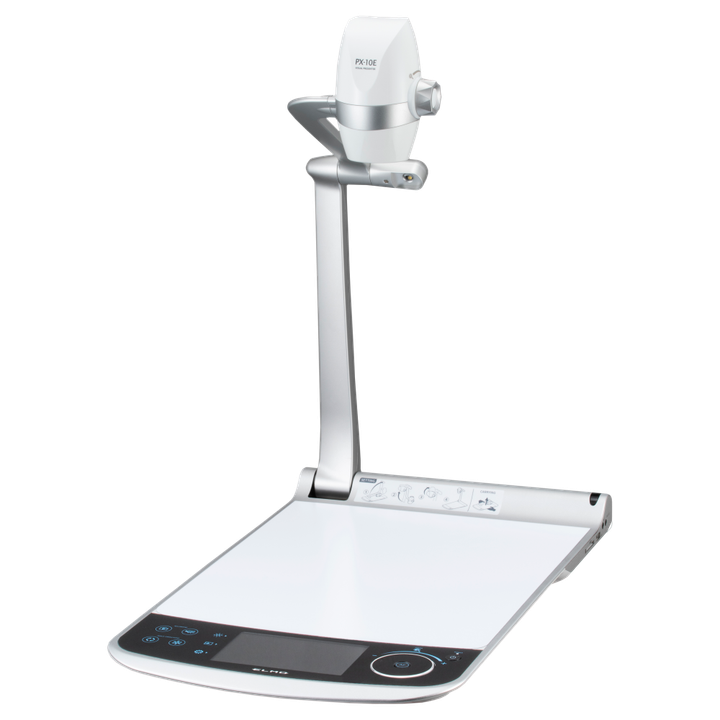

Elmo PX-10E Visual Presenter 2K Full HD, 12x Optical Zoom HDMI, VGA, RS-232C, USB 3.0
