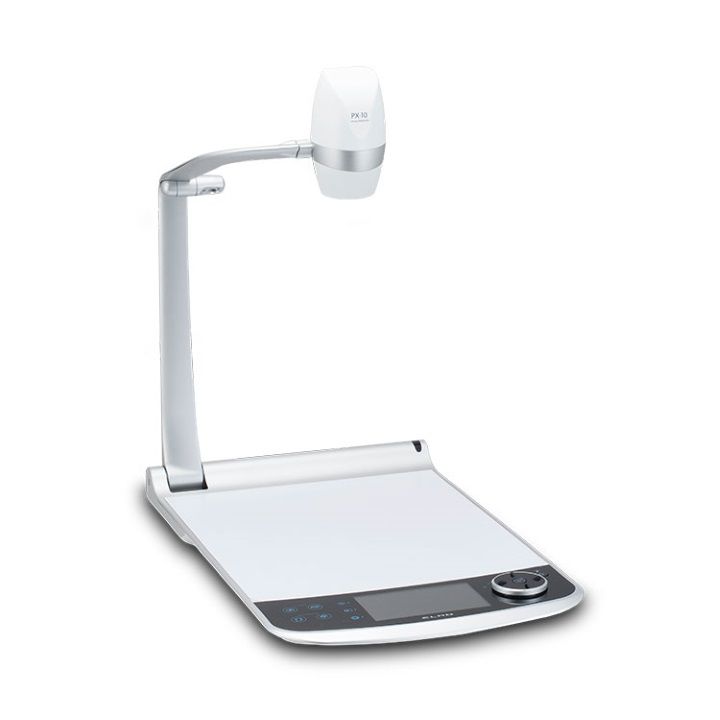

Elmo PX-10E Visual Presenter 2K Full HD, 12x Optical Zoom HDMI, VGA, RS-232C, USB 3.0
- Capture/Output 1080p60 Video/12MP Stills
- HDMI, USB, and VGA Outputs
- Record HDMI Signal to SD Card/USB Drive
- Zoom and Jog Dials, AutoFocus
- 5" Touchscreen LCD / HDMI Cable Locks
- Up to 288x Zoom / Bright LED Light
- RS-232C Input, Mic Input, Line Out
- Interactive Toolbox Software (Win/Mac)
With an unprecedented 288x zoom, the PX-10E captures in vibrant 1080P Full HD resolution and records video at 60fps that can be saved via SD card, USB flash device, or the camera’s internal memory. PX-10E comes with a variety of shooting modes including 4:3 and widescreen 16:9, with a capture area of up to A4 portrait and A3 landscape. The PX-10E also features an all-new 5” High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control, a zoom toggle wheel with autofocus, as well as a variety of output options (HDMI, VGA, and USB). The platform stage is magnetic and comes with a custom whiteboard surface that can be written on with dry erase markers to show lessons and annotate during demonstrations.
Enhancements from the PX-10 model include a zoom dial and auto focus button on the camera head, upgraded LED light to reduce glare, HDMI cable connection locks, reduced height jog dial that bring it flush to the stage, quicker brightness control response and an operation panel lock-out feature.
Main Camera
|
IMAGE PICK-UP DEVICE |
12 Megapixel CMOS |
|
EFFECTIVE PIXELS |
3840 x 2160 (16:9) 8.3M |
|
RESOLUTION |
1,600 TV lines (center) |
|
ZOOM |
12x Optical / 12x Digital / 2x Sensor |
|
FOCUS MODE |
Zoom sync AF / One-push AF |
|
FOCUS RANGE |
WIDE end: 5cm～∞ |
|
SHOOTING AREA |
17" x 12.6" (4:3) up to A4 |
|
ILLUMINATION |
Upper light (LED) |
|
HDMI OUTPUT |
1080p, 720p |
|
RGB OUTPUT |
1080p, 720p |
|
USB OUTPUT |
1080p, 720p, QUXGA, UXGA, XGA |
|
IMAGE ADJUSTMENT |
Brightness, White balance, Contrast, Contour Correct, Image mask |
|
IMAGE MODES |
Normal, Emphasis, Color emphasis, Black/White, DLP Projector |
General
|
OPERATION PANEL |
Power, AF, Brightness, Freeze, Image Rotation, Capture Image, Video Record, Settings, Input Selection |
|
LCD PANEL |
HQ (800x480) 5" CApacitive-type |
|
INPUT TERMINAL |
HDMI x2, RGB Dsub15x1 |
|
EXTERNAL CONTROL |
RS-232C (inc. setting menu lock), USB, Remote Control |
|
RECORDING/PLAYBACK |
SD card, USB flash device (only photo), internal memory storage |
|
AUDIO |
INPUT: External microphone (HDMI) |
|
DIMENSIONS |
11.7" x 19" x 18.8" (set up) |
|
WEIGHT |
9.9lbs |
| Product Manuals | |
|---|---|
| Elmo PX-10E Visual Presenter 2K Full HD, 12x Optical Zoom HDMI, VGA, RS-232C, USB 3.0 - Product Manual |
- 1x Elmo PX-10E Document Camera
- 1x AC Adapter
- 1x AC Power Cord
- 1x USB 3.0 Cable (1.5m)
- 1x Remote Control
- 1x CR2025 Lithium Coin Battery for Remote Control
- 1x Whiteboard Sheet
- 1x Melamine Sponge for Whiteboard Sheet
- 1x Caution Sticker
Brand: Elmo |
Code: 201376
APN: 4560353282431 |
Supplier Code: 201376
Brand: Elmo |
Code: 201376
APN: 4560353282431 |
Supplier Code: 201376
At a glance
- Capture/Output 1080p60 Video/12MP Stills
- HDMI, USB, and VGA Outputs
- Record HDMI Signal to SD Card/USB Drive
- Zoom and Jog Dials, AutoFocus
- 5" Touchscreen LCD / HDMI Cable Locks
- Up to 288x Zoom / Bright LED Light
- RS-232C Input, Mic Input, Line Out
- Interactive Toolbox Software (Win/Mac)
2K Full HD ImageThe PX-10 has a specially crafted lens which captures 2K Full HD image quality that is comparable to 4K. |
 |
 |
288x ZoomWith 12x optical, 12x digital zoom, and 2x sensor zoom, the PX-10E is capable of an incredible 288x zoom so you can see every vibrant detail. |
Touch NavigationThe PX-10E comes with an all-new 5” High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control and a zoom toggle wheel with autofocus. |
 |
 |
Multiple OutputsThe PX-10E offers HDMI, VGA, and USB output options for compatibility with a wide array of products. |
Widescreen ModeThe PX-10E comes with a variety of shooting modes including 4:3, widescreen 16:9, and a capture area of up to A4 portrait and A3 landscape. |
 |
