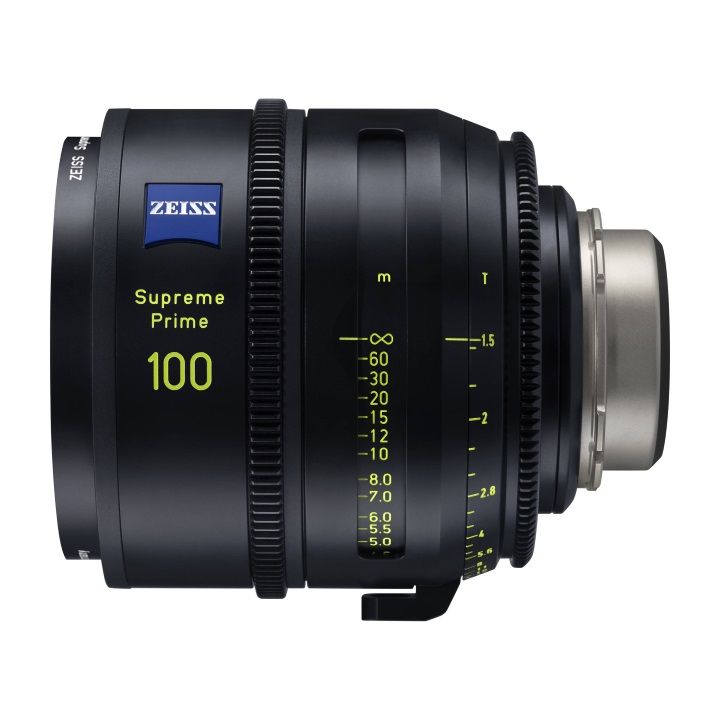

Zeiss Supreme Prime 100mm/T1.5 Feet Cine Lens for PL Mount
- Covers Full-Frame Sensors
- Internal Focus Design
- Minimal Lens Breathing
- 300° Focus Rotation
- 16-Blade Iris
- Industry Standard Focus and Iris Gears
- 95mm Front Diameter
- Interchangeable PL Mount
- Removable Support Foot
- Supports Cooke /i and ZEISS Xtended Data
The ZEISS Supreme Prime 100mm T1.5 lens features an interchangeable PL mount and is marked in feet. The lens produces a a 46.3mm image circle, covering full-frame sensors. The internal focus design provides minimal focus breathing and a non-rotating front. The focus ring rotates 300° from a close focus of 45" to infinity, providing plenty of room for precise focus pulls. The iris is made up of 16 blades arranged to create circular, out-of-focus highlights. Both the focus and iris rings incorporate industry standard 0.8 MOD, 32-pitch drive gears, and the lenses within the Supreme lineup share the same gear positions, making for rapid lens changes.
The lens is fast at T1.5, yet has only a 95mm front diameter. This allows you to use a wide variety of matte boxes from handheld to studio size. The lens features a removable lens support with 3/8"-16 threading, and uses an interchangeable mount system. The PL mount passes metadata and is compatible with both the Cooke /i and the ZEISS Xtended Data systems.
- Covers 46.3mm image circle, which allows you to use the lens with full-frame and Super 35mm sensors
- The lens has been designed to be small, as far as lenses that cover full-frame sensors go, to better match the diminishing size of cameras
- Though the lens is designed to be exceedingly sharp, it features a smooth focus roll-off
- The lens features a precision square helical thread that is smooth and durable
- The focus barrel features 300° of rotation for precise focus pulls
- The lens mounts are interchangeable in the field and communicate with Cooke /i and ZEISS Xtended Data protocols
- The removable lens support foot features an integrated 3/8"-16 female threaded mounting hole
- The lens features a 16-blade iris that forms a circular aperture for round, out-of-focus highlights
- The iris markings on the lens are not linear, providing you more room for precise incremental adjustments when the iris is open on the wide end, as well as making the overall size of the lens smaller
Focal Length | 100mm |
Lens Mount | ARRI PL |
Format | Full Frame |
Image Circle | 46.3 mm |
Maximum T-Stop | T1.5 |
Minimum T-Stop | T22 |
Minimum Focus Distance from Image Plane | 45" / 1.14 m |
Iris Blades | 16 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Tilt: 0.8 MOD / 32 Pitch |
Front Diameter | 95 mm |
Focus Scales | Imperial |
Focus Rotation | 300° |
Electronic Communication | Yes |
Lens Support | Lens Support Foot with 3/8"-16 Mounting Thread |
Length | 4.7" / 11.94 cm |
- ZEISS Supreme Prime 100mm T1.5 (Feet, PL Mount)
- Front Cap
- Rear Cap
