Pentax HD DA 10-17mm f/3.5-4.5 ED Fisheye Lens w/c 23130 | C.R. Kennedy

Pentax HD DA 10-17mm f/3.5-4.5 ED Fisheye Lens w/c

Pentax HD DA 10-17mm f/3.5-4.5 ED Fisheye Lens w/c

$660.00
  IN STOCK
  IN STOCK
PRODUCT ENQUIRY
  • Pentax K Mount
  • 180° Angle of View
  • 15-25.5mm (35mm Equivalent)
  • Minimum Focusing Distance: 5.5'
Brand: Pentax   |    Code: 23130
APN: 027075301252   |    Supplier Code: S0023130


HD Coating to enhance imaging power

After a thorough review of lens coatings, PENTAX applied HD Coating* — PENTAX’s latest multi-layer coating — to the lens. Compared to conventional multi-layer coatings, this high-performance, multi-layer coating reduces average reflectance in the visible light range by more than 50 percent and improves light transmittance, to minimize the adverse effects of flare and ghost images even in demanding lighting conditions such as backlighting. This zoom lens also incorporates an Extra-low Dispersion (ED) glass element to effectively compensate for chromatic aberration for extra-clear, high-contrast images.

* HD is the abbreviation of High Definition.

Shot by conventional smc PENTAX-DA FISH-EYE 10-17mm F3.5-4.5 ED[IF]

Shot by HD PENTAX-DA FISH-EYE10-17mmF3.5-4.5ED

Zoom Range Covering the Fish-eye Angle

When mounted on a PENTAX digital SLR camera body, this zoom lens provides a 180-degree diagonal angle of view in the APS-C format at a focal length of 10mm to deliver eye-catching fish-eye images. Since the angle of view shifts dramatically with a slight change of focal length, the photographer can easily create visual expressions typical of an ultra-wide-angle lens, such as exaggerated perspective, deformed subjects and a pan-focus effect to capture the entire image field in focus.

SP Coating to Repel Stains

SP (Super Protect) Coating, highly repellent to water, grease and dirt, has been applied to the lens’s front surface using a PENTAX-exclusive fluorine deposition process, making it easy to wipe off any stains such as fingerprints. This frees the photographer from worries in outdoor photography.

Other features

  1. Quick-Shift Focus System, to provide instant shift to manual-focus operation after locking the subject in focus during AF operation by pressing the shutter-release button halfway down; usable at any time during AF operation
  2. A minimum focusing distance of 14 centimeters, allowing the photographer to move in as close as approximately 2.5 centimeters from the front end of the lens to the subject, for ultra-close-up photography

Shot by HD PENTAX-DA FISH-EYE 10-17mm F3.5-4.5ED mounting on PENTAX KP

Shot by HD PENTAX-DA FISH-EYE10-17mm F3.5-4.5ED
mounting on PENTAX K-1 Mark II (without hood)

A Versatile Fish-Eye Zoom Lens, Featuring HD Coating and a Removable Lens Hood To Assure a Greater Range of Creative Expression


Based on the smc PENTAX-DA FISH-EYE 10-17mm F3.5-4.5ED[IF], which provided a maximum angle of view of 180 degrees and a distinctive image rendition, this fish-eye zoom lens is designed to deliver sharp, clear images with minimal flare and ghost images against backlight, thanks to a thorough review of all lens coatings and the application of high-grade, multi-layer HD Coating.

This lens features a new exterior design matching those of PENTAX K-series digital SLR cameras and the latest interchangeable lenses, and a removable lens hood. When mounted on a 35mm full-frame PENTAX K-series digital SLR camera, it lets you enjoy eye-catching fish-eye photography with a nearly circular image circle.

Fish-eye zoom with an angle of view between 180°and 100°

An angle of view of 180° (at focal length of 10 mm) opens up a world far beyond the human senses. With this lens, you can enjoy distinctive landscapes or starry sky pictures allowing you to take advantage of the image distortion that is unique to a fisheye lens. Further expression can also be achieved by approaching the subject and taking advantage of the distortion effect. Additionally the fish-eye effect can be control using the zoom, when the telephoto end turns to be a super wide-angle lens.

Compact and lightweight design lens optimized for PENTAX APS-C format

The lens is exclusively designed for PENTAX APS-C format, resulting in a compact and lightweight design fish-eye lens of a mere 323g. The excellent portability makes it easy to carry.

Demountable hood and new exterior design to match the latest camera body.

By adopting a demountable bayonet hood it is possible to shoot a nearly round fish-eye image using a full-frame K-series DSLR. The lens is designed to match the latest PENTAX DSLR cameras which is in line with the latest DA and D FA lens.

Uses the latest multi coating technology, “HD coating”, which reduces ghost and flare.

This lens delivers a high-resolution, high-contrast image that is sharp and clear even at the edges. Even under harsh conditions with a strong light source, HD Coating effectively reduces ghost and flare to minimum, compared to conventional multi-layer coatings.

PENTAX’s original “SP coating” for easy maintenance

In many of the PENTAX lenses, the front surface of the first optical element is treated with SP Coating, a high-strength fluorine coating which effectively protects the lens. Highly repellent to water and grease, it not only prevents adhesion of dust, water drops and oils, but also makes it easy to wipe away foreign objects from the lens surface.

ED glass and inner focusing for a high-performance optical system

Extra-low Dispersion (ED) glass is used for providing superior correction for chromatic aberration which reduces imaging performance. This enables high-quality imaging performance without blurring of colors at the edges. Combined with the inner focus system, the lens provides a high image quality in a compact, lightweight design.

Quick-Shift Focus System for seamless switching from auto focus (AF) to manual focus (MF)

When in-focus using AF, turning the focus ring immediately switches to manual focus. This eliminates the need for switching from AF to MF allowing for smooth focusing.

New Exterior Design and Removable Lens Hood


The exterior features a wrinkle-finished surface, with meticulous attention paid to every detail. This totally redesigned body makes it a perfect match with the latest camera bodies and other lenses.



Focal Length

10 to 17mm (35mm Equivalent Focal Length: 15 to 25.5mm)

Maximum Aperture

f/3.5 to 4.5

Minimum Aperture

f/22 to 32

Lens Mount

Pentax K

Format Compatibility

APS-C

Angle of View

100° to 180°

Maximum Magnification

0.39x

Minimum Focus Distance

5.51" / 14 cm

Optical Design

10 Elements in 8 Groups

Diaphragm Blades

6, Rounded

Focus Type

Autofocus

Image Stabilization

None

Filter Size

None

Dimensions (ø x L)

2.66 x 2.76" / 67.5 x 70 mm

Weight

11.18 oz / 317 g

  • Pentax HD DA Fisheye 10-17mm f/3.5-4.5 ED Lens

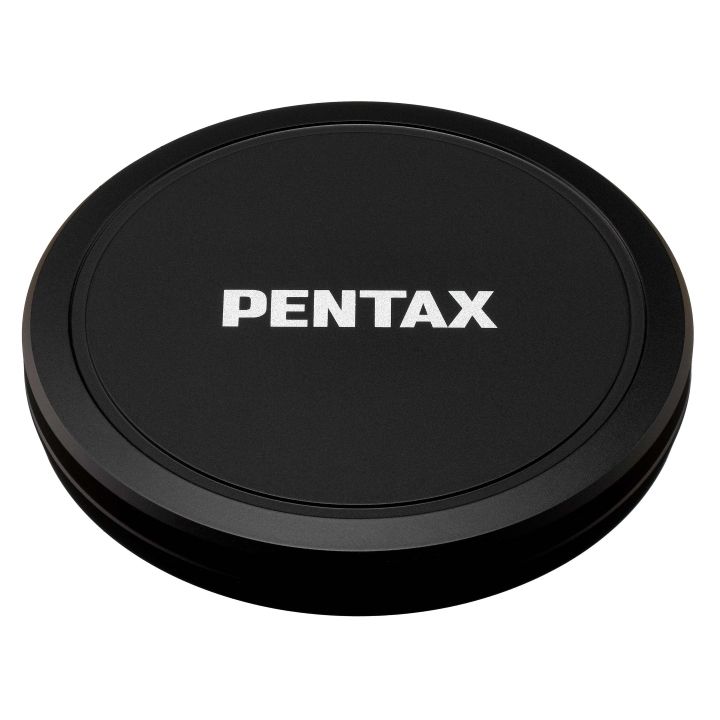

  • Front Lens Cap
  • Rear Lens Cap

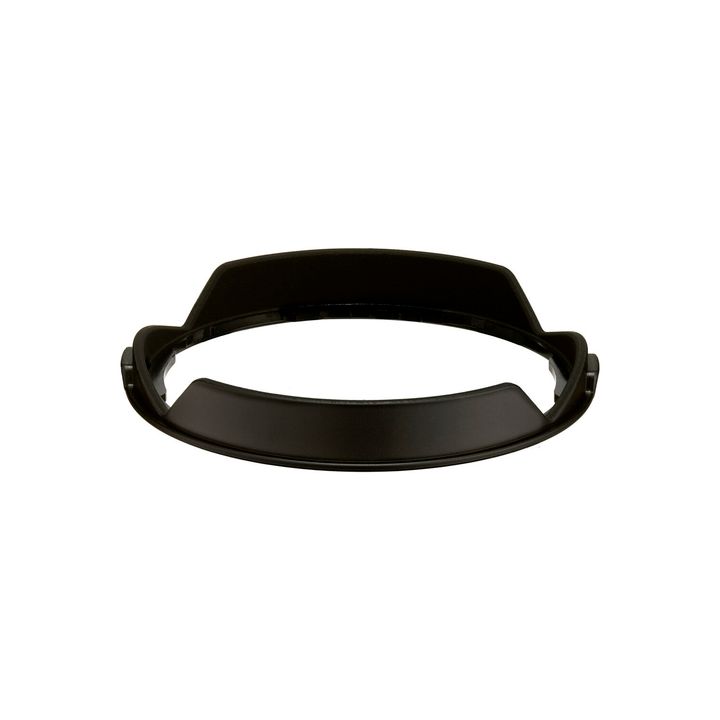

  • PH-RBA60 Lens Hood
  • Pentax Lens Case S80-120 (Soft)
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

OVERVIEW

A Versatile Fish-Eye Zoom Lens, Featuring HD Coating and a Removable Lens Hood To Assure a Greater Range of Creative Expression


Based on the smc PENTAX-DA FISH-EYE 10-17mm F3.5-4.5ED[IF], which provided a maximum angle of view of 180 degrees and a distinctive image rendition, this fish-eye zoom lens is designed to deliver sharp, clear images with minimal flare and ghost images against backlight, thanks to a thorough review of all lens coatings and the application of high-grade, multi-layer HD Coating.

This lens features a new exterior design matching those of PENTAX K-series digital SLR cameras and the latest interchangeable lenses, and a removable lens hood. When mounted on a 35mm full-frame PENTAX K-series digital SLR camera, it lets you enjoy eye-catching fish-eye photography with a nearly circular image circle.

Fish-eye zoom with an angle of view between 180°and 100°

An angle of view of 180° (at focal length of 10 mm) opens up a world far beyond the human senses. With this lens, you can enjoy distinctive landscapes or starry sky pictures allowing you to take advantage of the image distortion that is unique to a fisheye lens. Further expression can also be achieved by approaching the subject and taking advantage of the distortion effect. Additionally the fish-eye effect can be control using the zoom, when the telephoto end turns to be a super wide-angle lens.

Compact and lightweight design lens optimized for PENTAX APS-C format

The lens is exclusively designed for PENTAX APS-C format, resulting in a compact and lightweight design fish-eye lens of a mere 323g. The excellent portability makes it easy to carry.

Demountable hood and new exterior design to match the latest camera body.

By adopting a demountable bayonet hood it is possible to shoot a nearly round fish-eye image using a full-frame K-series DSLR. The lens is designed to match the latest PENTAX DSLR cameras which is in line with the latest DA and D FA lens.

Uses the latest multi coating technology, “HD coating”, which reduces ghost and flare.

This lens delivers a high-resolution, high-contrast image that is sharp and clear even at the edges. Even under harsh conditions with a strong light source, HD Coating effectively reduces ghost and flare to minimum, compared to conventional multi-layer coatings.

PENTAX’s original “SP coating” for easy maintenance

In many of the PENTAX lenses, the front surface of the first optical element is treated with SP Coating, a high-strength fluorine coating which effectively protects the lens. Highly repellent to water and grease, it not only prevents adhesion of dust, water drops and oils, but also makes it easy to wipe away foreign objects from the lens surface.

ED glass and inner focusing for a high-performance optical system

Extra-low Dispersion (ED) glass is used for providing superior correction for chromatic aberration which reduces imaging performance. This enables high-quality imaging performance without blurring of colors at the edges. Combined with the inner focus system, the lens provides a high image quality in a compact, lightweight design.

Quick-Shift Focus System for seamless switching from auto focus (AF) to manual focus (MF)

When in-focus using AF, turning the focus ring immediately switches to manual focus. This eliminates the need for switching from AF to MF allowing for smooth focusing.

New Exterior Design and Removable Lens Hood


The exterior features a wrinkle-finished surface, with meticulous attention paid to every detail. This totally redesigned body makes it a perfect match with the latest camera bodies and other lenses.



FEATURES


HD Coating to enhance imaging power

After a thorough review of lens coatings, PENTAX applied HD Coating* — PENTAX’s latest multi-layer coating — to the lens. Compared to conventional multi-layer coatings, this high-performance, multi-layer coating reduces average reflectance in the visible light range by more than 50 percent and improves light transmittance, to minimize the adverse effects of flare and ghost images even in demanding lighting conditions such as backlighting. This zoom lens also incorporates an Extra-low Dispersion (ED) glass element to effectively compensate for chromatic aberration for extra-clear, high-contrast images.

* HD is the abbreviation of High Definition.

Shot by conventional smc PENTAX-DA FISH-EYE 10-17mm F3.5-4.5 ED[IF]

Shot by HD PENTAX-DA FISH-EYE10-17mmF3.5-4.5ED

Zoom Range Covering the Fish-eye Angle

When mounted on a PENTAX digital SLR camera body, this zoom lens provides a 180-degree diagonal angle of view in the APS-C format at a focal length of 10mm to deliver eye-catching fish-eye images. Since the angle of view shifts dramatically with a slight change of focal length, the photographer can easily create visual expressions typical of an ultra-wide-angle lens, such as exaggerated perspective, deformed subjects and a pan-focus effect to capture the entire image field in focus.

SP Coating to Repel Stains

SP (Super Protect) Coating, highly repellent to water, grease and dirt, has been applied to the lens’s front surface using a PENTAX-exclusive fluorine deposition process, making it easy to wipe off any stains such as fingerprints. This frees the photographer from worries in outdoor photography.

Other features

  1. Quick-Shift Focus System, to provide instant shift to manual-focus operation after locking the subject in focus during AF operation by pressing the shutter-release button halfway down; usable at any time during AF operation
  2. A minimum focusing distance of 14 centimeters, allowing the photographer to move in as close as approximately 2.5 centimeters from the front end of the lens to the subject, for ultra-close-up photography

Shot by HD PENTAX-DA FISH-EYE 10-17mm F3.5-4.5ED mounting on PENTAX KP

Shot by HD PENTAX-DA FISH-EYE10-17mm F3.5-4.5ED
mounting on PENTAX K-1 Mark II (without hood)

SPECIFICATIONS

Focal Length

10 to 17mm (35mm Equivalent Focal Length: 15 to 25.5mm)

Maximum Aperture

f/3.5 to 4.5

Minimum Aperture

f/22 to 32

Lens Mount

Pentax K

Format Compatibility

APS-C

Angle of View

100° to 180°

Maximum Magnification

0.39x

Minimum Focus Distance

5.51" / 14 cm

Optical Design

10 Elements in 8 Groups

Diaphragm Blades

6, Rounded

Focus Type

Autofocus

Image Stabilization

None

Filter Size

None

Dimensions (ø x L)

2.66 x 2.76" / 67.5 x 70 mm

Weight

11.18 oz / 317 g

IN THE BOX

  • Pentax HD DA Fisheye 10-17mm f/3.5-4.5 ED Lens
  • Front Lens Cap
  • Rear Lens Cap
  • PH-RBA60 Lens Hood
  • Pentax Lens Case S80-120 (Soft)
