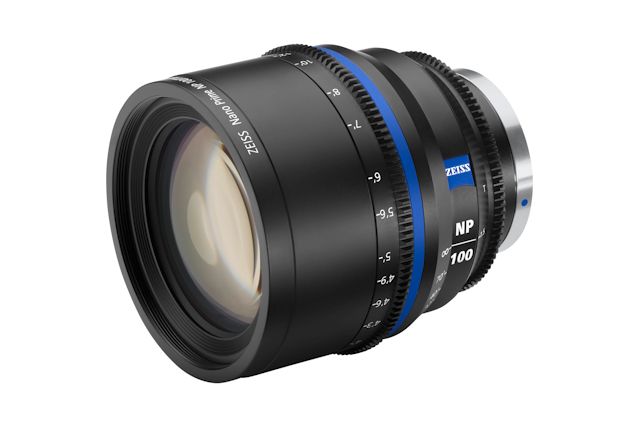

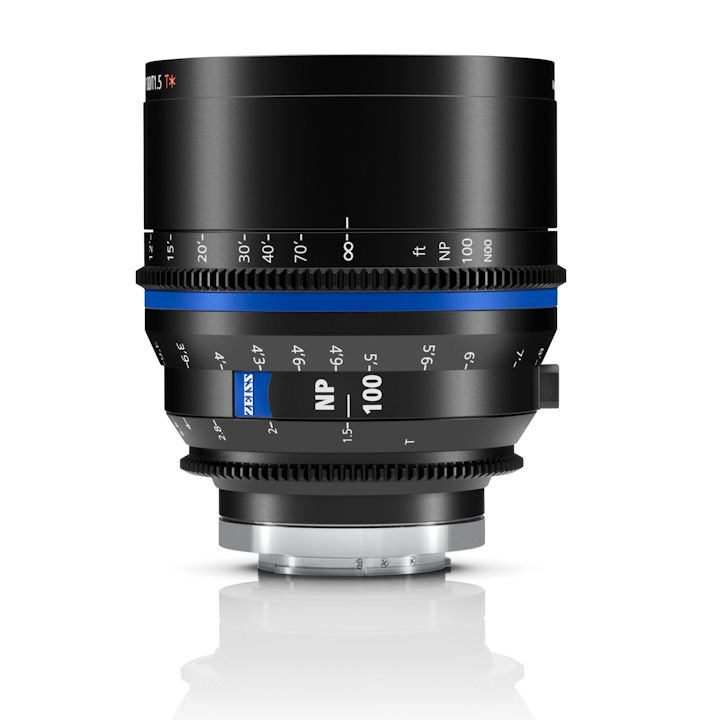

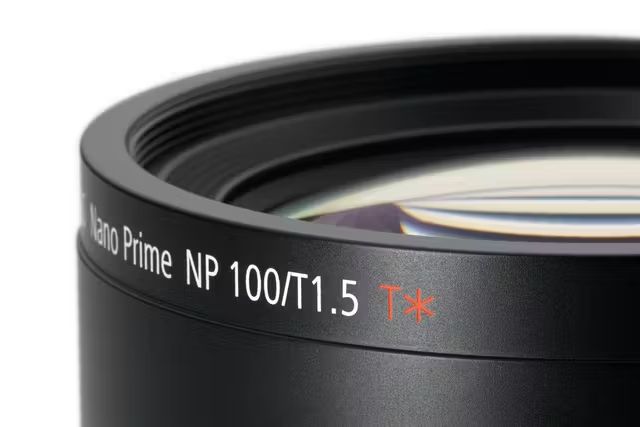

Zeiss Nano 100/T1.5 E-mount Feet

Loading
  • Zeiss Nano 100/T1.5 E-mount Feet

  • Covers Full-Frame Sensors
  • T1.5 to T16 Aperture Range
  • 12-Blade Rounded Iris
  • Native Lens Data Communication
  • ZEISS eXtended Data
  • 95mm Front Diameter
  • 3.3' Minimum Focus Distance
  • Lens Scale Marked in Feet

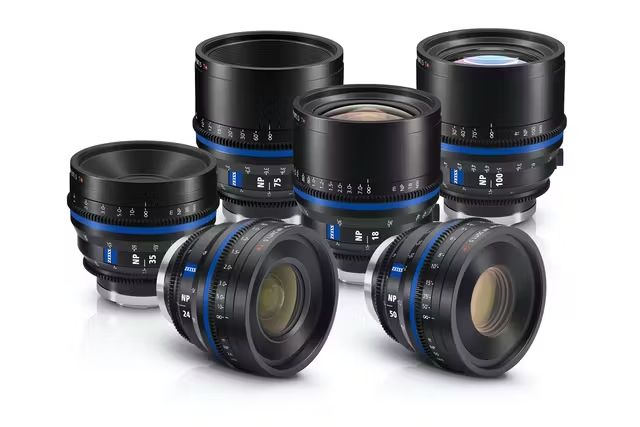

Comprehensive Focal Range

With a focal range containing 18mm, 24mm, 35mm, 50mm, 75mm, 100mm, Nano Primes ensure all-encompassing angle of views from wide-angle to tele, making them the go-to choice for diverse cinematic needs.

Covering Cinematic Full Frame

Full frame sensors amplify visual depth and character. Nano Primes cover these bigger sensors, empowering all cinematographers, no matter if up-and-coming or seasoned, to craft images rich in volume and personality.

Cinematic Look in Every Shot

The Nano Primes' high speed combined with their close focus capability delivers captivating shallow depth-of-field, even with wide-angle shots. The maximum aperture of T1.5 and the rounded 12-blade iris produce an elegant bokeh, enabling the creation of true cinematic images. Offering a versatile and gentle sharpness akin to Supreme Primes, they're ideal for B-Cam and C-Cam or as a budget-friendly alternative.

Full Cine Ergonomics in a Small Package

Nano Primes excel in precision and durability. Featuring a compact design with a 95mm front diameter and an 86mm screw-in filter thread, they seamlessly integrate with gimbals and drones. The consistent position of focus and iris rings streamlines lens changes while offering easy-to-read calibrated scales, a smooth 280° focus rotation, and a 90° iris ring rotation for precise control.

Tested for Harsh Conditions

Certified for extreme conditions—cold, rain, and more—Nano Primes undergo rigorous testing, ensuring unmatched durability in the toughest filming environments. Nano Primes are the go-to lenses for everyday.

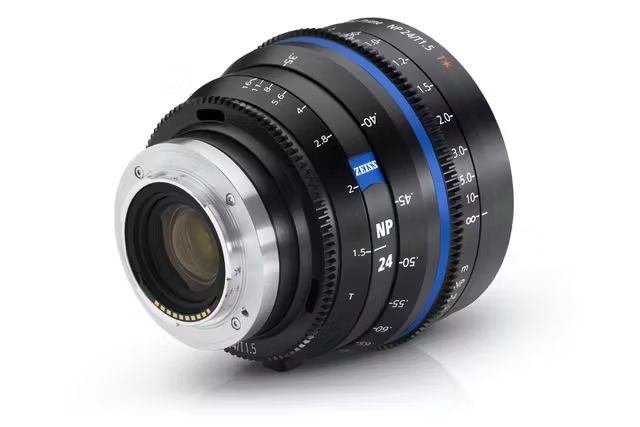

Interchangeable mount

The Nano Primes are ready for the easy exchange of additional mounts thanks to the proven ZEISS IMS (Interchangeable Mount System). With a user-adjustable back focus via shims, the lenses ensure precise scales even with entry-level cameras for which mount mechanics normally have higher tolerances.

Electronic Interface for Real-Time Lens Data

Thanks to the integrated electronic interface on the mount, the Nano Primes transmit real-time metadata such as focal length, focus distance and aperture to the camera. Further lens data for distortion and vignetting ist available in the ZEISS CinCraft ecosystem and thus for post-production (CinCraft Mapper) as well as in the recently introduced CinCraft Scenario camera tracking system.

Precision Manufacturing & Worldwide Service

ZEISS Nano Prime lenses are assembled by hand and engraved with individually calibrated scales. Serviceability is a top priority starting in the initial stages of the development process. ZEISS has built up a global service network in the recent years with authorized service stations offering service according to factory standards in the US, Europe and Asia.

Focal Length

100mm

Maximum Aperture

T1.5

Lens Mount

Sony E

Lens Format Coverage

Full Frame
Super35/APS-C

Filter Thread

86 mm x 1.0

Image Stabilization

No

Electronic Communication

Yes

Maximum Aperture

T1.5

Minimum Aperture

T16

Lens Mount

Sony E

Interchangeable Mount

Yes

Lens Format Coverage

Full Frame
Super35/APS-C

Image Circle

Not Specified by Manufacturer

Angle of View

Full Frame
Horizontal: 20.7°

Focus Scales

Imperial

Filter Thread

86 mm x 1.0

Minimum Focus Distance

From Camera Sensor: 3.3' / 1 m

Diaphragm Blades

12, Rounded

Image Stabilization

No

Gear Standard

Not Specified by Manufacturer

Gear Rotation

Iris 90°
Focus 280°

Electronic Communication

Yes

Coatings

Multi-Coating

Diameter

Front: 3.7" / 95 mm
Focus Ring: 3.9" / 100 mm
Iris Ring: 3.1" / 80 mm

Length

4.4" / 112 mm

Weight

2.9 lb / 1.3 kg
