Kenko 67mm ZXII Protector Filter

Kenko 67mm ZXII Protector Filter

$121.00
CHOOSE OPTIONS
  DUE: 27/01/2022
  DUE: 27/01/2022
PRODUCT ENQUIRY

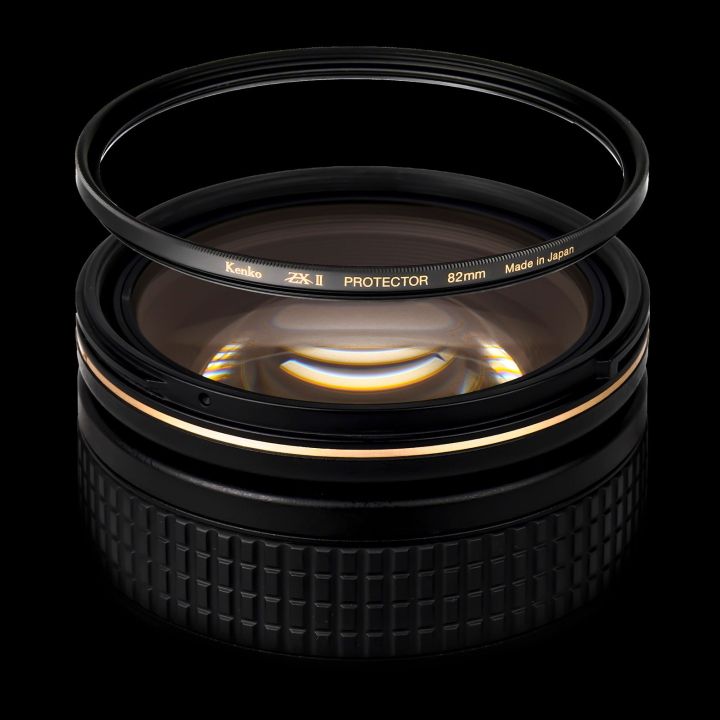

The ultimate lens protection filter which equipped with Kenko's 'floating frame' system technology, allowing for higher resolutions. Compatible with 4K and 8K.
Brand: Kenko   |    Code: 351808
APN: 4961607518083   |    Supplier Code: 351808 Supplier Description: Kenko ZXII PROTECTOR 67mm

Kenko ZXII PROTECTOR is ultimate lens protection filter which equipped with Kenko's 'Floating Frame' System Technology. This technology removes the pressure off the filter glass by an special elastic buffer, allowing for higher resolutions. This filter is compatible with 4K and 8K cameras.

The 'ZR01 coating' used in the ZXII filter series reduces the surface reflection of glass to 0.1% and achieves ultra-low reflection. This reduces the flares and ghosting that can occur when the filter is attached to a lens, and has little effect on the lens's original performance.

Also, The water and oil repellent coating makes it easy to wipe off dirt. You can take photos without stress when it rains.

EQUIPPED WITH KENKO 'FLOATING FRAME' SYSTEM TECHNOLOGY FOR ULTRA HIGH-RESOLUTION

WHAT IS KENKO 'FLOATING FRAME' SYSTEM?

Traditional technology of fixing glass elements inside filter frames through hard pressing methods or retaining rings may occasionally cause very slight glass distortions, which can affect resolution performance. Kenko's research shows that the larger the glass element, the greater the glass distortion. We developed a new special technology that aims to minimize stress on the glass and provide the best optical performance of the filter.

By adopting the newly developed 'Floating Frame' System Technology, which provides a special elastic cushion layer between the glass and frame, we succeeded in firmly fixing glass while reducing the pressure to a minimum level. The glass element remains flat, not distorted or twisted inside the frame. We achieved sensational results in resolution performance of the filter that provides the photographer great advantages especially when a 4K or 8K camera is used.


THE COMPARISON OF SURFACE ACCURACY

Filters were positioned on glass according to the Newton Standard, which is a flat surface with an allowable margin of error ±0.1μ, and Newton rings were checked. Flatness of the glass is evaluated by the number and form of Newton rings. On the left image there are lots of irregularly-shaped rings, showing the glass surface distorted and twisted. The image on the right shows almost no rings indicating extreme flatness of the ZXII filter.


0.1% SURFACE REFLECTION THROUGH THE ZR01 COATING

The 'ZR01 coating' used in the ZXII filter series reduces the surface reflection of glass to 0.1% and achieves ultra-low reflection. This reduces the flares and ghosting that can occur when the filter is attached to a lens.


THE COMPARISON OF GHOSTING




HIGHLY TRANSPARENT OPTICAL GLASS

WATER & OIL REPELLENT COATING

BLACK RIMMED GLASS: MINIMIZES REFLECTIONS INSIDE THE FRAME

ULTRA-THIN FRAME: MINIMIZES VIGNETTING EVEN WITH WIDE-ANGLE LENSES

KNURLING FRAME: EASY AND STRESS-FREE REMOVAL

MOUNTING SCREW LUBRICATION PROCESSING: SMOOTHLY ATTACH FILTER TO LENS

UV RAYS BLOCKING FILTER CASE

Category Filters
Model Kenko ZXII PROTECTOR
Series ZXII
Type PROTECTOR
Available Sizes, mm 49, 52, 55, 58, 62, 67, 72, 77, 82
Water-Repellent Coating Yes
Frame Material Aluminum
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

OVERVIEW

HIGHLY TRANSPARENT OPTICAL GLASS

WATER & OIL REPELLENT COATING

BLACK RIMMED GLASS: MINIMIZES REFLECTIONS INSIDE THE FRAME

ULTRA-THIN FRAME: MINIMIZES VIGNETTING EVEN WITH WIDE-ANGLE LENSES

KNURLING FRAME: EASY AND STRESS-FREE REMOVAL

MOUNTING SCREW LUBRICATION PROCESSING: SMOOTHLY ATTACH FILTER TO LENS

UV RAYS BLOCKING FILTER CASE

FEATURES

Kenko ZXII PROTECTOR is ultimate lens protection filter which equipped with Kenko's 'Floating Frame' System Technology. This technology removes the pressure off the filter glass by an special elastic buffer, allowing for higher resolutions. This filter is compatible with 4K and 8K cameras.

The 'ZR01 coating' used in the ZXII filter series reduces the surface reflection of glass to 0.1% and achieves ultra-low reflection. This reduces the flares and ghosting that can occur when the filter is attached to a lens, and has little effect on the lens's original performance.

Also, The water and oil repellent coating makes it easy to wipe off dirt. You can take photos without stress when it rains.

EQUIPPED WITH KENKO 'FLOATING FRAME' SYSTEM TECHNOLOGY FOR ULTRA HIGH-RESOLUTION

WHAT IS KENKO 'FLOATING FRAME' SYSTEM?

Traditional technology of fixing glass elements inside filter frames through hard pressing methods or retaining rings may occasionally cause very slight glass distortions, which can affect resolution performance. Kenko's research shows that the larger the glass element, the greater the glass distortion. We developed a new special technology that aims to minimize stress on the glass and provide the best optical performance of the filter.

By adopting the newly developed 'Floating Frame' System Technology, which provides a special elastic cushion layer between the glass and frame, we succeeded in firmly fixing glass while reducing the pressure to a minimum level. The glass element remains flat, not distorted or twisted inside the frame. We achieved sensational results in resolution performance of the filter that provides the photographer great advantages especially when a 4K or 8K camera is used.


THE COMPARISON OF SURFACE ACCURACY

Filters were positioned on glass according to the Newton Standard, which is a flat surface with an allowable margin of error ±0.1μ, and Newton rings were checked. Flatness of the glass is evaluated by the number and form of Newton rings. On the left image there are lots of irregularly-shaped rings, showing the glass surface distorted and twisted. The image on the right shows almost no rings indicating extreme flatness of the ZXII filter.


0.1% SURFACE REFLECTION THROUGH THE ZR01 COATING

The 'ZR01 coating' used in the ZXII filter series reduces the surface reflection of glass to 0.1% and achieves ultra-low reflection. This reduces the flares and ghosting that can occur when the filter is attached to a lens.


THE COMPARISON OF GHOSTING




SPECIFICATIONS

Category Filters
Model Kenko ZXII PROTECTOR
Series ZXII
Type PROTECTOR
Available Sizes, mm 49, 52, 55, 58, 62, 67, 72, 77, 82
Water-Repellent Coating Yes
Frame Material Aluminum
