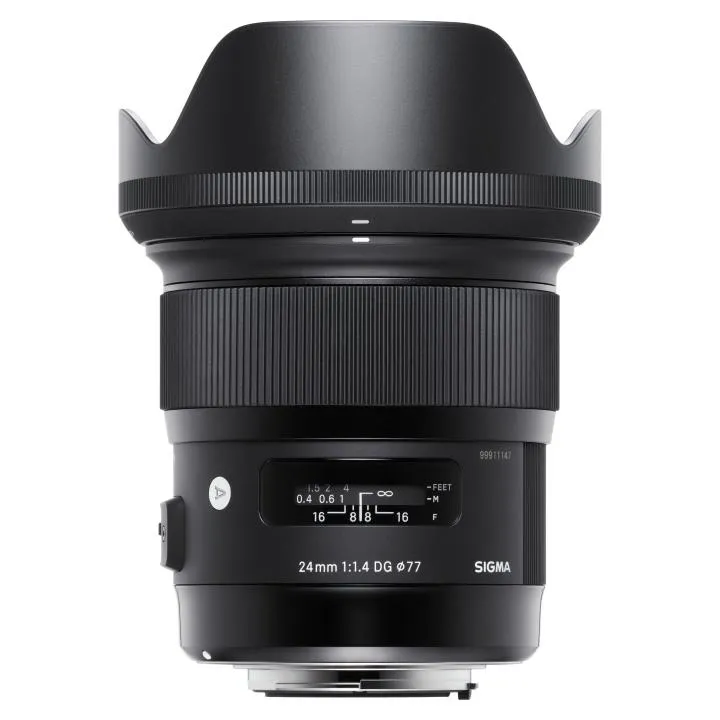

Sigma 24mm f/1.4 DG HSM Art Lens for Nikon

An all-new Art line lens featuring F1.4 brightness. Best-in-class optical performance ideal for nightscapes and cityscapes.

An all-new wide-angle lens in SIGMA’s iconic Art line featuring F1.4 brightness.

The Sigma 24mm 1.4 DG HSM Art is a state of the art wide-angle prime lens designed for Full Frame cameras but will work with APS-C sensors as well. Using over 50 years of lens making experience, particularly the knowledge gained from the 35mm 1.4 Art and the 50mm 1.4 Art, the 24mm 1.4 Art is aimed at being the new standard for fast aperture wide angle prime lenses. The latest optical design allows for the utmost in image quality with careful attention paid to edge to edge performance. An optimized power layout places the aspherical lens elements in the rear and adjusts the incidence angle of light source allowing for great performance wide open. Using premium FLD & SLD glass elements, the lens brings aberrations and distortion to a minimum, an issue many wide-angle lenses suffer from. With class leading performance, this lens is ideal for wedding photography, landscape photography, videography, astrophotography, lowlight/indoor photography and event photography. As with all Global Vision lines, the 24mm will be tested using the proprietary “A1” measuring system ensuring the highest standard of operation. The Sigma 24mm Art is compatible with the USB dock to update and customize and is also compatible with the Mount Conversion Service. A staple procedure for the Global Vision lines, every lens will be tested using the proprietary “A1” measuring system.

Offering best-in-class optical performance, this lens is designed to minimize aberrations for images virtually free of streaking and warping.

SIGMA has a proven reputation for wide-angle lens design and manufacturing. Drawing on this experience and design know-how, refined through development of the SIGMA 35mm F1.4 DG HSM | Art and 50mm F1.4 DG HSM | Art in our Art line, we have successfully minimized sagittal coma flare, chromatic aberration, distortion, and vignetting to achieve exceptional levels of optical performance with almost no aberration or distortion. This lens provides the best possible performance when photographing a variety of subjects from cityscapes, mountain ranges, and the star-filled night sky to indoor photography with low illumination or scenes that require a smooth bokeh effect. Enjoy the astonishing optical performance of the new F1.4 series that has just joined SIGMA’s iconic Art line.

Art line delivers high-level artistic expression.

SIGMA is organizing all its interchangeable lenses into three product lines; Contemporary, Art, and Sports, where each line has a distinctive concept. Designed with a focus on sophisticated optical performance and abundant expressive power, our Art line delivers high-level artistic expression. With the astonishing rendering performance that meets the highest standard, along with landscapes, portraits, still-life, close-ups, and casual snaps, they are perfect for the kind of photography that unleashes the inner artist. Ideal for studio photography, they offer just as much expressive scope when capturing architecture and starry skies and many other scenes.

SIGMA expertise and leading-edge manufacturing technologies deliver breathtaking optical performance.

Minimizing the optical aberrations that tend to affect large-diameter lenses
makes possible a new horizon of image quality.

This lens features minimized aberration achieved through the latest design technology and know-how that has been accumulated by SIGMA in its lens development over many years and offers astonishing rendering performance, even at the edges, with ultra-high resolution. Whilst featuring higher resolution around the focus point, the lens offers a smooth and natural bokeh effect. Both high definition rendering without chromatic aberration and natural bokeh expression are possible, even at maximum aperture.

Leveraging our optical expertise, we have minimized sagittal coma flare for optimal capture of starry nightscapes.

Sagittal coma flare is the aberration in which a point light source appears as a streak instead of a point, and it affects large-diameter lenses in particular. By positioning aspherical lens elements toward the rear of the 24mm F1.4 DG HSM | Art, we have adjusted the angle of incidence of light for optimal power distribution. Even at wide-open aperture, you will enjoy outstanding image quality. Since streaking of point light sources toward the edges of the image is minimized, this lens is a powerful ally in photographing celestial bodies, nighttime illumination, and more.

Minimized chromatic aberrations—thanks to FLD and SLD glass lenses.

One of the requirements of high rendering performance is the correction of chromatic aberration. Particularly, for axial chromatic aberration, which is challenging to correct even during image processing, the lens development stage is vital in ensuring minimized distortion. The 24mm F1.4 DG HSM | Art incorporates FLD (“F” Low Dispersion)* glass and SLD (Special Low Dispersion) glass elements to minimize chromatic aberration of magnification, which is mainly visible around the edge of the image. Moreover, the power distribution ensures the correction of axial chromatic aberration. The result is high image quality throughout the entire focusing range—sharp and high-contrast image rendering without color blur.

*FLD glass is ultra-low-dispersion glass that offers performance of the highest level. Highly transparent, its refractive index and dispersion are extremely low as compared to conventional types of glass. It offers characteristics very similar to those of fluorite, which is valued for its anomalous dispersion. These characteristics minimize residual chromatic aberration (secondary spectrum), which cannot be corrected by ordinary optical glass, while helping to produce sharp, high-contrast images.

High-contrast images with bright edges—even at wide-open aperture.

Improving efficiency at large apertures and minimizing vignetting, we have designed the lens to secure very good brightness. Even at open aperture, it ensures high-contrast images for indoor photography, astronomical photography, and when photographing blue sky.

From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. SIGMA’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions. The included lens hood can be attached to block out extraneous light, which can have a negative effect on rendering performance.

Exclusive low-dispersion glass

The degree to which light is refracted by glass depends on the light's wavelength. This fact causes different colors of light to focus at slightly different points. The result is chromatic aberration, the color fringing that is particularly noticeable in telephoto lenses. Most chromatic aberration can be removed by combining a high-refractivity convex lens element with a low-refractivity concave element. Yet residual chromatic aberration known as “secondary spectrum” may still remain. To minimize this secondary spectrum, which can be a serious issue with conventional lenses, SIGMA lenses feature up to three types of exclusive low-dispersion glass offering superior performance: ELD (Extraordinary Low Dispersion), SLD (Special Low Dispersion) and FLD (“F” Low Dispersion). In particular, FLD glass offers ultra-low dispersion in combination with high transmittance and the anomalous dispersion characteristics of fluorite. Meticulous deployment of these types of exclusive low-dispersion glass and optimization of power distribution gives SIGMA lenses superlative image rendition undiminished by residual chromatic aberration.

Minimized distortion.

It is not possible to compensate for distortion that is often observed with wide-angle lenses just by changing the aperture value. Therefore, the lens development stage is vital in ensuring minimized distortion. The SIGMA 24mm F1.4 DG HSM | Art features an adjusted incidence angle of the light source from the surface of the first lens and aspherical glass elements to optimize the power layout at respective positions. This has helped minimize distortion throughout the entire image.

  The finest in materials, usability and functionality.

A refined, integrated design made with the photographer in mind.

All lenses in SIGMA’s new Art line come with a hood with a high-quality rubberized connector and feature a newly designed lens cap and AF/MF switch, and are designed for intuitive use and superior functionality. Inside, HSM (hypersonic motor) delivers high AF speed and extremely quiet performance. An enhanced algorithm offers even smoother automatic focusing. Full-time manual focus override is another key feature that leaves the artistic touches in the photographer’s hands. The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens. In both the external and internal parts, the optimized use of TSC (Thermally Stable Composite), an excellent match for metal parts, further contributes to the high-precision construction of the lens. In addition, the last three digits of the year the lens was offered for sale are engraved on the barrel for ease of reference.

HSM (Hyper Sonic Motor)

HSM (Hyper Sonic Motor) delivers high AF speed and extremely quiet performance. SIGMA’s latest AF algorithm makes possible even smoother automatic focusing. After AF has done its job, fulltime MF (manual focus) allows you to make fine adjustments to focus simply by turning the focus ring. Using the SIGMA USB DOCK (sold separately) allows you to access the MO (manual override) function, which allows you to manually focus at any time during AF by turning the focus ring.

TSC (Thermally Stable Composite)

Conventionally it is considered essential to leverage the qualities of metal and polycarbonate in camera and lens layout design. A first for the industry, the barrel of the new series of SIGMA lenses features a new TSC (Thermally Stable Composite)* that offers minimal thermal shrinkage combined with exceptional hardness. It also offers 25% greater elasticity than polycarbonate. Since its thermal shrinkage is low, TSC matches well with metal parts, further contributing to the high-precision construction of the lens.

*TSC (Thermally Stable Composite) offers thermal expansion characteristics similar to those of aluminum. Parts made with TSC deform less, making possible lens construction of extremely high precision. As compared to polycarbonate containing 20% glass, a commonly used material, TSC offers approximately 70% higher elasticity. As compared to polycarbonate containing 30% glass, it offers 25% higher elasticity. (Comparison is between SIGMA-produced components.)

New product lines from SGV concepts are setting new benchmarks for image quality.

Superior functionality across the lineup, thanks to SIGMA’s proprietary new A1 MTF measuring system.

There are three requirements for outstanding lenses: fine design, precise manufacturing and inspection that ensures compliance with all specifications. SIGMA lenses are born of well-thought-out design concepts and sophisticated, advanced Japanese manufacturing technology; the final clincher is our lens performance evaluation. We used to measure lens performance using conventional sensors. However, we've now developed our own A1* proprietary MTF (modulation transfer function) measuring system using 46-megapixel Foveon direct image sensors. Applying this system, we check each lens in our new lines at our Aizu factory, our sole production site. Even previously undetectable high-frequency details are now within the scope of our quality control inspections, allowing us to deliver consistently high lens performance.

*A1：Aizu １

46-megapixel Foveon direct image sensor

The 46 effective megapixel (4,800 × 3,200 × 3 layers) and 44 recording megapixel (4,704 × 3,136 × 3 layers) 23.5 × 15.7mm APS-C X3 direct image sensor captures all primary RGB colors at each and every pixel location, ensuring the capture of full and complete color. Using three silicon-embedded layers of photo detectors, stacked vertically to take advantage of silicon's ability to absorb red, green and blue light at different respective depths, it efficiently reproduces color more accurately, and offers sharper resolution, pixel for pixel, than any conventional image sensor. Since color moiré is not generated, the use of a low-pass filter is not required, meaning light and color, generated by the 46-megapixel APS-C X3 direct image sensor is captured with a three-dimensional feel.


Ultra-high precision and quality—all made in Japan

All SIGMA's manufacturing – right down to the molds and parts – is carried out under an integrated production system, entirely in Japan. We are now one of the very few manufacturers whose products are solely "made in Japan". We like to think our products are somehow imbued with the essence of our homeland, blessed as it is with clean air and water, and focused hard-working people. We pride ourselves on the authentic quality of SIGMA products, born of a marriage between highly attuned expertise and intelligent, advanced technology. Our sophisticated products have satisfied professionals and lovers of photography all over the world, because our manufacturing is based on genuine craftsmanship, underpinned by the passion and pride of our experts.

Customization and flexible adjustment for convenience or a specific purpose is possible.

SIGMA USB DOCK and exclusive software make customization possible.

For our new product lines, we have developed exclusive SIGMA Optimization Pro software that allows the user to update the lens firmware and adjust the focus position and other parameters. The user will be able to connect the lens to a computer with a special SIGMA USB DOCK and use easy-to-operate on-screen controls to create personal lens specifications.

Performanc Data

What's in the box:

• Sigma 24mm F1.4 DG HSM Art Lens
• Case
• Front Cap LCR III 77mm
• Rear Cap LCR II
• Pental Type Lens Hood LH830-03
